DP-DMX4B

USER

INSTRUCTIONS

Thank you for purchasing the DP-DMX4B by Elation Professional For your convenience, this DP-®.

DMX4B has been tested and is ready to be used, there is no assembly required.

PRODUCT DESCRIPTIONS:

The DP-DMX4B is a 4 channel DMX dimmer pack, it can extend to a maximum of 512 channels

using DMX-512 protocol. The DP-DMX4B features include: zero-crossing circuitry for protection of

inductive loads; 3-prong Edison sockets for each channel; individual 6A fuses for each channel; XLR

connection and a maximum output load of 5A per channel or 20A total.

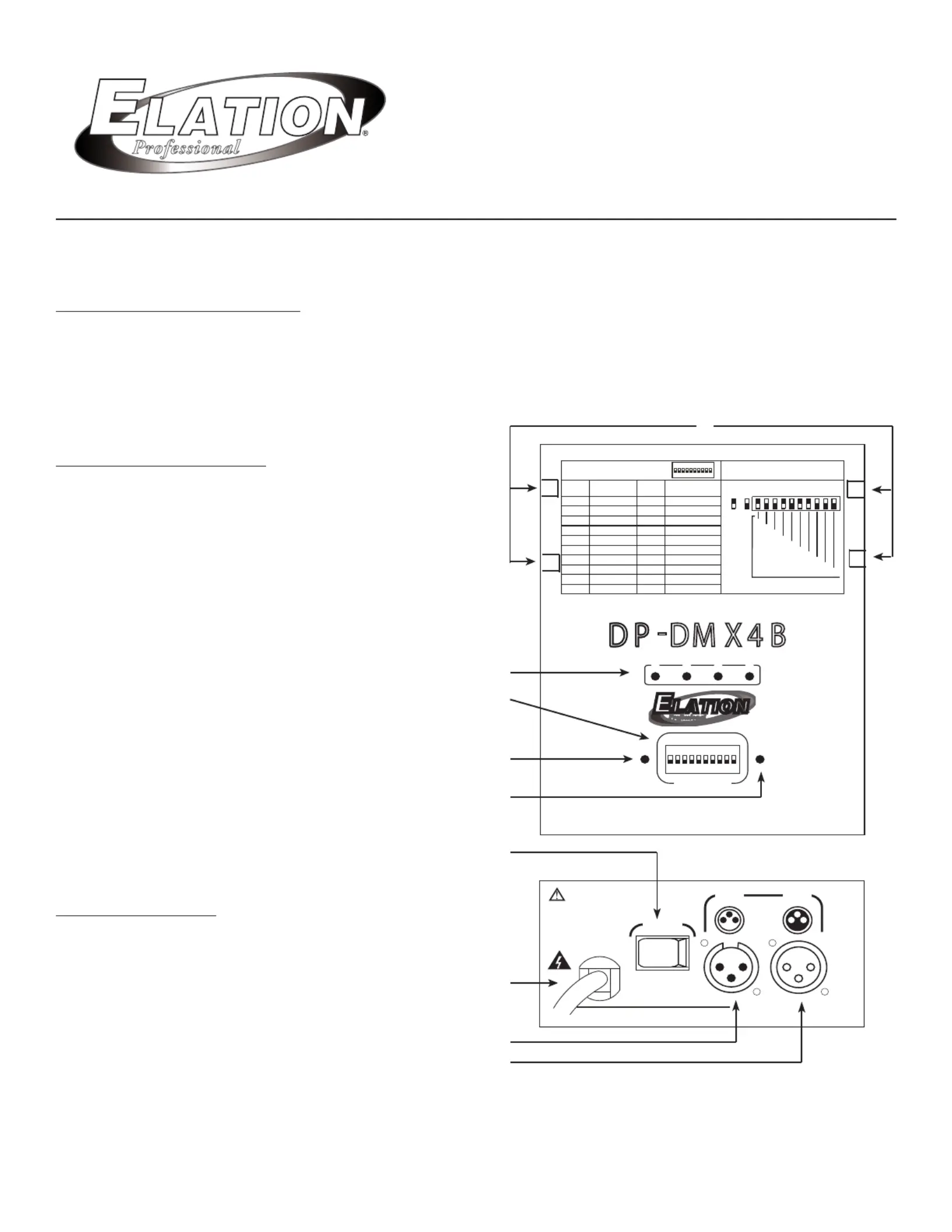

GENERAL FUNCTIONS:

1. 5A per channel, Total 20AChannel Output:

2. These LEDs indicate the dim Channel LEDs:

ming, On/Off of the appropriate channels.

3. Slide these dipswitces DMX Dipswitches:

to select desired DMX address (DMX add-

ressing is printed on the top cover of the DP-

DMX4B.)

4. The LED is lit when power is on.Power LED:

5. This LED begins ﬂashing when a DMX LED:

DMX signal is present.

6. Turns the main power on/off.Power Switch:

7. AC 120V~60Hz, 20A max.Power Input:

8. This connector accepts your DMX Input:

DMX input signals.

9. This connector sends your DMX Output:

DMX signal through to the next DMX device.

SPECIFICATIONS:

Power Input..............AC 120V~60Hz, 20A max.

Channel Output.....................5A/CH., Total 20A

Fuse (Internal)..........6A 250V 5x20mm (x4PCS)

Dimensions...........................197 x 124 x 60mm

Weight.........................................2.6Lbs./1.2Kgs

CAUTION! No user servicable parts inside. Do Not attempt repairs. In the event your unit should fail,

contact Elation Professional at (323) 582-3322.®

WARNING! This product must be earthed. This product is intended for indoor use only. To prevent

ﬁre or shock hazard, do not expose this product to a high temperture or high humidity area.

1 2 3

POWER

INDICATOR

DMX

INDICATOR

1 2

5 6

8 9 10

DMX Address

OUTPUT: 5A/CH, TOTAL 20A MAX

511

: :

512

1,2,4

3,4

1,3,4

2,3,4

1,2,3,4

1,2,3,4,5,6,7,8,9

1 2

8 910

DMX Address Table

(1 -1 0 Sw itc he s)

1,2

1,3

2,3

1,2,3

1,4

2,4

START

CH#

START

CH#

SWITCHES

SW TCHESI

DMX Address Setting

1 2

5 6

8 9 10

Switch#

Of f

Switch

Address 105

Binary

Value

128

256

512

AC120V~ 60Hz,

20A MAX

DMX

OUT

1=Ground

2=Data-

3=Data+

MADE IN PRC

23-020-0121

LOADING FUSE: F6A 250V

(INTERNAL) (

5x2 mm0

x4pcs)

POWER INPUT

N'OUVREZ PAS..RISQUE DE CHOC ELECTRIQUE

WARNING: THIS APPARATUS MUST BE EARTHED

BEFORE OPENING

RI SK O F EL EC TRI C

SH OC K DI SCO NN EC T

IN PU T PO WER

This product must not be continuously used

for a long time un er 20A total output loadd

PO ERW

CAUTION
