Side 1/8

ELATION

User Instructions

Introduction: Thank you for purchasing the Elation FS-150SCI.®

™

To optimize the performance of this product, please read these oper-

ating instructions carefully to familiarize yourself with the basic opera-

tions of this unit. The FS-150SCI

™

is a high powered follow spot with

automated controls for the iris and color changer. The unit is fully DMX

compatible and can be controlled via an universal DMX controlled or by

the built in controller on the rear of the unit.

Customer Support: Elation provides a toll free customer sup-®

port line, to provide set up help and to answer any question should you

encounter problems during your set up or initial operation. You may also

visit us on the web at www.elationlighting.com for any comments or sug-

gestions. Service Hours are Monday through Friday 9:00 a.m. to 5:00

p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-3108

E-mail: support@elationlighting.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

your nearest Elation dealer.®

FS-150SCI™ Introduction

FS-150SCI™ Unpacking

Every FS-150SCI™ has been thoroughly tested and has been shipped

in perfect operating condition. Carefully check the shipping carton for

damage that may have occurred during shipping. If the carton appears

to be damaged, carefully inspect your xture for any damage and be

sure all equipment necessary to operate the unit has arrived intact. In

case damage has been found or parts are missing, please contact our

toll free customer support number for further instructions.

DISCHARGE LAMP WARNING!

This xture is tted with a discharge lamp which is highly susceptible to

damage if improperly handled. Never touch lamp with your bare ngers

as the oil from your hands will shorten lamp life. Also, never move the

xture until the lamp has had ample time to cool. Remember, lamps

are not covered under warranty conditions.

Elation Professionals

4295 Charter Street

Los Angeles Ca. 90058

www.elationlighting.com

Power Supply: Before plugging your unit in, be sure the source volt-

age in your area matches the required voltage for your Elation FS-®

150SCI.™ The Elation FS-150SCI®

™

is available in a 115v and 230v

version. Because line voltage may vary from venue to venue, be sure to

plug your unit into a matching wall outlet before attempting to operate.

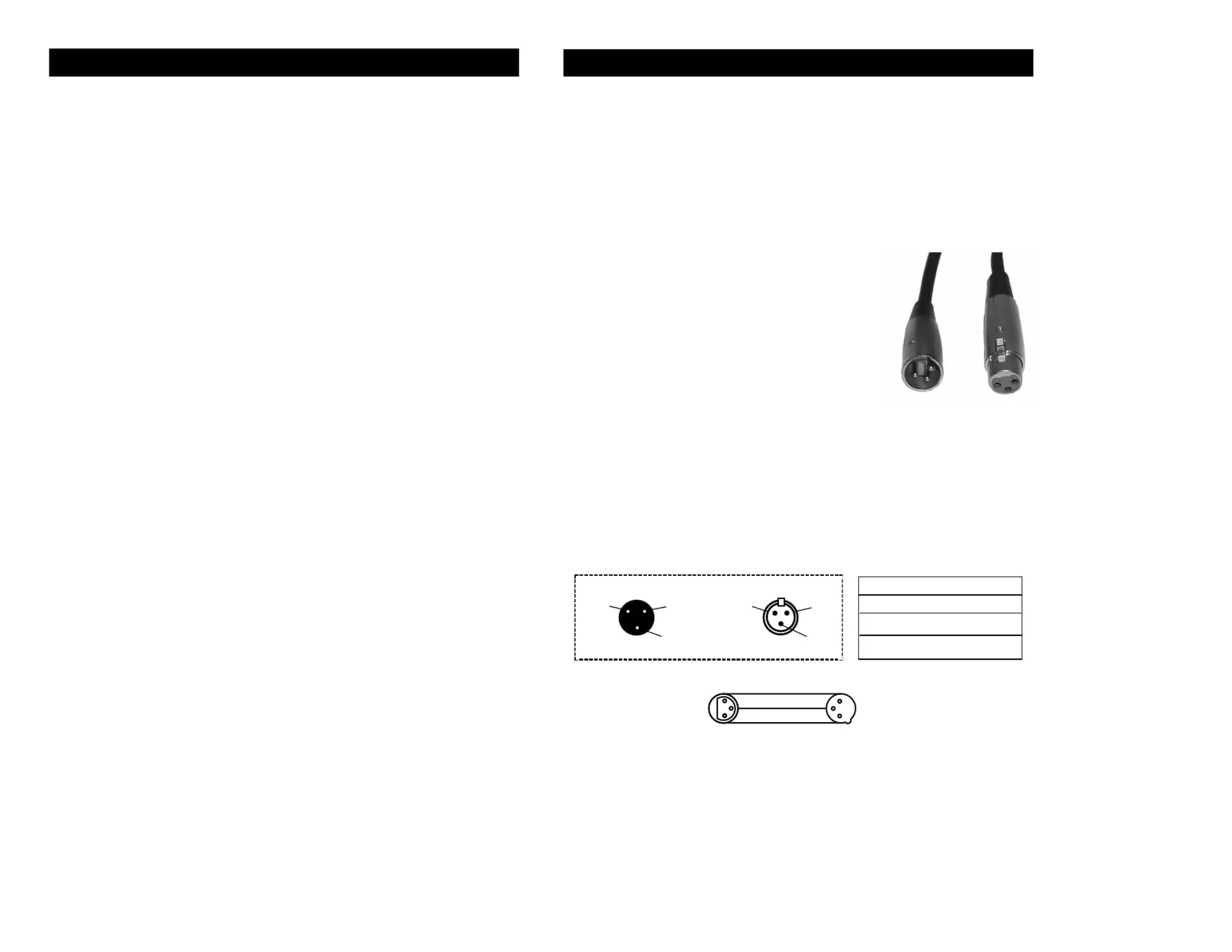

Data Cable (DMX Cable) Requirements (For DMX Operation

Only and Master-Slave): The FS-150SCI can be controlled via

DMX-512 protocol. The Elation FS-150SCI™ is a three channel DMX ®

unit. The DMX address is set on the front panel of the FS-150SCI.

Your unit and your DMX controller require a stan-

dard 3-pin XLR connector for data input and data

output (Figure 1). If you are making your own

cables, be sure to use standard two conductor

shielded cable (This cable may be purchased at

almost all pro sound and lighting stores). Your

cables should be made with a male and female

XLR connector on either end of the cable. Also

remember that DMX cable must be daisy chained

and can not be split.

Notice: Be sure to follow gure three when making your own cables.

Do not use the ground lug on the XLR connector. Do not connect the

cable’s shield conductor to the ground lug or allow the shield conductor

to come in contact with the XLR’s outer casing. Grounding the shield

could cause a short circuit and erratic behavior.

Figure 1

Figure 2

DMX512 IN

3-PIN XLR

DMX +

DMX -

COMMON

DMX512 OUT

3-PIN XLR

Figure 3

FS-150SCI™ Set Up

1 Ground

XLR Male Socket

XLR Pin Conguration

3 Hot

2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Shield

SAFETY PRECAUTIONS:

• Do not spill water or other liquids in to or on to your unit.

• Be sure that the local power outlet match that of the required voltage

for your unit.

• Do not attempt to operate this unit if the power cord has been frayed

or broken. Please route your power cord out of the way of foot traf-

c.

• Do not attempt to remove or break off the ground prong from

the electrical cord. This prong is used to reduce the risk of electrical

shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the top cover under any conditions. There are no

user serviceable parts inside.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged in any

way.

• Never operate this unit when it’s cover is removed.

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• This unit is intended for indoor use only, use of this product outdoors

voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

FEATURES:

• Seven vibrant colors plus white.

• Long life (9000 hours) SC-150 discharge lamp.

• Variable speed shutter.

• Micro-stepping motors for smooth color transitions.

• Built in controller - Run up to 16 heads with the built-in controller.

• Master/Slave configuration

• DMX-512 protocol capable

• Full Focusing.

• Fully automated IRIS.

• Fan cooled.

• Uses 3 DMX Channels.

FS-150SCI™ Introduction
