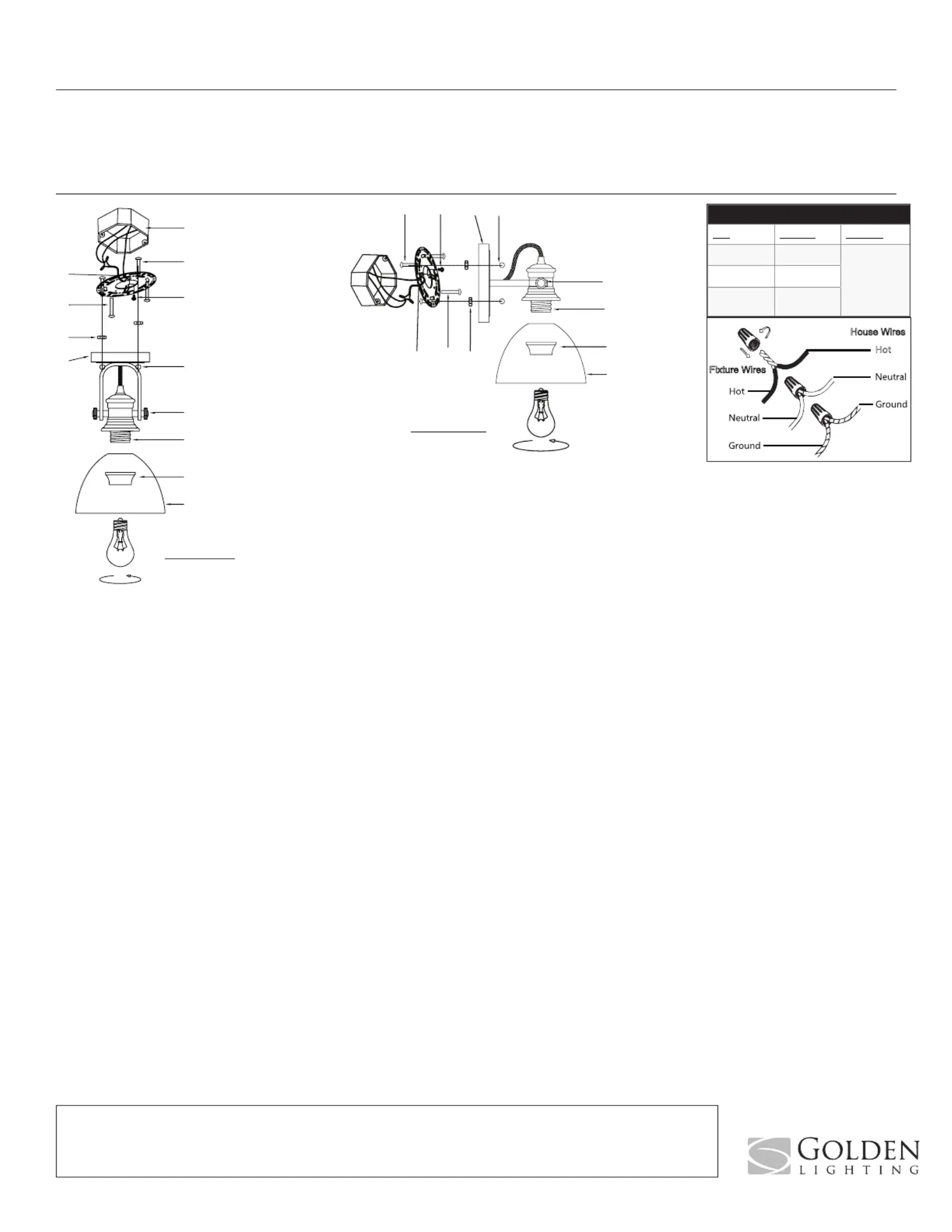

Assembly Instructions: (Hines)3118-BA1/1SF
IMPORTANT:
• ALL INSTALLATION WORK SHOULD BE DONE BY ACCREDITED PROFESSIONAL.
• SHUT OFF POWER SUPPLY AT FUSE OR CIRCUIT BREAKER!
• USE ONLY THE SPECIFIED BULBS. DO NOT EXCEED THE MAXIMUM WATTAGE!
PREPARING FOR INSTALLATION
Remove all of the contents from the carton. See the
important notes above. Remove the old xture from the
wall or ceiling, including the old mounting strap.
ceiling.
1. Take the mounting strap assembly from the parts bag.
Mounting strap (B) contains several threaded holes. Two of
mounting screws (A) should be attached to mounting strap
(B). You may need to tighten nuts (C) that hold these screws in
place. If the screws are not attached, please hold backplate/
canopy (G) up to mounting strap (B). Line up the holes in
backplate/canopy (G) with the holes in mounting strap (B) and
insert mounting screws (A) into mounting strap (B) so that
mounting screws (A) protrude through the holes in the front of
backplate/canopy (G). Mounting screws (A) are long, please
test the backplate/canopy against the mounting strap to see
how far you should insert the screws. Tighten nuts (C) onto
mounting screws (A) to hold the screws in place.
2. Pull the house wires through the center of mounting strap
(B). Place mounting strap (B) over the junction box so that
mounting screws (A) are horizontal, and in alignment with the
holelocationsonthexture’sbackplate(F).
3. Secure mounting strap (B) to the junction box with mounting
screws (D) and a screwdriver. Tighten the screws securely.
CONNECTING THE WIRES
4.Haveanassistantsupportthexture’sweightwhile
completing the wiring. Refer to the wiring diagram and attach
thexture’swirestothepowersupplywiresfromthejunction
box. Connect Hot to Hot, Neutral to Neutral, and Ground to
Ground. Twist the ends of the wire pairs together, and then
twist on a wire connector. Make sure all twists are in the same
direction. If there is no house ground wire coming from the
junction box, locate ground screw (E) on the mounting bracket/
mountingstrapandwrapthexture’sgroundwirearoundthe
ground screw. Use a screwdriver to tighten the top of ground
screw (E) onto the wires and into the mounting bracket/
mounting strap. Tuck the wires into the junction box.
FINISHING THE INSTALLATION
5. Place backplate/canopy (G) over mounting screws (A) so
that the screws protrude through the holes in the front of the
backplate. Thread deco nuts (F) onto mounting screws (A).
Twistuntilthebackplate/canopyofthextureissnugagainst
the wall.
6. Slide shade (I) over socket (H) and twist socket ring (J)
onto the threads of the socket to secure in place. Decide the
direction you want the light to point and rotate screw joint (K)
until it is tight enough to hold the lamp in that direction.
7. Install light bulbs (not provided) in accordance with
thexture’sspecications.Donotexceedthemaximum
recommended wattage.
Your installation is now complete. Turn on the power and test
the xture.
For Customer Service, please
contact the place of purchase.
CLEANING TIPS
Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light and wipe down the
xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.
FGEA
H
B
D
C
J
K
I
How to Identify the Fixture’s Wires
Hot Neutral Ground
Smooth
Ribbed
Bare Metal,
Green, or
Green Inner
Thread
Black
White
Black Inner
Thread
White Inner
Thread
House Wires
Fixture Wires
Hot
G
B
JUNCTION
BOX
D
A
E
C
F
H
J
K
I
3118-BA1
3118-1SF
