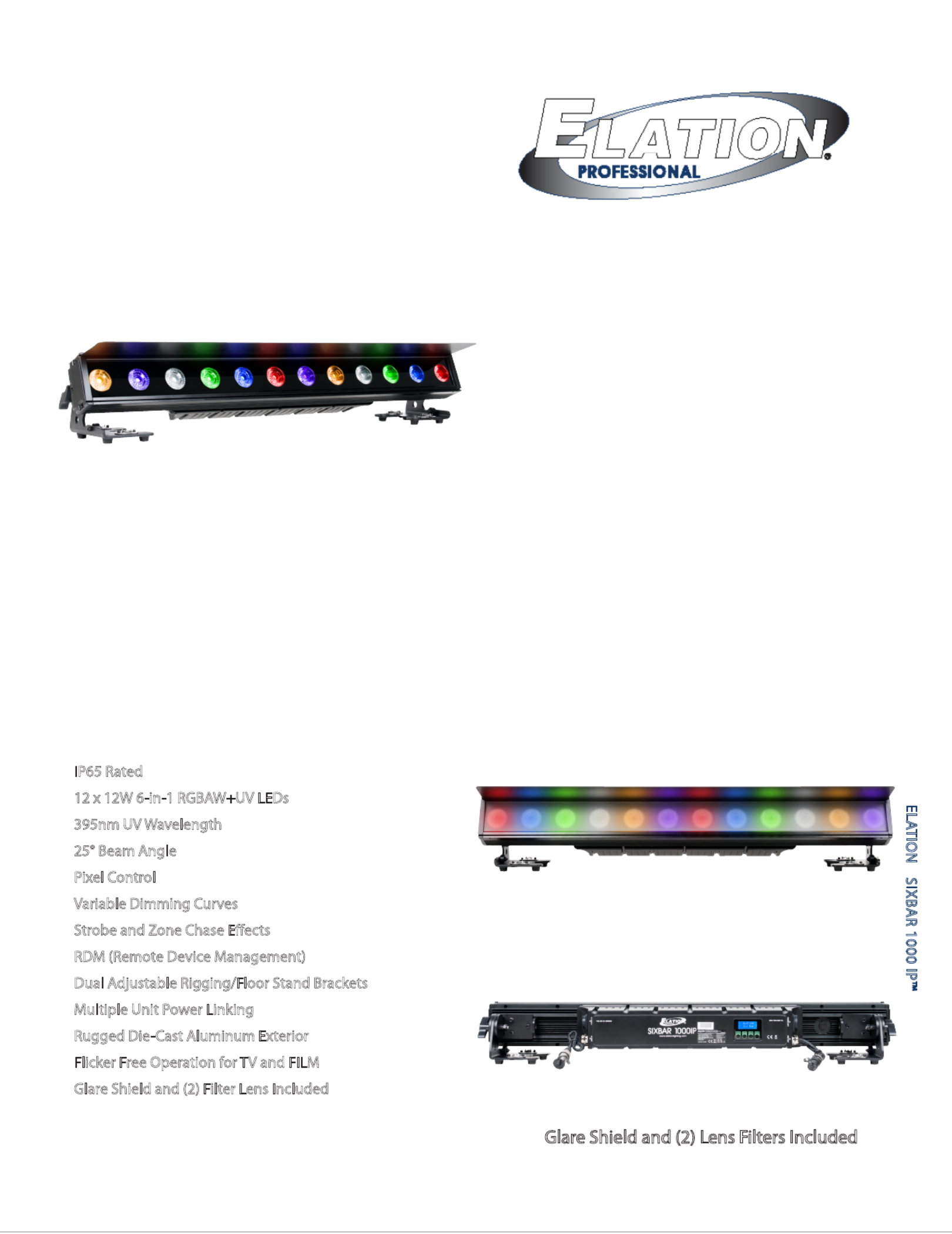

SIXBAR 1000 IP™

SKU# SIX098

The IP65 rated SIXBAR 1000IP™ features (12) 12W

6-IN-1 RGBAW+UV LEDs, 25° beam angle, pixel control,

variable dimming curve modes, strobe and chase

effects, a UV wavelength of 395nm, RDM (remote

device management) protocol support, IP rated DMX

and power in/out connections, LCD menu display with

4 touch button control panel, dual adjustable rigging/

floor stand brackets, glare shield and (2) lens filters

included, multiple unit power linking, rugged die-cast

aluminum exterior, icker free operation for TV and FILM,

145W max power consumption, and a multi-voltage

universal auto switching power supply (110-240v).

FEATURES

IP65 Rated

12 x 12W 6-in-1 RGBAW+UV LEDs

395nm UV Wavelength

25° Beam Angle

Pixel Control

Variable Dimming Curves

Strobe and Zone Chase Eects

RDM (Remote Device Management)

Dual Adjustable Rigging/Floor Stand Brackets

Multiple Unit Power Linking

Rugged Die-Cast Aluminum Exterior

Flicker Free Operation for TV and FILM

Glare Shield and (2) Filter Lens Included

Specications are subject to change without notice ©Elation Professional 03/31/17

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

ELATION I SIXBAR 1000 IP™ I Product Specification Sheet

Glare Shield and (2) Lens Filters Included

SOURCE

(12) 12W 6-in-1 RGBAW+UV LEDs

100,000 Hour Average LED Life*

*LED Life may vary depending on several factors including but not limited to: Environmental

Conditions, Power/Voltage, Usage Patterns (On-O Cycling), Control and Dimming.

PHOTOMETRIC DATA

7,149 LUX 664 FC @3.3’ (1m) (25° Full ON)

EFFECTS

Pixel Control

Strobe and Chase Eects

Variable and Selectable Dimming Curves

CONTROL / CONNECTIONS

(8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)

4 Button Touch Control Panel and LCD Menu Display

RDM (Remote Device Management)

IP Rated 5pin DMX In/Out

IP65 Locking Power Cable In/Out

SIZE / WEIGHT (dimensions without Glare Shield)

Length: 33.6” (853mm)

Width: 5.6” (141.4mm)

Vertical Height: 4.7” (120.5mm)

Weight: 19.0 lbs. (8.6 kg)

ELECTRICAL / THERMAL

AC 110-240V - 50/60Hz

145W Max Power Consumption

Multiple Unit Power Linking

5°F to 113°F (-15°C to 45°C)

395nm UV Wavelength

APPROVALS / RATINGS

INCLUDED ITEMS

IP65 Locking Power Cable

Glare Shield

(2) Lens Filters

33.58” (853mm)

32.83” (834mm)

18.62” (473.07mm)

8.13” (206.6mm)

5.59” (142.1mm)

5.57” (141.37mm)

4.74” (120.49mm)

5.22” (132.5mm)

5.57” (141.37mm)

7.46” (189.6mm)

4.94” (125.6mm)

2.37”

(60.3mm) 3.58” (91mm)

specifications I ELATION SIXBAR 1000 IP™ I www.elationlighting.com

Specications are subject to change without notice ©Elation Professional 03/31/17

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

DIMENSIONAL DIAGRAMS

PRODUCT SPECIFICATIONS PHOTOMETRIC DATA

OPTIONAL ACCESSORIES

ORDER CODE ITEM

TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp

8050000053 Omega Bracket (single)

EWD001 EWDMX IP Wireless IP65 DMX Transceiver

NEU088 3’ (1m) IP65 Locking Power Link Cable

Additional cable lengths available

1m 2m 3m 4m 5m

25° Beam

1 m 3.3 ft 2 m 6.6 ft 3 m 9.8 ft 4 m 13.1 ft 5 m 16.4 ft

25° Beam

Diameter 0.45 1.5 0.88 2.9 1.33 4.4 1.77 5.8 2.21 7.3

lux fc lux fc lux fc lux fc lux fc

RED LEDs 1,253 116 542 50 283 26 172 16 119 11

GREEN LEDs 3,267 304 1,416 132 726 67 429 40 275 26

BLUE LEDs 469 44 211 20 108 10 65 6 45 4

WHITE LEDs 2,813 261 1,216 113 621 58 372 35 242 22

AMBER LEDs 1,286 119 532 49 271 25 153 14 101 9

UV LEDs 50 5 24 2 13 1 10 1 7 1

FULL ON 7,149 664 2,910 270 1,481 138 880 82 603 56

Omega Bracket

(optional - not included)
