E-MANUAL
Thank you for purchasing this Samsung
product. To receive more complete service,
please register your product at
www.samsung.com/register
Model Serial No. __________ ____________

Contents
Channel Setting
• UsingtheINFObutton(Now&Nextguide) 1
• UsingChannelmenu 2
• RetuningChannels 17
Basic Features
• ChangingthePresetPictureMode 27
• AdjustingPictureSettings 28
• ChangingthePictureOptions 38
• ChangingthePresetSoundMode 45
• AdjustingSoundSettings 46
• SelectingtheSoundMode 56
Preference Features
• ConnectingtotheNetwork 57

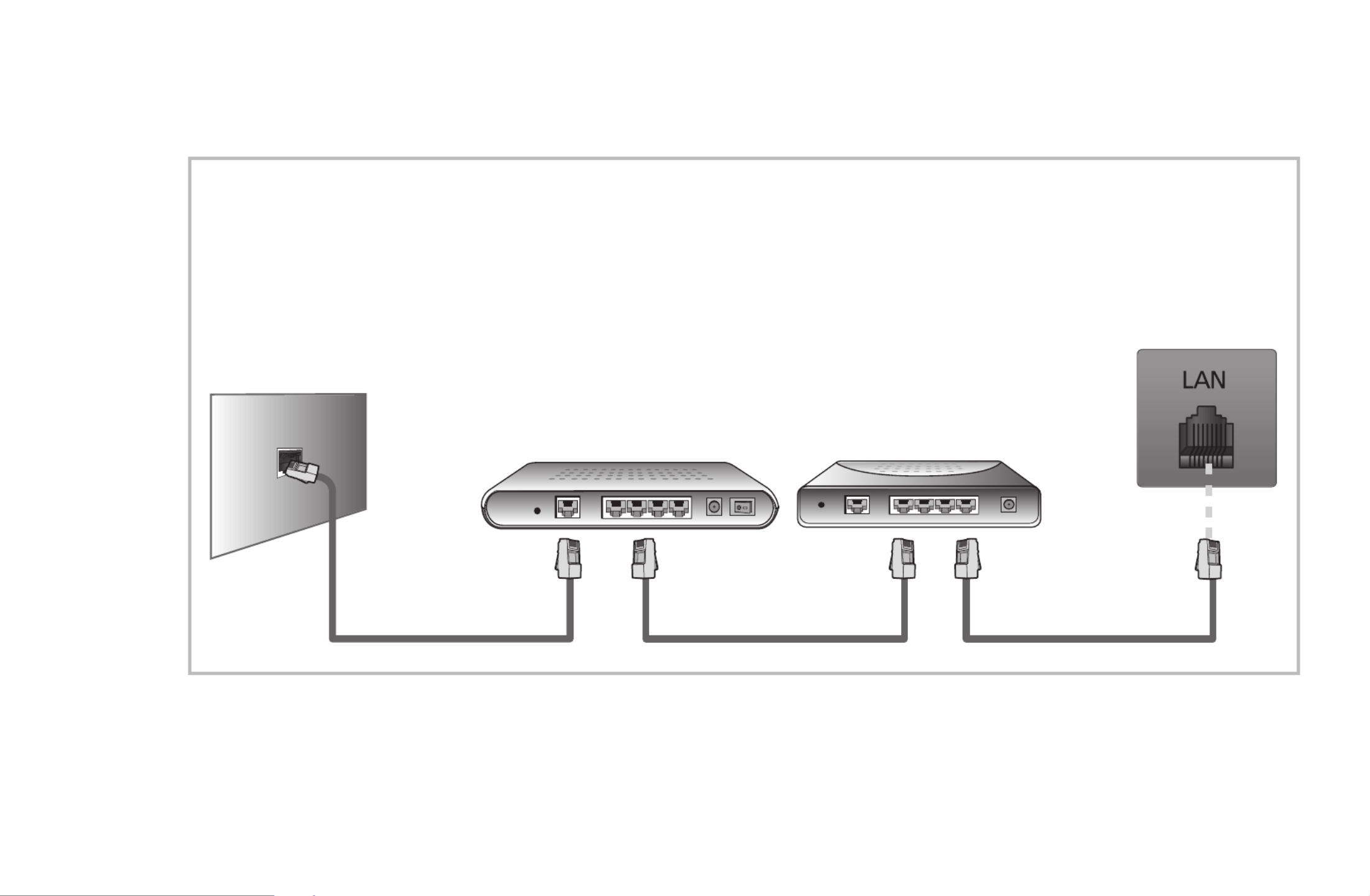

• SettingtheWiredNetwork 71

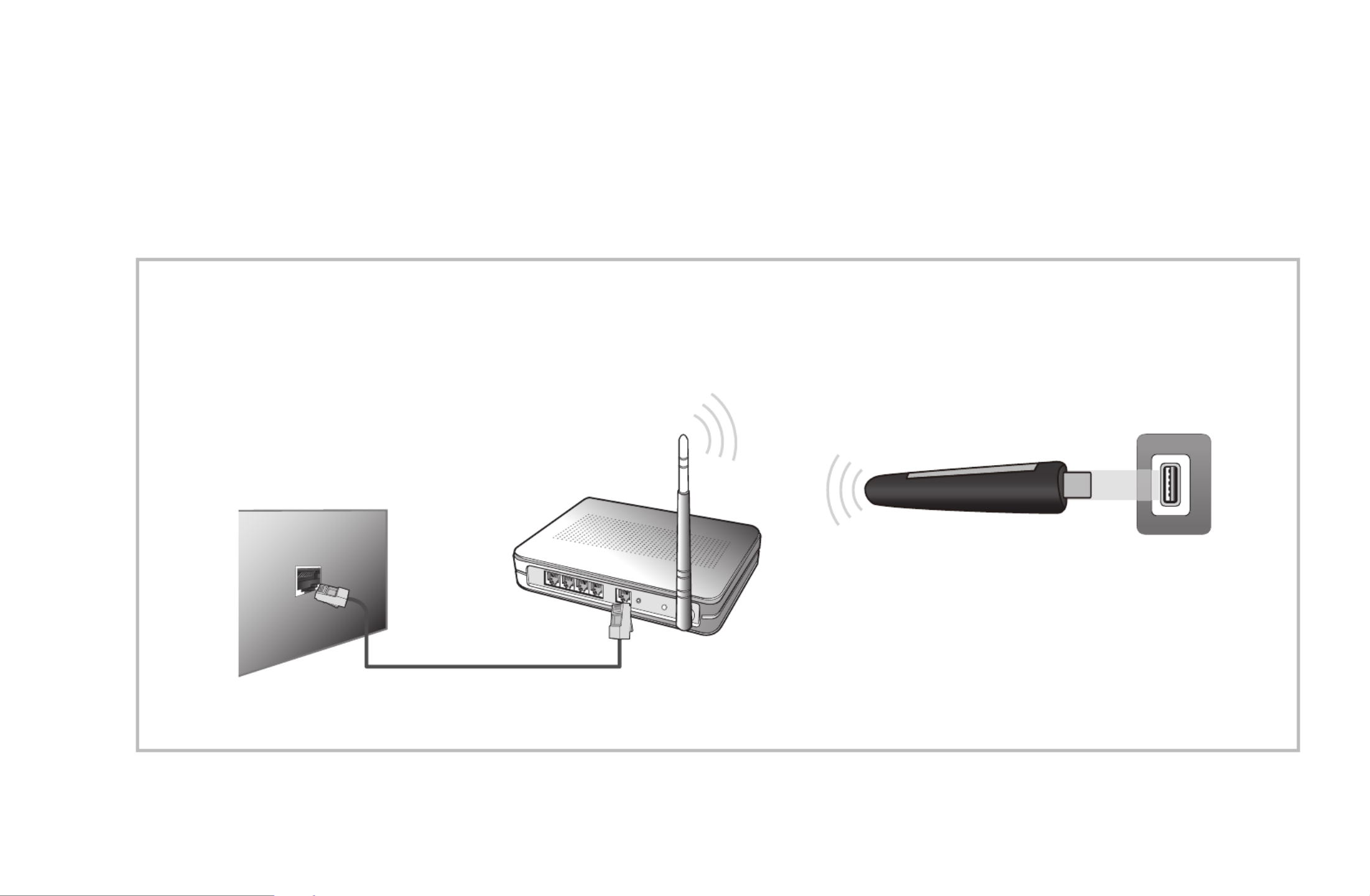

• SettingtheWirelessNetwork 77
• ManagingtheNetworkConnectedDevices 86
• Executinginitialsetup 90
• SettingtheTime 91
• UsingtheSleepTimer 93
• SettingtheOn/OffTimer 94
• LockingProgramme 98
• PictureInPicture(PIP) 100
• EconomicalSolutions 102
• OtherFeatures 105
• SupportMenu 116
Advanced Features
• Usingthe3Dfunction 124
• UsingtheMediaContents 135
• ConnectingaUSBDevice 136
• ConnectingtothePCthroughnetwork 142
• ScreenDisplay 145
• MediaContents-AdditionalFunctions 156
• UsingtheDLNAFunctions 160
Other Information
• TeletextFeature 166
• Anti-theftKensingtonLock 170
• ConnectionsCommonInterfaceSlot 172
• Troubleshooting 174
• Licence 191

▶
English
❑ Using the INFO button (Now & Next guide)
The display identifies the current channel and the status of certain audio-video
settings.
The Now & Next guide shows daily TV programme information for each channel
according to the broadcasting time.
NWhen you press the a ( ) button, you can see the details of the Information
programme.
●Scroll ◄, ► to view information for a desired programme while watching the
current channel.
●Scroll ▲, ▼ to view information for other channels. If you want to move to the
currently selected channel, press the ENTERE button.

◀ ▶
❑Using Channel menu
OMENUm → Support → Contents Home → ENTERE
Press the button to select the desired menu. Each screen will be CONTENT
displayed.
■Channel List
You can view channel information, All,
TV, Radio, Data/Other, Analogue or
Favourites 1 5- .
NWhen you press the CH LIST
button on the remote control,
Channel List screen will be
displayed at once. Channel List Guide AllShare Play Schedule Manager Source
Contents Home
R Return
* The displayed image may differ depending on the
model.
English

◀ ▶
●All: Shows all currently available channels.
●
TV: Shows all currently available TV channels.
●Radio: Shows all currently radio channels.
●Data/Other: Shows all currently available MHP or other channels.
●Analogue: Shows all currently available analogue channels.
●Favourites 1 5- : Shows all favourite channels.
NIf you want to view favourite channels you added, press the CH LIST
button and use L ( ) button to move - .Ch. Mode Favourites 1 5
English

◀ ▶
NUsing the control buttons with the .Channel List
●T
(Tools): Displays the option menu.
●L ( ): Move to the Ch. Mode / Channel All, TV, Radio, Data/Other,
Analogue Favourites 1 5 or - .
NWhen you select the Programme View in T (Tools) menu, you can
move to other channels using L ( ) button.Channel
●E (Watch / Information): Watches the channel you selected. / Displays
details of the selected programme.
●k ( ): Move to next or previous page.Page
English

◀ ▶
How to use Schedule Viewing in Channel List
(digital channels only)
When you set the in , you can only set the Schedule Viewing Channel List
programme in Programme View.
1. Press the button, then select a desired digital channel.CH LIST
2. Press button, and then select the TOOLS Programme View. The programme
list for that channel appears.
3. Press the ▲ / ▼ buttons to select the desired programme, then press the
ENTERE ( ) or button.Information INFO
4. ENTER Select Schedule Viewing, then press the E button when done.
NIf you want to cancel , follow steps 1 through 3. Select Schedule Viewing
Cancel schedule.
English

◀ ▶
Using Option Menu t
Set each channel using the menu options (Channel List Programme View, Edit
Favourites, Lock/Unlock, Edit Channel Name, Edit Channel Number, Delete,
Information, Sort, Edit Mode).
Option menu items may differ depending on the channel status.
1. Select a channel and press the button.TOOLS
2. Select a function and change its settings.
English

◀ ▶
●Programme View: Displays the programme when digital channel is selected.
●
Edit Favourites: Set channels you watch frequently as favourites. Add or
delete the selected channel in - .Favourites 1 5
1. Select the Edit Favourites, then press the ENTERE button.
2. Press the ENTERE button to select - , then press the Favourites 1 5 OK
button.
NOne favourite channel can be added in several of favourites among
Favourites 1 5- .
English

◀ ▶
●Lock/Unlock: Lock a channel so that the channel cannot be selected and
viewed.
NThis function is available only when the is set to .Channel Lock On
NThe PIN input screen appears. Enter your 4-digit PIN. Change the PIN
using the option.Change PIN
●Edit Channel Name (analogue channels only): Assign your own channel
name.
English

◀ ▶
●Edit Favourites: Set the selected channels you watch frequently as
favourites.
NThe screen has five groups ( , Edit Favourites Favourites 1
Favourites 2, etc.). You can add a favourite channel to any one of
the groups. Press the ▲/▼ buttons to select a group.
●Lock/Unlock: Lock a channel so that the channel cannot be selected
and viewed.
NThis function is available only when the is set to .Channel Lock On
NThe PIN input screen appears. Enter your 4-digit PIN. Change the
PIN using the option.Change PIN
●Delete: You can delete a channel to display the channels you want.
●Deselect: Deselect the selected channels.
●Select All: Select all the channels in the channel list.
English

◀ ▶
■Guide
The EPG (Electronic Programme
Guide) information is provided
by broadcasters. Using
programme schedules provided
by broadcasters, you can
specify programmes you want
to watch in advance so that the
channel automatically changes
to the selected programme
channel at the specified time.
Programme entries may appear
blank or out of date depending
on a channel status.
Die Musik-Show
DTV Air 825 NDR FERNSEHEN
19:15 - 20:40
Dani is devastated when scot makes clear his views ...
825 NDR FERNSEHEN
18:15 Sat 1 May
Channel View - All
Today
▲821 Kanal 5
822 M6
823 MDR FERNSEHEN
824 Mediashopping
825 NDR FERNSEHEN
▼826 NT1
20:00 21:0020:30 21:30
No Information
No Information
No Information
Musik fur Sie MD... Ein Schloss am ...
No Information
a Sche. Mgr b -24 Hours { +24 Hours } Ch. Mode `Information k Page E Schedule
1 2 3 4 56 7
Guide
Die Musik-Show Die NDR Quizshow Sportclub live
* The displayed image may differ depending on the model.
English

◀ ▶
1 a Red ( ): Moves to the reserved programmes in .Sche. Mgr Sche. Mgr
2
b
Green ( ): Viewing the list of programmes to be broadcasted before -24 Hours
24 hours.
3 { Yellow ( ): Viewing the list of programmes to be broadcasted after 24 +24 Hours
hours.
4 } Blue ( ): Select the type of channels you want to display on the Ch. Mode
Channel List window. (All, TV, Radio, Data/Other, Favourites 1 5- )
English

◀ ▶
5 `( ): Displays details of the selected programme.Information
6
k
( ): Move to previous or next page.Page
7 E (Watch / Schedule)
●When selecting the current programme, you can watch the selected
programme.
●When selecting the future programme, you can reserve to watch the selected
programme. To cancel the schedule, press the ENTERE button again and
select .Cancel schedule
English

◀ ▶
■Schedule Manager
You can set a desired channel to be displayed automatically at the intended time.
In addition, you can view, modify or delete a channel you have reserved to watch.
Set the current time first to use this function.
Using Option Menu t
Set each channel using the menu options (Cancel schedule, Edit Schedule,
Schedule manually, View Guide).
1. Press the button to select the .TOOLS Schedule manually
NYou can press the a ( ) directly on the Schedule manually Schedule
Manager screen.
2. Press the ◄/►/▲/▼ or number buttons to set the Antenna, Channel,
Repeat, Date, Start Time.
●Antenna: Select the desired broadcasting signal.
●Channel: Select the desired channel.
English

◀ ▶
●Repeat Once, Manual, Sat~Sun, Mon~Fri Everyday: Select or to set at
your convenience. If you select , you can set the day you want.Manual
NThe (c) mark indicates the day you’ve selected.
●Date: You can set the desired date.
NIt is available when you select in .Once Repeat
●Start Time: You can set the start time you want.
NIf you want to edit or cancel the schedule, select the reserved schedule on
the Reserved Programmes. Press the button, then select the TOOLS Edit
Schedule Cancel schedule or .
NIf you select the , you can see the screen.View Guide Guide
English

◀ ▶
❑Retuning Channels
■Aerial (Air / Cable) t
OMENUm → Channel → Aerial → ENTERE
Before your television can begin memorising the available channels, you must
specify the type of signal source that is connected to the TV (i.e. an or Air Cable
system).
English

◀ ▶
■Country
(depending on the country)
OMENUm → Channel → Country → ENTERE
The PIN input screen appears. Enter your 4 digit PIN number.
●Digital Channel: Change the country for digital channels.
●Analogue Channel: Change the country for analogue channels.
English

◀ ▶
■Auto Tuning
(depending on the country)
OMENUm → Channel → Auto Tuning → ENTERE
Scans for a channel automatically and stores in the TV.
NAutomatically allocated programme numbers may not correspond to actual
or desired programme numbers. If a channel is locked, the PIN input window
appears.
●Auto Tuning
Air / Cable: Select the aerial source to memorise.
Digital & Analogue / Digital / Analogue: Select the channel source to
memorise.
English

◀ ▶
When Aerial Source is set to Air or Cable:
When selecting Cable → or : Provide a value to Digital & Analogue Digital
scan for cable channels.
–Operator Selection (depending on the country): Selects a provider of
cable services.
–Search Mode (Full / Network / Quick): Scans for all channels with active
broadcast stations and stores them in the TV.
NIf you select , you can set up the Quick Network, Network ID,
Frequency, Modulation Symbol Rate and manually by pressing the
button on the remote control.
–Network (Auto / Manual) Network ID: Selects the setting mode among
Auto Manual or .
–Network ID Network Manual Network ID: When is , you can set up using
the numeric buttons.
English

◀ ▶
–Frequency: Displays the frequency for the channel. (differs in each
country)
–Modulation: Displays available modulation values.
–Symbol Rate: Displays available symbol rates.
●Cable Search Option
(depending on the country & cable channels only)
Sets additional search options such as the frequency and symbol rate for a
cable network search.
Start Frequency / Stop Frequency: Set the start or stop frequency (differs in
each country).
Symbol Rate: Displays available symbol rates.
Modulation: Displays available modulation values.
English

◀ ▶
●Analogue Channel Tuning: Scans for an analogue channel. Press the New
button to search the channels by adjusting the Programme, Colour System,
Sound System, Channel, Search.
NChannel mode
–P (programme mode): When tuning is complete, the broadcasting stations
in your area have been assigned to the position numbers from P0 to P99.
You can select a channel by entering the position number in this mode.
–C S (aerial channel mode) / (cable channel mode): These two modes allow
you to select a channel by entering the assigned number for each aerial
broadcasting station or cable channel.
English

◀ ▶
■Fine Tune
(analogue channels only)
OMENUm → Channel → Fine Tune → ENTERE
If the signal is weak or distorted, fine tune the channel manually.
NFine tuned channels are marked with an asterisk “*”.
NTo reset the ne-tuning, select .Reset
English

◀ ▶
❑Changing the Preset Picture Mode
OMENUm → Picture → Picture Mode → ENTERE
■Picture Mode t
Select your preferred picture type.
NWhen connecting a PC, you can only make changes to the and Entertain
Standard.
●Dynamic: Suitable for a bright room.
●Standard: Suitable for a normal environment.
●Natural for LED 5 series 32" and above : Suitable for reducing eye strain.
●Movie: Suitable for watching movies in a dark room.
●Entertain: Suitable for watching movies and games.
NIt is only available when connecting a PC.
English

◀ ▶
❑Adjusting Picture Settings
■Samsung MagicAngle for LED 4 series 19", 5 series 22"
OMENUm → Picture → Samsung MagicAngle → ENTERE
Adjust screen viewing Angle to optimize screen quality according to your viewing
position.
●Samsung MagicAngle: When viewing the screen at an angle from below or
above by setting the appropriate mode for each position, you can obtain a
similar picture quality as viewing the screen directly from the front.
Off: Select when viewing from the front position.
Lean Back Mode: Select when viewing from a slightly lower position.
Standing Mode: Select when viewing from the upper position.
●Mode: Adjust screen viewing angle.
NWhen Samsung MagicAngle is set to Lean Back Mode or Standing Mode,
Gamma is not available.
English

◀ ▶
■Backlight for LED, LCD TV / Cell Light for PDP TV / Contrast / Brightness
/ Sharpness / Colour / Tint (G/R)
Your television has several setting options for picture quality control.
NNOTE
●In analogue TV, Ext., AV modes of the PAL system, the Tint (G/R)
function is not available. LCD 420 does not support AV, Component mode
●When connecting a PC, you can only make changes to
Backlight for LED, LCD TV / Cell Light for PDP TV , Contrast, Brightness
and .Sharpness
●Settings can be adjusted and stored for each external device connected
to the TV.
●Lowering picture brightness reduces power consumption.
English

◀ ▶
■Screen Adjustment
O
MENUm → Picture → Screen Adjustment → ENTERE
Set the various picture options such as picture size and aspect ratio.
●Picture Size: Your cable box/satellite receiver may have its own set of screen
sizes as well. However, we highly recommend you use 16:9 mode most of the
time.
Auto Wide: Automatically adjusts the picture size to the aspect ratio.16:9
16:9: Sets the picture to 16:9 wide mode.
Wide Zoom: Magnifies the picture size more than 4:3.
NAdjusts the by using Position ▲, ▼ buttons.
English

◀ ▶
●Zoom/Position: Adjust the picture size and position. It is only available in
Zoom.
NNOTE
●After selecting Screen Fit in HDMI (1080i / 1080p) or
Component (1080i / 1080p) mode, you may need to centre the
picture LCD 420 does not support AV, Component mode :
1. Press the ▲ or ▼ button to select .Position
2. Press the ENTER E button.
3. Press the ▲, ▼, ◄ or ► button to move the picture.
●Depending on the input source, the picture size options may vary.
●If you want to reset the position you adjusted, select in the Reset
Position screen. The picture will be set to its default position.
English

◀ ▶
●The available items may differ depending on the selected mode.
●
When connecting a PC, only and modes can be adjusted.16:9 4:3
●Settings can be adjusted and stored for each external device connected
to an input on the TV.
●If you use the Screen Fit function with HDMI 720p input, 1 line will be cut
at the top, bottom, left and right as in the overscan function.
●4:3 Screen Size (16:9 / Wide Zoom / Zoom / 4:3): Available only when
picture size is set to . You can determine the desired picture size Auto Wide
at the 4:3 WSS (Wide Screen Service) size or the original size. Each European
country requires different picture size.
English

◀ ▶
●PC Screen Adjustment for LED 4 series 19", 5 series 22"
N
It is available in mode.PC
Coarse / Fine: Removes or reduces picture noise. If the noise is not removed
by Fine-tuning alone, then adjust the frequency as best as possible ( ) Coarse
and Fine-tune again. After the noise has been reduced, readjust the picture so
that it is aligned to the centre of screen.
Position: Adjust the PC’s screen positioning if it does not t the TV screen.
Press the ▲ or ▼ button to adjust the Vertical-Position. Press the ◄ or ►
button to adjust the Horizontal-Position.
Image Reset: Resets the image to default settings.
English

◀ ▶
■Auto Adjustment t for LED 4 series 19", 5 series 22"
O
MENUm → Picture → Auto Adjustment → ENTERE
Adjust frequency values/positions and fine tune the settings automatically.
NIt is available in mode.PC
NNot available when connecting with an HDMI/DVI cable.
Using Your TV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows OS)
Depending on the version of Windows and the video card, the actual screens on
your PC may differ in which case the same basic set-up information will almost
always be applied. (If not, contact your computer manufacturer or Samsung
Dealer.)
English

◀ ▶
❑Changing the Picture Options
■Advanced Settings
OMENUm → Picture → Advanced Settings → ENTERE
(available in Standard / Movie mode)
You can adjust the detailed setting for the screen including colour and contrast.
NWhen connecting a PC, you can only make changes to and Gamma White
Balance. for LED 4 series 19", 5 series 22"
English

◀ ▶
●Dynamic Contrast (Off / Low /
Medium / High): Adjust the screen
contrast.
●Black Tone (Off / Dark / Darker /
Darkest): Select the black level to
adjust the screen depth.
●Flesh Tone: Adjust the flesh tone
colour.
Advanced Settings
Dynamic Contrast Medium
Black Tone Off
Flesh Tone 0
RGB Only Mode Off
Colour Space Native
White Balance
Gamma 0
●RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and
Blue colour for making fine adjustments to the hue and saturation.
●Colour Space (Auto / Native): Adjust the range of colours available to create
the image.
English

◀ ▶
●White Balance: Adjust the colour temperature for a more natural picture.
R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue)
darkness.
R-Gain / G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness.
Reset White Balance: Resets the to its default settings.
●Gamma: Adjust the primary colour intensity.
●Motion Lighting (Off / On): Reduce power consumption by brightness
control adapted motion.
NThis function is not supported in mode. 3D for PDP 490 series
NOnly available in Standard mode.
NWhen changing a setting value of Backlight for LED, LCD TV
/ Cell
Light for PDP TV , Brightness Contrast Motion Lighting or , will be set to
Off.
English

◀ ▶
■Picture Options
O
MENU
m
→ Picture → Picture Options → ENTER
E
NWhen connecting a PC, you can only make changes to the Colour Tone.
●Colour Tone (Cool / Standard / Warm1 / Warm2)
NWarm1 Warm2 or will be deactivated when the picture mode is
Dynamic.
NSettings can be adjusted and stored for each external device connected
to an input on the TV.
English

◀ ▶
●Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation):
If the broadcast signal received by your TV is weak, you can activate the
Digital Noise Filter feature to reduce any static and ghosting that may appear
on the screen.
NWhen the signal is weak, try other options until the best picture is
displayed.
Auto Visualisation: When changing analogue channels, displays signal
strength.
NOnly available for analogue channels.
NWhen the button is pressed, the signal strength bar is displayed.INFO
NWhen bar is green, you are receiving the best possible signal.
English

◀ ▶
●MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG
noise to provide improved picture quality.
●HDMI Black Level (Low / Normal): Selects the black level on the screen to
adjust the screen depth.
NAvailable only in mode (RGB signals).HDMI
●Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and
process film signals from all sources and adjust the picture for optimum
quality.
NAvailable in TV mode, AV, Component (480i / 1080i) and HDMI
(1080i). LCD 420 does not support AV, Component mode
NIf the screen does not seem natural, change its option to Off / Auto1 /
Auto2 Film Mode in .
●LED Motion Plus (Off / On) for LED 5 series : Removes drag from fast scenes
with a lot of movement to provide a clear picture.
NIt will be deactivated when the picture mode is set to .Natural
English

◀ ▶
■Reset Picture (Yes / No)
O
MENUm → Picture → Reset Picture → ENTERE
Resets your current picture mode to its default settings.
English

◀ ▶
❑Changing the Preset Sound Mode
■Sound Mode t
OMENUm → Sound → Sound Mode → ENTERE
●Standard: Selects the normal sound mode.
●Music: Emphasizes music over voices.
●Movie: Provides the best sound for movies.
●Clear Voice: Emphasizes voices over other sounds.
●Amplify: Increase the intensity of high-frequency sound to allow a better
listening experience for the hearing impaired.
NIf is set to Speaker Select External Speaker, Sound Mode is
disabled. for LED, PDP TV
English

◀ ▶
●SRS TruDialog (Off / On)
(standard sound mode only)
This function allows you to increase the intensity of a voice over background
music or sound effects so that dialogue can be heard more clearly.
●Equaliser
Use Equaliser to customize sound setting for each speaker.
Balance: Adjusts the balance between the right and left speaker.
100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the
level of specic bandwidth frequencies.
Reset: Resets the equaliser to its default settings.
NIf is set to Speaker Select External Speaker, Sound Effect is
disabled. for LED, PDP TV
English

◀ ▶
■Broadcast Audio Options
O
MENUm → Sound → Broadcast Audio Options → ENTERE
●Audio Language t
(digital channels only)
Change the default value for audio languages.
NThe available language may differ depending on the broadcast.
●Audio Format
(digital channels only)
When sound is emitted from both the main speaker and the audio receiver,
a sound echo may occur due to the decoding speed difference between
the main speaker and the audio receiver. In this case, use the TV Speaker
function.
NAudio Format option may differ depending on the broadcast. 5.1ch
Dolby digital sound is only available when connecting an external speaker
through an optical cable. LCD 420 does not support
English

◀ ▶
●Audio Description
(not available in all locations) (digital channels only)
This function handles the Audio Stream for the AD (Audio Description) which
is sent along with the Main audio from the broadcaster.
Audio Description (Off / On): Turn the audio description function on or off.
Volume: Adjust the audio description volume.
English

◀ ▶
●SPDIF Output for LED, PDP TV : SPDIF (Sony Philips Digital InterFace) is used
to provide digital sound, reducing interference going to speakers and various
digital devices such as a DVD player.
Audio Format: You can select the Digital Audio output (SPDIF) format. The
available Digital Audio output (SPDIF) format may differ depending on the
input source.
NBy connecting to 5.1ch speakers in a Dolby Digital setup, maximize your
interactive 3D sound experience.
Audio Delay: Correct audio-video sync problems, when watching TV or
video, and when listening to digital audio output using an external device such
as an AV receiver (0ms ~ 250ms).
English

◀ ▶
●Dolby Digital Comp (Line / RF): This function minimizes signal disparity
between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC,
ATV Sound).
NSelect to obtain dynamic sound, and to reduce the difference Line RF
between loud and soft sounds at night time.
Line: Set the output level for signals greater or less than -31dB (reference) to
either -20dB or -31dB.
RF: Set the output level for signals greater or less than -20dB (reference) to
either -10dB or -20dB.
English

◀ ▶
■Reset Sound (Yes / No)
O
MENUm → Sound → Reset Sound → ENTERE
Reset all sound settings to the factory defaults.
English

◀ ▶
❑Selecting the Sound Mode t
When you set to , the current sound mode is displayed on the screen.Dual I-II
Audio Type DefaultDual I-II
A2 Stereo Mono Mono Automatic change
Stereo Stereo ↔ Mono
Dual Dual I ↔ Dual II Dual I
NICAM Stereo Mono Mono Automatic change
Stereo Mono ↔ Stereo
Dual Mono → Dual I
Dual II
Dual I
NIf the stereo signal is weak and an automatic switching, occurs, then switch
to the mono.
NOnly activated in stereo sound signal.
NOnly available when the Source TV is set to .
English

◀ ▶
❑Connecting to the Network
for LED 5 series 32" and above, PDP 490 series
NFor LED TVs, network function is not supported depending on the country.
■Wired Network Connection
You can attach your TV to your LAN using cable in three ways:
English

◀ ▶
●You can attach your TV to your LAN by connecting the LAN port on the back
of your TV to an external modem using a LAN cable. See the diagram below.
* It may differ depending
on the model.
The Modem Port on the Wall External Modem
(ADSL / VDSL / Cable TV)
TV Rear Panel
LAN Cable
Modem Cable
English

◀ ▶

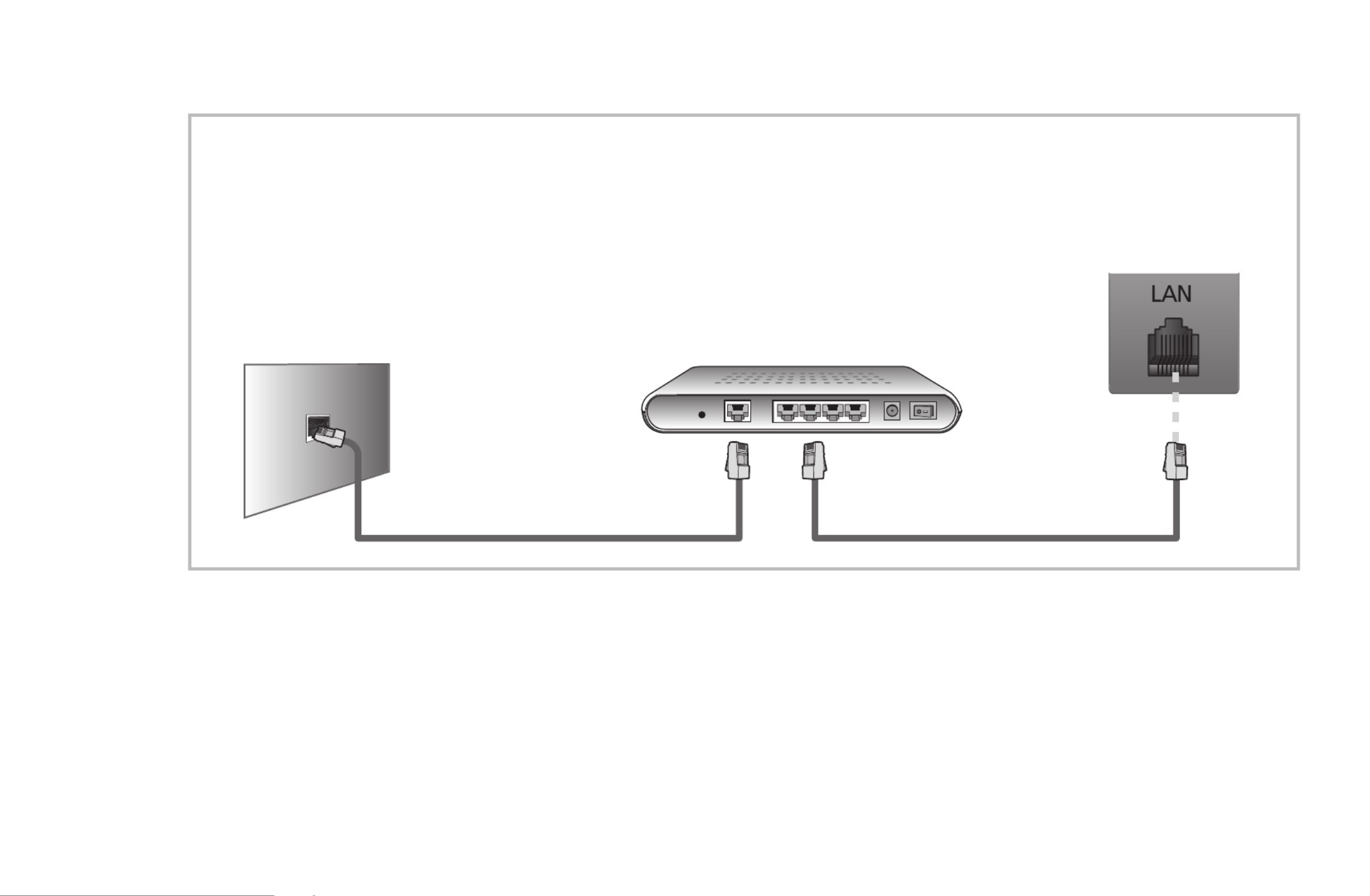

●You can attach your TV to your LAN by connecting the LAN port on the back
of your TV to a IP Sharer which is connected to an external modem. Use LAN
cable for the connection. See the diagram below.
* It may differ depending
on the model.
The Modem Port on the Wall
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer
(having DHCP server)
TV Rear Panel
LAN Cable
LAN CableModem Cable
English

◀ ▶

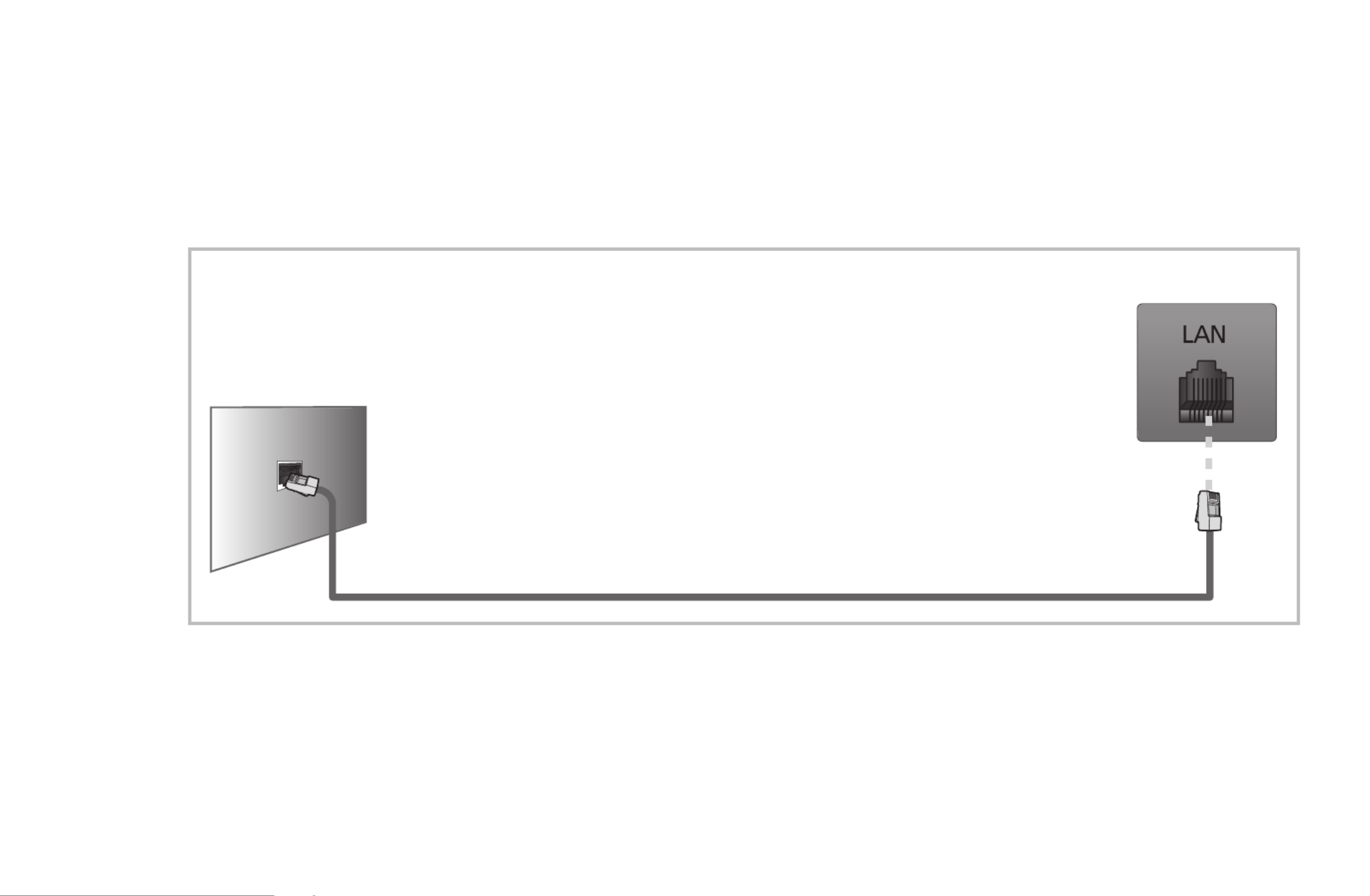

●Depending on how your network is configured, you may be able to attach
your TV to your LAN by connecting the LAN port on the back of your TV
directly to a network wall outlet using a LAN cable. See the diagram below.
Note that the wall outlet is attached to a modem or router elsewhere in your
house.
* It may differ
depending on the
model.
The LAN Port on the Wall
TV Rear Panel
LAN Cable
●If your network requires a Dynamic IP address, you should use an ADSL
modem or router that supports Dynamic Host Configuration Protocol (DHCP).
English

◀ ▶
Modems and routers that support DHCP automatically provide the IP
address, subnet mask, gateway, and DNS values your TV needs to access
the Internet so you do not have to enter them manually. Most home networks
use a Dynamic IP address. Some networks require a Static IP address. If your
network requires a Static IP address, you must enter the IP address, subnet
mask, gateway, and DNS values manually on your TV’s Cable Setup Screen
when you set up the network connection. To get the IP address, subnet
mask, gateway, and DNS values, contact your Internet Service Provider (ISP).
If you have a Windows computer, you can also get these values through your
computer.
NYou can use ADSL modems that support DHCP if your network requires
a Static IP address. ADSL modems that support DHCP also let you use
Static IP addresses.
NIt is not supported when the network speed is below or equal to 10Mbps.
English

◀ ▶
■Wireless Network Connection
To connect your TV to your network wireless, you need a wireless router or
modem and a Samsung Wireless LAN Adapter (WIS12ABGNX, WIS09ABGNX),
which you connect to your TV’s back or side panel USB port. See the illustration
below.
LAN Cable
Wireless IP sharer
(Wireless router having DHCP Server)
Samsung Wireless LAN
Adapter
TV Side Panel
The LAN Port on the Wall
English

◀ ▶
Samsung’s Wireless LAN adapter is sold separately and is offered by select
retailers and Ecommerce sites. Samsung’s Wireless LAN adapter supports the
IEEE 802.11a/b/g and n communication protocols. Samsung recommends using
IEEE 802.11n. When you play video over a network connection, the video may
not be played smoothly.
NNOTE
●You must use the “Samsung Wireless LAN Adapter” (WIS12ABGNX,
WIS09ABGNX) to use a wireless network.
●Samsung Wireless LAN Adapter and the USB extension Cable are sold
separately and are offered by select retailers and Ecommerce sites.
English

◀ ▶
●To use a wireless network, your TV must be connected to a wireless IP
sharer (either a router or a modem). If the wireless IP sharer supports
DHCP, your TV can use a DHCP or static IP address to connect to the
wireless network.
●Select a channel for the wireless IP sharer that is not currently being used.
If the channel set for the wireless IP sharer is currently being used by
another device nearby, this will result in interference and communication
failure.
●If you apply a security system other than the systems listed below, it will
not work with the TV.
English

◀ ▶
●If HIGH PURE THROUGHPUT (Greeneld) 802.11n mode is selected
and the Encryption type is set to WEP or TKIP for your wireless router,
Samsung TVs will not support a connection in compliance with new Wi-Fi
certication specications.
●If your wireless router supports WPS (Wi-Fi Protected Setup), you can
connect to the network via PBC (Push Button Conguration) or PIN
(Personal Identication Number). WPS will automatically congure the
SSID and WPA key in either mode.
●If your router, modem, or device is not certied, it may not connect to the
TV via the “Samsung Wireless LAN Adapter”.
●Ensure the TV is turned off before you connect the Samsung Wireless
LAN Adapter.
English

◀ ▶
●Connection Methods: You can setup the wireless network connection like
below.
–Auto Setup (Using the Auto Network Search function)
–Manual Setup
–WPS(PBC)
–Wi-Fi Direct
●The Samsung Wireless LAN Adapter may not be recognized when using
a connection via a USB hub or via a USB extension cable other than the
cable supplied.
English

◀ ▶
Method 2
Connect via an extension cable
To reconnect the Samsung Wireless LAN Adapter
using the extension cable, follow these steps:
1. Connect the extension cable to the USB port.
2. Connect the extension cable and Samsung
Wireless LAN Adapter.
3. Attach the Samsung Wireless LAN Adapter to
the back of the TV near the top, using double-
sided adhesive tape.
NThe Samsung Wireless LAN Adapter should be installed in an
interference-free area in order to avoid interference between the adapter
and tuner.
or
* The position of port may differ
depending on the model.
English

◀ ▶
■Network Settings
O
MENUm → Network → Network Settings → ENTERE
You can set the wired or wireless network connection.
NFor detailed settings for wired network, refer to the "Setting the Wired
Network", and for detailed settings for wireless network, refer to the "Setting
the Wireless Network" in this manual.
English

◀ ▶
■Network Status
O
MENUm → Network → Network Status → ENTERE
You can check the current network and Internet status.
English

◀ ▶
❑Setting the Wired Network
for LED 5 series 32" and above, PDP 490 series
NFor LED TVs, network function is not supported depending on the country.
■Wired Network Setup (Auto)
NWhen connecting the LAN Cable, the screen pop-up appears directly to set
wired network.
Use the Automatic Network Setup when connecting your TV to a network that
supports DHCP. To set up your TV’s cable network connection automatically,
follow these steps:
English

◀ ▶
■Wired Network Setup (Manual)
Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address.
Getting the Network Connection Values
To get the Network connection values on most Windows computers, follow these
steps:
1. Right click the Network icon on the bottom right of the screen.
2. In the pop-up menu that appears, click Status.
3. On the dialogue that appears, click the Support tab.
4. On the Support Tab, click the Details button. The Network connection values
are displayed.
English

◀ ▶
How to set up manually
To set up your TV’s cable network connection manually, follow these steps:
1. Follow Steps 1 through 2 in the “How to
set up automatically” procedure.
2. Select the IP Settings on network
connection screen.
3. Set IP Mode to Manual.
4. Press the ▼ button to go to the first entry
field.
IP Settings
R Return
OK
IP Mode Manual
IP Address 0 . 0 . 0 . 0
Subnet Mask 0 . 0 . 0 . 0
Gateway 0 . 0 . 0 . 0
DNS Mode Manual
DNS Server 0 . 0 . 0 . 0
5. Enter the IP Address, Subnet Mask, Gateway, and DNS Server values. Use
the number buttons to enter numbers and the arrow buttons to move from
one entry field to another.
6. When done, select the OK.
7. The network connection screen appears, and network setting is done.
English

◀ ▶
The check list for wired network connection failure
When wired network connection failed, try to apply the following information to
each issue.
Issues Solutions and Explanations
No network cable found. Check that your network cable is plugged in.•
• If it is connected, make sure that the router is turned on; if it is on, try
turning it off and on again.
IP auto setting failed. Try the following to set your IP address automatically or set your IP
address manually by selecting .IP Settings
• Ensure DHCP server is enabled on router and unplug and re-plug-in
the router.
• Contact your Internet Service Provider for more information.
English

◀ ▶
Issues Solutions and Explanations
Unable to connect to the
network.
• Check if your IP address is set correctly in . IP Settings
• Contact your Internet Service Provider for more information.
Connected to your local
network, but cannot
connect to the Internet.
• Check your Internet LAN cable is connected correctly to LAN port of
router.
• Check the DNS settings in .IP Settings
• If the problem persists, contact your Internet Service Provider to
access the Internet.
Network setup complete,
but cannot connect to the
Internet.
• Conrm that your router is connected to the Internet.
• If the problem persists, contact your Internet Service Provider to
access the Internet.
English

◀ ▶
How to set up automatically
1. Go to Network Settings screen.
2. Select Start.
3. The Network function searches
for available wireless networks.
When done, it displays a list of the
available networks.
Network Settings
Samsung Wireless LAN Adapter connected.
Press Start to congure your wireless network settings.
If you want to connect to your wired network, plug in a
network cable.
Start
Cancel
4. In the list of networks, press the ▲ or ▼ button to select a network, and then
press ENTER E button.
NIf the wireless router is set to Hidden (Invisible), you have to select Add
Network and enter the correct network name and Security key to
establish the connection.
English

◀ ▶
5. If the Security screen pop-up appears, go to step 6. If you select the wireless
router which does not have wireless security, go to step 7.
6. To set wireless security for the router, enter the Security key(Security or PIN).
NWhen you enter the Security key (Security or PIN), use ▲/▼/◄ /►
buttons to select number/characters. Press ENTER E to enter the
characters.
NYou should be able to nd the Pass Phrase on one of the set up screens
you used to set up your router or modem.
7. The network connection screen appears, and network setting is done.
NIf it fails to set Security key (Security or PIN), select or .Retry IP Settings
NIf you want to set connection manually, select the . Refer to IP Settings
following “How to set up manually”.
English

◀ ▶
■Wireless Network Setup (Manual)
Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address.
Getting the Network Connection Values
To get the Network connection values on most Windows computers, follow these
steps:
1. Right click the Network icon on the bottom right of the screen.
2. In the pop-up menu that appears, click Status.
3. On the dialogue that appears, click the Support tab.
4. On the Support Tab, click the Details button. The Network connection values
are displayed.
English

◀ ▶
How to set up manually
To set up your TV’s cable network connection manually, follow these steps:
1. Follow Steps 1 through 7 in the “How to set up automatically” procedure.
2. Select the IP Settings on network connection screen.
3. Set IP Mode to Manual.
4. Press the ▼ button to go to the first entry field.
5. Enter the IP Address, Subnet Mask, Gateway, and DNS Server values. Use
the number buttons to enter numbers and the arrow buttons to move from
one entry field to another.
6. When done, select the OK.
7. The network connection screen appears, and network setting is done.
English

◀ ▶
■Wireless Network Setup (WPS(PBC))
If your router has a WPS(PBC) button, follow these steps:
1. Go to Network Settings screen.
2. Select Start.
3. The Network function searches for available wireless networks. When done, it
displays a list of the available networks.
4. Select the WPS(PBC).
5. Press the WPS(PBC) button on your router within 2 minutes. Your TV
automatically acquires all the network setting values it needs and connects to
your network.
6. The network connection screen appears, and network setting is done.
English

◀ ▶
The check list for wireless network connection failure
When wireless network connection failed, try to apply the following information to
each issue.
Issues Solutions and Explanations
Wireless network
connection failed.
• No wireless router selected. Go to to select your Network Settings
router.
• Samsung Wireless LAN adapter is required to use a wireless network.
• Make sure the TV is connected to a wireless IP sharer (Router).
IP auto setting failed. Try the following to set your IP address automatically or set your IP •
address manually by selecting .IP Settings
• Ensure DHCP server is enabled on router and unplug and re-plug-in the
router.
• Check if you need to enter a security key to use the router.
• Contact your Internet Service Provider for more information.
English

◀ ▶
Issues Solutions and Explanations
Unable to connect to
wireless router.
• Check that the router is turned on, and if it is on, try turning it off and
on again.
• Check if you need to enter a security key to use the router.
Unable to connect to the
network.
• Check if your IP address is set correctly in . IP Settings
• Check if you need to enter a security key to use the router.
• Contact your Internet Service Provider for more information.
Connected to your local
network, but cannot
connect to the Internet.
• Check your Internet LAN cable is connected correctly to LAN port of
router.
• Check the DNS settings in .IP Settings
• If the problem persists, contact your Internet Service Provider to
access the Internet.
Network setup complete,
but cannot connect to the
Internet.
• Conrm that your router is connected to the Internet.
• If the problem persists, contact your Internet Service Provider to
access the Internet.
English

◀ ▶
If Your TV Fails to Connect to the Internet
Your TV may not be able to connect to the Internet because your ISP has permanently
registered the MAC address (a unique identifying number) of your PC or modem, which
it then authenticates each time you connect to the Internet as a way of preventing
unauthorized access. As your TV has a different MAC address, your ISP can not
authenticate its MAC address, and your TV can not connect.
To resolve this problem, ask your ISP about the procedures required to connect devices
other than a PC (such as your TV) to the Internet.
If your Internet service provider requires an ID or password to connect to the Internet,
your TV may not be able to connect to the Internet. If this is the case, you must enter
your ID or password when connecting to the Internet.
The internet connection may fail because of a firewall problem. If this is the case, contact
your Internet service provider.
If you cannot connect to the Internet even after you have followed the procedures of your
Internet service provider, please contact Samsung Electronics.
English

◀ ▶
❑ Managing the Network Connected Devices
for PDP 490 series
■Wi-Fi Direct
OMENUm → Network → Wi-Fi Direct → ENTERE
Set to connect the TV to wireless mobile devices. Using this function, you can
connect wireless mobile devices with your TV directly without a wireless router.
NYou can use this function when connecting the Samsung Wireless LAN
Adapter.
NIt only supports AllShare Play function.
NIt may not be supported depending on the mobile device.
English

◀ ▶
How to connect the device to your TV using Wi-Fi Direct function
1. Go to Wi-Fi Direct screen. The TV starts to search devices.
2. Turn on the Wi-Fi Direct function on your device. Select the desired device,
and then press the ENTER E button.
●PBC: Press the WPS(PBC) button on your device within 2 minutes. Your
TV automatically acquires all the network setting values it needs and
connects to your network.
●PIN: Input the displayed PIN on your device.
NIf you want to disconnect the device, select the connected device, and press
the ENTER E button to select .Disconnect
English

◀ ▶
■AllShare Settings
O
MENUm → Network → AllShare Settings → ENTERE
Set whether to allow a network connected device like a smartphone or tablet
to share content or control TV using an application downloaded on your mobile
device. For details on set up options, refer to the "Using the DLNA Functions".
English

◀ ▶
■Device Name
O
MENUm → Network → Device Name → ENTERE
Change the TV’s name by keying in a name manually.
NA keyboard appears on the screen and you can key in a name for your TV
manually using your remote control. For example, if you want to change the
name to Samsung TV, press each character using the ▲/▼/◄/► buttons,
and then select .Done
English

◀ ▶
❑Executing initial setup
■Setup
OMENUm → System → Setup → ENTERE
Configure the channels and the time when setting up the TV for the first time or
when resetting the unit.
NFor the detailed information about setting , refer to “Initial Setup” in Setup
User Manual.
English

◀ ▶
❑Setting the Time
■Time
OMENUm → System → Time → ENTERE
The current time will appear every time you press the button.INFO
●Clock: Setting the clock is for using various timer features of the TV.
NIf you disconnect the power cord, you have to set the clock again.
Clock Mode: Set up the current time manually or automatically.
–Auto: Set the current time automatically using the time from a digital
channel.
NThe aerial must be connected in order to set the time automatically.
English

◀ ▶
❑Using the Sleep Timer
OMENUm → System → Time → Sleep Timer → ENTERE
●Sleep Timer t: Automatically shuts off the TV after a preset period of
time. (30, 60, 90, 120, 150 and 180 minutes).
NTo cancel , select Sleep Timer Off.
English

◀ ▶
❑Setting the On / Off Timer
O MENUm → System → Time → <or> On Timer Off Timer → ENTERE
●On Timer 1 / On Timer 2 / On Timer 3: Three different on timer settings can
be made. You must set the clock first.
–Setup Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun: Select or
Manual Manual to set at your convenience. If you select , you can set up
the day you want to activate the timer.
NThe c mark indicates the day you’ve selected.
–Time: Set the hour and minute.
–Volume: Set the desired volume level.
English

◀ ▶
❑Locking Programme
■Security
OMENUm → System → Security → ENTERE
NThe PIN input screen appears before the setup screen.
NEnter your 4-digit PIN. Change the PIN using the option.Change PIN
●Channel Lock (Off / On): Lock channels in Channel menu to prevent
unauthorized users, such as children, from watching unsuitable programme.
NAvailable only when the Source TV is set to .
English

◀ ▶
●Programme Rating Lock (depending on the country): Prevent unauthorized
users, such as children, from watching unsuitable programme with a user-
defined 4-digit PIN code. If the selected channel is locked, the “ \” symbol will
be displayed.
NThe items of Programme Rating Lock differs depending on the country.
●Change PIN: Change your password required to set up the TV.
English

◀ ▶
●PIP settings
LCD 420 does not support AV, Component mode
Main picture Sub picture
Component, HDMI TV
●PIP (Off / On): Activate or deactivate the PIP function.
●Channel: Select the channel for the sub-screen.
●Size ( Õ / Ã): Select a size for the sub-picture.
●Position ( à / – / — / œ): Select a position for the sub-picture.
●Sound Select (Main / Sub): You can choose the desired sound (Main /
Sub PIP) in mode.
English

◀ ▶
❑Economical Solutions
■Eco Solution
OMENUm → System → Eco Solution → ENTERE
●Energy Saving (Off / Low / Medium / High / Picture Off) t: This
adjusts the brightness of the TV in order to reduce power consumption. If you
select Picture Off, the screen is turned off, but the sound remains on. Press
any button except volume button to turn on the screen.
English

◀ ▶
●No Signal Power Off (Off / 15 min / 30 min / 60 min): To avoid unnecessary
energy consumption, set how long you want the TV to remain on if it’s not
receiving a signal.
NDisabled when the PC is in power saving mode.
●Auto Power Off (Off / On): The TV will be automatically turned off when no
user operation is received for 4 hours.
English

◀ ▶
■Subtitle
O
MENUm → System → Subtitle → ENTERE
Use this menu to set the mode.Subtitle
●Subtitle (Off / On): Switches subtitles on or off.
●Subtitle Mode (Normal / Hearing Impaired): Sets the subtitle mode.
●Subtitle Language: Sets the subtitle language.
NIf the programme you are watching does not support the Hearing
Impaired Normal Hearing function, automatically activates even if the
Impaired mode is selected.
NEnglish is the default in cases where the selected language is unavailable
in the broadcast.
English

◀ ▶
■Digital Text (Disable / Enable)
(UK only)
OMENUm → System → Digital Text → ENTERE
If the programme broadcasts with digital text, this feature is enabled.
NMHEG (Multimedia and Hypermedia Information Coding Experts Group)
An International standard for data encoding systems used in multimedia
and hypermedia. This is at a higher level than the MPEG system which
includesdata-linking hypermedia such as still images, character service,
animation, graphic and video files as well as multimedia data. MHEG is user
runtime interaction technology and is being applied to various fields including
VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce),
teleeducation, tele-conferencing, digital libraries and network games.
English
Produkt Specifikationer
Mærke: | Electrolux |
Kategori: | Vaskemaskine |
Model: | EW6T7682EB |
Har du brug for hjælp?
Hvis du har brug for hjælp til Electrolux EW6T7682EB stil et spørgsmål nedenfor, og andre brugere vil svare dig
Vaskemaskine Electrolux Manualer
7 August 2025
7 August 2025
7 August 2025
6 August 2025
6 August 2025
6 August 2025
6 August 2025
6 August 2025
6 August 2025
6 August 2025
Vaskemaskine Manualer
- Bomann
- Nodor
- Yamazen
- Imesa
- Wascomat
- Blaupunkt
- Etna
- Trieste
- Russell Hobbs
- Khind
- Proline
- Imarflex
- Waltham
- Kunft
- Dexter Laundry
Nyeste Vaskemaskine Manualer
11 August 2025
11 August 2025
11 August 2025
11 August 2025
11 August 2025
11 August 2025
11 August 2025
11 August 2025
11 August 2025
11 August 2025
