ELO 1717L Rev B Manual

ELO overvåge 1717L Rev B

Læs gratis den danske manual til ELO 1717L Rev B (3 sider) i kategorien overvåge. Denne vejledning er vurderet som hjælpsom af 13 personer og har en gennemsnitlig bedømmelse på 5.0 stjerner ud af 7 anmeldelser. Har du et spørgsmål om ELO 1717L Rev B, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/3
246.4
196
62.4
139.7
166.4
(X2)
101.8
30.6
61.9
97.3
75
285
358.1
319.4
266.9
229.1
(TOUCH ACTIVE AREA)
305.1
(TOUCH ACTIVE AREA)
197
44.1 = AT ZER0-BEZEL/i-TOUCH
50 = IT/AT WITH BEZEL
38.6
9.7
110.2
3 OF 1SHEET

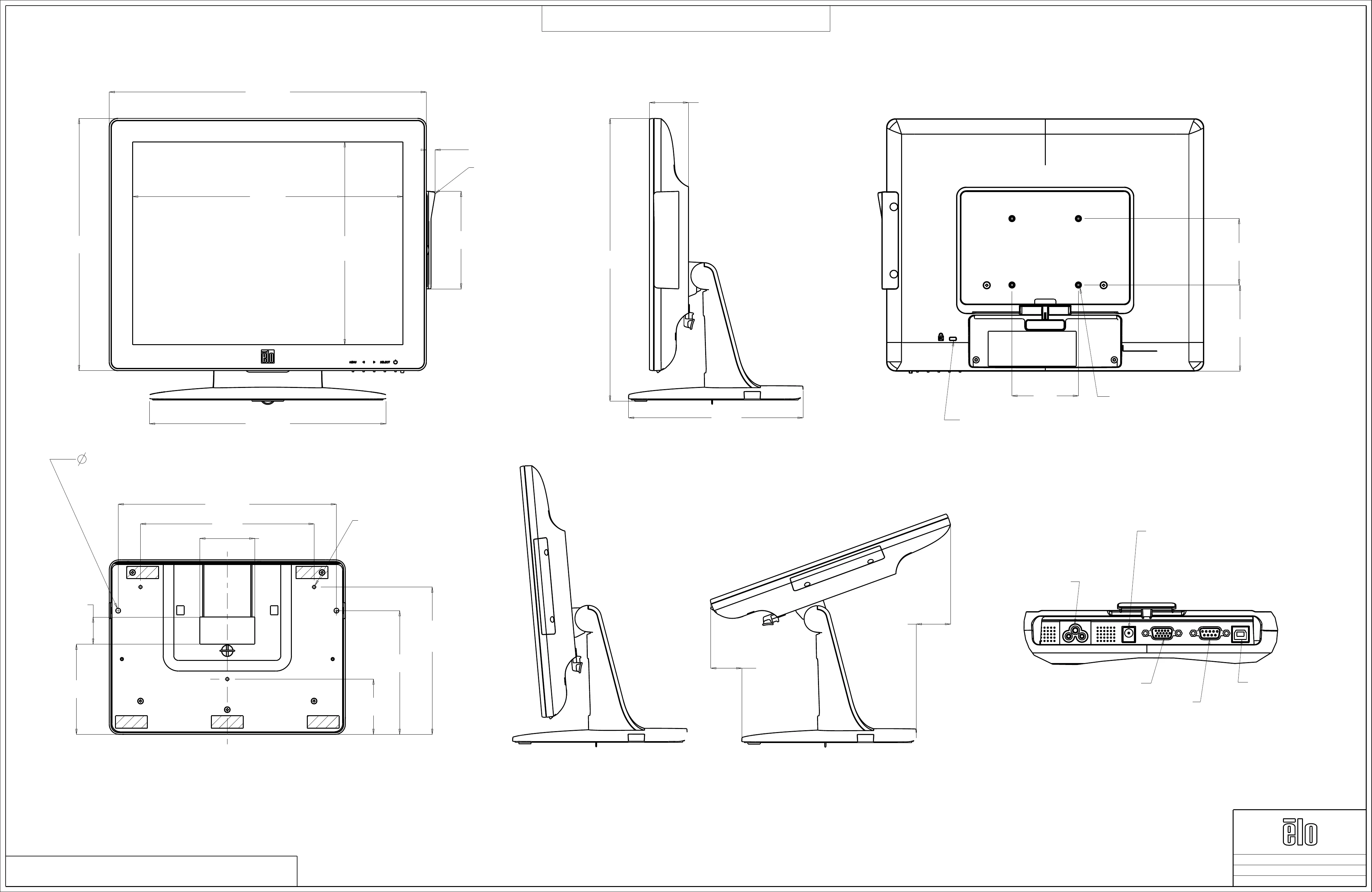

DIMENSIONAL DRAWING, 1517L/1717L
REV: A
DATE: 10/4/13
MS601505
DIMENSIONS ARE IN MILLIMETERS
M4 THREAD,
MAX. SCREW LENGTH
7mm FROM MOUNTING
SURFACE, X3
5.5 THRU HOLE UNDER
ACCESS COVER FOR FLAT
HEAD SCREW; X2
DC POWER INPUT:
BARREL ID = 6.4mm
PIN OD = 2.0mm
BARREL DEPTH = 8.8mm
INPUT VOLTAGE = 12V DC ± 5%
VGA VIDEO INPUT
USB
TOUCH SCREEN
OUTPUT
AC POWER INPUT
SERIAL
TOUCH SCREEN
OUTPUT
M4 THREAD,
MAX. SCREW LENGTH
7mm FROM MOUNTING
SURFACE, X4
KENSINGTON LOCK
RECEPTICAL
1517 STAND BOTTOM VIEW
SEE PG. 2 FOR 1717
SEE PG. 3 FOR 0700 MOUNTIING BRACKET,
VESA FILLER PLATE
1517 / 1717 INPUTS / OUTPUTS
(CABLE HOLE)
(CABLE HOLE)
OPTIONAL MSR
TILT -5° FROM VERTICAL
TILT 70° FROM VERTICAL
109.3
67.9
154.6
(X2)
171.9
109.3
36.5
62.5
196
264.4
338.92
(TOUCH ACTIVE AREA)
271.34
(TOUCH ACTIVE AREA)
391.9
327.2
284.3
46.4
50.4
215.4
48.6 = AT ZER0-BEZEL/i-TOUCH
54.5 = IT/AT WITH BEZEL
361.6
9.7
110
3 OF 2SHEET
DIMENSIONAL DRAWING, 1517L/1717L
REV: A
DATE: 10/04/13
MS601505
DIMENSIONS ARE IN MILLIMETERS
(CABLE HOLE)
(CABLE HOLE)
M4 THREAD,
MAX. SCREW LENGTH
7mm FROM MOUNTING
SURFACE, X4
KENSINGTON LOCK
RECEPTICAL
M4 THREAD,
MAX. SCREW LENGTH
7mm FROM MOUNTING
SURFACE, X3
1715 STAND BOTOM VIEW
5.5 THRU HOLE UNDER
ACCESS COVER FOR FLAT
HEAD SCREW; X2
OPTIONAL
MSR
TILT -5° FROM VERTICAL
TILT 70° FROM VERTICAL
