Side 1/4

093001-02-21-22-24 en ma 2012

Longlife™ HEAT SHADE

Food warming luminaire speciﬁ cation and installation

instructions for:

L593 - popular . Gantry ﬁ tting

L596 - bell - Gantry ﬁ tting

L597 - ceiling suspension

L598 - rise and fall·- ceiling suspension

GENERAL INFORMATION

Please read these instructions carefully. They will help you get the best out of your new LONGLIFE HEATSHADE and should

be kept for your reference.

The LONGLIFE HEATSHADE is designed for use with any Edison screw Infra-Red (Hard Glass) heat lamp and is essential

for maintaining the heat of servery food. The warming beam is directed to keep an adequate temperature and affording a

pleasing illumination to display the food.

APPLICATIONS

For indoor use only, above hot food displays in:

Hotels, Restaurants, Cafeterias, Canteens, Pub Grub Services.

FEATURES OF THE HEAT LAMP SYSTEM

1. Gives instant direct heat, no warm up period.

2. Provides a penetrating warmth without congealing surfaces of sauces, gravies etc.

3. Simple to install, either singly or in multiple units.

4. Reduces wastage by keeping food and plates warm.

5. Sale in use. Hard glass bulbs are resistant to thermal shock caused by accidental splashing.

MATERIALS AND FINISH

The shades are manufactured from high grade aluminium and electrostatically sprayed with thermoplastic lacquer for high

heat, chemical and water resistance.

Available in the following ﬁ nishes:

Brushed Copper

Brushed Aluminium

Brushed Brass

Brushed Bronze

Gloss Black

Gloss White

All models are ﬁ tted with ceramic Edison screw lamp holders comprising 10 mm all thread nipple assembly and prewired

with heat resistant cable. (NOTE: Reference to Catalogue No. L598, Rise and Fall Heat shade, the upper part of this unit,

the rise and fall mechanism, utilises PVC insulated cable).

Fittings accommodate gantry assembly, ceiling suspension and rise and fall mechanism.

SPECIFICATION

Voltage: 220 - 240 Volts.

Power: 250 Watts.

Frequency: 50 Hertz.

Lamp type: You may use either red or clear tungsten ﬁ lament infrared HARD GLASS 250W lamps only

This appliance is for INDOOR use only.

WARNING: THIS LUMINAIRE IS A CLASS 1 ELECTRICAL PRODUCT AND MUST BE EARTHED.

ELECTRICAL INSTALLATION

WARNING: THE INSTALLATION OF THE HEATSHADE SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Installation must follow IEE Wiring Regulations -BS7671 (IEC 364 a related standard) and also instructions attached.

(PLEASE REFER TO YOUR OWN NATIONAL WIRING REGULATIONS).

IMPORTANT: Before commencing installation, service, adjustments or lamp replacement, power to the relevant circuit MUST

BE SWITCHED OFF at the main circuit breaker or fuse panel.

093001-02-21-22-24 en ma 2012

ELECTRICAL CONNECTION

• All incoming cable installation should be heat resistant to 100 degrees Celsius.

• On no account should the prewired heat resistant cable be replaced with ordinary PVC insulated cable.

• All terminal connectors used must be heat resistant to 100 degrees Celsius and shrouded.

• Any channels or gantries used MUST BE EARTHED.

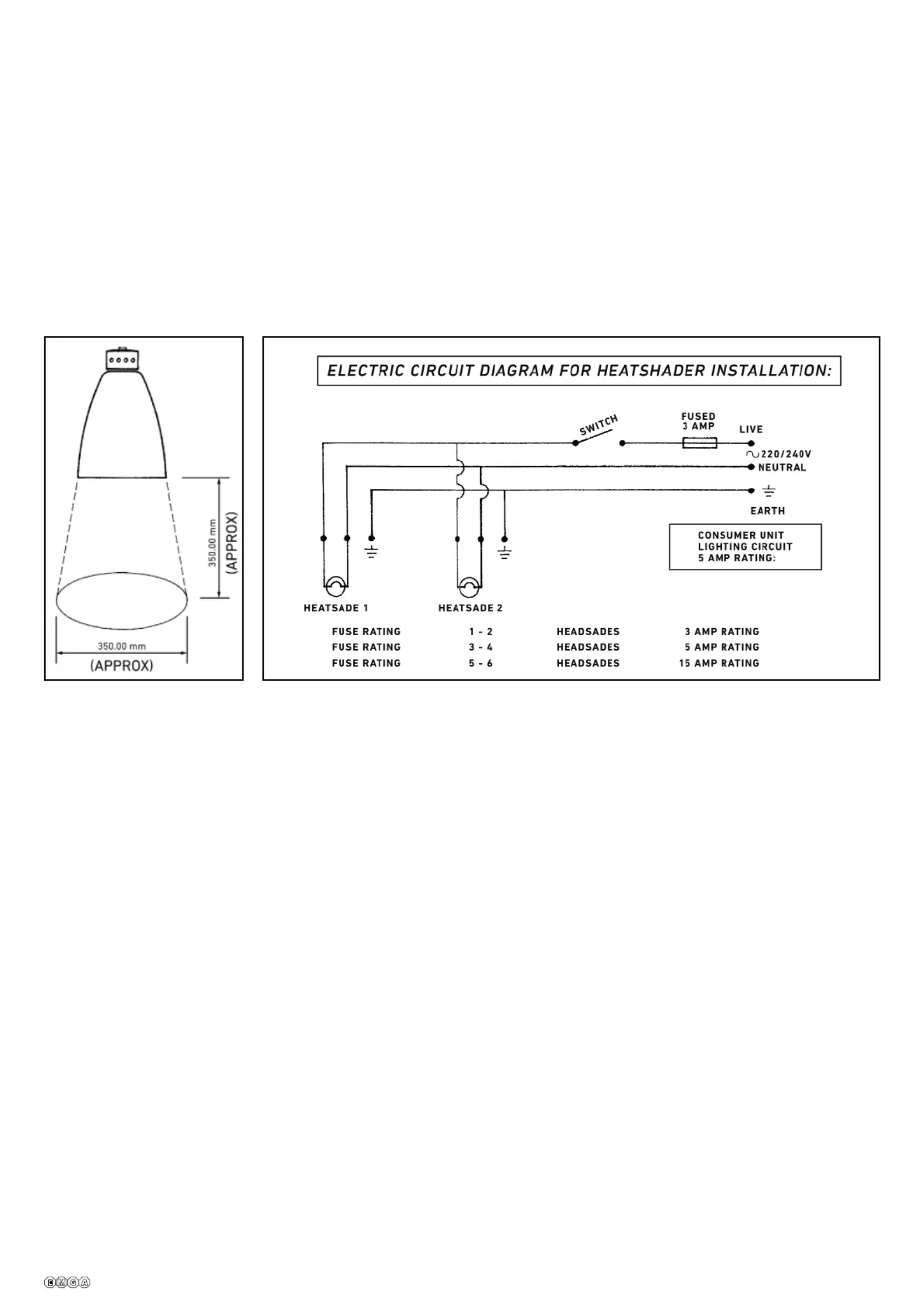

• The supply wiring must be routed from a fused source through a switch and then to the location you have selected.

• If a 13 amp (BS 1363) plug is used a 3 amp fuse must be ﬁ tted, or if any other type of plug is used a 5 amp must be ﬁ t-

ted either in the plug or adaptor or at the Distribution Board.

• Ensure all ceiling roses are properly secured alter any height or tension adjustments are made. Do not leave electrical con-

nections exposed.

• When stripping sheathing and insulation of cores leave the conductor exposed by approximately 6 mm.

COLOUR CODING OF WIRES

IMPORTANT:

The wires are coloured in accordance with the following code:

GREEN AND YELLOW: EARTH

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this Luminaire may not correspond with the coloured markings identifying the

terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the

letter or by the earth symbol E

or coloured green, or green and yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter or coloured black.N

The wire which is coloured brown must be connected to the terminal which is marked with the letter or coloured red.L
