MCB-100/101 MULTIFUNCTION DIGITAL TIME RELAY

With 2 CO Contacts

Operating Manual

Dudullu OSB; 1. Cadde; No: 23 34776 Umraniye - ISTANBUL / TURKEY

Tel : Fax : +90 216 313 01 10 +90 216 314 16 15

Precautions for Installation and Safe Use

If below precautions are not properly observed and carried out, it may result in cases with injury or

death.

· Disconnect power before working on the device.

· When device is connected to the network, do not remove the front panel.

· Do not clean the device with solvent or similar items. Only clean with dry cloth.

· Verify correct terminal connections before energizing the device.

· Install the device on the electrical panel.

· Contact your authorized reseller in case problems occur with your device.

·No responsibility is assured by the manufacturer or any of its subsidiaries for any

consequences rising out of not following above precautions.

1. INTRODUCTION

MCB-100/101 is a multifunction digital timer with 2 CO contacts. It offers wide time adjustment range

between 0.1-9999 seconds/minutes.

1.1 Application

MCB-100/101 has 7 different functions with wide adjustable time ranges. The main application area

is the industrial and automation control systems.

The device has two dry contacts for START and STOP inputs.

1.2 Product Features

MCB-100/101 has the following features:

· 85-315 VAC/DC - MCB-125

10-30 VAC/DC - MCB-126

· 7 different functions

· 0.1-9999 seconds/minutes time range

· 2 relay outputs

· Start-Stop dry contact inputs

· Memorizing remaining time of function in case of a power outage

· Custom design LCD with green backlight

· SET, ESC, UP, DOWN buttons are located on front panel for easy programming

· PK25 DIN Rail mounting

1.3 Hardware Features

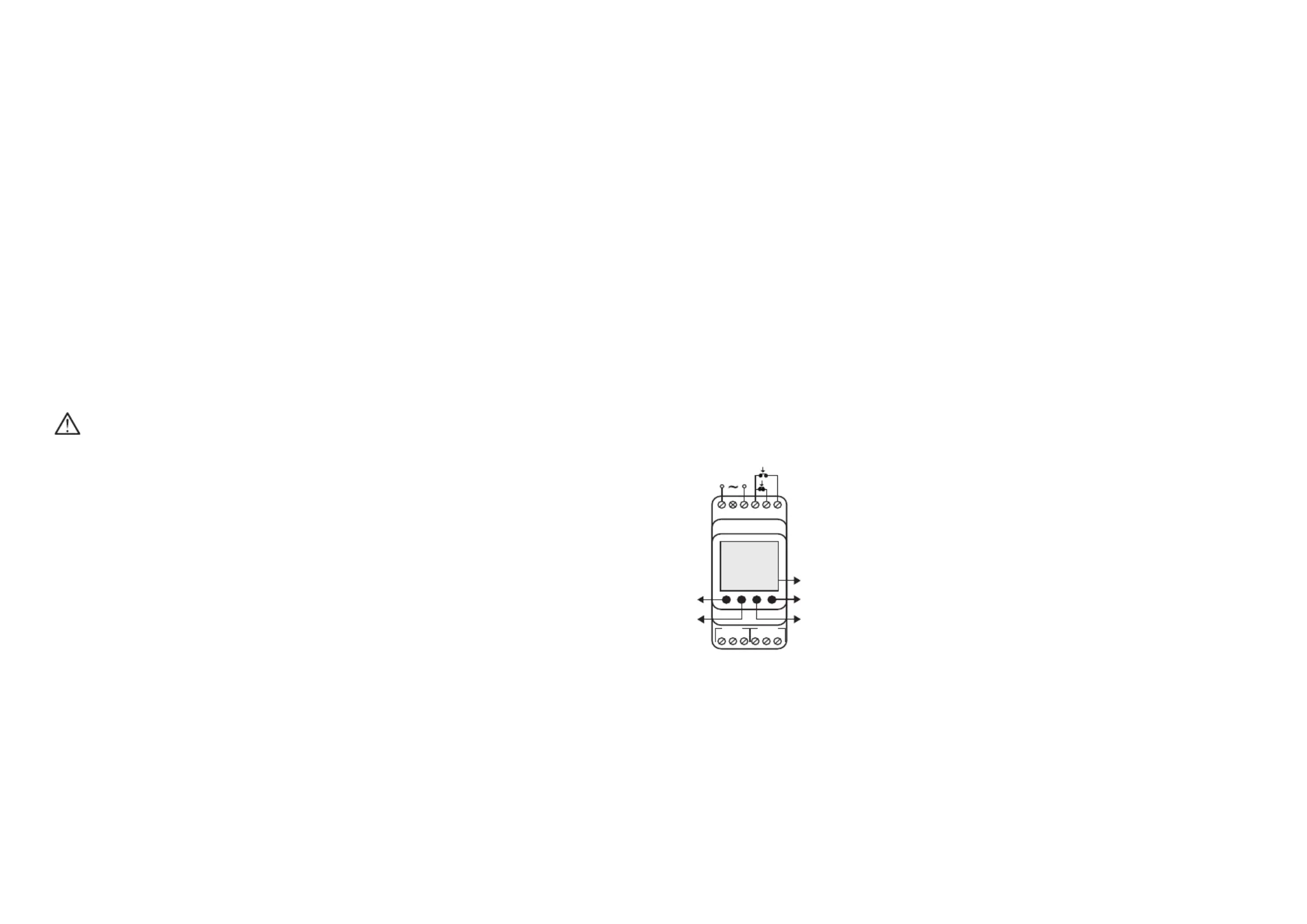

To operate functions with external triggering, the device has the necessary START and STOP dry contacts.

LCD

UP BUTTON

SET BUTTON

ESC BUTTON

DOWN BUTTON

Stop

Start

5 6

C NC

NO C NCNO

R1 R2
