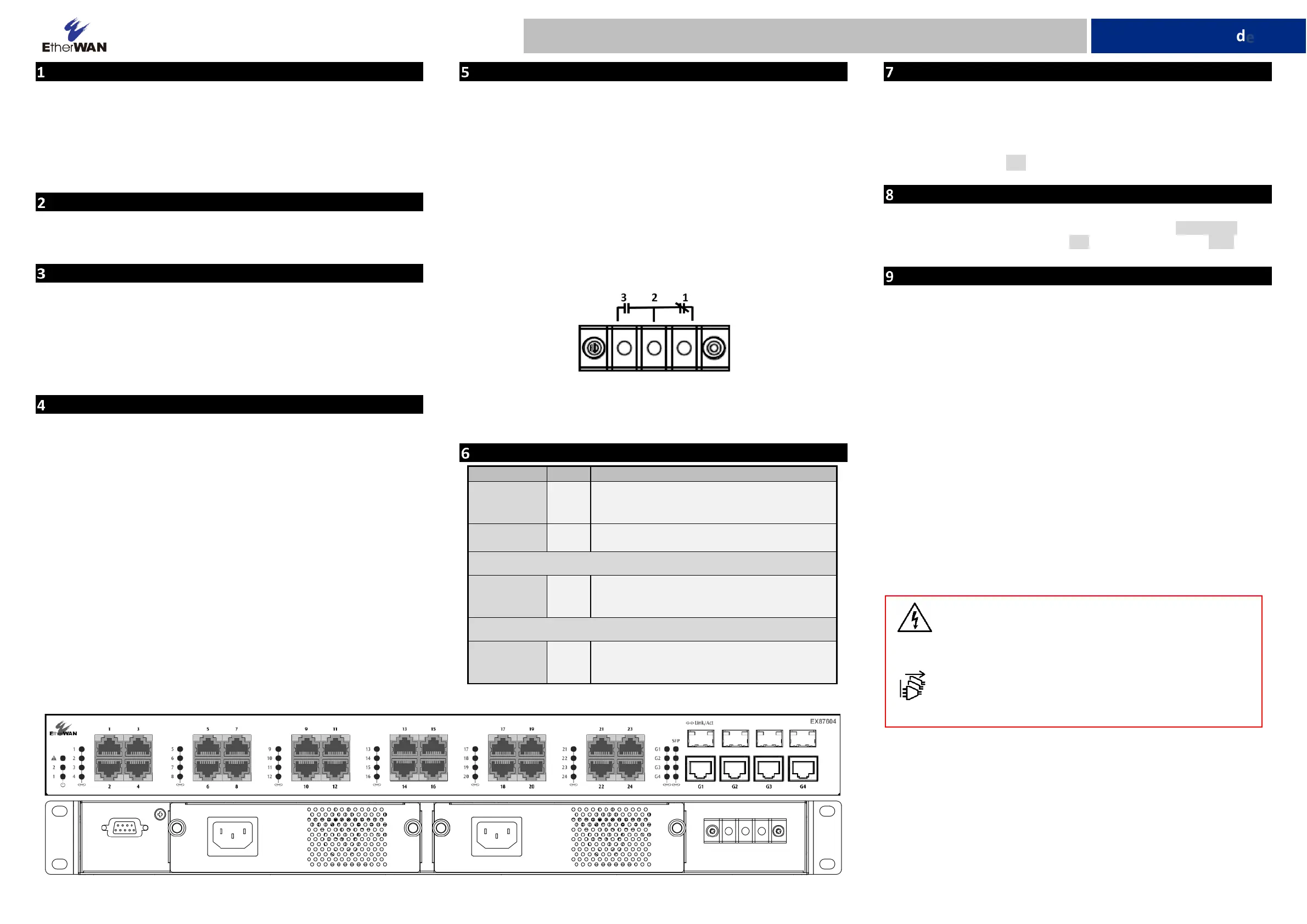

W70G-EX870V2Q3 Page 1

Installation Guide

EX87000 Series | Hardened Managed Ethernet Switch

Unpacking

Open the carton and unpack the items. Your package should include:

▪ EX87000 Ethernet switch

▪ Rack mounting brackets

If any items are missing or damaged, notify your EtherWAN representative. If

possible, save the carton and packing material in case you need to ship or store the

switch in the future.

What Else You Need

▪ Appropriate cables for data ports

▪ Personal computer or laptop

Select a Location

▪ Rack installations: Use a 19-inch (48.3-centimeter) EIA standard equipment

rack that is grounded and physically secure.

▪ Identify a power source within 6 feet (1.8 meters).

▪ Choose a dry area with ambient temperature between -40 and 75ºC (-40

and 167ºF).

▪ Be sure there is adequate airflow.

Connect to the Data Ports

Depending on the model, your switch can have the following ports:

▪ 0, 8, 16, or 24 10/100Base-TX ports

▪ 0, 8,16, or 24 100Base-FX ports

▪ 4 Gigabit ports

10/100Base-TX and 100Base-FX Ports

These ports come in 10/100Base-TX and 100Base-FX/SFP interfaces. They can

connect to devices such as an IP surveillance camera or a Voice Over Internet

Protocol (VoIP) phone.

Gigabit Ports

Some switch models have 4 1000Base-SX/LX/BX ports, or 4-port 1000Base SFP

combo with 10/100/1000Base-TX ports. You can connect these ports to network

devices such as a computer, printer, network video recorder (NVR), network

storage, or they can connect to the network itself.

Combo ports operate in “either/or” fashion. This means that attaching to a 1

Gbps combo port renders the equivalent partner combo port unavailable.

Apply Power

Terminal Block

If your EX87000 comes with AC power cables, connect the cables into the power

modules at the back of the switch. If your switch comes with a DC or AC terminal

block (no cable), then connect the switch to a suitable power supply using 12 to

18 AWG wire. Redundant power supply is supported. However, only one power

input is required to operate the switch. Input voltage is 48 VDC or 100 – 240 VAC

/ 88-300 VDC, depending on model.

Relay Output Alarm

The switch provides one dry contact for signaling of a user-defined power or port

failure. The alarm relay default is “open” and forms a closed circuit when the

event occurs. The relay output can be connected to an alarm signaling device.

Relay output current is 30VDC / 0.6A.

Power-Up Sequence

When you apply power, all Link/ACT LEDs blink momentarily, the Power LED goes

ON, and LEDs for every port connected to a device flash.

Front Panel LEDs

LED

Color

Status

Power

Green

On: Power on

Off: Power off

Alarm

Red

Link down or power down

10/100Base-TX, 100Base-FX/BX/SFP

Link/Act

Green

On: Network connection established

Flashing: Port sending or receiving data

1000Base-T/SX/LX/SFP

Link/Act

Green

On: Network connection established

Flashing: Port sending or receiving data

Console Configuration

Connect to the switch console by connecting the DB-9 cable to the console port of

the switch and to the serial port of the computer running a terminal emulation

application (such as HyperTerminal or Putty).

Configuration settings of the terminal-emulation program: Baud rate:

115,200bps, Data bits: 8, Parity: none, Stop bit: 1, Flow control: none.

The default login name is root, no password.

Web Configuration

address bar. Enter the default login ID: root (no password) and click “Login.”

Other Electrical and Safety Information

(A) Elevated Operating Ambient - If installed in a closed or multi-unit rack

assembly, the operating ambient temperature of the rack environment may be

greater than room ambient. Therefore, consideration should be given to installing

the equipment in an environment compatible with the maximum ambient

temperature (Tma).

B) Mechanical Loading - Mounting of the equipment in the rack should be such

that a hazardous condition is not achieved due to uneven mechanical loading.

C) Circuit Overloading - Consideration should be given to the connection of the

equipment to the supply circuit and the effect that overloading of the circuits

might have on overcurrent protection and supply wiring. Appropriate

consideration of equipment nameplate ratings should be used when addressing

this concern.

D) Reliable Earthing - Reliable earthing of rack-mounted equipment should be

maintained. Particular attention should be given to supply connections other than

direct connections to the branch circuit (e.g. use of power strips).

Do not disable the power cord grounding plug. The grounding plug is an

important safety feature.

Caution:

This equipment shall be used with all power supplies connected simultaneously.

This equipment is intended to be used in a restricted access location and by

qualified personnel. This equipment is not suitable for use in locations where

children are likely to be present.

Hazardous voltages may occur within this unit when connected to

all power supplies. Prevent access to hazardous voltages by disconnecting

this equipment from all power supplies.

Plug the power cord into a grounded (earthed) electrical outlet that

is easily accessible at all times.
