8PX60-12-B Datasheet

For latest version visit:

www.enttec.com

8 February 2019 M-file ID 4902755 Page|1

8PX60-12-B

12 V 60 PIXEL/METER BLACK STRIP

Features

• RGB, 3 in 1 full colour LED pixel strip.

• Individually addressable led pixels, suitable

for stage, entertainment and architectural

applications

• 60 Pixels/meter density

• Designed for use with ENTTEC Pixel products

• Maximum 8.5 Watts/Metre

• WS2815 chips built into 5050 RGB LEDs

• 256 grayscale

• 120-degree illumination without dark area

• 3M adhesive double side tape at the back

• Built-in data signal reshaping circuit

• 12V DC input supply voltage

• Flexible construction material

• Small LED pitch

• Can be joined together

• Can be cut into a smaller length

• IP20 Indoor use only

• Back up data line BI/BO (In/Out)

Physical Dimensions

Note

All dimensions are in mm

Safety

• Do not expose this pixel strip to rain

• Do not allow liquid to build up around the pixel

strip.

• Do not exceed the rated 12V DC power supply.

• Please adhere to installation instruction sheet

• This unit is intended for indoor use only, use of

this product outdoors voids all warranties.

• Do not put excess pressure on the pixel strip,

as it can damage the LEDs.

• Pixel strips produce heat; ensure proper

thermal management with the use of

extrusions

Ordering Information

Part Number

Description

8PX60-12-B

RGB PIXEL STRIP 60

LEDs/METER 12V –

5meter roll BLACK

8PX60-12-B Datasheet

For latest version visit:

www.enttec.com

8 February 2019 M-file ID 4902755 Page|2

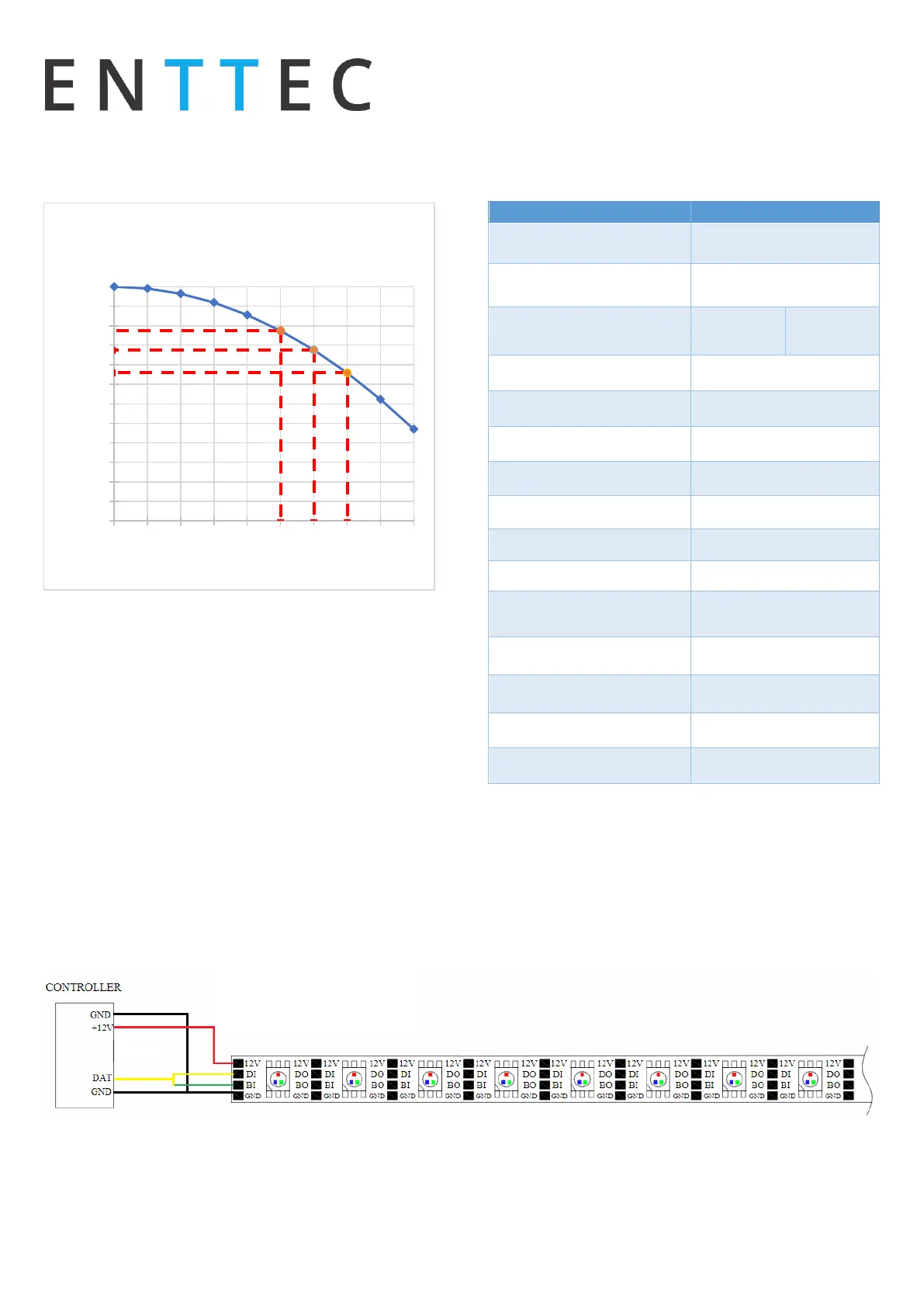

Voltage Drop of Pixel Strip

• The graph shows the voltage drop for each

meter of pixel strip when all pixels are white

(RGB channels fully on)

• The pixel strip had single injection as shown in

the wiring diagram below

• For more information on maximum run length

refer to the installation sheet

Specifications

Note

Power measurements calculated using 1m pixel strip

driven at 12V

Due to continuous improvements and innovations of all

ENTTEC products, specifications and features are

subject to change without notice.

Wiring Diagrams

20%

30%

40%

0 1 2 3 4 5 6 7 8 9

Voltage (V)

Meters of Pixel Strip powered on (m)

Voltage Drop for each Meter of

Pixel Strip (All Pixels White)

Item

8PX60-12-B

Input Voltage

+11.7V ~ +12.2VDC

Data line Voltage

-0.5V ~ VCC+0.5V

Watts/meter (max)

All (RGB)

8.5

Lumens/meter

RGB: 122

Efficacy (Lm/Watt)

14.9

DMX Channels/LED

Beam angle

120 °

Control protocol

WS2815

Connector

JST SM connectors

Weight (5m roll)

115 g

Operating

temperature

-20°C to 55 °C

Pixel Mapping

Order

GRB

Front polymer

encapsulation seal

IP Rating

PCB Colour

Black
