Equip Cat.6 Keystone Jack Manual


Læs gratis den danske manual til Equip Cat.6 Keystone Jack (1 sider) i kategorien Kabler til pc'er og periferiudstyr. Denne vejledning er vurderet som hjælpsom af 25 personer og har en gennemsnitlig bedømmelse på 4.7 stjerner ud af 13 anmeldelser. Har du et spørgsmål om Equip Cat.6 Keystone Jack, eller vil du spørge andre brugere om produktet?

Side 1/1
2. Follow the color-coding to position T568A or T568B wiring.
T568A T568B
Pin 1 Pin 1White/Green White/Orange
Pin 2 Pin 2Green Orange
Pin 3 Pin 3White/Orange White/Green
Pin 4 Pin 4Blue Blue
Pin 5 Pin 5White/Blue White/Blue
Pin 6 Pin 6Orange Green
Pin 7 Pin 7White/Brown White/Brown
Pin 8 Pin 8Brown Brown
4. Follow the color sign to put the cap onto IDC.
6. Tie up the cable and finish.
Unshield
Shielded
connect the drain wire
to the shielded shell
www.equip-info.net

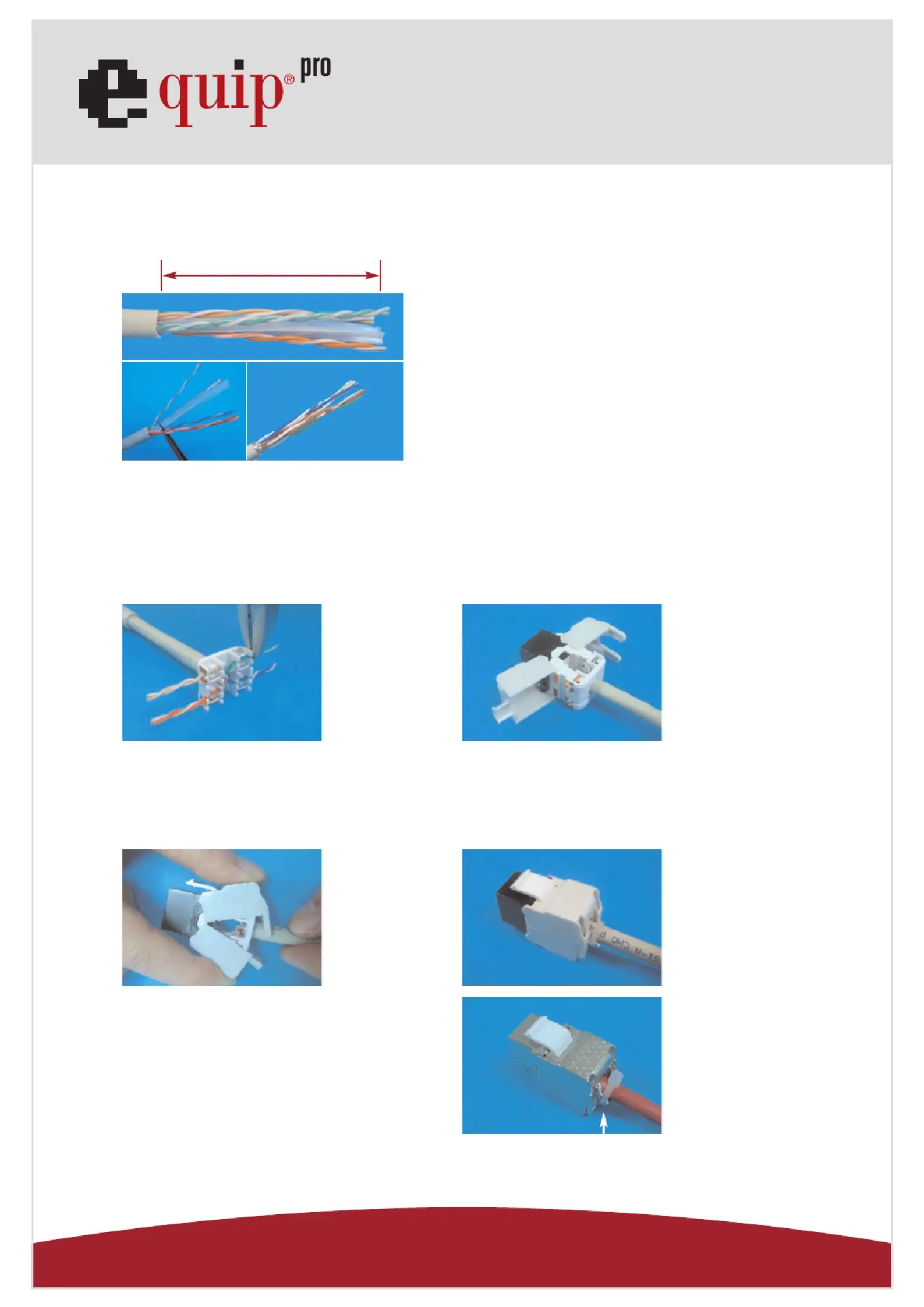

1. Strip approximately 40mm of the cable jacket.
3. Follow the cap color code to place the wires into
the cap slot. Make sure to keep the pairs twisted
as long as possible.
5. Lock the side caps with "CLICK" means
successful connection.
40mm
Drain wire
Cat.6 Keystone Jack tool less
