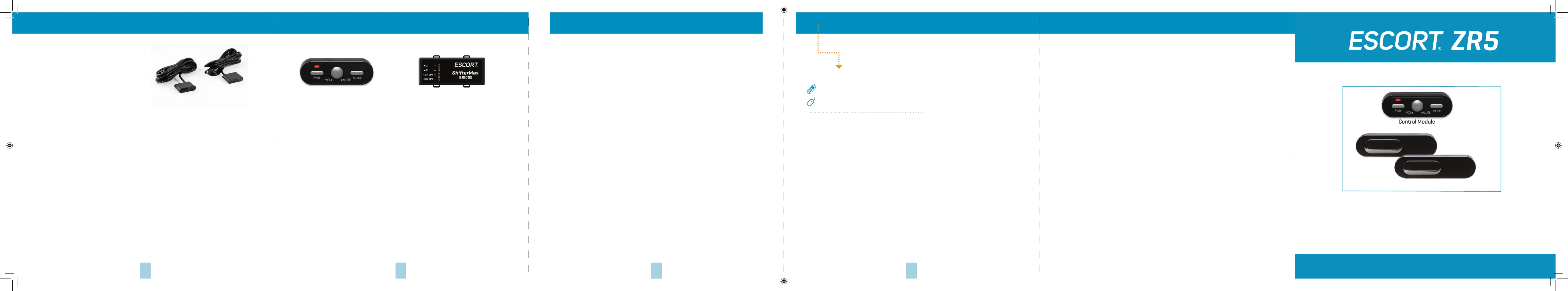

The Ultimate Laser Defense System

Twin Front-Mounted Laser Transceivers

Installation and Owner’s Manual

Sensor Installation (continued) Controller and Shifter Bridge Box Installation

1 Determine the best location for the

Controller. An optimal location is easily

visible and accessible from the driver’s

position and does not interfere with

normal driving. Avoid locations that

require reaching through or around the

steering wheel.

2 Clean the mounting surface thoroughly.

3 Mount the Controller using the

pre-applied adhesive.

4 Route the cable to the Interface and plug

into the port labeled “Controller”.

Controller Shifter Bridge Box

1 The Shifter Bridge Box is weatherproof. To

limit the number of cables routed

through the firewall, we recommend

installing the Bridge Box inside of the

engine compartment.

2 Slide the included heat shrink onto the

Bridge Box Interface cable then plug into

the cable extending from the Bridge Box

labeled “Interface” and route the cable

toward the interior of the vehicle. Shrink

the heat shrink onto the inline connector

and secure the cable with zip-ties.

3 Route the cable to the Interface and plug

into the port labeled “Shifters”.

1 Snap mounting bracket onto sensor and

install the included bolts but do not

tighten them. If the bolts do not thread

into the sensor then you have the bracket

on backwards.

2 Apply the double sided tape to the

underside of the sensor’s mounting

bracket. Check front alignment and

mount the sensor to a solid surface of the

vehicle.

3 Use the supplied bubble level to ensure

the sensor is parallel to the road and

tighten the sensor’s mounting bracket

bolts.

4 Repeat for additional sensor(s).

Securing Connectors with Shrink Tube

Once you’ve installed all components

properly and tested to ensure all parts are

working properly, use cable ties to fasten

sensor cables to a solid surface, keeping

them away from heat and any moving parts.

It is advisable to use the supplied heat

shrink tubes to protect connectors against

water, moisture, dust, etc.

Additional ShifterMax Sensors

Additional Laser ShifterMax sensors, with

included mounting hardware, are sold

separately in pairs.

1110

Warranty

ESCORT One Year Limited Warranty

What this warranty covers: Escort, Inc.

(“Escort”) warrants your Product against all

defects in materials and workmanship.

For how long: One (1) year from the date of

original purchase from an authorized Escort

dealer.

What we will do: If a breach of warranty

occurs, Escort, at its discretion, will either repair

or replace your Product free of charge.

What we will not do: Escort will not pay

shipping charges that you incur for sending

your Product to us.

What you must do to maintain this

warranty: Show original proof of purchase or

receipt from an authorized Escort dealer.

Warranty exclusions: This warranty does

not apply to your product under any of the

following conditions: 1.The serial number has

been removed or modied. 2. Your product has

been subjected to misuse or damage (including

water damage, physical abuse, and/or improper

installation). 3. Your product has been modied

in any way. 4. Your receipt or proof-of-purchase

is from a nonauthorized dealer or internet

auction site, including E-bay, U-bid, or other

non-authorized resellers. 5. You are not the

original purchaser of the Product from an

authorized dealer or did not receive it as a gift

from the original purchaser of the Product from

an authorized dealer.

To obtain service: 1. Contact ESCORT (1-800-

543-1608) to obtain a Return Authorization

Number. 2. Properly pack your Product and

include: your name, complete return address,

written description of the problem with your

Product, daytime telephone number, and

a copy of the original proof of purchase or

receipt. 3. Label the outside of the package

clearly with your Return Authorization Number.

Ship the Product pre-paid (insured, for your

protection) to: ESCORT, Inc., 5440 West Chester

Rd., West Chester, OH 45069.

LIMITATION OF WARRANTY: The obligations

set forth above are ESCORT’s sole obligations

and your exclusive remedy. ESCORT makes

no other express warranty. Any implied

warranty of merchantability or tness for a

particular purpose that may be applicable

to the Product is limited in duration to the

duration of this warranty. Some States do

not allow limitations on how long an implied

warranty lasts, so the above limitation may not

apply to you. ESCORT SHALL NOT BE LIABLE

FOR CONSEQUENTIAL, SPECIAL OR INCIDENTAL

DAMAGES INCLUDING, WITHOUT LIMITATION,

DAMAGES ARISING OUT OF THE USE, MISUSE

OR MOUNTING OF THE PRODUCT.

Some States do not allow the exclusion or

limitation of incidental or consequential

damages, so the above limitation or

exclusion may not apply to you. ESCORT is

not responsible for products lost in shipment

between the owner and our service center.

Other legal rights: This warranty gives you

specic legal rights, and you may also have

other rights which vary from State to State.

Designed in the USA by Escort Inc.,

Manufactured in Canada

with components of Polish origin

ESCORT Inc.

5440 West Chester Road

West Chester OH 45069

Sales / Service 800.433.3487

www.EscortRadar.com

trademarks of ESCORT, Inc.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY

NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST

ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT

MAY CAUSE UNDESIRED OPERATION.

Accessories

800.433.3487

EscortRadar.com

ESCORT, Inc.

5440 West Chester Road

West Chester OH 45069

Sales/Service 800.433.3487

ZR5 Install+Owners Manual_Can_ACCORDIAN.indd 1 3/31/17 10:36 AM

AW-1220055-1A

Congratulations and Important Warning

Congratulations

Your new ZR5 is the most advanced defense

system against targeting laser guns. ZR5

comes complete with twin front-mounted

laser shifters, panel mounted controller,

Interface with integrated speaker, modular

connections, complete wiring harnesses,

and mounting hardware. ZR5 also interfaces

with select Escort radar detectors for the

ultimate in driving protection.

Please read this guide in detail to get the

most out of your new ZR5’s performance

and features.

Please drive safely.

Important Installation Warning

ZR5 requires professional installation. A

select group of car specialists can install ZR5

for you. Visit EscortRadar.com to find an

authorized installer near you.

Attempting to install ZR5 without expertise

in automotive electronic installations can

cause personal injury during the installation,

or damage the ZR5 and your vehicle. If your

vehicle is damaged during installation, its

safety systems may be compromised, which

could cause personal injury or property

damage.

Please Note

This product may be limited or prohibited

in some jurisdictions. Check applicable

laws before using.

Safety Precautions

ZR5 was designed to meet high

performance and quality standards;

however, there are certain precautions that

must be considered before approaching

installation and operation:

• Use only original ZR5 parts included with

your unit. Do not plug any third-party

components into your unit, and do not

plug any supplied components into any

third-party products, as this may cause

failure and will void warranty.

• Special care must be taken during

installation of outer sensors, as damaging

factory-installed cables or connectors

may cause damage or device malfunction

and may void warranty.

• While outer sensors are specially designed

and manufactured to be installed outside

and to operate in harsh environments, the

Interface and Controller must be installed

and kept in a dry place, preferably

somewhere inside the driver’s cabin.

Failures due to improper installation may

void warranty.

• ZR5 cannot detect through glass or other

transparent objects, and certain materials

may absorb infrared light.

• Check your local laws before using ZR5, as

transmitted light can interfere with other

laser equipment.

Maintenance

Once ZR5 is installed, dirt and filth can

accumulate on the front covers of the

sensors, especially during the winter. To

ensure peak performance, check front

covers of sensors often and, if necessary,

wipe clean with a cloth.

Warning

Never, under any circumstances, look at

the sensors while powered on and

operating. Do not view with optical

instruments (like magnifiers).

What’s Included

Interface

Two Laser ShifterMax Sensors

Controller

ShifterMax Bridge Box

• Controller mounts easily to instrument pod,

dashboard, or console

• Adhesive pads provided for secure mounting

• Twin weatherproof

• 6-foot cables with waterproof connectors

• Mounting hardware and bubble level

• Weatherproof Bridge Box is used to connect

ShifterMax Sensors to main Interface

Controls and Features

Alert Indications

The Controller’s LED will flash red when

alerting. Since Laser signals are a possible

threat no matter how weak, ZR5 alerts you

with a full continuous audible alert along with

a voice notification. The voice will announce

whether the laser signal is front or rear.

If shifting is disabled, when ZR5 receives a

laser signal it will say “alert” instead of

“shifting”.

Power

Press the PWR button to turn ZR5 on. To turn

ZR5 off, press and hold PWR until you hear

“Powering Down”.

Volume and Mute

Press and hold the VOL/MUTE button to

adjust the alert volume level. The volume

will gradually increase. To decrease the

volume, release the VOL button and quickly

press and hold the VOL button again. Once

you’ve reached your preferred audio level

release the button. Your preferred audio

level will be stored in memory, even after

the detector is turned off.

Both the ZR5 mute button, and the mute

button on the connected detector, will mute

an alert. Subsequent alerts will audibly alert

normally.

To temporarily disable shifting for 30

seconds; while receiving a laser alert double

tap the mute button of the ZR5 or the

connected detector. After 30 seconds

elapse, ZR5 will announce that shifting is

enabled again.

Mode

Press the MODE button to switch between

“shifting” and “receive-only” modes. When

using “receive-only” mode ZR5 will only alert

to laser signals without shifting.

Note

Vehicle must be positioned on a flat

surface in order to position sensors

parallel with the road. Make sure that

sensors have an unobstructed “view” of

the road so the unit can function properly.

Do not install sensors behind a solid

surface, which would block laser

transmission/reception.

Sensor Installation

Positioning Sensors

Install each sensor halfway between the side

and the center of the vehicle.

For optimal performance, sensors need to

be facing straight forward (or backward, if

installing optional rear sensors), not at an

angle. Make sure that each sensor is parallel

with the road (using supplied bubble level).

Interface Installation

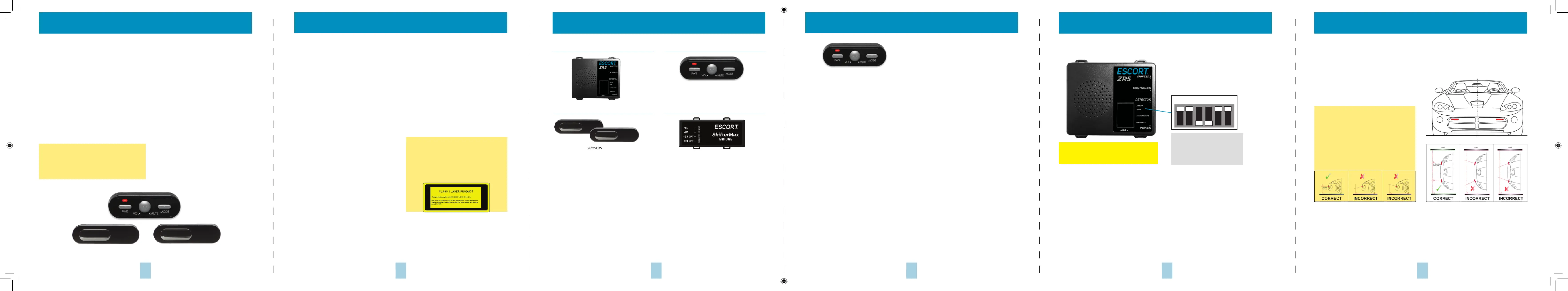

1 Install the Interface under the dash using

supplied zip-ties.

Note:

Do not mount Interface inside vehicle’s

engine compartment!

2 Connect black wire (-) to ground, and

red-striped wire (+) to a switched 12-volt

supply. If ZR5 is left “on” then it will

automatically power on and off with the

ignition.

3 ShifterMax Bridge Box, Display Controller

Module, and optional radar detector all

plug into the Interface.

4 It is recommended that after the Interface

is installed and connected to power, all

other components are plugged in and

tested for proper operation before

completing the installation.

1 2 3 4 5 6

IMPORTANT!

When using optional Rear

ShifterMax sensors ensure DIP

switches 3 and 4 are moved down

to the REAR position.

FRONT

REAR

ZR5 Install+Owners Manual_Can_ACCORDIAN.indd 2 3/31/17 10:36 AM

Produkt Specifikationer

Mærke:	Escort
Kategori:	Detektor
Model:	ZR5

Har du brug for hjælp?

Hvis du har brug for hjælp til Escort ZR5 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Detektor Escort Manualer

Escort Redline Ci 360c Manual

6 Juli 2025

Escort MAX 4 Manual

5 September 2024

Escort X80 Manual

19 August 2024

Escort Solo S4 Manual

16 August 2024

Escort MAX 360c Manual

14 August 2024

Escort MAX 360c MKII Manual

13 August 2024

Escort MAXcam 360c Manual

13 August 2024

Escort Passport 9500ix Manual

13 August 2024

Escort Solo S2 Manual

11 August 2024

Escort RedLine EX Manual

10 August 2024

Detektor Manualer

Nyeste Detektor Manualer

ORNO OR-DC-638 Manual

12 August 2025

Milwaukee LED 2202-20 Manual

12 August 2025

ORNO OR-DC-641 Manual

12 August 2025

ORNO OR-DC-639 Manual

12 August 2025

AccuBANKER D450 Manual

12 August 2025

Optex CX-702 MKII Manual

10 August 2025

Optex OVS-02GT Manual

10 August 2025

Velleman DEM600 Manual

10 August 2025

Multimetrix D45 Manual

9 August 2025

Basetech OG-430 Manual

7 August 2025
