Side 1/12

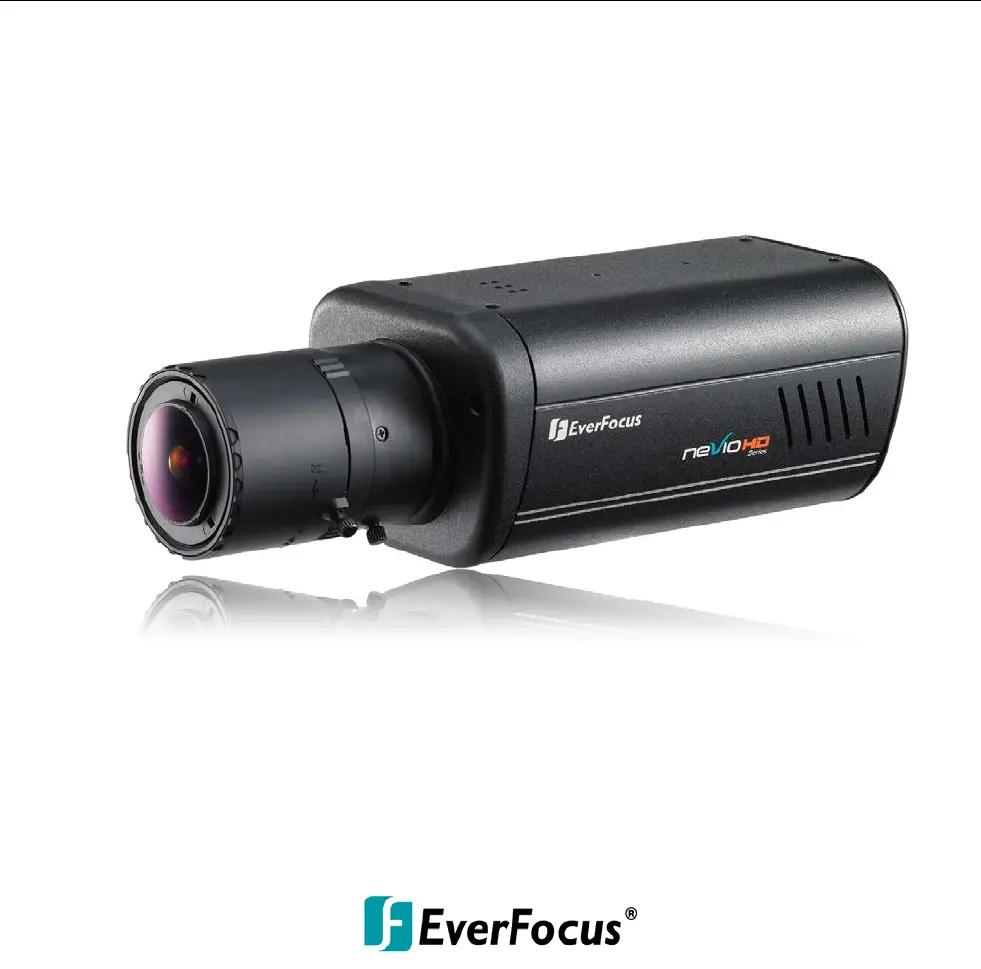

EAN SeriesPlus
IP Box Camera
Quick Installation Guide
** Lens not included.
Copyright © EverFocus Electronics Corp,
Release Date: October 2012,
EAN s Plus Serie
1
1. Overview
The E Plus SAN eries is a box type IP camera designed for indoor use. The series comes in four
models: EA 2 2 00 .N31 0 Plus / 32 0 Plus / 33 Plus
Model Name Megapixel WDR
EAN3120 Plus 1.3 MP Yes
EAN3220 Plus 2 MP Yes
EAN3300 Plus 3 MP No
2 3 4 6 7 8 9 105 111
No. Item Name Descriptions
1 Memory Card Slot Insert a micro SD / SDHC card to store recording data.
2 Power LED Indicates the power is supplied.
3 DC 12V Port Connects to power.
4 Ethernet / PoE Connects to a 10/100 Ethernet or PoE.
5 Reset Button Resets all configurations to factory default.
6 I/O Terminal Block Connects I/O devices.
7 Video Out Connects to a portable monitor for setting the focus and angle
of the camera during initial installation.
8 Audio In Connects a microphone for audio input. Note that microphones
with external power supplies are required.
9 Audio Out Connects a speaker for audio output.
10 Light Sensor Detects lights.
11 Auto Iris Lens Connector Plug the iris control cable to the connector.
