EVERFOCUS

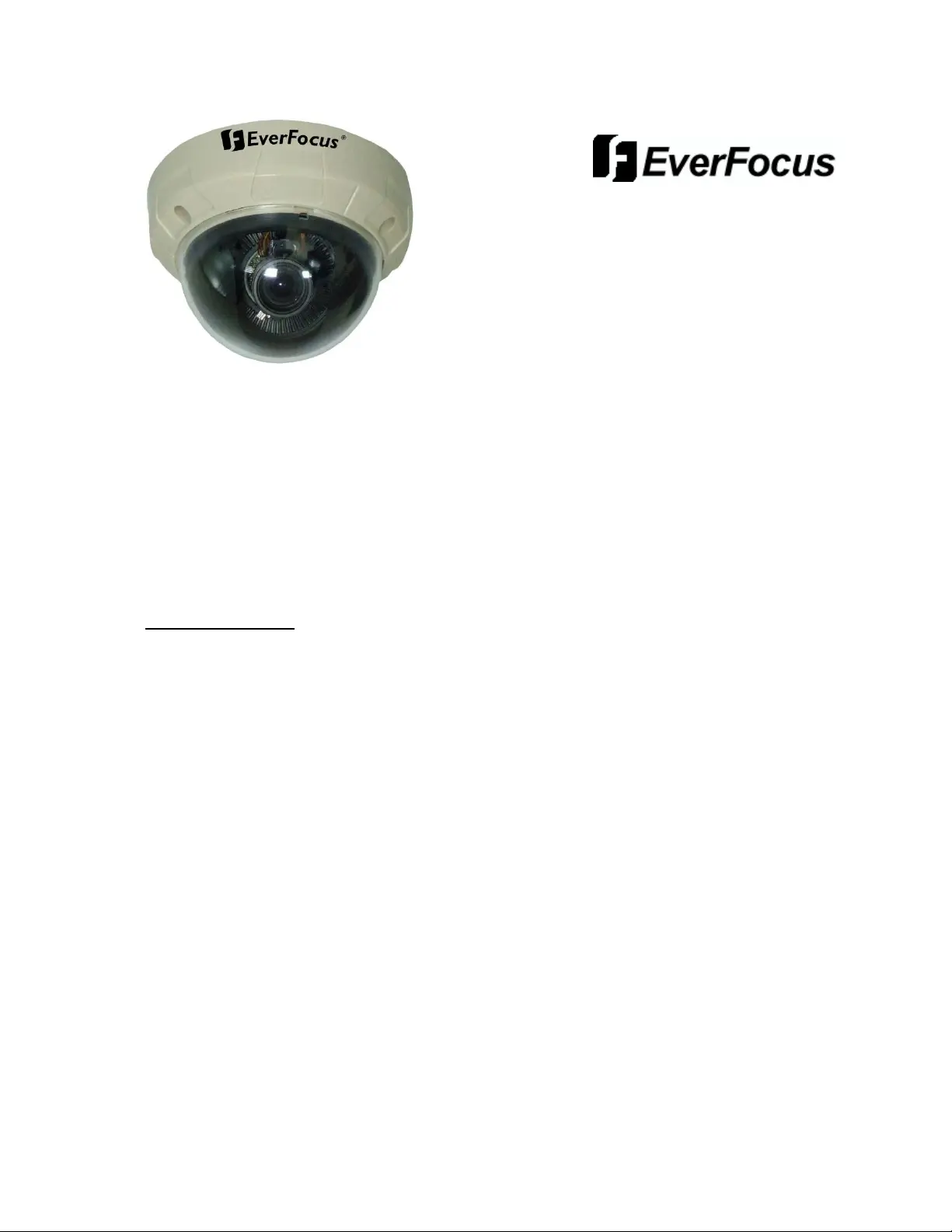

1/3” Color 3-Axis Dome Camera

Operation Instructions

Model No. ECD360AV

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV/radio transmitters, magnets, electric motors, transformers

and audio speakers since the electromagnetic fields generated from these devices may distort

the video image or otherwise interfere with camera operation.

2. Never disassemble the camera beyond the recommendations in this manual nor

introduce materials other than those recommended herein. Improper disassembly or

introduction of corrosive materials may result in equipment failure or other damage.

3. Try to avoid facing the camera toward the sun.

In some circumstances, direct sunlight may cause permanent damage to the sensor and/or

internal circuits, as well as creating unbalanced illumination beyond the capability of the

camera to compensate.

4. Keep the power cord away from water and other liquids and never touch the power

cord with wet hands. Touching a wet power cord with your hands or touching the power

cord with wet hands may result in electric shock.

5. Never install the camera in areas exposed to oil, gas or solvents.

Oil, gas or solvents may result in equipment failure, electric shock or, in extreme cases, fire.

6. Cleaning

For cameras with interchangeable lenses, do not touch the surface of the sensor directly with

the hands. Use lens tissue or a cotton tipped applicator and ethanol to clean the sensor and

the camera lens. Use a damp soft cloth to remove any dirt from the camera body. Please do

not use complex solvents, corrosive or abrasive agents for cleaning of any part of the camera.

7. Do not operate the camera beyond the specified temperature, humidity or power source

ratings. This camera is suitable for indoor operation only. Use the camera at temperatures

within -10ºC ~ +50 ºC (14

℉

~122

℉

) and humidity between 20% and 80%. This device is

not rated as submersible. The input power source is 12VDC.

8. Mounting

Use care in selecting a solid mounting surface which will support the weight of the camera

plus any wind, snow, ice or other loading, and securely attach the camera to the mounting

surface using screws and anchors which will properly support the camera. If necessary (e.g.

when mounting to drop ceilings) use a safety wire to provide additional support for the

camera.

Table of Contents

Product Overview………………………………………………………………..1

Main Features……………………………..……………..…….…………………1

Content List……………………………………………………………………… 2

Specifications………………………………………………………….………… 3

Dimensions………………………………………………………………………. 3

Installation……………………………………………………….……………… .4

Product Overview

The EverFocus ECD360AV is an indoor color camera with plastic housing, clear

dome to pass the maximum amount of light, and integral dome liner to conceal the

viewing direction. The 3-axis positioning system allows convenient wall or ceiling

mounting without the need for brackets, and permits the lens to be aligned in

virtually any viewing direction. Equipped with a Sony 1/3” Super HAD high

resolution 540 line sensor and 3.5~8mm varifocal DC iris lens, the field of view can

be readily adjusted to suit the application while the auto iris function adapts to a

wide range of lighting conditions. The camera draws only 150mA from a 12VDC

Produkt Specifikationer

Mærke:	EverFocus
Kategori:	Overvågningskamera
Model:	ECD360AV
Højde:	84 mm
Vægt:	576 g
Wi-Fi:	Ingen
Formfaktor:	Kuppel
Format til analogt signal:	NTSC, PAL
Ethernet LAN:	Ingen
Strømforbrug (typisk):	2.4 W
Driftstemperatur (T-T):	-10 - 50 °C
Maksimal opløsning:	768 x 494 pixel
Forbindelsesteknologi:	Ledningsført
Certificering:	CE, FCC
Monteringstype:	Loft
Indbygget HDD:	Ingen
Understøttet placering:	Indendørs
Hvidbalance:	Automatisk
Sensortype:	CCD
Optisk zoom:	- x
Grænseflade:	BNC
Sammensat videoudgang:	1
Minimumsbelysning:	0.12 Lux
Optisk sensorstørrelse:	1/3 "
DC udgangsspænding:	+12V
Brændviddeområde:	3.5 - 8.5 mm
Kameraets lukkerhastighed:	1/60(1/50) - 1/100000 sek./side
Signal/støjforhold:	48 dB
F-number (relativ aperture):	1.6
Antal TV-linier:	540
NTSC opløsninger:	768 x 494 pixel
PAL opløsninger:	752 x 582 pixel
