EVERFOCUS

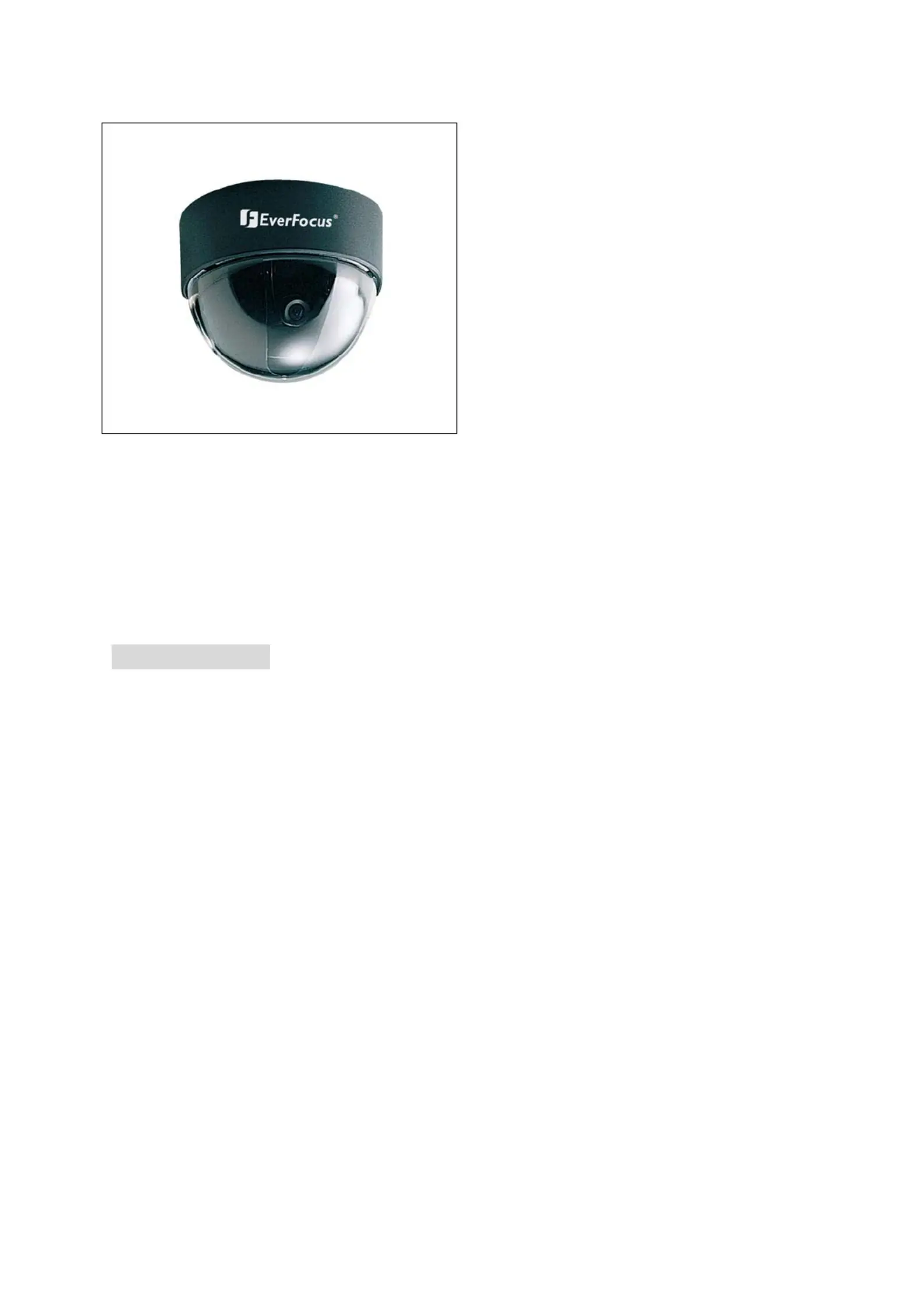

Color Dome Camera

Operation Instructions

Model No. ED200

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not have camera immersed in water.

2. Do not disassemble it or place it on an unstable base.

3. Do not touch the surface of CCD sensor by hand directly.

4. Never face the camera toward the sun.

5. Use proper power source otherwise the camera will not function correctly.

6. Use the camera at temperatures within 0℃ ~ 50℃/32℉ ℉~122 and humidity between 20%~

80%. The input power sources is 12VDC only.

PREFACE

The ED200 Series Camera is a compact, full functioned CCD Camera. Their stylish appearance

can be applied as per installer's ideal locations. These dome cameras can be mounted either on

the ceiling or on the wall easily. ED200 uses high sensitive 1/3" color interline transfer CCD

sensor with DSP. The sensor is featured with Auto Electronic Shutter, Automatic Gain Control,

and Auto White Balance function.

FEATURES

z Designed with advance digital signal processing circuitry for high image quality

z The high sensitivity is achieved by using 1/3” SONY Super HAD interline transfer color

CCD

z Built-in vari-focal type, mechanical auto iris lens

z Built-in fixed lens

z Able to adjust the viewing range with manual zoom lens (for vari-focal lens only)

z Back Light Comp., Auto Gain Control and Auto White Balance functions

z Compact size: 108 mm O.D. x 80 mm H / 4.3” O.D x 3.2” H

z System available for NTSC or PAL

STANDARD ACCESSORIES

z Camera Unit

z Operation Instructions (this document)

Produkt Specifikationer

Mærke:	EverFocus
Kategori:	Overvågningskamera
Model:	ED200/N-3B
Bredde:	108 mm
Dybde:	108 mm
Højde:	80 mm
Vægt:	300 g
Produktfarve:	Sort
Formfaktor:	Kuppel
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Format til analogt signal:	NTSC, PAL
Ethernet LAN:	Ingen
Strømforbrug (typisk):	3 W
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	510 x 492 pixel
Husmateriale:	Plast
Kabler inkluderet:	BNC
Forbindelsesteknologi:	Ledningsført
Certificering:	CE/FCC
DC-in-stik:	Ja
Monteringstype:	Loft
Understøttet placering:	Indendørs
Hvidbalance:	Automatisk
Sensortype:	CCD
Optisk zoom:	- x
Grænseflade:	BNC
Progressiv scanning:	Ja
Dag/nat funktion:	Ja
Minimumsbelysning:	0.3 Lux
Optisk sensorstørrelse:	1/3 "
Nattesyn:	Ja
Billedhastighed:	50 fps
DC udgangsspænding:	+12V
Brændviddeområde:	0 - 3.6 mm
Kameraets lukkerhastighed:	1/10000 sek./side
Signal/støjforhold:	48 dB
F-number (relativ aperture):	1.2
Antal TV-linier:	380
NTSC opløsninger:	510 x 492 pixel
PAL opløsninger:	510 x 492 pixel
