EVERFOCUS

1/3" CCD IR Camera

Operation Instructions

Model No.

ED230/330

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not have camera immersed in water.

2. Do not disassemble it or place it on an unstable base.

3. Do not touch the surface of CCD sensor by hand directly.

4. Never face the camera toward the sun.

5. Use proper power source otherwise the camera will not function correctly.

6. Use the camera at temperatures within -10℃

℃

℃℃ ~ 50℃

℃

℃℃ and humidity between 20%~ 80%. The

input power source is DC 12V.

PREFACE

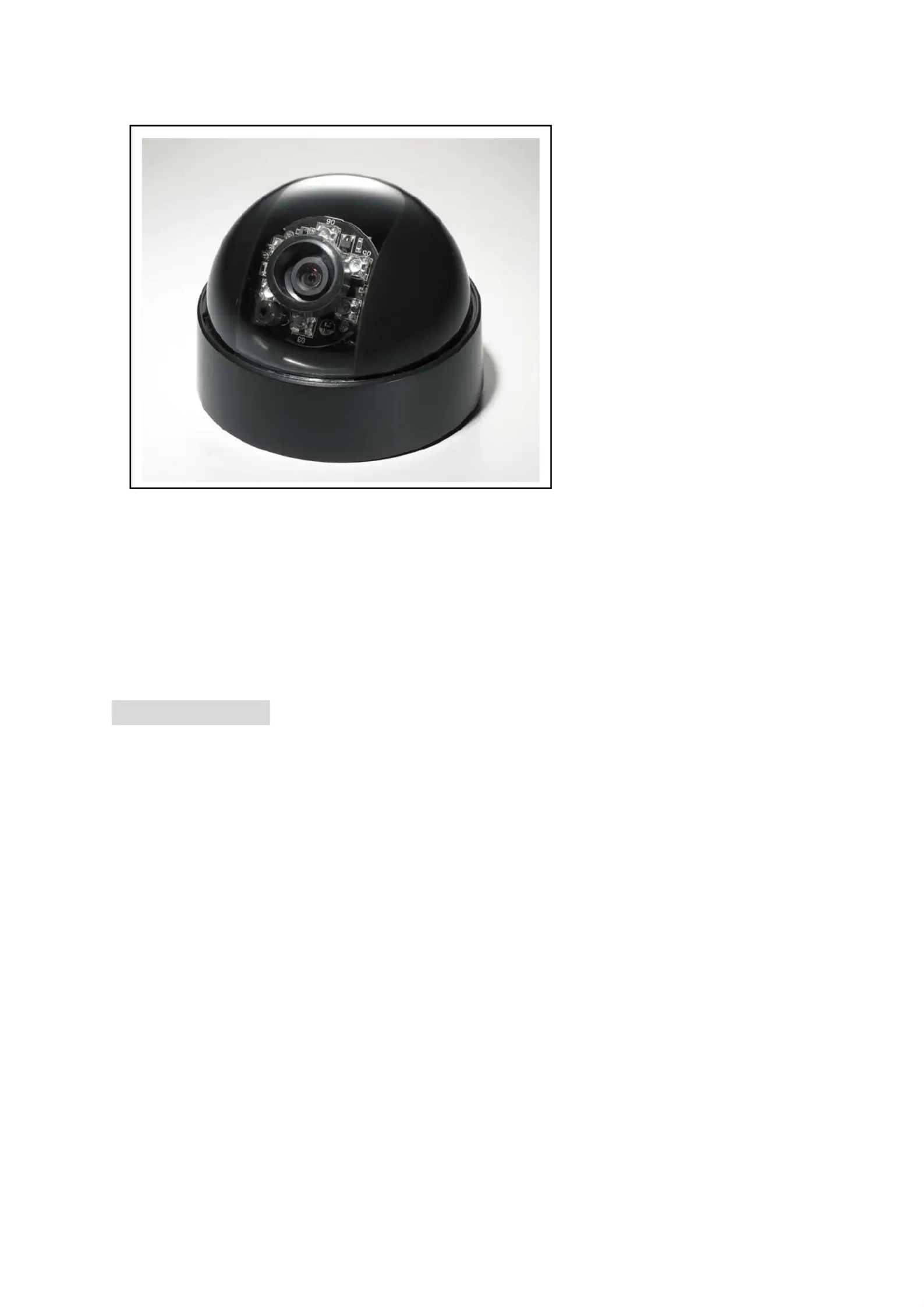

The ED230/330 Series Camera are compact, full functioned CCD IR Camera. Their stylish

appearance can be applied as per installer's ideal locations. These dome cameras can be

mounted either on the ceiling or on the wall easily. ED230/330 uses high sensitive 1/3" color

interline transfer CCD sensor, built in long life, high light & high reliability LED, sensors are

featured with Auto Electronic Shutter, Automatic Gain Control, and Auto White Balance function.

FEATURES

 LED lifespan of 20,000 hours

 Easy installation

 Auto Electronic Shutter function

 Automatic Gain Control function

 Auto White Balance function

 0 lux (IR ON)

 Special optical low pass filter (inside) for high IR response

 Automatically switches to black and white image when light levels fall below 1 lux

 IR view angle: 75° range

 IR distance: 10-15 M/ 33-49 feet

 Available in 4.3mm with black base and shell or white base and shell

PACKAGE CONTENTS

z Camera Unit x 1

z Manual x 1

OPTIONAL ACCESSORIES

z BA-ED- Mounting L-Bracket for ED Series Mini Dome Cameras

Produkt Specifikationer

Mærke:	EverFocus
Kategori:	Overvågningskamera
Model:	ED330
Bredde:	108 mm
Dybde:	108 mm
Højde:	80 mm
Vægt:	181 g
Brugervejledning:	Ja
Produktfarve:	Sort
Formfaktor:	Kuppel
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Format til analogt signal:	NTSC
Ethernet LAN:	Ingen
Strømforbrug (typisk):	4 W
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	768 x 492 pixel
Kabler inkluderet:	BNC
Understøttede grafikopløsninger:	768 x 494
Forbindelsesteknologi:	Ledningsført
Certificering:	CE/FCC
DC-in-stik:	Ja
Monteringstype:	Loft
Understøttet placering:	Indendørs
Hvidbalance:	Automatisk
Sensortype:	CCD
Optisk zoom:	- x
Grænseflade:	BNC
Strømforbrug:	200 mA
Minimumsbelysning:	0.4 Lux
Optisk sensorstørrelse:	1/3 "
Nattesyn:	Ja
LED type:	IR
DC udgangsspænding:	+12V
Synsfelt vinkel (FOV):	75 °
Infrarød bølgelængde:	850 nm
Brændviddeområde:	4.3 - 8 mm
Kameraets lukkerhastighed:	1/100000 sek./side
Signal/støjforhold:	48 dB
F-number (relativ aperture):	1.2
Kamera lukker type:	Elektronisk
Antal lysende LED:	14
Nattesyn, afstand:	13 m
Antal TV-linier:	480
NTSC opløsninger:	768 x 492 pixel
PAL opløsninger:	752 x 582 pixel
Infra-rød LED holdbarhed:	20000 t
