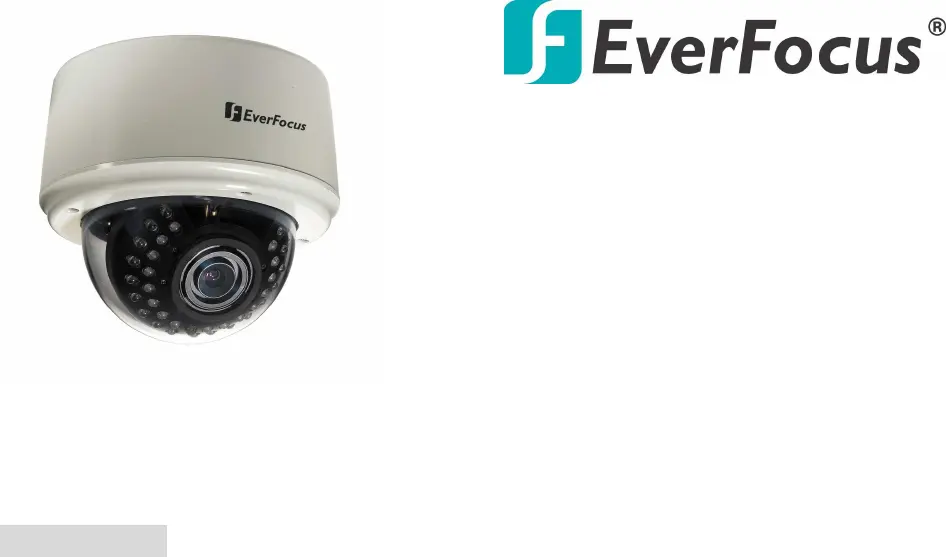

1/3” CCD Indoor 3-Axis Dual Voltage

True Day/Night IR Dome Camera

Operation Instructions

Model No.

ED335

Please read this manual first for correct installation and operation. This manual should be retained for future

reference. The information in this manual was current when published. The manufacturer reserves the right

to revise and improve its products. All specifications are therefore subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio

speakers since the electromagnetic fields generated from these devices may distort the video image.

2. Never disassemble the camera beyond the recommendations in this manual nor introduce

materials other than those recommended herein.

Improper disassembly or introduction of corrosive materials may result in equipment failure or other

damage.

3. Try and avoid facing the camera toward the sun.

In some circumstances, direct sunlight may cause permanent damage to the sensor and/or internal

circuits.

4. Keep the power cord away from water and other liquids and never touch the power cord with

wet hands.

Touching a wet power cord with the hands or touching the power cord with wet hands may result in

electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in equipment failure, electric shock or, in extreme cases, fire.

6. Cleaning

Use a damp soft cloth to remove any dirt from the camera body. Use lens tissue or a cotton tipped

applicator and ethanol to clean the camera lens. Please do not use complex solvents, corrosive or

abrasive agents for cleaning.

7. Do not operate the camera beyond the specified temperature, humidity or power source ratings.

Use the camera at temperatures within 0℃ ~ 40℃ (32℉~104℉) and humidity between 20~80%.

The input power source is 12VDC/24VAC.

PRODUCT OVERVIEW

ED335 is a new design IR Dome camera from Everfocus. It incorporates breakthrough DSP technology to

provide brilliant color images in well lit environments. Using a SONY Super HAD CCD image sensor, the

ED335 also delivers excellent true day/night low light performance, and equipped with 34 long lifespan/high

illumination IR LEDs the ED335 is able to deliver bright, detailed monochrome images even in low light or no

light situations out to a range of over 66 feet.

In addition, because the ED335 is easily surface or flush mounted, it can be installed in almost any indoor

environment. The 3-axis gimbal enables installers to easily mount the camera on a wall or ceiling and then

using the built in tilt and dual axis 180° twist, adjust the viewing angle and varifocal lens to frame the desired

field of view. With this unique 3-axis positioning system, installers can capture images from virtually any

angle, without compromising performance.

FEATURES

 Designed with advanced digital signal processing circuitry for high image quality

 520 TV lines of superior high resolution technology

 True Day/night with ICR module

 Equipped with 34 IR LEDs for day and night environments

 IR distance up to 66 feet (20M; depending on surface reflectivity)

 May be attached to wall or ceiling; flush or surface mounted

 3-Axis adjustment for almost any viewing angle

 Built-in vari-focal type, auto Iris lens

 12VDC/24VAC Dual Voltage support

 High Output IR LEDs, with a lifespan exceeding 20,000 hours

PACKAGE CONTENTS

ED335 camera, including dome/cover, camera unit and outer (surface mount) base as an assembly.

This user guide.

Accessory pack #1 containing:

 4 long mounting screws

 4 washers

 4 plastic anchors

 Hex key for cover screws

 4 short screws to attach flush-mounting clips

 Rubber plug for side hole in outer base.



Mounting template

Produkt Specifikationer

Mærke:	EverFocus
Kategori:	Overvågningskamera
Model:	ED335
Bredde:	140 mm
Højde:	128 mm
Vægt:	660 g
Produktfarve:	Sort
Wi-Fi:	Ingen
Formfaktor:	Kuppel
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Format til analogt signal:	NTSC, PAL
Ethernet LAN:	Ingen
Strømforbrug (typisk):	6.5 W
Driftstemperatur (T-T):	0 - 40 °C
Maksimal opløsning:	- pixel
Forbindelsesteknologi:	Ledningsført
Certificering:	CE, FCC
Webbaseret administration:	Ingen
Indbygget kortlæser:	Ingen
Indbygget HDD:	Ingen
Effektkrav:	12 - 24 VAC
Understøttet placering:	Indendørs
Hvidbalance:	Automatisk
Sensortype:	CCD
Optisk zoom:	- x
Grænseflade:	BNC
Strøm over Ethernet (PoE):	Ingen
Minimumsbelysning:	0 Lux
Optisk sensorstørrelse:	1/3 "
Nattesyn:	Ja
LED type:	IR
Infrarød bølgelængde:	850 nm
Brændviddeområde:	2.8 - 10 mm
Kameraets lukkerhastighed:	1/60 - 1/100000 sek./side
Signal/støjforhold:	48 dB
F-number (relativ aperture):	1.2
Kamera lukker type:	Elektronisk
Nattesyn, afstand:	20 m
Antal TV-linier:	520
NTSC opløsninger:	768 x 494 pixel
PAL opløsninger:	752 x 582 pixel
Infra-rød LED holdbarhed:	20000 t
