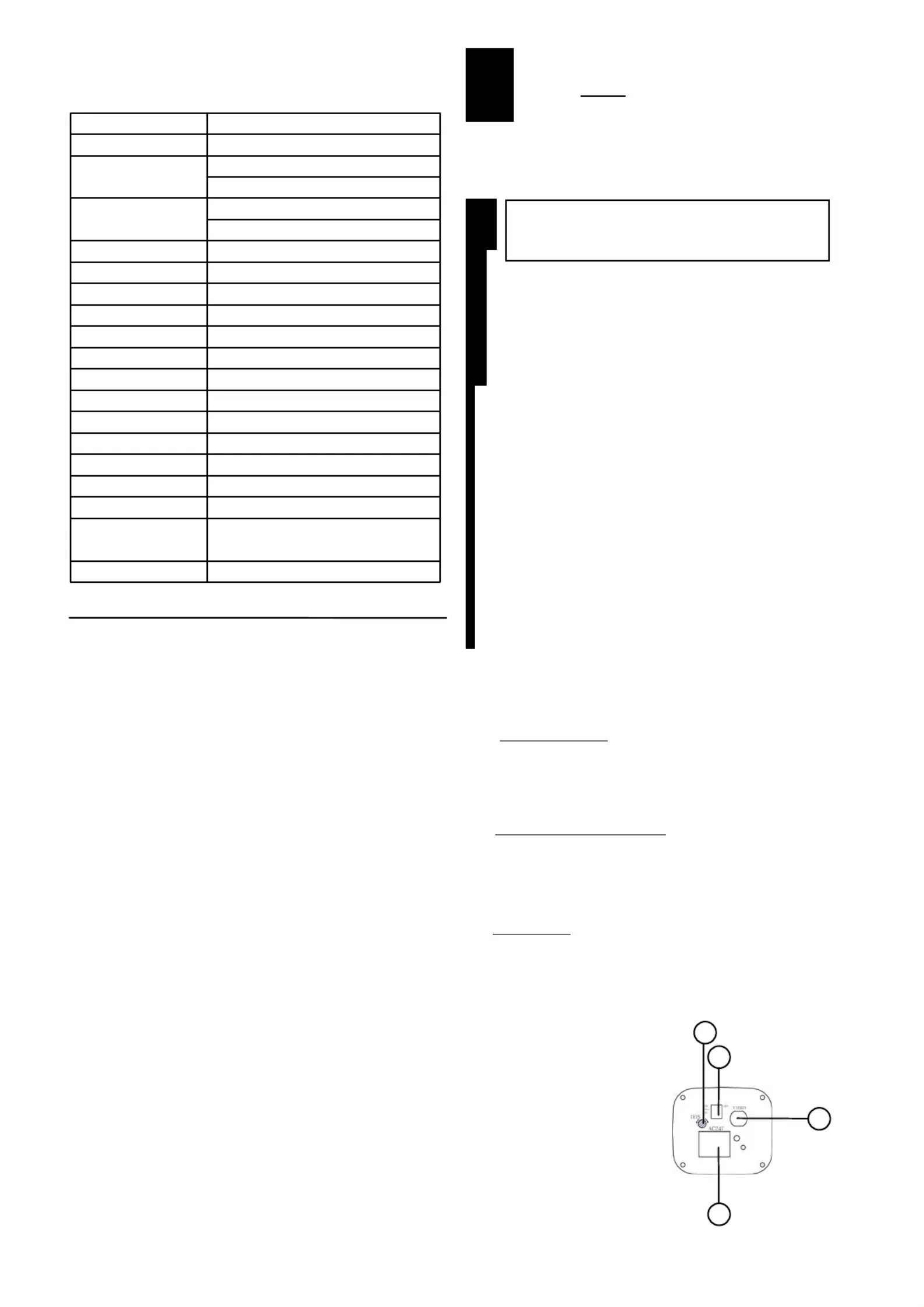

Side 1/1

EI220

INSTRUCTION

MANUAL

EI220 : 1/3"Color Standard Res. Lens Integrated

Camera

The new EI220 series camera features a high performance, Standard

resolution 1/3" color CCD processor and built-in vari-focal lens which

provides excellent picture quality, flexibility and cost savings. A mounting

bracket is included with every EI series camera making it one of the most

complete and easy to install camera packages on the market. It's no wonder

why EverFocus is quickly becoming the first choice in CCTV.

I. General

• Do not expose the camera to humidity and dust. If the camera is

mounted outdoor, a camera housing is required.

• Do not disassemble it or place it on an unstable base.

• Do not touch the surface of CCD sensor by hand directly. Use a

soft cloth to remove the dirt from the camera body. Use lens

tissue or a cotton tipped applicator and ethanol to clean the

camera lens and CCD sensor.

• Never face the camera toward the sun.

• Use proper power source otherwise the camera will not function

correctly.

II. Precautions

V. Specifications

III. Installation Instructions

IV. Using Special Features

~Lens Adjustment

~Back Light Compensation

When BLC is turned on, the AGC, ES and IRIS operating point is determined by

averaging over the center area instead of entire field-of-view, so that a dimly-lit

foreground object at center area can be clearly distinguished from brightly-lit

backgrounds.

BLC should not be used unless it is needed to compensate for back-lit

EI220

~Back Panel

1. Connect the video output of the camera to a color monitor or other

video device through a 75 ohm type coaxial cable with BNC

female connector at camera end.

2. Plug the power cord to the outlet. Power indicator LED should light

if the power source is properly connected.

3.. Remove the lens cover cap from the top of the camera for adjusting

the vari-focal lens

4. Once the image appears on the monitor, adjust the focus and

diaphragm of the lens to obtain the best picture.

5. If the subject is not in focus when adjusting focus of the lens, do

back focus adjustment as following:

i. Set the focus ring of the lens to infinity position.

ii. Take picture of subject at a distance more than 20m

away from the camera.

iii. Loosen the lens mount fixing screw located at

bottom of the front panel by using the L wrench.

iv. Turn the lens and the mount together so that the

subject is in focus.

v. Secure the lens mount fixing screw firmly again.

6. Mount the camera on the mounting bracket by using the mounting

hole on the top and bottom of camera casing.

1.Auto IRIS adjustment

2.BLC/FL switcher

3.Video output connector

4. AC24V input terminal

You may adjust the focus and zoom of the lens to bring the object in focus.

This lens has two focal distance. The change of Tele/Wide can be done with

zooming. In case you want to make focus at an optional between Tele/Wide you must

re-adjust focusing once again.

C~50

C ; 32

F~122

F (20%~80% Humidity)Operating Temperature

2.56" (W) x 2.3"(H) x 5.7"(D)

66mm(W) x 59mm(H) x 146mm(D);

Dimensions

3W max.Power Consumption

24VACPower Source

Internal Sync.Sync. Mode

BNC 1.0Vp-p,75 ohmVideo Output

0.45Gamma Correction

On/Off switchBack Light Comp.

OnAuto Gain Control

YesAuto White Balance

Vari-focal lens, Auto Iris, 4~9mmLen Type

1/50(1/60)~1/100,000Electronic Shutter

Over 48dB (AGC off)S/N Ratio

0.5 Lux/F=1.2Sensitivity

380 TV linesHorizontal Resolution

500 x 580 (PAL)

510 x 492 (NTSC)

Picture Elements

PAL: 625 TV lines, 50 fields/sec.

NTSC: 525 TV lines, 60 fields/sec

Scanning System

NTSC or PALVideo Format

1/3" SONY Super HAD CCD Pickup Device
