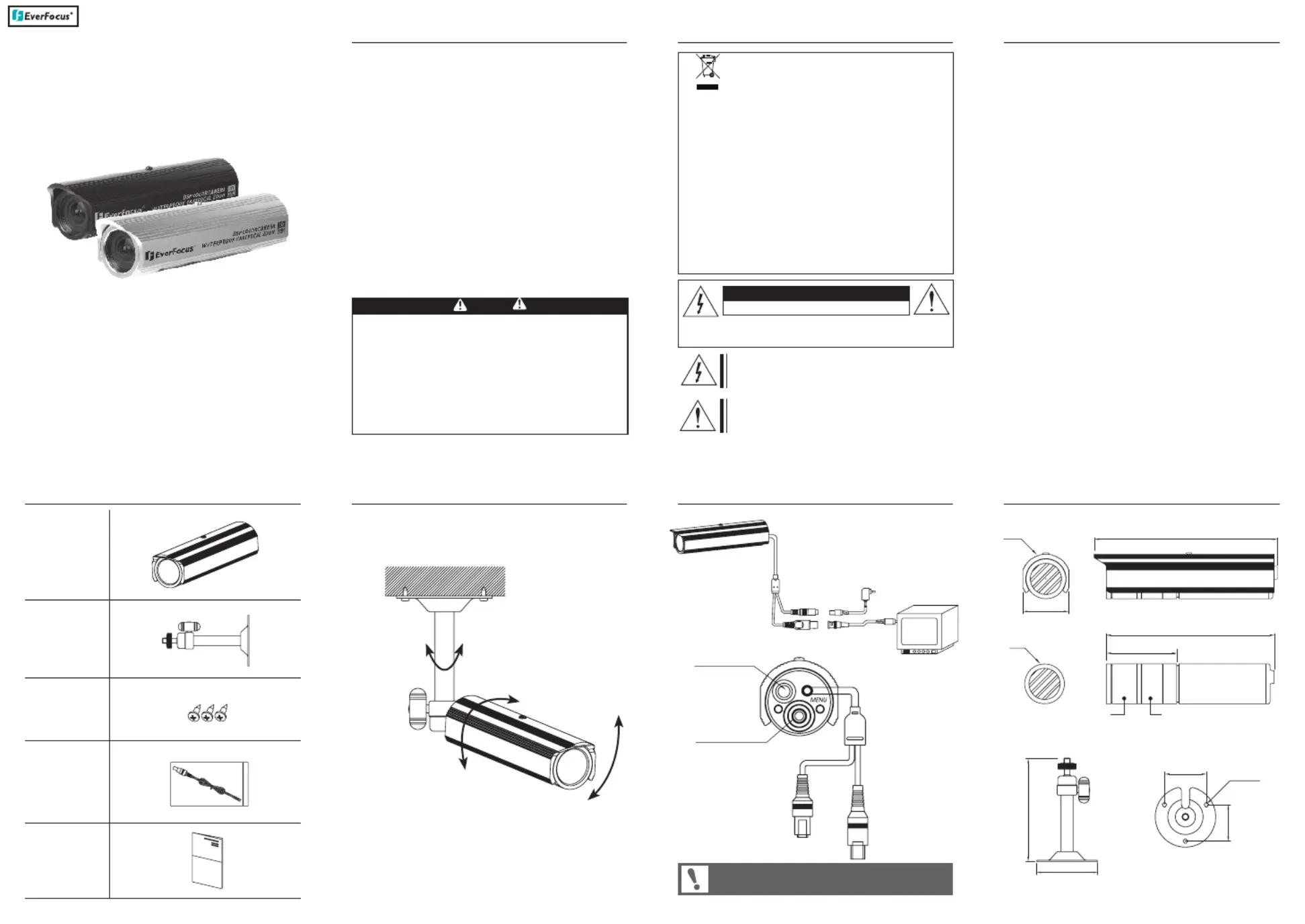

EZ600/W
EZ600/B
HIGH PERFORMANCE
BULLET CAMERA
OPERATION MANUAL
Before attempting to connect or operate, please read and
follow the s e i n s t r u ctions.
CAUTIONS
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European
countries with separate collection systems)
This marking shown on the product or its literature, indicate that
it should not be disposed with other household wastes at the end
of its working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes
purchased this product, or their local government ofce, for details
of where and how they can take item for environmentally safe
recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract.
Household users should contact either the retailer where they for
disposal.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER(OR BACK). SERVICING MUST
BE DONE BY QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence
of uninsulated "dangerous voltage" within the product's
enclosure that may be of sufcient mangnitude to constitute
a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of
important operating and maintenance(servicing) instruction in
the literature accompanying the appliance.
FEATURES
• 1/3" Sony Super-HAD CCD
Ⅱ
Minimum illumination 0.00002 Lux
( F1.2, 30 IRE, Sense-up X256, AGC high ) S/N Ratio 50dB
• High Resolution 600TV Lines
This camera displays a high resolution of 600 TV Lines using
sophisticated full digital image processing, 10 bit A/D serial signal
processing and special algorithm technologies.
• 3D DNR (3D Digital Noise Reduction)
The DNR technology greatly reduces noise thus delivering a crisp
and clear image.
This camera’s DNR function utilizes an adaptive 3D Filter to reduce
noise caused by movement and the evironment.
• DAY&NIGHT
The Day & Night operation feature an ‘auto’ mode which switches
between color and B&W modes automatically based on the level
of illumination in the scene. The COLOR mode operates during
bright conditions to provide optimum colors while the B&W Mode
operates during dark conditions to enhance the denition of the
image. Or, the camera may be set to return a color image at all
light levels.
• Privacy Mask Function
The Privacy masking feature allows for the ‘blanking’ of specic
areas in a scene where viewing or recording is prohibited or not
desired.
• OSD (On Screen Display)
This camera is easily congured with its OSD (On Screen Display),
menu. The menu can be displayed in multiple languages.
MOUNTING POS ITI ON DIMENSION S
Unit: mm(inch)
CAUTIONS
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Do not make any changes to the houseing or internal parts. This could void
the FCC certication and may void the warranty.
Caution -
CAUTION
1. IF DC power is used regulated DC12V 500mA power supply is
recommended for use with this camera for the best picture and the most
stable operation.
An unregulated power supply may cause damage to the camera.
If an unregulated power supply is used, product warranty may be void.
2. It is recommended that the camera is used with a monitor that has
a CCTV quality 75Ω video impedance level. If your monitor or other
equipment is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal
components. Refer servicing to the manufacturer
4. Never face the camera towards the sun or any bright or reective light,
which may cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial number sticker.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.”
Note -
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
WARNING -
COMPONENT S
Bullet
Camera
Mounting
Bracket
Mounting
Screw 3ea
Power
Pigtail Cable
Operation
Manual
Ф
60(
Ф
2.36)
41.5(1.63)
36 (1.41)
3-Ф
4.5(0.11-
Ф0.18)
CONNECTIO N
When you install the camera, please seal the ends of
cables to protect the camera coneections from humidity
problems.
DC12V/AC24V
(RED)
BNC FEMALE
VIDEO IN
DC12V POWER SUPPLY /
AC24V POWER SUPPLY
TV MONITOR
OR DVR
1/4"-20 UNC
Depth 4.5(0.18)
Joystick for OSD
133(5.23)
Ф
36(
Ф
1.41)
124(4.88)
51.2(2.02)
Ф
29(
Ф1.14)
33.5(1.32)
Focus Ring
(NEAR
FAR)
Zoom Ring
(Wide
Tele)
360
˚
90
˚
360
˚
Camera with sunshield
Camera body only
Mount
Mounting base pattern
O SD MA N UA L
OSD FUNCTION DESCRIPTION
1. EXPOSURE
: Enables the user to congure the following functions:
SHUTTER, AGC, SENSE-UP,
BLC, D-WDR
- SHUTTER
• AUTO : Exposure is controlled
automatically.
• FLK : Enable FLICKERLESS.
(NTSC: 1/100, PAL: 1/120)
• FIXED : Allow the shutter speed to be set manually.
> 1/60(50), 1/250, 1/500, 1/2K, 1/5K, 1/10K, 1/100K
* ( ) is for PAL TYPE
- BRIGHTNESS : AUTO Mode Only.
- AGC : Low, Middle, High.
*If AGC feature is turned off,
3D-DNR & SENS-UP Features will not be available.
- SENSE-UP : Slow shutter speed control
(max of 8~16 recommended).
- BLC : Back Light Compensation.
• HSBLC : Highlight Suppression BLC will darken
bright parts of the image.
- D-WDR : Allows accurate display of images during high contrast
lighting conditions.
S PE C IF I CAT I O N
Signal Format NTSC PAL
Image Device 1/3" Sony Super HAD CCD
Ⅱ
Total Pixels
811(H) x 508(V)
approx.410K pixels
795(H) x 596(V)
approx. 470K pixels
Effective
Pixels
768(H) x 494(V)
approx. 380K pixels
752(H) x 582(V)
approx. 440K pixels
Inter. H/V 15,734/59.94Hz 15,625/50Hz
H.Resolution 600TV Lines
Minimum
illumination
0.00002 Lux / F1.2 ( Sense- up )
S/N Ratio More than 50dB (AGC Off)
Electronic
Shutter
1/60 ~ 1/100.000 sec 1/50 ~ 1/100.000 sec
Manual
Shutter
1/60(50), FLK, 1/250, 1/500, 1/2K, 1/5K, 1/10K, 1/100K
X2, X4, X8, X16, X32, X64, X128, X256
Sense-up X2, X4, X8, X16, X32, X64, X128, X256 (8X Recommended)
AGC Off / Low / Middle / High
Wh i t e
Ba l a nc e
ATW / PUSH / PUSH-LOCK / MANUAL / INDOOR / OUTDOOR
Sy n c
Sy s t em
Internal
Privacy Zone 8 Zone
Flickerless OFF/ON
Lens varifocal (f3.5 ~ 16.0mm)
3DNR Off / On (Plus Level setting)
Motion
Detection
4 Areas
Language
English, French, Russian,German, Spanish, Dutch
Additional
DSP
Functions
Mirror(H,V,H/V), Digital Zoom, Freeze,Negative Image, BLC, D-WDR
Video Output CVBS
Input Power
Source
DC12V ±10% Max 170mA
AC24V ±10% Max 1.8W
EXPOSURE
SHUTTER AUTO
BRIGHTNESS 50
AGC OFF
SENSE-UP AUTO
BLC BLC
┛
D-WDR OFF
RETURN RET
┛
O SD MA N UA L
2. WHITE BALANCE
: Enable the user to set the White Balance through controlling R,G,B
Levels.
• ATW : White Balance is traced automatically through a wide
range of color temperatures.
(2,500K ~ 9,500K)
• PUSH : White Balance is automatically adjusted for the current
color temperature.
• P-LOCK : White Balance is Fixed to the current state.
White Balance will be readjusted everytime this
function is used.
• MANUAL : Enable the manual adjustment of RED
GAIN and BLUE GAIN.
• INDOOR : White Blance is automatically adjusted at 3,200K base
color temperature.
• OUTDOOR : White Blance is automatically adjusted at 5,400K
base color temperature
WHITE BAL MANUAL
BLUE 24
RED 32
RETURN RET
┛
O SD MA N UA L
4. IMAGE
: Congurations for the following settings: FREEZE, MIRROR,
D-ZOOM, SHARPNESS, COLOR GAIN, GAMMA, NEGATIVE
IMAGE.
- FREEZE : Freezes the output image(use requires real time access
to the camera controls).
- MIRROR
• MIRROR : Output image is mirrored (Left to Right).
• V-FLIP : Output image is ipped vertically (Up and Down).
• ROTATION : Output image is rotated 180-degrees.
- D-ZOOM : Digitally Zooms in on a section of the screen.
- SHARPNESS : Sharpness of the output image can be adjusted.
- COLOR GAIN : RED GAIN or BLUE GAIN can be adjusted.
- GAMMA : Gamma vaule can be set.
- NEG.IMAGE : Output image is coverted to a negative image.
5. 3DNR
: Three-dimensional Noise Reduction.
- LEVEL : The degree of noise
reduction can be set.
FREEZE OFF
MIRROR OFF
D-ZOOM ON
┛
SHARPNESS 5
COLOR GAIN
┛
GAMMA 0.45
NEG.IMAGE OFF
RETURN RET
┛
3DNR
LEVEL 50
RETURN RET
┛
O SD MA N UA L
6. SPECIAL
: Congurations for the following settings: CAM TITLE, LANGUAGE,
MOTION, PRIVACY.
- CAMERA TITLE : Displays the title editing menu.
- LANGUAGE : The Language to display the OSD in,
(English, Russian, Spanish, German, French, Dutch).
- MOTION : The camera will monitor the output image for motion
and display a OSD Icon uppon detection.
• AREA SELECT : 4 areas can be selected for motion detection.
• AREA DISPLAY : Areas of motion detection can be toggled
on and off
• LEFT/RIGHT : Moves the detection area left and right.
• WIDTH : The width of the detection area is set.
• TOP/BOTTOM : Moves the detection area up and down.
• HEIGHT : he height of the detection area is set.
• SENSITIVITY : Level of sensitivity for detecting motion is set.
• MOTION VIEW : Displays the areas of motion on the screen.
SPECIAL
CAM TITLE OFF
LANGUAGE ENGLISH
MOTION ON
┛
PRIVACY ON
┛
RETURN RET
┛
O SD MA N UA L
- PRIVACY : Up to 8 areas of the output image can be obscured.
• AREA SELECT : Select up to 8 areas.
• AREA DISPLAY : Displays the masked areas.
• LEFT/RIGHT : Moves the pricacy area rght and left.
• WIDTH : The width of the privacy area is set.
• TOP/BOTTOM : Moves the pricacy area rght and left up and
down.
• HEIGHT : the height of the privacy area is set.
• COLOR : Color to use for the mask is set.
7. RESET
: Returns the camera to its factory default.
RESET
FACTORY RESET
┛
RETURN RET
┛
GENERAL STRUCTURE
SETUP MENU
EX PO S UR E
• • •SH UT T ER BR IG H TN ES S AG C
• • •SE NS E -U P B LC D- W DR
WH IT E B AL
•ATW •P U SH •P US H- L OC K
•M AN U AL • I ND OO R • OU T DO OR
DAY& NI GH T •C OL O R •B / W • AU TO
IM AG E
•F RE E ZE • M IR RO R • D- Z OO M
•S HA R PN ES S • CO L OR G AI N
•G AM M A • NE G .I MA G E
3D NR • L EV EL •R ET U RN
SPECIAL
•C AM TI TL E • LA N GU AG E
•M OT I ON • P RI VA C Y
RE SE T •F AC TORY RE SE T
EX IT
O SD MA N UA L
MENU
(SELECTION KEY)
UP
DOWN
LEFT
RIGHT
O SD MA N UA L
3. DAY&NIGHT
: Switching the output image from COLOR when in a bright
environment to B&W when dark.
- AUTO : Color or B/W mode auto change.
• DETECT MODE
VIDEO : Select to detect mode as level of VIDEO.
• DWELL TIME :
Duration of continuous lighting condition (Bright or Dark) before
switching mode.
(0~10 SEC).
• D>N LEVEL : The Level where the change occurs from
COLOR(Day) to BW(Night).
• N>D LEVEL : The Level where the change occurs from
BW(Night) to COLOR(Day).
- B/W : Image output is xed at B&W.
• BURST ON/OFF : Select the burst signal ON/OFF when Night
condition.
- COLOR : Enables user to x the output image in COLOR at all
light levels.
DAY & NIGHT AUTO
DWELL TIME 10sec
D
N LEVEL 4
N
D LEVEL 6
RETURN RET
┛
Press in on joystick for
enter/select

Produkt Specifikationer

Mærke: EverFocus
Kategori: Overvågningskamera
Model: EZ600

Har du brug for hjælp?

Hvis du har brug for hjælp til EverFocus EZ600 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Overvågningskamera EverFocus Manualer

EverFocus

EverFocus EBN268/3 Manual

23 Juni 2025
EverFocus

EverFocus EZN268 Manual

22 Juni 2025
EverFocus

EverFocus EZN468ME Manual

22 Juni 2025
EverFocus

EverFocus EZN3261 Manual

22 Juni 2025
EverFocus

EverFocus EQN100 Manual

22 Juni 2025
EverFocus

EverFocus EZN288E Manual

22 Juni 2025
EverFocus

EverFocus EZ930F Manual

22 Juni 2025
EverFocus

EverFocus Ultra ED700 Manual

22 Juni 2025
EverFocus

EverFocus Mini EHN1220 Manual

6 Juni 2025
EverFocus

EverFocus EDN2160 Manual

4 Juni 2025

Overvågningskamera Manualer

Nyeste Overvågningskamera Manualer

Hikvision

Hikvision DS-2CD4125FWD-IZ Manual

14 September 2025
Intellinet

Intellinet 524421 Manual

13 September 2025
Intellinet

Intellinet INT-PSNC-UM-1106-07 Manual

13 September 2025
3xLOGIC

3xLOGIC VISIX Manual

13 September 2025
Intellinet

Intellinet NFC30 Manual

13 September 2025
3xLOGIC

3xLOGIC VX-4V-OD-RI Manual

12 September 2025
EZVIZ

EZVIZ C7 Dual Manual

12 September 2025
3xLOGIC

3xLOGIC VX-SMBK-D Manual

12 September 2025
3xLOGIC

3xLOGIC VISIX V Manual

12 September 2025
3xLOGIC

3xLOGIC VX-2S-OP-30X Manual

12 September 2025
