Side 1/8

IMPORTANT:

Go to www.extron.com for the

complete user guide, installation

instructions, and specifications.

ACP VC1 D • Setup Guide

The Extron ACP VC1 D Audio Control Panel is a fully congurable control interface for use with any Extron ACP-enabled device.

Each ACP VC1 D includes two ACP ports, which support power and communication between the host device and the

ACP VC1 D. Up to eight ACP panels can be used per host device for more demanding control needs.

Planning System Installation

When planning an ACP system installation, consider how many ACP panels to use, maximum cable distance, and mounting (see

the ACP VC1 D product page at www.extron.com for more information regarding the ACP VC1 D).

MUTE

ACP

PWR LOAD = 1.5W

+S -S G +V +S -S G

STAT US

GREEN

AMBER

RED

LINK

COM ERROR

ID ERROR

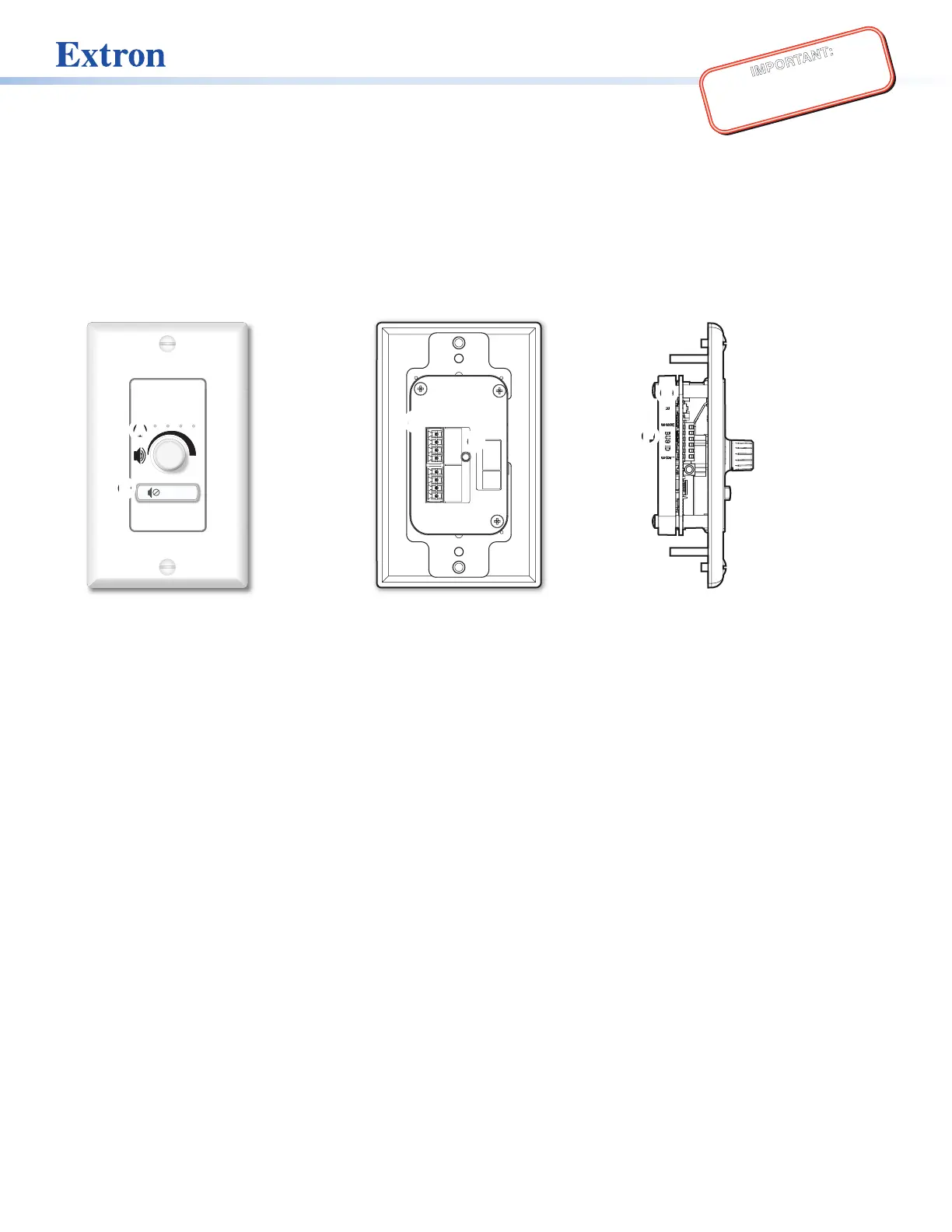

Figure 1. ACP VC1 D

A Front Panel Rotary Volume Knob D Connection Status LED

B Front Panel Mute Button E Reset Button

C ACP Ports (2) F Bus ID DIP Switches

Installation

Step 1: Get Ready

Use the following checklist to prepare for installation:

Download and install the latest software, rmware, and device drivers needed to congure the host device and the

connected ACP devices (see the host device user guide, available at www.extron.com, for details regarding software and

drivers).

Obtain cables, mounting hardware, and any other supplies required for the installation.

ACP VC1 D • Setup Guide (Continued)

Step 2: Prepare the Installation Site

ATTENTION:

• Installation and service must be performed by authorized personnel only.

• L’installation et l’entretien doivent être effectués par le personnel autorisé uniquement.

• Extron recommends installing the ACP VC1 D into a grounded, UL Listed electrical junction box.

• Extron recommande d’installer l’ACP VC1 D dans une boîte de dérivation électrique mise à la terre, certiée UL.

• If the ACP VC1 D will be installed into ne furniture, it is best to hire a licensed, bonded craftsperson to cut the access

hole and perform the physical installation so the surface will not be damaged.

• S’il est prévu d’installer l’ACP VC1 D dans du beau mobilier, il est préférable de faire appel à un artisan autorisé et

qualié pour couper le trou d’accès et réaliser l’installation de telle façon que la surface ne soit pas endommagée.

• Follow all national and local building and electrical codes that apply to the installation site.

• Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s’appliquent au site de l’installation.

NOTE: For the installation to meet UL requirements and comply with National Electrical Code (NEC), the ACP VC1 D must

be installed in a UL Listed junction box. The end user or installer must furnish the junction box. It is not included with the

ACPVC1 D.

Americans with Disabilities Act (ADA) Compliance

When planning where to install these devices, consider factors affecting accessibility of the button panel such as height from

the oor, distance from obstructions, and how far a user must reach to press the buttons. For guidelines, see sections 307

(“Protruding Objects”) and 308 (“Reach Ranges”) of the 2010 available at ADA Standards for Accessible Design

http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf.

Site Preparation

Extron offers an assortment of mud rings, optional ULListed in-wall junction boxes, external wall boxes (EWBs), and surface or

tabletop mounting boxes for use with the ACP button panels. The ACP VC1 D is a US 1-gang size device.

Step 3: Removing the Plastic Faceplate, Removing the Button Panel, and Changing the Button

The plastic faceplate and button can be replaced. Additional

buttons ship with the device and others can be ordered from

www.extron.com.

To change the button:

1. Remove the two screws holding the plastic faceplate to the

metal mounting plate and separate the faceplate from the

button plate (see 1 in the figure to the right).

2. Insert a small flat-bladed screw driver into the notch at the top

of the button plate. Release the catch holding the button plate

to the metal mounting plate (2).

3. Repeat step 2 to release the catch at the bottom of the plate.

4. Tilt the top of the button plate forward as it is removed to

prevent the button from falling out.

ACP VC1 D

Faceplate
