CableCover F55 • Setup Guide
The Extron CableCover F55 mounts to the bottom of select Cable Cubby F55 enclosures to
minimize cable tangles and accidental disconnections, and improve cable management. Follow
the instructions below to attach and set up the CableCover F55.
Locating the Mounting Holes
Compatible Cable Cubby F55 enclosures have
seven mounting holes at the bottom to secure
the CableCover pins.
The mounting hole locations are shown below.
Cable y 5Cubb F5
Bottom View
Mounting Hol
e
Installing the CableCover F55
NOTE: Before inserting the CableCover
pins into the enclosure, make sure the
pins are in the unlocked position so
they can fit into the mounting holes.
UNLOCKED
Plunger
LOCKED
If a pin is locked, pull the plunger
downward to unlock it.
1
Cable Cubby F55
Rear View
Table
CableCover F55
1
Insert each pin into its
corresponding mounting hole
and push in the plunger to
secure it in place.
1
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related
topics, see the on the Extron website.Extron Safety and Regulatory Compliance Guide
CableCover F55 • Setup Guide (Continued)
68-3776-50
Rev. A 07 23
© 2023 Extron — All rights reserved. www.extron.com
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
3

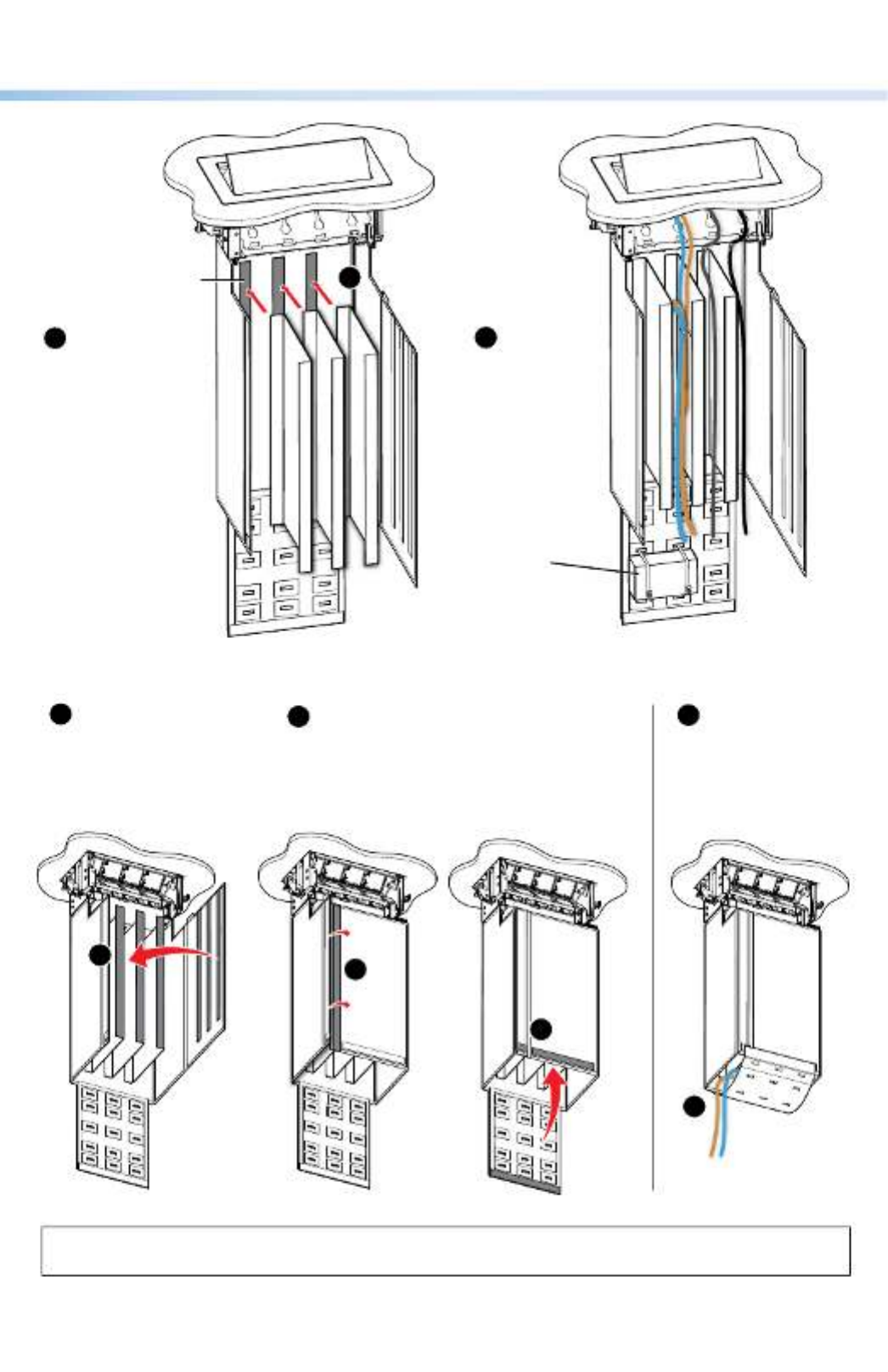

Organize cables
as needed within
the dividers.
Hook-and-loop
strips
2
Install the included
cable dividers as
needed to prevent
cable tangling.
Attach the dividers
to the hook-and-loop
strips on the cover.
2
Use the slots on
the bottom ap
to zip tie products,
such as power
supplies.
Align the cable divider
hook-and-loop strips
with the strips on the
front wall to close the
CableCover.
4
Close the CableCover by attaching the
remaining hook-and-loop strip locations
shown below.
5
5
5
4
6
6
If needed, cables can
be routed through the
left or right openings
at the bottom.
