68-1354-01 Rev. B

02 17

Extron Headquarters

+1.800.633.9876 (USA/Canada)

Extron Europe

+31.33.453.4040

Extron Asia

+65.6383.4400

Extron Japan

+81.3.3511.7655

Extron China

+86.21.3760.1568

Extron Middle East

+971.4.2991800

Extron Australia

+61.8.8113.6800

Extron India

+91-80-3055.3777

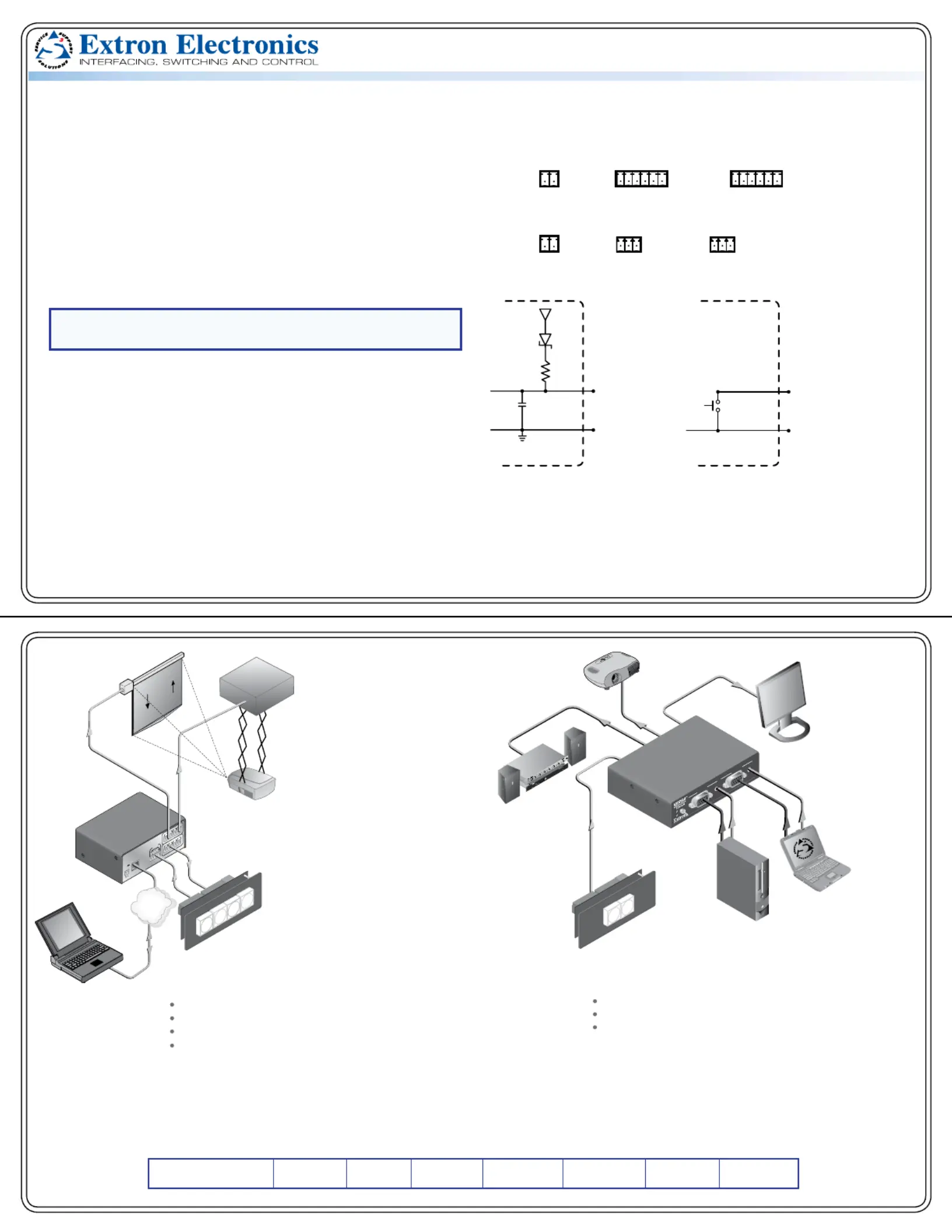

CCR-4BLB AAP and CCR-2BLB AAP • Wiring Guide

About the Contact Closure Control Panels

The Extron CCR-4BLB AAP and CCR-2BLB AAP are double

spaced, control module architectural adapter plates (AAPs). As

remote modules, these AAPs can control almost any contact

closure controllable device such as Extron switchers and projection

screens. They fit into all Extron AAP spaces and include options for

two (CCR-2BLB) or four (CCR-4BLB) backlit buttons.

Externally powered, backlit buttons indicate system status by

lighting high amber when the input is closed or low amber when the

input is open (see “Inputs”).

NOTE: The CCR AAPs receive power for their buttons must

to light, but power is not required for contact closure usage.

The Extron Button Label Generator software, available for download

at www.extron.com, creates customized labels with text or icons

that fit into the button keycap.

Connectors

Power (12V) — The 2-pole connector is for a power connection to

the control panel that lights up the buttons to low amber. Buttons

light to high amber only when the Input pins are driven low (see

“Inputs”).

Inputs — Each button has an input pin for controlling button

illumination. Driving an input pin low (shorting it to ground) causes

the corresponding button to light high amber. Each input can handle

18V and sink 1.5mA maximum.

Outputs — Each button has corresponding output pins that are

normally open (high). When the button is pressed the pins close

(go low).

Input

1 2 G 3 4 G

Output

1 2 G 3 4 G

wer

12V G

Figure 1. CCR-4BLB AAP Connectors

Input

1 2G

Output

1 2G

wer

12V G

Figure 2. CCR-2BLB AAP Connectors

+5v

Ground

Input Output

Out

Ground

Figure 3. CCR AAP Input and Output Schematics

Installation

Install the CCR AAPs into any UL-listed products that accept AAPs.

POWER LAN

12V

INPUT

1 3 4 5678

123

Ext nro

IPL T CR48

Ethernet Control

Interface

Projector

Screen

Control

Projector

Lift

Control

Laptop

TCP/IP

Network

Extron

CCR-4BLB AAP

Controller Module

Contact closure outputs

Inputs to control LEDs

Requires 12V/0.1A power r LED illuminationfo

Power not required for contact closure only operation

SCREEN

DOWN

SCREEN

PROJ

DOWN

PROJ

Figure 4. Typical CCR-4BLB AAP Application

Extron

VSW 2VGA A

VGA Switcher

Projector

Sound System

Local Monitor

FRONT PAN

LOCKOUT

S-232

PROTECT

APA

754

IO PO

WER AM

PLIFIER

CLIP

NORM

SIGNAL

Extron

CCR-2BLB AAP

Controller Module

Contact closure outputs

Requires 12V/0.1A po or LED illuminationwer f

Power not required f

or contact closure only operation

VSW 2VGA A

INPUT 1

INPUT 2

Laptop

LAPTOP

Figure 5. Typical CCR-2BLB AAP Application

Produkt Specifikationer

Mærke:	Extron
Kategori:	Ikke kategoriseret
Model:	CCR 2BLB
Bredde:	89 mm
Dybde:	20 mm
Højde:	35 mm
Produktfarve:	Sort
Certificering:	CE, FCC Class A, VCCI, AS/NZS, ICES\nUL, CUL
Indgangsspænding:	12 V
Strøm (maks.):	1 A
