IMPORTANT:
I
I
I
IM
M
M
MP
P
P
PO
O
O
ORT
RT
RT
RTA
A
A
AN
N
N
NT:
T:
T:
T:
Go to www.extron.com for the complete
user guide, installation instructions, and
specifications before connecting the
product to the power source.
1
68-3617-01 A
01 21
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide on the Extron website.
© 2021 Extron — All rights reserved. www.extron.com All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
Recommended Junction Boxes for In-wall
Installation of Extron Products
This reference guide lists US-standard junction boxes and plaster rings that can be used to mount Extron products within a wall.
ATTENTION:
• Do not install the equipment in a re resistant rated wall or partition assembly.
• Ne pas installer dans un mur résistant au feu ou une cloison.l’équipement
• All structural steps and electrical installation must be performed by qualied personnel in accordance with local and
national building codes and electrical codes.
• Toute étape structurelle et installation électrique, doit être effectuée par un personnel qualié, conformément aux codes
du bâtiment, aux codes incendie et sécurité, et aux codes électriques, locaux et nationaux.
In-wall Boxes
Check the specication of each product to verify the total depth requirement for installation.
Raco 4S junction box, 3-1/2" deep (part number 256) or
equivalent
Recommended for most Extron products. Ensure this box fits
inside the wall cavity.
Raco 4S junction box, 2-1/8" deep (part number 232)
Extron JB 125/225 boxes or equivalent
Recommended for shallow products only and where there is
in-wall space limitations.
Extron MR Series mud rings Ideal for retrofit applications and where building code allows.
Refer to www.extron.com for installation instructions of Extron JB Series junction boxes and Extron MR Series mud rings.
Plaster Rings for Raco 4S Junction Boxes
The recommended Raco 4S junction boxes must use a plaster ring that is appropriate for the drywall thickness and width of
product being installed. The product cannot mount directly to the Raco 4S junction box without the plaster ring.
Raco 4S plaster ring, 1-gang, 5/8" raised (part# 768) or equivalent Use with 5/8 wall thicknesses"
Raco 4S plaster ring, 2-gang, 5/8" raised (part# 769) or equivalent Use with 5/8 wall thicknesses"
Raco 4S plaster ring, 1-gang, 1/2" raised (part# 772) or equivalent Use with 1/2 wall thicknesses"
Raco 4S plaster ring, 2-gang, 1/2" raised (part# 778) or equivalent Use with 1/2 wall thicknesses"
AUTO SW
C
ON FIG
HDMI IN
AUDIO
IN
HDBT
DTP
HDCP
1
AUDIO IN
DP IN
Extron
2-gang Powered Device
2-gang
Plaster Ring
Deep 4S Junction Box
Decorato Styler-
Faceplate

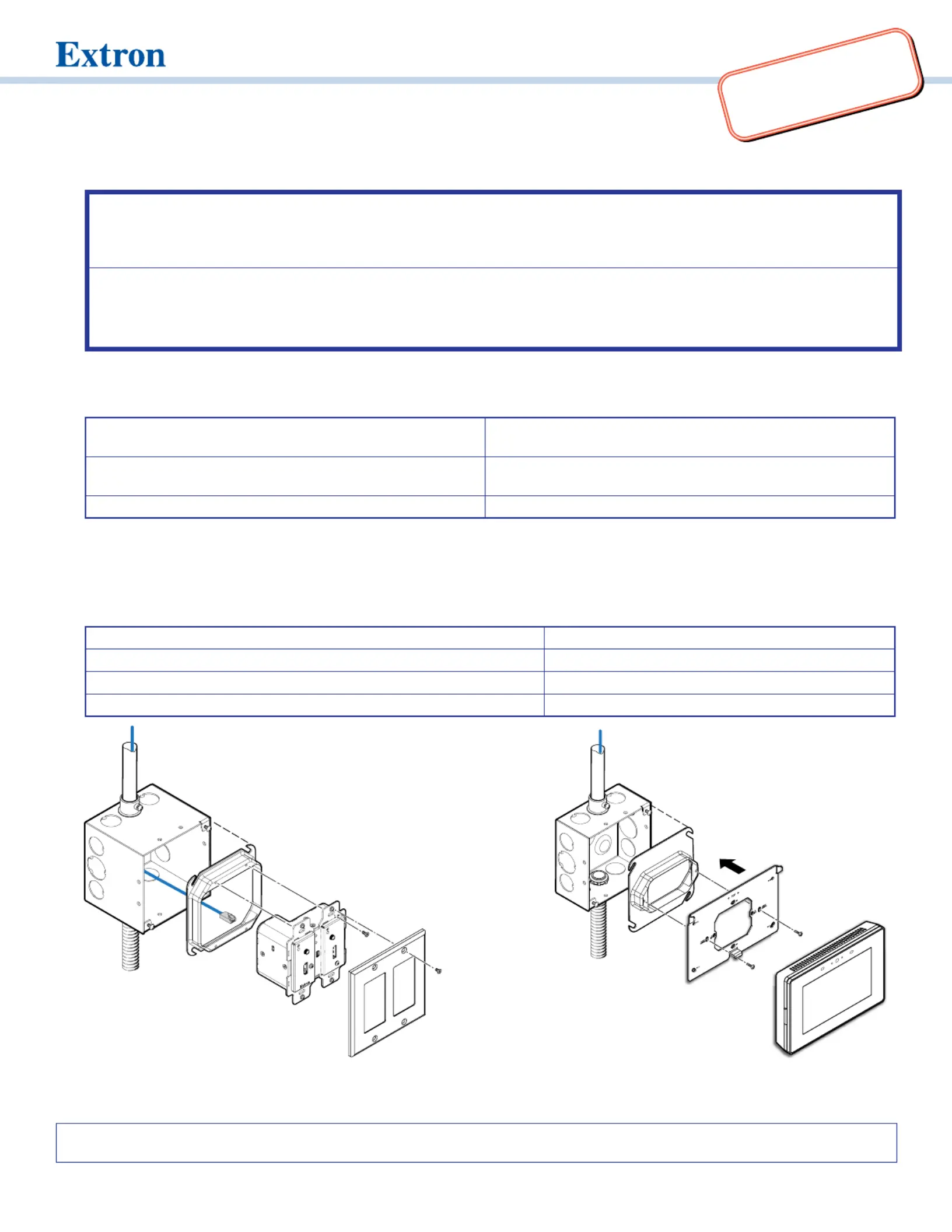

Figure 1. Mounting Vertically into Junction Box
and 2-gang Plaster Ring
e
Extron TLP
Mounting Bracket
Extron
TouchLink Product
1-gang
Plaster Ring
Shallow 4S Junction Box
Figure 2. Mounting Horizontally to Junction
Box and 1-gang Plaster Ring
