Side 1/2
1
IMPORTANT:
Go to www.extron.com for the
complete user guide and installation
instructions befor
e connecting the
pr
oduct to the power sou
rce.
DA4HD4KPLUS and
DA6HD4KPLUS • Setup Guide
Overview
The Extron DA4 HD 4K PLUS and DA6HD4KPLUS distribution ampliers distribute one HDMIinput signal to four or six outputs
simultaneously at resolutions up to UHD and 4K@60Hz 4:4:4, following the HDMI2.0b and HDCP2.2 specications. This setup
guide provides basic instructions for installation by an experienced installer.
Front Panel
E
F
F
E
B
A
D
DA6 HD 4K PLUS
HDMI DISTRIBUTION AMPLIFIER
CONFIG
HDCP
1 2 3 4
SIGNAL
INPUT OUTPUTS
5 6
DA4 HD 4K PLUS
HDMI DISTRIBUTION AMPLIFIER
CONFIG
HDCP
1 2 3 4
SIGNAL
INPUT OUTPUTS
C
C
D

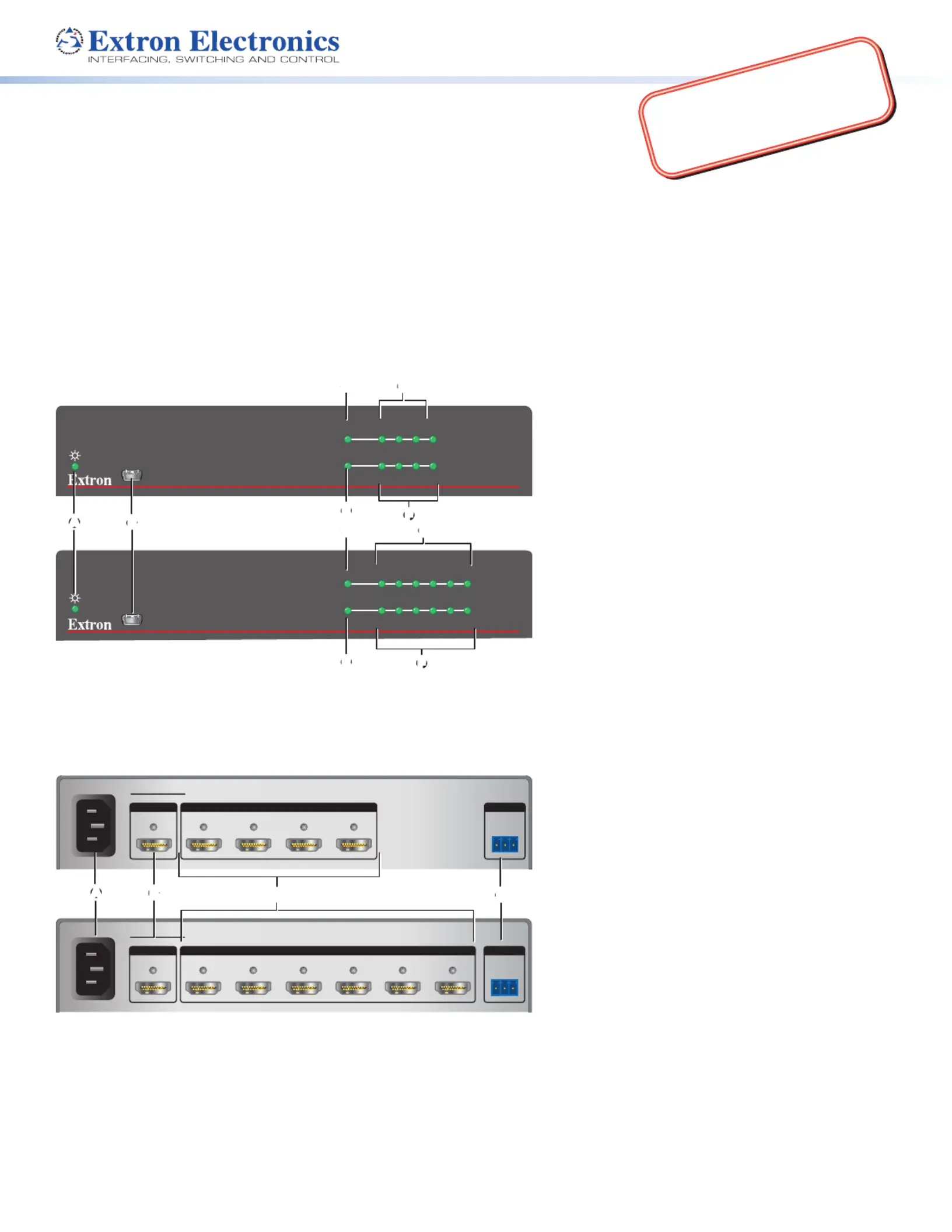

Figure 1. DA HD 4K PLUS Front Panels
Rear Panel
A
B
D
C
50/60 Hz
100-240V ~ 0.3A MAX
DA6 HD 4K PLUS
RS-232
4
3 6
521
Tx Rx G
OUTPUTS REMOTEINPUT
50/60 Hz
100-240V ~ 0.3A MAX
DA4 HD 4K PLUS
RS-232
4321
Tx Rx G
REMOTEOUTPUTSINPUT
Figure 2. DA HD 4K PLUS Rear Panel Connections
A
— Lights when power is Power status LED
applied to the unit.
B
— Used for SIS or PCS to USB Config port
configure, monitor, and update firmware on the
unit.
C
— Lights when a TMDS signal is Input Signal LED
detected on the HDMI input. If the source requires
HDCP encryption, this LED lights only when HDCP
is authenticated.
D
— Light when HPD is Output Signal LEDs
detected from the corresponding sink device and
when a TMDS signal is detected at the input.
E
— Lights when the source Input HDCP LED
requires HDCP encryption and it has been
authenticated with the HDMI input.
F
— Light when HDCP is Output HDCP LEDs
authenticated between the DA4HD4KPLUS or
DA6HD4KPLUS output and the corresponding
sink device.
A
— Connect the provided IEC cable Power input
to a 100‑240VAC (50or 60Hz) power source.
B
— Connect a source device to this HDMI input
female HDMI type A input.
C
— Connect up to four or six display HDMI outputs
devices to these female HDMI type A outputs.
D
— Connect the provided Remote RS-232 port
3‑pole captive screw connector for SIS
configuration, monitoring, and firmware updates
(Pin 1 = Tx, Pin 2 = Rx, Pin 3 = Ground).
Protocol: 9600 baud, 8 data bits, 1 stop bit,
no parity.
2
68-2880-51 Rev A
10 17
Extron Headquarters
+1.800.633.9876 (Inside USA/Canada Only)
Extron USA ‑ West Extron USA ‑ East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX +1.919.850.1001 FAX
Extron Europe
+800.3987.6673
(Inside Europe Only)
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Middle East
+971.4.299.1800
+971.4.299.1880 FAX
Extron Australia
+61.8.8113.6800
+61.8.8351.2511 FAX
Extron India
1800.3070.3777
(Inside India Only)
+91.80.3055.3777
+91.80.3055.3737 FAX
© 2017 Extron Electronics All rights reserved. All trademarks mentioned are the property of their respective owners. www.extron.com
DA4 HD 4K PLUS and DA6 HD 4K PLUS • Setup Guide (Continued)

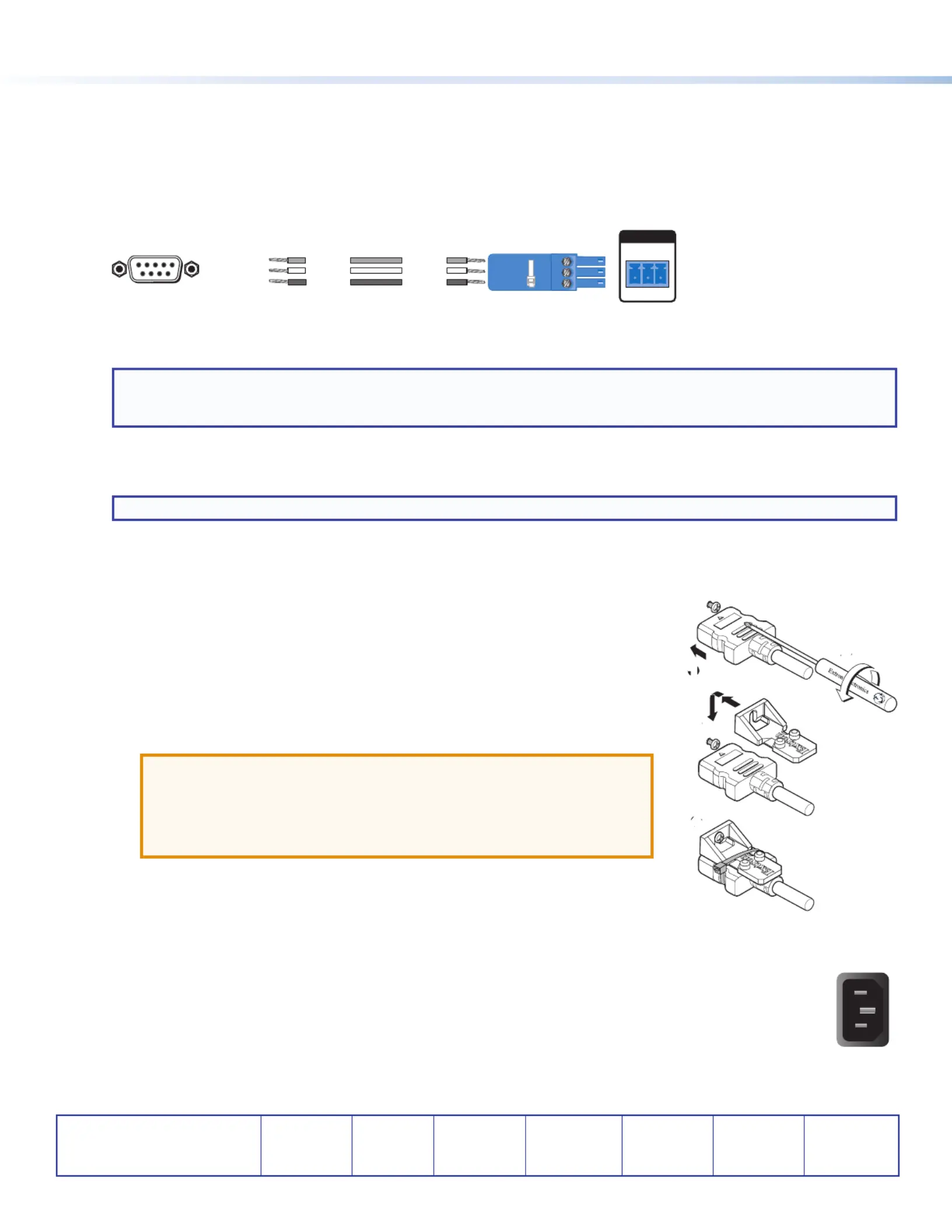

Installation
1. Mount the DA4HD4KPLUS or DA6HD4KPLUS in a suitable location with recommended mounting kits: MBU123,
RSU126, or UTS100 (see www.extron.com for mounting options). Follow the instructions provided with the mounting kit.
2. If required, connect a control PC to the USB Cong port (see figure 1,
B
on the previous page) or Remote RS‑232 port
(see figure 2,
D
on the previous page). To connect the rear panel Remote RS‑232 port to a PC, ensure that the PC transmit
connects to the RS‑232 receive and the PC receive connects to the RS‑232 transmit (see the diagram below).
RS-232
Tx Rx G
REMOTE
TransmitReceive
ReceiveTransmit
GroundGround
DB9 Pin Locations
Female
5 1
9 6
Pin 2 = Rx
Pin 3 = Tx
Pin 5 = G
Computer
DA HD 4K PLUS
Figure 3. Wiring the RS-232 Connector
NOTE: Use Product Configuration Software (PCS) to configure EDID Minder
®
, mute the video signal, mute the audio
signal, adjust the video color bit depth, or monitor the signal and HDCP status (see the section Configuration Software
of the ).DA HD 4K PLUS Series User Guide
3. Connect the display devices to the rear panel HDMI outputs and power them on.
4. Connect the source device to the rear panel HDMI input.
NOTE: Use the LockIt
®
HDMI cable lacing brackets provided to secure the HDMI connectors.
Secure the HDMI Connectors
Follow these instructions to secure the input and output HDMI connectors to the unit
with the LockIt HDMI lacing brackets provided:
a. Plug the HDMI cable into the rear panel connection (
1
).
b. Loosen the HDMI connection mounting screw from the rear panel enough to allow
the LockIt lacing bracket to be placed over it (
2
). The screw does not have to be
removed.
c. Place the LockIt lacing bracket on the screw and against the HDMI connector, then
tighten the screw to secure the bracket (
3
).
ATTENTION:
• Do not overtighten the HDMI connection mounting screw. The shield it
fastens to is very thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage
auquel elle est attachée est très n et peut facilement être dénudé.
d. Loosely place the included tie wrap around the HDMI connector and the LockIt
lacing bracket as shown (
4
).
e. While holding the connector securely against the lacing bracket, tighten the tie
wrap, then remove any excess length.
5. Connect the provided IEC cable to the female IECport and the other end to a 100‑240VAC (50or60Hz) power
source.
6. Power on the source device.
1
2
3
4
50/60 Hz
100-240V ~ 0.3A MAX
