EWB 210 Series • Installation Guide

Overview

The Extron EWB 210 Series consists of a one-gang (EWB 211)

and two-gang (EWB 212) EU external wall box. These boxes

provide complete compatibility in t and nish with Extron EU

devices and assist with cable management. Figure 1 shows a

typical application for the EWB 212.

This guide provides basic instructions for installation of either

model by an experienced installer.

Equipment Needed but not Provided

• • Stud detector Cable raceway (optional)

• • Electric drill Fasteners for wall mounting

(see the table below in the Wall

mounting holes section)

• Screw driver

• Small wire cutters

OFF

VID

VOL

OFF

VIDEO

VOL

MLC 55 RS EU

EWB 212

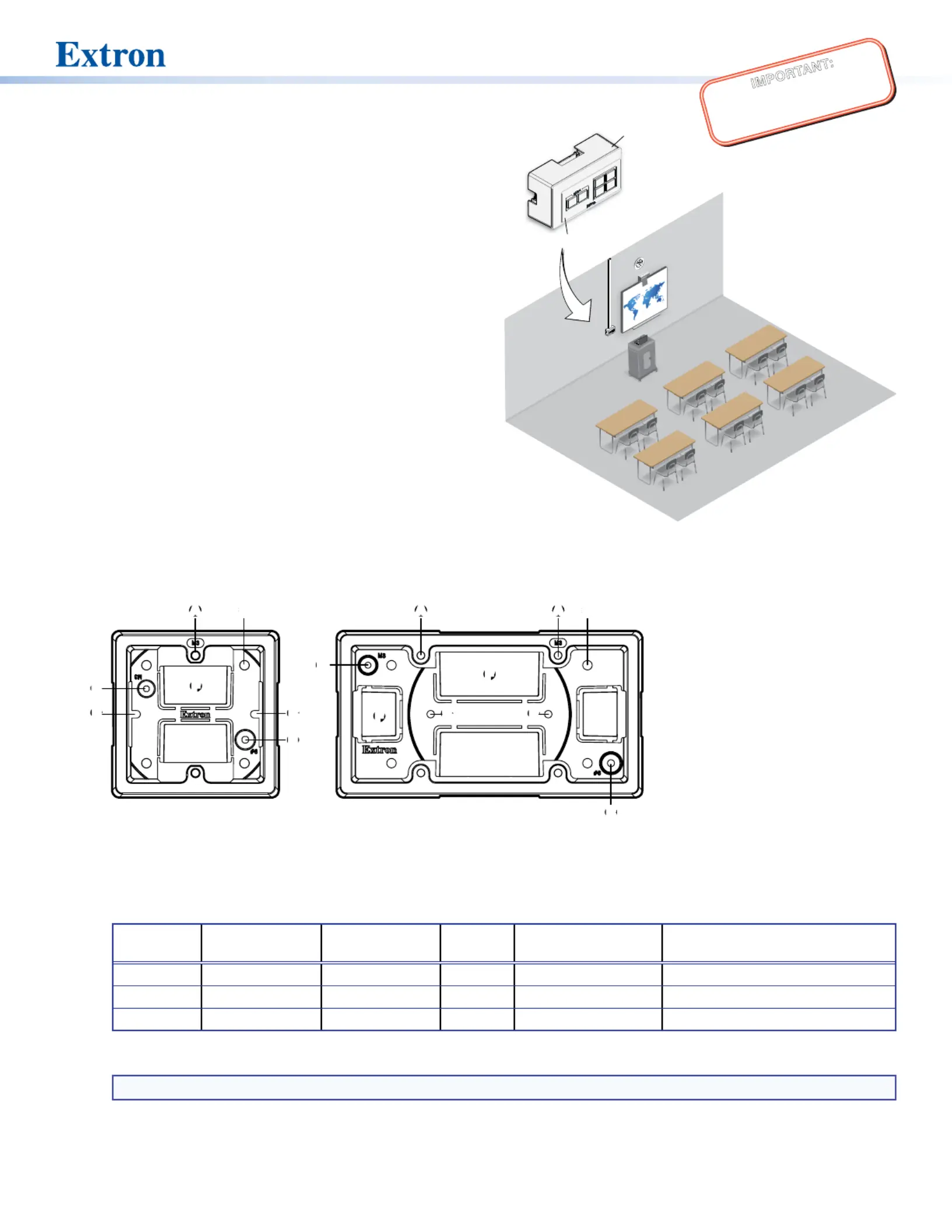

Figure 1. Typical Application for EWB 210 Series Wall Box

EWB 211 and EWB 212 Mounting Holes

The EWB 212 can be mounted directly to the wall or to an EU junction box. Use the mounting holes shown in gure 2.

EWB 212EWB 211

B B

Figure 2. EWB 211 and EWB 212 Mounting Holes

Device mounting holes — EWB 211 has two, EWB 212 has four. Use M3 screws.

EU junction box mounting holes — both models have two (60 mm center to center).

Wall mounting holes — both models have four. Use screws and fasteners that are appropriate for the wall.

Wall Type Fastener Minimum Size

Fastener

Quantity Drill Bit Size Notes

Dry wall Toggle bolts 3/16 inch at least 2 1/2 inch Wall thickness 3/8 inch minimum

Solid wood Wood screws #6 at least 2 1/8 inch Wall thickness 3/8 inch minimum

Masonry Masonry screws 3/16 inch at least 2 Do not mount to masonry joints.5/32 inch masonry bit

Hole for optional M3 hex grounding screw.

Hole for optional #6 hex grounding screw.

NOTE: The nuts and screws are not provided.

Knockout covers — EWB 211 has two, EWB 212 has four (see on the next page).Knockout Covers

68-2875-01 B 03 18

EWB 210 Series • Installation Guide (Continued)

Installation

The EWB 210 series wall boxes can be mounted directly to a wall or to an existing

in-wall EU junction box. The illustrations for this procedure show the EWB 212.

Mount the EWB 211 in the same way.

Decide where to mount the wall box and how to run cables to it. You can use any

of the two openings in the EWB 211 (right and left sides) or four openings in the

EWB 212 (one on each side) with a surface raceway.

Fill any unused openings with knockout covers, as described below.

Knockout Covers

The rear panel has two (EWB 211) or four (EWB 212) covers that can be removed

to ll the openings that are not used.

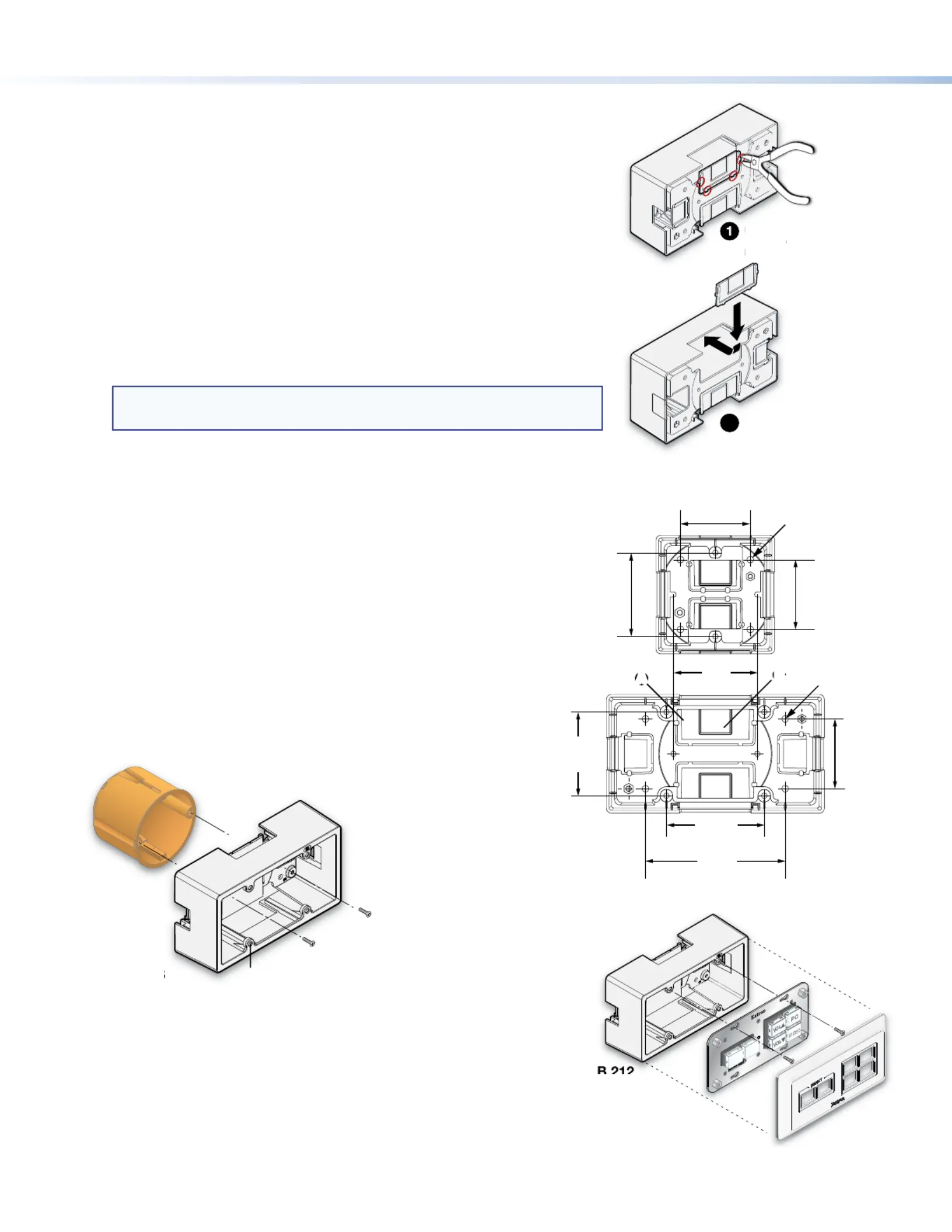

1. Use small wire cutters to cut the plastic attaching the knockout cover to the

wall box.

2. Ensure the knockout cover is in the correct orientation and slide it into place.

NOTE: The larger knockout covers (see gure 4,

) have smaller

knockouts nested inside (

all wire

o re

move

ut cover.

se sm

utters t

ockout

nto slots.

lide kn

over o

Figure 3. Covering Knockouts

Wall Mounting

1. If required, locate the center of a wall stud and hold the wall box

where it will be mounted.

2. Mark the position of the four wall mounting holes (see gure 4).

Wall studs should be used where possible. If they are not

available, use appropriate fasteners to secure the screws.

3. Select a suitable fastener and drill the holes (see the wall

mounting holes table on the previous page).

4. If required, insert a grounding screw (not provided, see ﬁgure 2,

and

on the previous page).

5. Fasten the wall box to the wall.

6. If required, install a cable raceway to manage the cables.

2.36"

(60 mm)

4x 0.19" Ø

(4.8 mm)

1.97"

(50 mm)

1.97"

(50 mm)

2.76"

(70 mm)

2.36"

(60 mm)

1.97"

(50 mm)

3.94"

(100 mm)

2.36"

(60 mm)

4x 0.19" Ø

(4.8 mm)

Figure 4. Mounting Holes Dimensions

Mounting to an Existing In-wall EU Junction Box

EWB

EU Box

212 M3 mounting holes (4)

Figure 5. Mounting to an Existing EU Junction Box

1. Align the mounting holes of the wall box with the two holes

in the EU junction box (see , ﬁgure 2

2. Secure the wall box to the junction box, using M3 screws.

Completing the Installation

1. Run and connect cables to the device, following the

instructions in the device user guide.

2. Mount the device (see gure 6).

MLC 55 RS EU

EWB 212

RESET

OFF

Figure 6. Completing the Installation
