FOX3 Series Network Ports, Protocols, and Licenses
This guide provides information about network port requirements and third-party software packages used for the Extron
FOX3 Series products. The following diagram and tables show the network ports and protocols that are required for
communication between the Extron software and hardware. Consult your network administrator to conrm the connectivity for the
network ports mentioned in this guide.
Network Port Requirements
Network Port Information
The following tables provide network port information for network planning and troubleshooting.
the specified port on the device, “Outbound” indicates that the traffic is sent out from the specific port, and “Both” indicates
that traffic is received by and also sent out from the specified port.
• • FOX3 Matrix frames FOX3 Transmitters with LAN ports
• • FOX3 Receivers with LAN ports PowerCage 411
Port Protocol Inbound/
Outbound
Service
Description
23 TCP Both Telnet SIS (Simple Instruction Set)
NOTE: This port is disabled by default.
53 UDP Both DNS DNS service
67 UDP Both DHCP DHCP server
68 UDP Both DHCP DHCP client
80 TCP Both HTTP Port redirects to HTTPS
123 UDP Both NTP NTP service
161 UDP Both SNMP SNMP service
443 TCP Both HTTP Default web page
4523 TCP Both SSH Internal system messaging
22022 TCP Both SFTP Secure file transfer
22023 TCP Both SSH SIS (Simple Instruction Set)
2001-2840, 3001-3840 TCP Both SSH Secure RS-232 insertion
Toolbelt
Port Protocol Inbound/
Outbound
Service
Description
4502 UDP Both Discovery Broadcast network discovery
4503 TCP Both SSH Internal system messaging
4522 TCP Both SFTP Internal system messaging
Product Conguration Software (PCS)
Port Protocol Inbound/
Outbound
Service
Description
4502 UDP Inbound Discovery Broadcast network discovery
4503 TCP Both SSH Internal system messaging
2
FOX3 Series Network Ports, Protocols, and Licenses
Network Tra󰀩c Overview

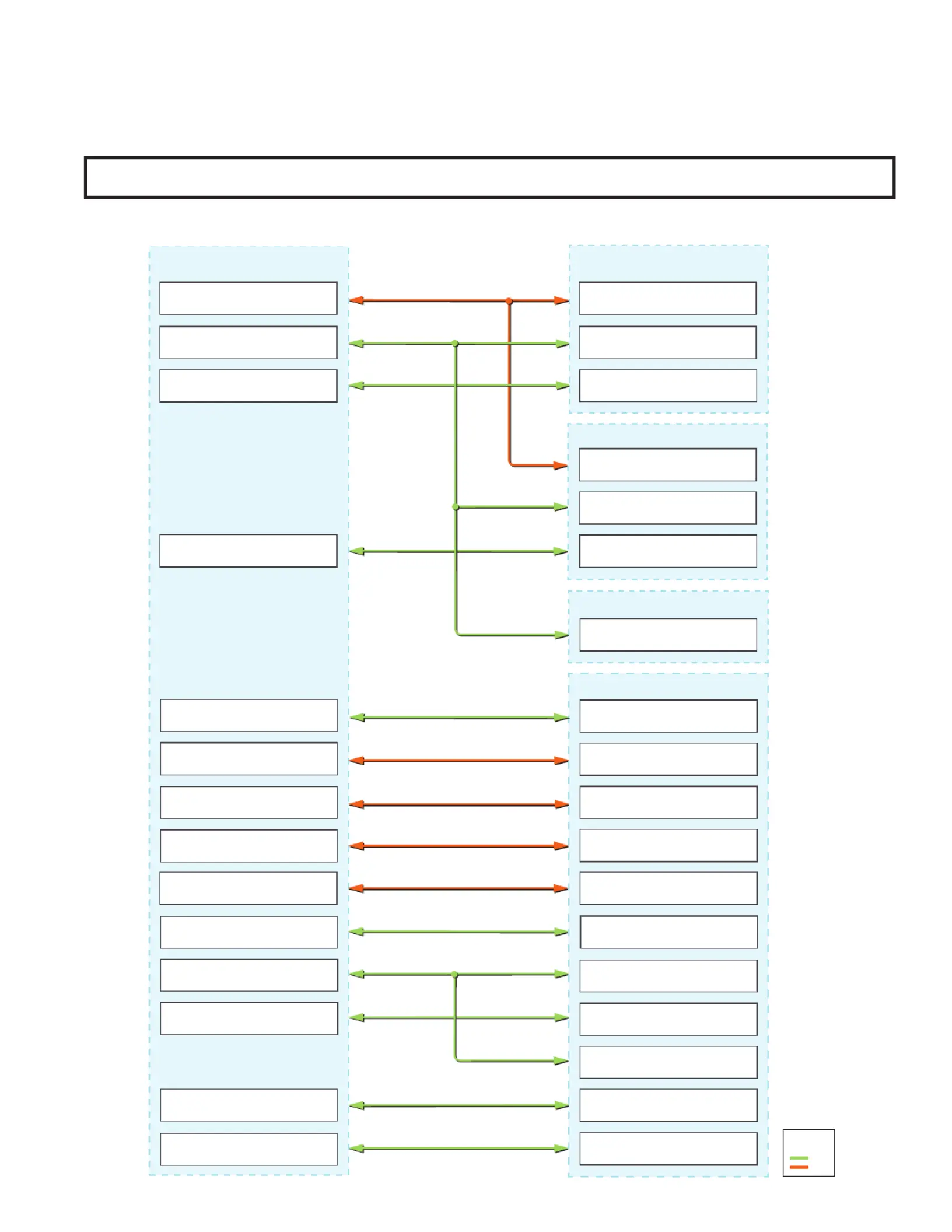

The following diagram shows the interaction of network functions, protocols, and ports.
NOTE: The diagram below includes a FOX3 matrix in the FOX3 system. The ports are the same when the FOX3 system is
configured endpoint to endpoint directly.
4503
4502
2xxx/3xxx
4522
4523
22022
22023
DNS Service
UDP
Port 53
Secure RS-232 Insertion
TCP
Port 2xxx/3xxx
Internal System Messaging
TCP
Port 4522
SIS (Simple Instruction Set)
TCP
Port 22023
Secure File Transfer
TCP
Port 22022
Internal System Messaging
TCP
Port 4523
Internal System Messaging
TCP
Port 4503
443
SNMP Service
TCP
Port 161
53
67
68
123
DHCP Server
UDP
Port 67
DHCP Client
UDP
Port 68
NTP Service
UDP
Port 123
FOX3 Matrix
LAN/AV LAN Ports
TCP
Protocol
Legend
UDP
PC
Toolbelt
FOX3 Endpoints,
PowerCage 411, and PCS
Internal System Messaging
TCP
Port 4503
Pr ollero Series Contr
Internal System Messaging
TCP
Port 4503
Broadcast Network Discovery
UDP
Port 4502
Broadcast Network Discovery
UDP
Port 4502
Broadcast Network Discovery
UDP
Port 4502
Secure RS-232 Insertion
TCP
Port 2xxx/3xxx
Internal System Messaging
TCP
Port 4522
Internal System Messaging
TCP
Port 4523
161
Secure Connection
TCP
Port 443
Secure Connection
TCP
Port 443
Internal System Messaging
TCP
Port 4503
File Transfer
TCP
Port 22022
SIS (Simple Instruction Set)
TCP
Port 22023
DNS Service
UDP
Port 53
SIS (Simple Instruction Set)
TCP
Port 23
SIS (Simple Instruction Set)
TCP
Port 23
DHCP Server
UDP
Port 67
DHCP Client
UDP
Port 68
Ports Redirect to HTTPS
TCP
Port 80
SNMP Service
TCP
Port 161
NTP Service
UDP
Port 123
23
