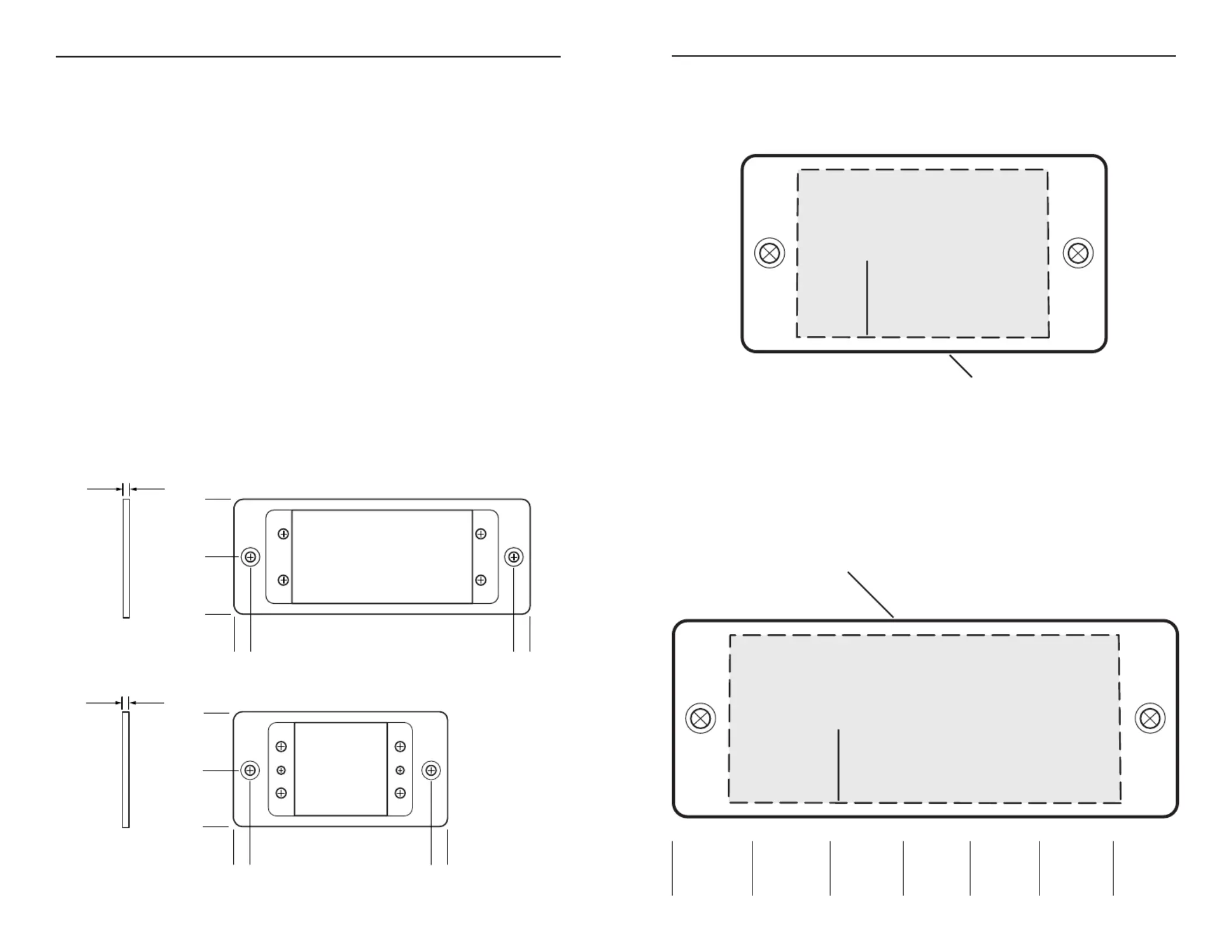

Extron AAP 100 and MAAP 100 Installation Guide
The following procedure is for mounting the AAP 100 and MAAP 100 panels
on hard surfaces (plywood, hardwood, etc.). For soft surfaces (particle
board, drywall, etc.), additional hardware such as anchors may be required
(not provided).
1. Make a copy of the appropriate full size rough-in template. Cut out the
center portion of the template up to the dashed guidelines.
C For accurate sizing, copy the template at exactly 100%.
2. Place the template in the desired location and mark the guidelines for
3. Carefully cut away the material inside the guidelines. Check the
opening size by placing the panel against the opening.
4. Cable the AAP(s)/MAAP(s) and install them on the panel.
5. Place the panel against the surface and mark the locations of the two
wall mounting holes on the surface.
6. Remove the panel and drill 1/4" deep pilot holes (half the width of the
shaft of the screw) at the marked locations. Replace the panel.
7. Use two 1/2" (1.3 cm) long, #6 flat headed wood screws (provided) to
fasten the panel directly onto the surface. Hand tighten the screws.
Product Dimensions
68-837-01 Rev. B
08 08
1.750
2 x 0.875
0.000
0.250
4.250
4.500
0.000
0.100
0.000
0.250
3.000
3.250
1.750
2 x 0.875
0.000
0.100
The dashed line indicates the
recommended cut-out area
for the installation surface.
1.5" H x 2.25" W
(3.8 cm H x 5.7 cm W)
The solid, outer line
represents the outside
edge of the panel.
1.75
"
H x 3.25
"
W
(4.45 cm H x 8.25 cm W)
Template for
the MAAP 100
Installation Templates
© 2008 Extron Electronics. All rights reserved.
Extron USA - West
Headquarters
+ 6800.633.9 87
Inside anad U / CSA a Only
+1.71 04.491.150
+1.71 74.491.151 FAX
Extron USA - East
+800.633.9 876
Inside anad U A / CS a Only
+1.919.863.1794
+1.919.863.1797 FAX
Extron Europe
+800.3987.6673
Inside urop E e Only
+31.3 03.4 .453 04
+31.3 3.4 .453 050 FAX
Extron Asia
+ 6800.7339.876
Inside A a si Only
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+400.883.1568
Inside China Only
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Dubai
+971.4.2991800
+971.4.2991880 FAX
The dashed line indicates the
recommended cut-out area
for the installation surface.
1.5" H x 3.5" W
(3.8 cm H x 8.9 cm W)
The solid, outer line
represents the outside
edge of the panel.
1.75" H x 4.5" W
(4.45 cm H x 11.4 cm W)
Template for
the AAP 100
