MLC Plus 50/100/200 Series
MediaLink Plus Controllers
68-2806-01 Rev. F
08 21
MLC Plus 50
MLC Plus 100
MLC Plus 200
MLC Plus 100 AAP
MLC Plus 200 AAP
User Guide
MediaLink® Products

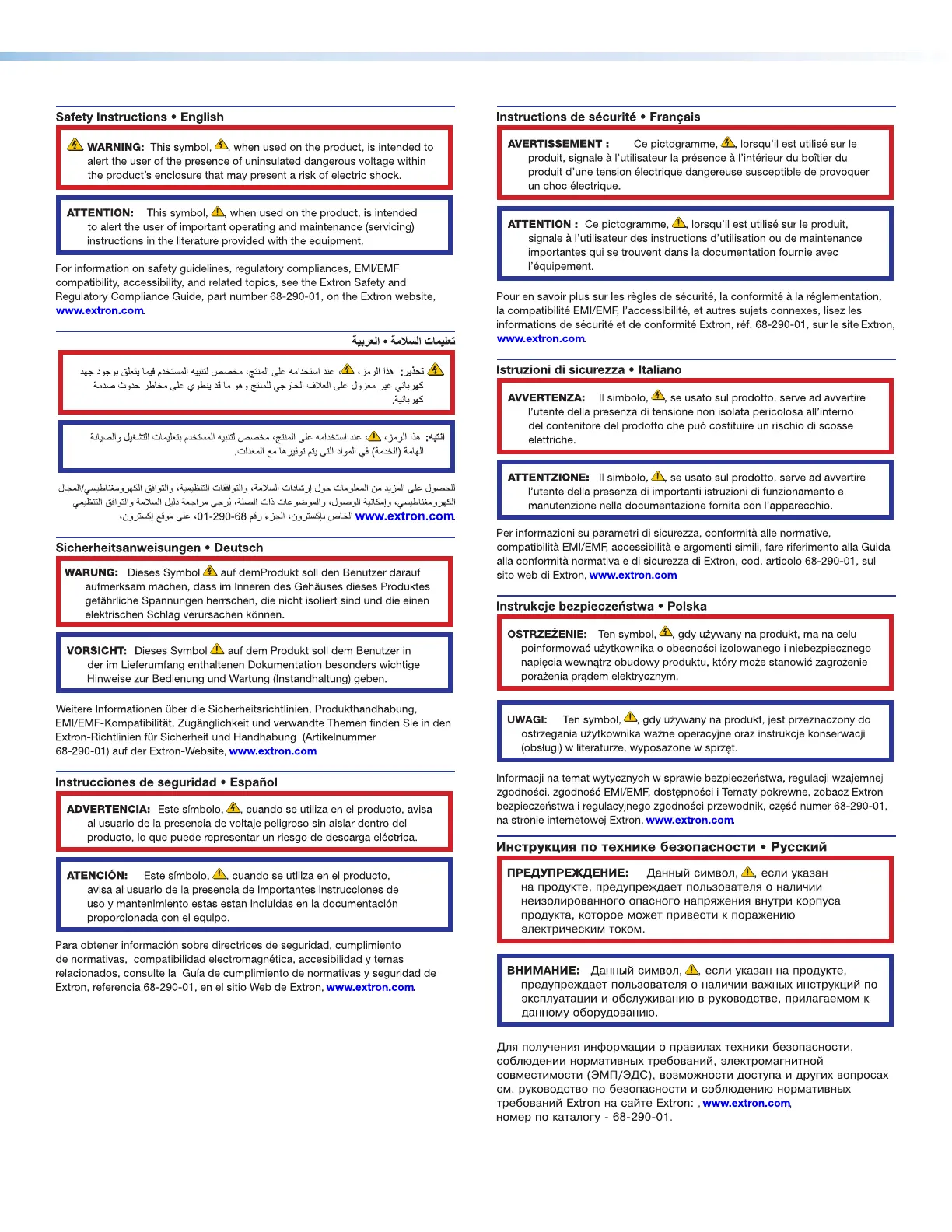

Safety Instructions
Copyright
© 2015-2021 Extron. All rights reserved. www.extron.com
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
The following registered trademarks (®), registered service marks (SM), and trademarks (™) are the property of RGB Systems, Inc. or Extron (see the current list
of trademarks on the Terms of Use www.extron.com page at ):
Registered Trademarks (®)
Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, eLink, Flat Field, FlexOS, Glitch Free, GlobalConfigurator,
GlobalScripter, GlobalViewer, Hideaway, HyperLane, IPIntercom, IPLink, KeyMinder, LinkLicense, LockIt, MediaLink, MediaPort, NAV,
NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField, SpeedMount, SpeedSwitch, StudioStation,
System
Integrator, TeamWork, TouchLink, V-Lock, VN-Matrix, VoiceLift, WallVault, WindoWall, XPA, XTP, XTPSystems, and ZipClip
Registered Service Mark(SM) : S3 Service Support Solutions
Trademarks (™)
AAP, AFL (Accu-RATE Frame Lock), ADSP (Advanced Digital Sync Processing), AVEdge, CableCover, CDRS (ClassD Ripple Suppression), Codec
Connect, DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), DriverConfigurator, DSPConfigurator, DSVP (Digital Sync
Validation Processing), EQIP, Everlast, FastBite, Flex55, FOX, FOXBOX, IPIntercom HelpDesk, MAAP, MicroDigital, Opti-Torque, PendantConnect,
ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, SIS, SimpleInstructionSet, Skew-Free, SpeedNav, Triple-Action
Switching, True4K, True8K, Vector™ 4K, WebShare, XTRA, and ZipCaddy
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause interference. This interference must be corrected at the expense of the user.
NOTE: For more information on safety guidelines, regulatory compliances,
EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and
Regulatory Compliance Guide on the Extron website.
Battery Notice
This product contains a battery. . If the Do not open the unit to replace the battery
battery needs replacing, return the entire unit to Extron (for the correct address, see the
Extron Warranty section on the last page of this guide).
CAUTION: Risk of explosion. Do not replace the battery with an incorrect type. Dispose
of used batteries according to the instructions.
ATTENTION : Risque d’explosion. Ne pas remplacer la pile par le mauvais type de pile.
Débarrassez-vous des piles usagées selon le mode d’emploi.
Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
CAUTION: Risk of minor personal injury.
ATTENTION : Risque de blessuremineure.
ATTENTION:
• Risk of property damage.
• Risque de dommages matériels.
NOTE: A note draws attention to important information.
TIP: A tip provides a suggestion to make working with the application easier.
Software Commands
Commands are written in the fonts shown here:
^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C
[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]
E X! * *X1& X2)* X2#* X2! CE}
NOTE: For commands and examples of computer or device responses mentioned
in this guide, the character “ ” is used for the number zero and “O” is the capital 0
letter “o.”
Computer responses and directory paths that do not have variables are written in the font
shown here:
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
Variables are written in slanted form as shown here:
ping —txxx.xxx.xxx.xxx
SOH R STX ETB ETXData Command
Selectable items, such as menu names, menu options, buttons, tabs, and field names are
written in the font shown here:
From the menu, select .File New
Click the button.OK
Specifications Availability
Product specifications are available on the Extron website, www.extron.com.
Extron Glossary of Terms
A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.
MLC Plus 50/100/200 Series • Introduction 1
Introduction
This section covers the following information you should know about this guide and the
products before installation:
• Before You Begin — What this guide covers and does not cover, and what terms are
used to refer to this product
• About the MLCPlus50/100/200Series — An overview of the products and their
features
• Application Diagrams — Example application diagrams
• Device Control — General information about IR, RS-232, and Ethernet control of other
products
• About Global Configurator (with GCProfessional and GC Plus Modes)— A brief
description of software needed to set up the controllers
• PC System Requirements — Where to find computer and network system
requirements
Before You Begin
What This Guide Covers
This user guide provides instructions for an experienced installer to install an Extron
MLCPlus50/100/200Series IP Link Pro Controller. This guide includes detailed information
and best practices recommendations about cabling the controller, a brief overview of the
configuration process, and reference information.
You configure the controller using Extron Global Configurator software running in Global
Configurator Professional (GCProfessional) or Global Configurator Plus (GC Plus) mode.
This guide does not contain instructions on detailed software-related setup steps or details
of configuration within the software: those are covered in the Global Configurator Help
file and help files for related programs. The software help files describe how to use each
program to download drivers, add AV devices to a configuration, configure basic functions,
and set up schedules, macros, e-mail alerts, controller button configurations, and the like.
Conventions Used in This Guide
Throughout this guide the MLCPlus50/100/200Series products are also referred to as the
“MLCPlus,” “MLCPlus50/100/200,” or “controller.” Global Configurator software is referred
to as “GC,” which can be run in Global Configurator Professional mode (“GCProfessional”)
or Global Configurator Plus mode (“GCPlus”). The GlobalViewer Enterprise application is
referred to as “GVE.” Unless otherwise noted, in images of software or web pages, circled
numbers correspond to procedural steps.
Important Information You Need Before Installation
The MLCPlus50/100/200 Series controllers work differently from the previous
generation of IPLink products. The order and types of setup tasks are important. Pay close
attention to them. Follow the setup checklist in the Hardware Features and Installation
section starting on page9.
MLC Plus 50/100/200 Series • Introduction 2
About the MLCPlus50/100/200Series
The MLCPlus50/100/200Series Controllers integrate Ethernet connection into AV systems
to allow users to remotely control, monitor, and troubleshoot AV equipment. This equipment
includes, but is not limited to, display devices and switchers, source devices, and various
other items such as lights, a projector lift, or a screen motor. They can be used in a
distributed control system environment or as stand-alone controllers.
All models fit standard US junction boxes or mud rings, and all include magnetic faceplates.
The models offer different mounting options and they differ in button or button and knob
arrangements. The buttons and knob can be configured for a variety of functions.
• The features six buttons and fits a standard US two-gang junction box or MLCPlus50
mud ring.
Figure 1. MLCPlus50 Front (Left), Rear (Middle), and Side (Right) Views
• The and models feature six buttons and a knob.MLCPlus100 MLCPlus100AAP
• The MLCPlus100 fits a standard US two-gang junction box or mud ring.
Figure 2. MLCPlus100 Front, Rear, and Side Views
• The MLCPlus100AAP fits a standard US four-gang junction box or mud ring and
includes space to mount from one to four Extron AAP plates.
Figure 3. MLCPlus100AAP Front and Rear Views
MLC Plus 50/100/200 Series • Introduction 3
• The and models feature ten buttons and a knob.MLCPlus200 MLCPlus200AAP
• The MLCPlus200 fits a standard US three-gang junction box or mud ring.
Figure 4. MLCPlus200 Front, Rear, and Side Views
• The MLCPlus200AAP fits a standard US five-gang junction box or mud ring and
includes space to mount from one to four Extron AAP plates.
Figure 5. MLCPlus200AAP Front and Rear Views
The MLCPlus is configured completely via Global Configurator software. Once you have set
up how you want it to work (set up IP addresses and functions, assigned drivers to ports,
configured relays and digital input), that information is saved to a project configuration file
that is built and uploaded into the MLCPlus.
The MLCPlus50/100/200 Series integrates seamlessly with Extron GlobalViewer Enterprise
(GVE) software and the GlobalViewer web-based AV resource management tool for remote
control applications.
MLC Plus 50/100/200 Series • Introduction 5
• Network connection — The MLCPlus50/100/200 models support 10Base-T up to
gigabit (1000Base-T) Ethernet communication.
• Remote equipment management — The IPLinkPro connection via the LAN
port on the MLCPlus allows you to remotely manage, monitor, and control several
Ethernet-enabled products such as projectors, cameras, video conferencing equipment,
switchers, and other AV equipment. The MLC provides support for the following:
• TCP, UDP, and HTTP connections
• Password protection using secure communication
• Up to eight or four Ethernet devices at a time depending on the configuration mode
(GCProfessional or GCPlus)
• Connection via IP address or host name
• Multi-level password protection — Allows security to be set based on user roles.
• System asset management — The configured system and controller allow you to
control, monitor, and schedule various functions of devices in the system.
• E-mail notification — The MLC can be set up to send e-mail notifications, such as a
notice that a projector has been disconnected or the projector lamp has been used for
a designated number of hours.
• Additional security features — Each controller can use the included Secure Sockets
Layer (SSL) certificate or a user-supplied, customized security certificate (see Secure
Sockets Layer (SSL) Certificates on page43).
Application Diagrams
The following figures show examples of types of devices that can be connected to ports on
the MLCPlus50/100/200Series controllers.
X P
PWR
XTP PWR
100-240V 50/60 Hz
--- A MAX
WiFi 1 2 3 4
STANDBY/ON
PQLS HDMI OPEN/CLOSE FL OFF
USB
DISPLAY
Extron
ON OFF
PC
VOL VIDEO
VOL
HDMI with Embedded Audio
Relay to Screen Control
IR to Blu-ray
Ethernet/PoE
Ethernet
Ethernet
Ethernet
Screen Control
Projector with
Internal Speakers
PC
Blu-ray Player
Extron
XTP PI 100
XTP Power Injector
Extron
MLC Plus 50
MediaLink Plus Controller
TCP/IP
Net work
Figure 6. An MLCPlus50 Application
MLC Plus 50/100/200 Series • Introduction 6
HDMI
HDMI HDMI3
4
21 CONFI GURA BLE
100-240V ~ --A MAX
50-60 Hz REMOTAUDIOINPU T
OVER T P
OUT PUT
TAL LY O UTCONT ACT IN
HDBT
DT P
L
1 2 R
L R
Tx Rx G
321 4 + V1 2 3 4 G
T x RxTxGR
RS-232
OUT
IN RS- 232 IR
SIG
OUT
LINK
L R
POWER
12V
0.7A MAX
AUDIO
OUT PUT S
SIG
DT IN
LINK
DTP HDM I 230 Rx
OVER DT P
RS- 232 IR
Tx R Tx RxG
12V
POWER
RESET
LAN
MIC/LIN E INPUT S
OUT PU T S
I/O
REMO T E
MIC
+48 V
1 2 3
4 5 6
2
1
RS-232 (1)
RS-232 (2)
Tx Rx G
Tx Rx G
2 3 G
4 5 6 G
23
4 5 3 46
DMP 64
1.0A MAX
100-240V 0.5A M AX, 50-60Hz XP A 1002 Plus
1 2
LIMIT ER/PRO T ECT
SIG NAL 0
2
4
6
8
1012
18
14
26
∞0
2
4
6
8
1012
14
∞
21
ATT ENUATI ON 8Ω / 4Ω OUTPU TS
REMOT E
INPUT S
CLASS 2 WIR NG
1 2
G
GCV
1 2 10V 5 0mA
STANDB Y
X P
PWR
XT P PWR
100-240V 50/60 Hz
---A MAX
WiFi
1 23 4
Extron Extron
Extron
IN1604 DTP
Scaler with
DTP Extension
Blu-ray Player
Laptop
Microphones
RS-232
RS-232 to
Projector
RS-232 to
IN1604 DTP
HDMI
HDMI
PC
Extron
DTP HDMI 330 Rx
Receiver
CATx Cable
up to 330'
(100 m)
HDMI
HDMI
TCP/IP
Network
Extron DMP 64
Digital Matrix
Processor
Extron SM 26
Speakers
Extron
XPA 1002 Plus
Power Amplier
Relay to Screen Control
IR to
Blu-ray
Screen
Control
Projector
Ethernet/PoE
Ethernet
Ethernet
Audio Audio Audio
Audio
Audio
Extron
XTP PI 100
XTP Power
Injector
Extron MLC Plus 100
MediaLink Plus Controller
DISPLAY
VOLUME
Extro n
ON OFF
PC
LAPT OP
VIDEO
MUTE
Figure 7. An MLCPlus100 Application
MLC Plus 50/100/200 Series • Introduction 7
L R
POWER
12V
0.7A MAX
AUDI O
SI G L IN K
DTP IN
OU T P U T S
X P
PWR
XTP PWR
100-240V 50/60 Hz
---A MAX
100-2 40V ~ -- A MAX
1
2
CONFIGUR ABLE
HDMI HDMI
5
6
7 8
C
RS-232 IR
RS-232 IR
Tx Rx Tx RxG
Tx Rx TxRxG Tx R TxRxG
HDMI
A
B4
INPU T S OUT P UT S
Tx Rx
RS-232
G
LA
70V - 100W
RESET
AUDIO IN PUTS OUT PUT S
REMOT E
L L1 R R
L 2 R
3
CLASS 2 WIRIN G
L 4 R
L 5 R
+48V
+48V
1 2
L R
VARIABLE
IN1608 MA
2
MIC/LINE
L 6 R
SIG LINK
DTP IN
SIG LINK
DTP IN
SIG LINK
DTP OUT
50/60 H z
RS-232 IR
OVER DTP
OVER DTP
OVER DTP
AMPL IFIE OU TPUT
DT P HD MI 330 R x
OVER DT P
RS-232 IR
Tx R Tx RxG
WiFi
1 23 4
STANDB Y/ON
PQLS HDMI OPEN/CLOSE FL OFF
USB
DISPLAY
VOLUME
Extron
ON OFF
PC
VGA
DOC
CAM
LAPTOP
HDMI
SCREEN
UP
MUTE SC REEN
DOWN
Ethernet
IR to Blu-ray
RS-232 over DTP
Relay to Screen Control
Ethernet/PoE
Ethernet
Ethernet
Audio
RS-232
Screen Control
Projector
PC
Laptop
Blu-ray Player
Extron
XTP PI 100
XTP Power
Injector
Extron
MLC Plus 200
MediaLink Plus
Controller
TCP/IP
Net work
Document
Camera
Extron
FF 220T
Ceiling Speakers
Extron
DTP HDMI 330 Rx
Receiver
CATx Cable
up to 330' (100 m)
VGA
HDMI HDMI
HDMI
Extron
IN1608 MA
Switcher
with DTP
Extension
Figure 8. An MLCPlus200 Application
Device Control
The MLCPlus must be configured in one of the following ways before it can send
commands to a projector, display, or other device:
• An IR, RS-232, or Ethernet driver file can be downloaded from the extensive Extron
driver selection from the Extron website (www.extron.com/download/index.aspx).
The driver is saved to a folder and commands from the driver are incorporated into the
GC configuration file for the controller. The configuration file is built and uploaded to the
MLCPlus via GC.
• If a driver is not already available, RS-232 or Ethernet command strings can be
entered directly from a host computer using GlobalConfigurator. These can then be
incorporated into controls within the GC project.
See the file (which comes with the software) for details on setting Global Configurator Help
up the MLCPlus and for downloading device control commands.
MLC Plus 50/100/200 Series • Introduction 8
About Global Configurator (with GCProfessional and GCPlus Modes)
Global Configurator is the software tool for network setup and configuration of an
MLCPlus50/100/200 Series controller. Global Configurator:
• Loads device drivers for monitoring the status of and controlling devices within the AV
system.
• Creates the configuration containing all the settings for the controller and the products
with which it interacts in the AV system.
• Creates a graphical user interface for use with Extron Control that looks just like the
front panel controls. Using Extron Control you can operate the MLCPlus remotely as if
you were touching the controls on the actual front panel.
• Uploads the configuration to the unit.
To obtain Extron control product software, you must have an Extron Insider account and
contact an Extron support representative. Extron provides training to our customers on how
to use the software. Access to the features of Global Configurator Professional is available
to users who successfully complete Extron Control Professional Certification.
PC System Requirements
To find the minimum hardware and software requirements for the PC used to configure the
MLCPlus50/100/200 Series:
• Visit the page (Download www.extron.com/download/index.aspx) on the Extron
website and navigate to the web page for the specific software package (such as Global
Configurator). Minimum system requirements are listed in the description section. In
some cases, minimum device firmware version requirements are also listed there.
• If system requirements are not listed on the software package web page, contact an
Extron support representative.
MLC Plus 50/100/200 Series • Hardware Features and Installation 9
Hardware Features
and Installation
This section covers the following material:
• Overall Configuration Procedure for the Controller — A flowchart showing the
main steps needed to install and set up the controller
• Installation Step 1: Get Ready — A checklist of tasks to guide you through
installation
• Installation Step 2: Prepare the Installation Site — Notes on accessibility and
Americans with Disabilities Act (ADA) compliance, as well as instructions for preparing
the site and installing mounting hardware prior to connecting the controller
• Installation Step 3: Change a Faceplate or Button Labels (optional) — Step by
step instructions for replacing buttons or faceplates
• Installation Step 4: Cable All Devices — Locations, descriptions, and cabling notes
for rear and side panel features including wiring diagrams and details about each port
• Installation Step 5: Set up the MLC for Network Communication — A flowchart
guide to network settings configuration
• Installation Step 6: Configure the MLC Plus — An outline of the configuration steps
to be performed using software
• Installation Step 7: Test and Troubleshoot — Basic steps to test and troubleshoot
the installation
• Installation Step 8: Complete the Physical Installation — How to wrap up AAP
connections, cabling, and mounting
• Mounting — Brief guidelines for mounting each model
The MLCPlus50/100/200 Series controllers work differently from the previous
generation of MediaLink and IPLink products. Pay careful attention to the order and types
of setup tasks. Follow the installation steps in this guide or in the setup guide and keep it
with you for reference throughout the installation and configuration process.
MLC Plus 50/100/200 Series • Hardware Features and Installation 10
Overall Configuration Procedure for the Controller
See the network
communication setup
instructions
Create a new GC Professional or GC Plus project
and add the MLC Plus to it.
Congure ports on the controller.
Congure controller buttons.
Step 7: Test the system, make adjustments,
nalize conguration.
Save the project.
Step 4: Cable the MLC Plus, then apply power.
Cable all devices (see step 4).
Step 1: Prepare the installation site.
Step 2: Change buttons or faceplates, if desired.
Step 8: Mount the MLC Plus.
Create monitors, schedules, macros, timers,
and local variables.
Build and upload the conguration to the cont llero r.
Step 5: Configure the IP
settings of the MLC Plus.
Within Global Configurator
(GC Professional or
GC Plus mode):
Step 6
If desired or required, use Toolbelt
to congure security settings
for 802.1X, SSL.
Upload security certicates, private keys.
Figure 9. Overall Configuration Steps
Installation Step 1: Get Ready
Use the following checklist to prepare for the installation.
Download and install the latest version of the following:
Toolbelt software — for discovering the controller and other control products on
the network, for managing core settings, and for upgrading firmware when needed
Global Configurator software — for configuring the control system
IPLinkPro device drivers — for use with GC, to make control of other devices
possible
All are avail able from www.extron.com Locating Software, Firmware, and (see
Driver Files on the Extron Website).
Obtain network information for the unit from the network administrator. You need the
following details for each IPLinkPro device such as the MLCPlus:
DHCP setting (on or off) Subnet mask User name
Device (MLC Plus) IP address Gateway IP address Passwords
NOTE: If DHCP is on, you do not need the IP addresses and subnet mask.
network
communication setup
instructions on page24.
MLC Plus 50/100/200 Series • Hardware Features and Installation 11
Write down the MAC address of each IPLinkPro device (such as the
MLCPlus50/100/200) to be used.
Obtain model names and setup information for devices the MLC Plus 50/100/200
is going to
control.
Each controller comes with a factory-installed Secure Sockets Layer (SSL) security certificate.
If you intend to install a different SSL certificate, contact your IT department to obtain the
certificate or for instructions on how to obtain one. See Secure Sockets Layer (SSL)
Certificates on page43 for requirements and guidelines regarding SSL certificates.
IEEE 802.1X authentication is also supported once enabled (see “IEEE 802.1X
Certificates” in the for details).MLC Plus 84 Series User Guide
Installation Step 2: Prepare the Installation Site
Steps and hardware required depend on the model being installed (see Site Preparation
on page12 for details)
ATTENTION:
• Installation and service must be performed by authorized personnel only.
• L’installation et l’entretien doivent être effectués uniquement par un technicien qualifié.
• Extron recommends installing the MLC Plus 50/100/200 into a grounded, UL
Listed electrical junction box.
• Extron recommande d’installer le MLC Plus 50/100/200 dans uune boîte de
dérivation électrique mis à la terre, certifiée UL.
• If the controller will be installed into fine furniture, it is best to hire a licenced,
bonded craftsperson to cut the access hole and perform the physical installation
so the surface will not be damaged.
• S’il est prévu d’installer le contrôleur dans du beau mobilier, il est préférable de
faire appel à un artisan autorisé et qualifié pour couper le trou d’accès et réaliser
l’installation de telle façon que la surface ne soit pas endommagée.
• Follow all national and local building and electrical codes that apply to the
installation site.
• Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui
s’appliquent au site de l’installation.
• For the installation to meet UL requirements and to comply with National Electrical
Code (NEC), the MLC must be installed in a ULListed junction box. The end user
or installer must furnish the junction box. It is not included with the unit.
• Pour que l’installation respecte les exigences UL et soit conforme au National
Electrical Code (NEC) américain, le MLC doit être installé dans une boîte de
dérivation certifiée UL. Il incombe à l’utilisateur final ou à l’installateur de fournir la
boîte de dérivation. Cet équipement n’est pas inclus avec l’unité.
NOTES:
• If the MLC Plus is not mounted to a grounded metal junction box or a grounded
metal equipment rack, Extron recommends connecting the unit to an earth ground
to protect the unit from electrostatic discharge. For details, see the grounding
instructions on page15.
• If not provided with a power supply, this product is intended to be supplied by a
power source marked “Class 2” or “LPS” and rated at 12VDC, minimum 0.5A, or
48V PoE, 0.35A minimum, or 56V PoE, 0.8A minimum.
Select and prepare the site before cabling the controller. This may include cutting a hole
in the installation surface or installing a cabling raceway, running the cables to that site,
installing the wall box, and pulling cables through it.
MLC Plus 50/100/200 Series • Hardware Features and Installation 12
Accessibility and Americans with Disabilities Act (ADA) Compliance
When planning where to install the MLCPlus50/100/200, consider factors affecting accessibility
of the controller such as height from the floor, distance from obstructions, and how far a
user must reach to press the buttons. For guidelines, see sections 307(“Protruding Objects”)
and 308(“ReachRanges”) of the available at 2010 ADA Standards for Accessible Design
http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf.
Site Preparation
Mud rings, optional ULListed junction
boxes, external junction boxes, and
surface mounting boxes are available
for use with the MLCPlus. Read any
installation instructions and UL guidelines
that come with the mounting devices,
protect the mounting surface to prevent
damage, then install the box or mud ring
in the opening at the installation site.
The following table provides the approximate sizes of holes to cut in the installation surface
depending on the gang size of the device and whether you are using the provided mud ring
or attaching the MLCPlus directly to the mounting surface.
Mud Ring Installation Direct Mounting
US Gang Size Cutout Dimensions Cutout Dimensions
2 4.1 W x 3.75 H" "
104 mm W x 95 mm H
3.6 W x 2.9 H" "
91 mm W x 74 mm H
3 5.9 W x 3.75 H" "
150 mm W x 95 mm H
5.4 W x 2.9 H" "
137 mm W x 74 mm H
4 7.6 W x 3.75 H" "
193 mm W x 95 mm H
7.3 W x 2.9 H" "
185 mm W x 74 mm H
5 9.5" W x 3.95" H
241 mm W x 100 mm H
9.1 W x 2.9 H" "
231 mm W x 74 mm H
When you run cables to the mounting location, leave enough slack for device installation.
Secure the cables with a clamp for strain relief so they do not slip back down into the wall or
furniture.
Model US Gang Size
MLC Plus 50 2
MLC Plus 100 2
MLC Plus 100 AAP 4
MLC Plus 200 3
MLC Plus 200 AAP 5
Wall
4.06"
3.75"
Mud Ring
Figure 10. Installing a Mud Ring
MLC Plus 50/100/200 Series • Hardware Features and Installation 13
Installation Step 3: Change a Faceplate or Button Labels (Optional)
Faceplates can easily be changed, if desired. Or you can replace one or more of the labels
within the buttons. Some button labels ship with the unit. You can create and print your
own customized labels using Extron Button Label Generator software, available free from
www.extron.com.
Replacing a Faceplate
To replace a faceplate :prior to installation
1. Remove the faceplate by holding the body of the unit with one hand, gripping the sides
of the faceplate with the other hand, and pulling the faceplate away from the unit.
2. For models with knobs, if you are changing faceplate colors, remove the knob by
holding the body of the unit with one hand, gripping the knob firmly with the other hand,
and pulling it away from the unit.
3. For models with knobs, install the new
knob (see figure 11, 3) as follows:
a. Align the ridge inside
the knob with
the channel on
the metal knob
assembly.
b. Press the knob
toward the unit,
allowing the magnet
in the knob to fasten
it to the unit.
4. Align the openings of
the new faceplate with
the buttons, knob, and
Volume LEDs and place the
faceplate against the unit (see
4). The magnetic catches fasten
the faceplate onto the unit.
To replace a faceplate :after installation
1. Remove the faceplate as follows:
a. Insert the provided Extron
removal tool (shown at right)
into the notch at the bottom left
of the faceplate and press the
removal tool toward the wall
(see figure 12). The bottom of
the faceplate pivots out toward
you.
b. Gently grip the sides of the
faceplate and pull it away from
the wall.
2. For models with knobs, if you are
changing faceplate colors, remove
the knob by gripping the knob firmly
and pulling it away from the unit.
RESET
E
VIDE
PC
OFF
ON
LAPT
MUT
Extron
DISPLAY
VOLUME
33
44
Figure 11. Replacing the Knob and Faceplate
Pr
on
ress down
n
pr
y
tool
.
DISPLAY
ON
PC
DEO
OFF
PTOP
UTE
Extron
ON
V
I
D
OFF
L
A
P
MU
VO
LUM
E
Notc
h
Figure 12. Removing the Faceplate
MLC Plus 50/100/200 Series • Hardware Features and Installation 15
Installation Step 4: Cable All Devices
NOTE: Most examples on the following pages show the MLCPlus100. However,
connector wiring and port functions are identical for all models.
1. If the MLC Plus is not mounted to a grounded metal junction box or a grounded metal
equipment rack, Extron recommends connecting the unit to an earth ground to protect
the unit from electrostatic discharge.
To ground the unit:
a. Securely terminate a grounding cable with a ring terminal.
b. Remove the grounding screw in the lower left corner of the rear panel, insert the
grounding cable, replace and securely fasten the screw (hand-tighten only). Do not
over-tighten the screw. Maximum torque is 2 inch-pounds (0.2 Newton-meter).
LAN
/
PoE
POWER
12V
0.3A MAX
Tx Rx
G
Tx Rx
G 1
2 CGCVGS
COM 1 COM 2 VOLIR
GIN
D IN RELAYS
MLC Plus 100 Rear Panel
Figure 13. Connecting a Grounding Wire to the MLC Plus
c. Connect the other end of the grounding cable to an earth ground.
2. Cable devices to the controller (see Rear and Side Panel Features and Cabling on
page16). Use the wiring diagrams in this section as a guide.
3. Connect power cords and power on all the devices.
MLC Plus 50/100/200 Series • Hardware Features and Installation 16
Rear and Side Panel Features and Cabling
NOTE: For rear panel features and cabling, the MLCPlus100, MLCPlus100AAP, MLCPlus200, and
MLCPlus200AAP are identical, so in this section the MLCPlus100 represents all of those models.
The rear panel of the MLC Plus 50 has one COM port instead of two, and does not have a volume
control port, but it is otherwise the same as the other models.
LAN
/
PoE
LAN
/
PoE
POWER
12V
0.3A MAX
Tx Rx
G CGS 1 2
COM 1 IR
GIN
D IN RELAYS
POWER
12V
0.3A MAX
Tx Rx
G
Tx Rx
G 1
2 CGCVGS
COM 1 COM 2 VOLIR
GIN
D IN RELAYS
MLC Plus 100 Rear Panel
MLC Plus 50 Rear Panel
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AB
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
BC
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
CE
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
EF
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AB
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
BC
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
CD
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
DE
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
EF
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
MLC Plus 100
Right Side
MLC Plus 50
Right Side
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
GG
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
Figure 14. MLCPlus50/100/200Series Side (Left) and Rear Panel (Right) Features
A , page17
Power input connector E , page22
Digital input port
B , page19
COM (RS‑232) ports F , page23
Relay ports
c , page20
IR output port G , page18
LAN (Ethernet) and PoE port and LEDs
D Volume control port, page21 H Grounding screw, see the on grounding instructions
page15
MLC Plus 50/100/200 Series • Hardware Features and Installation 17
Power connection
A Power input connector for optional external power supply (see on figure 14
page16) — If Power over Ethernet is not available, or if desired, connect the MLCPlus
to an optional (not included) Extron 12VDC, 0.5A desktop power supply, (part number
28-331-57LF) here; then connect the external power supply to a 100 to 240 VAC power
source. If using this port, connect the power after connecting the other cables.
T
x
Rx
G
POWER
12V
0.3A MAX
C
OM 1
RidgedSmooth
Ground
all devices.
– Return
+12 VDC input
Ridged
Smooth
External
Power Supply
(12 VDC, 0.5 A max.,
Extron P/N 28-331-57LF)
To
AC
power
Tie apWr
3/16"
(5 mm)
Max.
Rear lPane Power Input, External Power Supply (optional)
• Front panel buttons
blink during boot-up.
• Once the MLC Plus
is powered and
operational, the
buttons are lit
according to
conguration.
• Connect to an Extron 12 VDC,
0.5 A power supply.
• If PoE is available, the MLC Plus
uses PoE.
• If PoE is dropped (disconnects), the
cont ller switches seamlessly to ro
the external 12 VDC power suppl y,
if it is installed at this port.
NOTE:
Check the
polarity of the
power supply
before connecting
it to the controller.
Figure 15. Connecting an External Power Supply
ATTENTION:
• Always use a power supply provided by or specified by Extron. Use of an
unauthorized power supply voids all regulatory compliance certification and may
cause damage to the supply and the end product.
• Utilisez toujours une source d’alimentation fournie ou recommandée par Extron.
L’utilisation d’une source d’alimentation non autorisée annule toute conformité
réglementaire et peut endommager la source d’alimentation ainsi que le produit final.
• If not provided with a power supply, this product is intended to be supplied by a
UL Listed power source marked “Class 2” or “LPS” and rated output 12VDC,
minimum 0.5A, or 48VDC (PoE), minimum 0.35A.
• Si le produit n’est pas fourni avec une source d’alimentation, il doit être alimenté
par une source d’alimentation certifiée UL de classe 2 ou LPS, avec une tension
nominale 12VDC et 0,5A minimum, ou 48VDC (PoE) et 0,35A minimum.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in air
handling spaces or in wall cavities.
• Sauf mention contraire, les adaptateurs ne s une CA/CC conviennent pas à
utilisation dans les espaces d’aération ou dans les cavités murales.
• The installation must always be in accordance with the applicable provisions of
National Electrical Code ANSI/NFPA70, article725 and the Canadian Electrical
Code part1, section16. The power supply shall not be permanently fixed to
building structure or similar structure.
• Cette installation doit toujours être conforme aux dispositions applicables
du Code américain de l’électricité (National Electrical Code) ANSI/NFPA70,
article725, et du Code canadien de l’électricité, partie1, section16. La source
d’alimentation ne devra pas être fixée de façon permanente à la structure de
bâtiment ou à d’autres structures similaires.
NOTE: The MLCPlus50/100/200Series controllers accept power over Ethernet
(PoE) through the LAN port (figure 13, G, on page15) in addition to network
communication. Both an external power supply and PoE can be connected to the
controller simultaneously. The MLCPlus uses PoE when it is available but can switch
seamlessly to the external 12VDC power supply if the PoE connection is dropped.
Produkt Specifikationer
| Mærke: | Extron |
| Kategori: | Ikke kategoriseret |
| Model: | MLC Plus 200 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Extron MLC Plus 200 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Ikke kategoriseret Extron Manualer
14 Juni 2025
11 Marts 2025
10 Januar 2025
3 Januar 2025
3 Januar 2025
3 Januar 2025
3 Januar 2025
3 Januar 2025
3 Januar 2025
3 Januar 2025
Ikke kategoriseret Manualer
- Velleman
- Sinus Live
- Versare
- Oppo
- I.safe Mobile
- Aligator
- Mobli
- Aspes
- Primus WindPower
- Thermor
- IMG Stage Line
- Gymform
- Valore
- Schertler
- ALC
Nyeste Ikke kategoriseret Manualer
18 Juni 2025
18 Juni 2025
18 Juni 2025
18 Juni 2025
18 Juni 2025
18 Juni 2025
18 Juni 2025
18 Juni 2025
18 Juni 2025
18 Juni 2025
