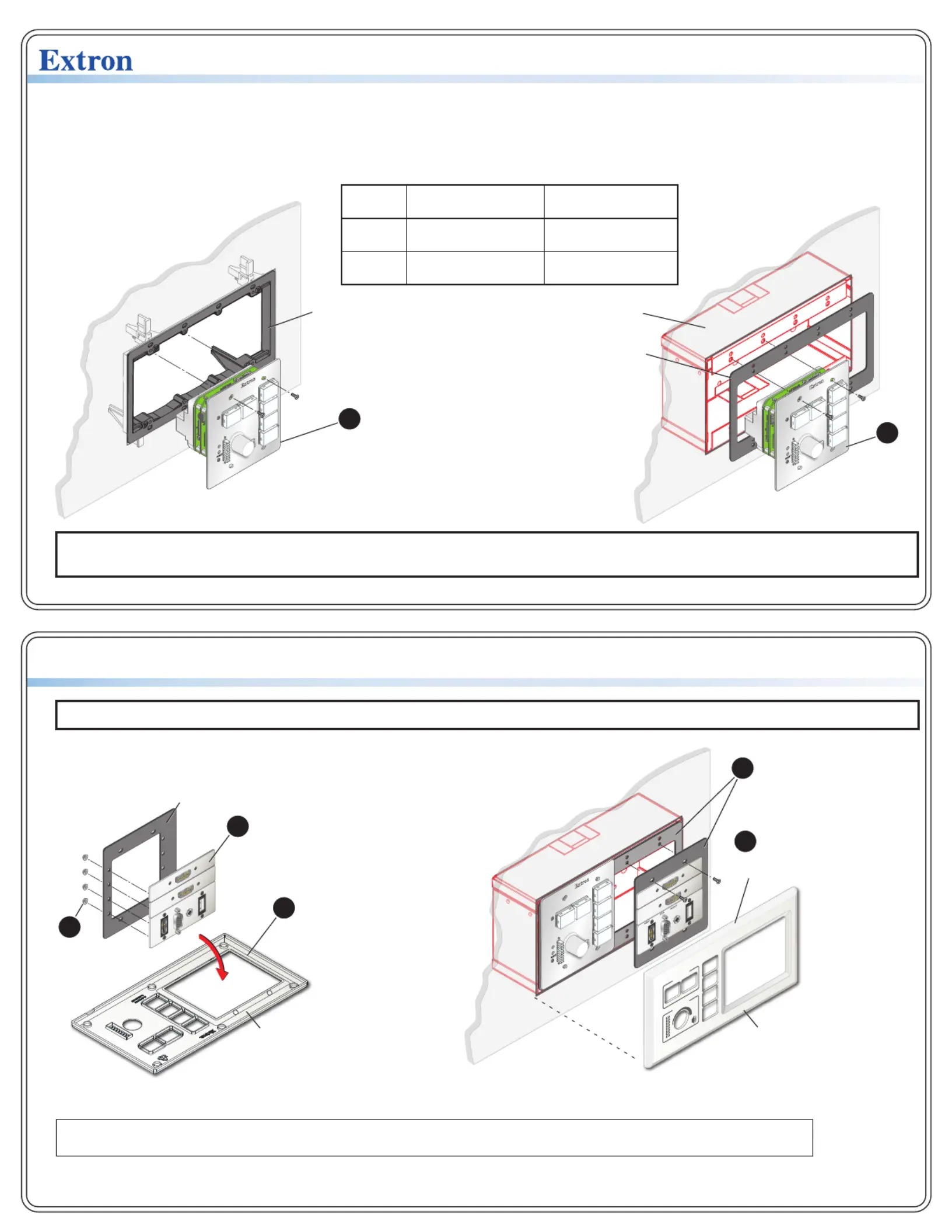

MLM 100 AAP and MLM 200 AAP • Installation Guide
This guide provides instructions for installing the Extron Mounting faceplates, which are designed for use with the MLCPlus100 and MLCPlus200
MediaLink controllers, NBP 100 and NBP 200 network button panels, and EBP100 and EBP200eBUS button panels.
RESET
E
OFF
ON
PC
VIDEO
MUTE
LAPTOP
RESET
E
OFF
ON
PC
VIDEO
MUTE
LAPTOP
Plastic Spacer
11
Secure the MLC Plus, NBP, or EBP
to the Mud Ring or Wall Box.
Do not overtighten.
Mud Ring Wall Boxor
NOTE: If the unit is installed in a mud ring, you install the plastic spacer. The spacer positions the unit to allow the NOT MUST
magnetic faceplate to attach properly and securely.
NOTE: Place the AAP plates as close together as possible. Do not leave gaps between plates.
RESET
E
OFF
ON
PC
VIDEO
MUTE
LAPTOP
Faceplate
Extr on
DISPLAY
VOLUME
Metal AAP
Bracket
HDMI VGA A UDIO USB
Install AAP Plates into
the Metal AAP Bracket.
Do not overtighten.
Tighten the
AAP Plates.
Install the
Metal AAP Bracket
to the Plastic Spacer.
Install the Faceplate.
Check for fit.
Lay the AAP Plates with
Bracket onto Faceplate.
Check for fit.
Faceplate
6
5
2
3
4
MLM 100 AAP and MLM 200 AAP • Installation Guide (Cont.)
68-3138-50 Rev. C
08 21
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide on the Extron website.
© 2017-2021 Extron — All rights reserved. www.extron.com All trademarks mentioned are the property of their respective owners.
US Gang Mud Ring Installation
Cutout Dimensions
Direct Mounting
Cutout Dimensions
4 7.6" W x 3.75" H
193 mm W x 95 mm H
7.3" W x 2.9" H
185 mm W x 74 mm H
5 9.5" W x 3.95" H
241 mm W x 100 mm H
9.1" W x 2.9" H
231mm W x 74 mm H
