Extron MLM 84 Flex55 Manual

Extron Ikke kategoriseret MLM 84 Flex55

Læs gratis den danske manual til Extron MLM 84 Flex55 (4 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 26 personer og har en gennemsnitlig bedømmelse på 4.3 stjerner ud af 13.5 anmeldelser. Har du et spørgsmål om Extron MLM 84 Flex55, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/4
1
IMPORTANT:
IM
IM
IM
IMPO
PO
PO
PORT
RT
RT
RTAN
AN
AN
ANT:
T:
T:
T:
Go to www.extron.com for the
complete product specifications.

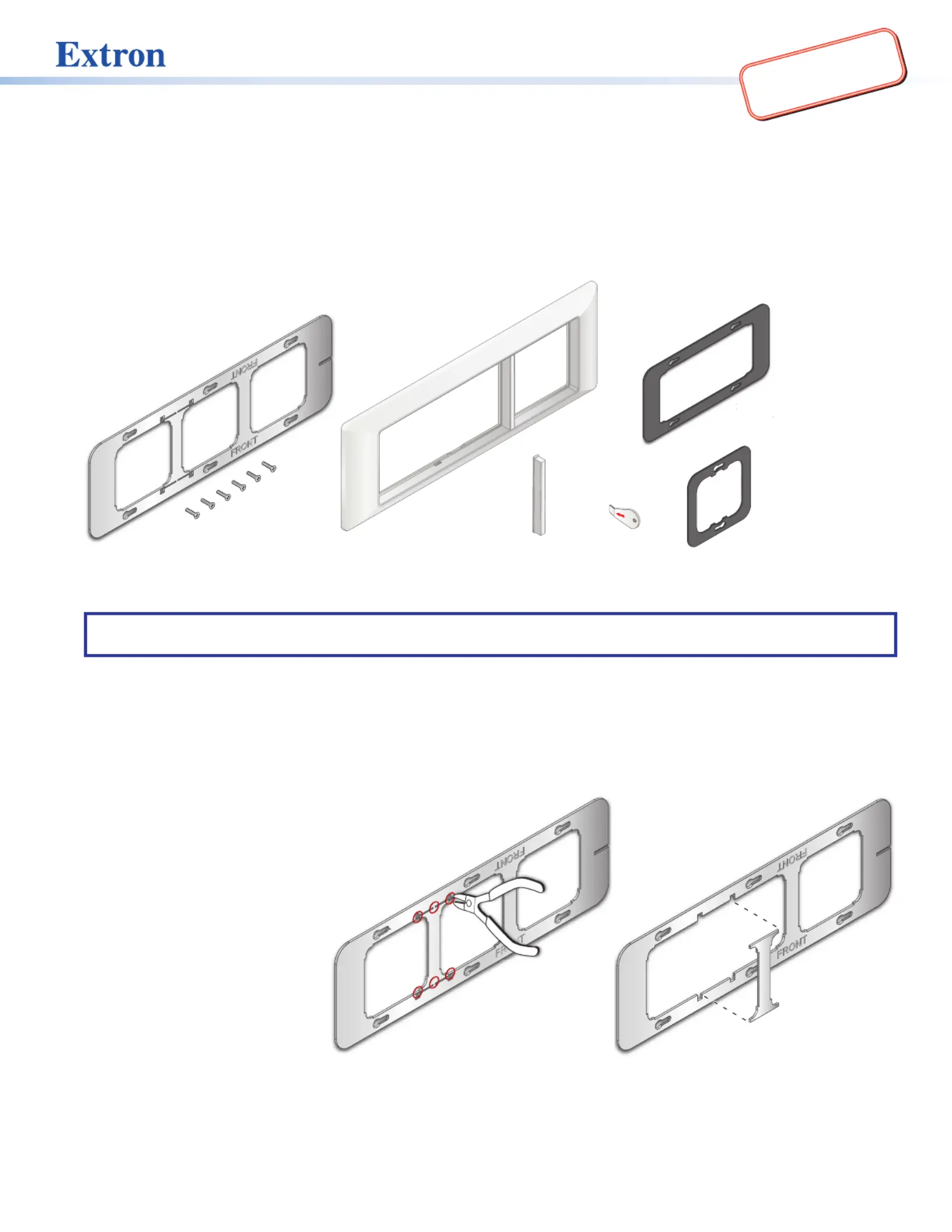

MLM 84 Flex55 Mounting Kit • Installation Guide
Extron MLM 84 Flex55 Mounting Kits are designed to mount Extron MLC Plus 84 EU modules with other Flex55 modules. The kit
can mount to an SMB 213 or standard 3-gang EU junction box. The mounting kits include a mounting frame, mounting bracket,
attachment screws, spacers, divider bar, and a module removal tool. Each bracket opening holds one MLC Plus 84 EU module
and one full module. Alternatively with the divider bar in place on the mounting frame, you can install three Flex55 full modules.
Kit Contents
Extron
Extron
Extron
Extron
Extron
Extron
Ext
Ext
Ext
Ext
ron
ron
ron
ron
Removal
Tool
1-gang
Spacer
Center
Divider Bar
Mounting FrameMounting Bracket
and M3 fer Head ScrewsWa
2-
g
an
g
S
pace
r
NOTE: Some modules may be difcult to remove once installed. Make sure the wiring is correct before snapping
in each module.
Installation into a Surface Mount Box or Wall Mount Junction Box
Removing the Bracket Divider
To allow for the installation of the
wider MLC Plus 84 EU module, one
of the bracket dividers (1) on the
mounting bracket is designed to be
cut away and removed.
Using a pair of metal snips, clip off
the tabs attaching the divider and
dispose of the divider when it is
free (2).
1
1
1
1
1
12
2
2
2
2
2
2
MLM 84 Flex55 Mounting Kit • Installation Guide (Continued)

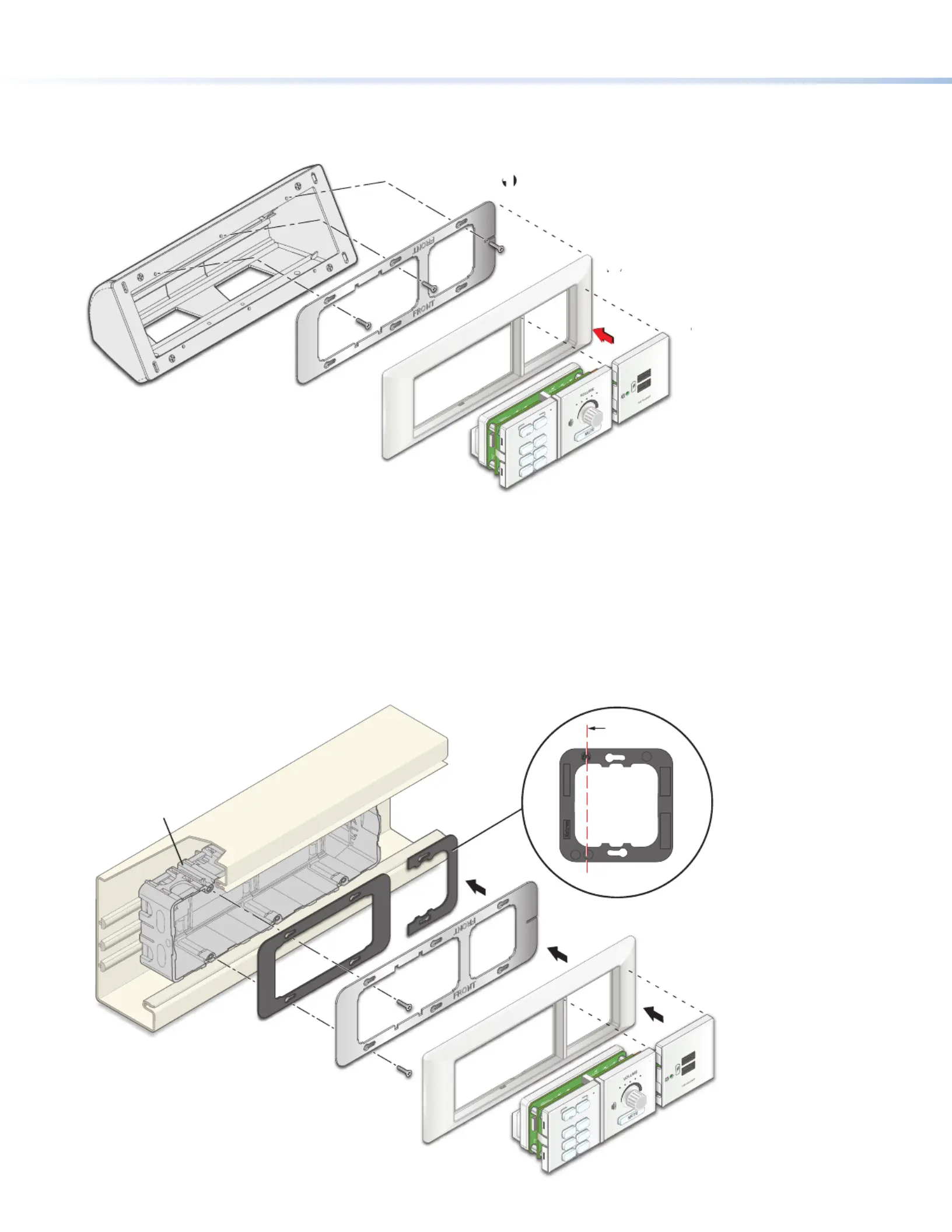

Installation in a Surface Mount Box
Follow these steps to install the frame and modules in a surface mount box.
SMB 213
DISPLAY
OFF
ON
PC
DO C
CAM
LAP TO P 1 LAP TO P 2
HDMI 1 HDMI 2
Mounting
Bracket
M3
Screws
Mounting
Frame
Secure the mounting bracket
to the box using the provided
M3 screws (qty 6).
Position the mounting frame
on the mounting bracket.
Connect cables to the
Flex 55 modules and
snap the modules into
the mounting bracket.
3
1
2
MLC Plus 84 EU
Flex55 Module
Installation in a European Raceway Channel
To install the frame and modules into a raceway, peform the following:
1. Carefully cut off one side of the 1-gang spacer (see the inset illustration for the cutting location).
2. Install the spacers and mounting bracket onto the junction box. Align the outer edges of the spacers with the mounting
bracket and secure them using the six provided M3 screws (see figure below).
3. Attach the mounting frame to the bracket.
4. Install the MLC Plus 84 EU and the Flex55 module into the mounting frame.
DISPLAY
OFF
ON
PC
DOC
CAM
LAPT O P 1 LAPTO P 2
HDMI 1 HDMI 2
21-751-01LF
OPT IONAL
SPACER
PLACE BEHIND
BRACKET
Mounting
Bracket
Spacers
Mounting
Frame
1-gang
Spacer
MLC Plus 84 EU
Flex55 Module
Cut along
dashed line
Euro Channel
Junction Box
