Side 1/1
Product Category
68-3111-01 Rev. A
03 17
Extron Headquarters
+1.800.633.9876 (Inside USA/Canada Only)
Extron USA - West Extron USA - East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX +1.919.850.1001 FAX
Extron Europe
+800.3987.6673
(Inside Europe Only)
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Middle East
+971.4.299.1800
+971.4.299.1880 FAX
Extron Australia
+61.8.8113.6800
+61.8.8351.2511 FAX
Extron India
1800.3070.3777
(Inside India Only)
+91.80.3055.3777
+91.80.3055.3737 FAX
© 2017 Extron Electronics All rights reserved. All trademarks mentioned are the property of their respective owners. www.extron.com
IMPORTANT:
Go to for the
complete user guide and installation
instructions before connecting the
t
ouchpa
nel to the power source.
RM 4 • Installation Guide
Overview
This guide provides instructions for experienced installers to use the RM 4 to mount and install the Extron TLPPro 1022M
touchpanel in a standard 19-inch equipment rack, with 5U of vertical space. For complete instructions about connecting cables
and conguring the touchpanel, see the , at TLPPro 1022 Series User Guide www.extron.com.
Preparing and Installing the RM 4
To mount RM 4 in any standard 19-inch equipment
rack, follow these instructions:
1. Secure the RM 4 to the rack using the provided
#10-32 screws (1). Ensure it is in the correct
orientation (the front of the RM 4 has stamped
into the metal).
2. Insert the four provided #8-32 screws into the
RM 4 (2). Leave enough space for the keyhole
slots of the touchpanel mounting plate to t over
the screws and slide into place.
Mounting the Touchpanel
3. Attach the mounting plate to the RM 4 (3). Ensure
the touchpanel mounting plate is in the correct
orientation with the hooks on the mounting plate at
the top and facing away from the RM 4.
4. Tighten the screws (2) to secure the mounting
plate to the RM 4.
5. If necessary, insert the provided pan head screws
and washers into the mounting screw slot on the
rear of the touchpanel (see the bottom inset of
gure 1, 4).
6. Run cables to the rack and connect them to the
rear panel of the touchpanel.
7. Hold the touchpanel at a slight angle and lower
the notches at the top of the back panel over the
hooks of the mounting plate (5).
8. Swing the bottom of the touchpanel inwards.
9. Fasten the touchpanel to the mounting plate by
tightening the pan head screws (6).
www.extron.com
Fasten the touchpanel
to the mounting plate
w/ pan head sc ws (2) inre
base of touchpanel.
4
6
5
Rear View
3
Insert pan head sc wsre
with washers (2) into the
mounting sc w slot.re
3
RM 4
2
1
TLP PRO 1022M
TLP Pro 1022M
Mounting Plate
#10-32 sc wsre
#8-32 sc wsre
TOP

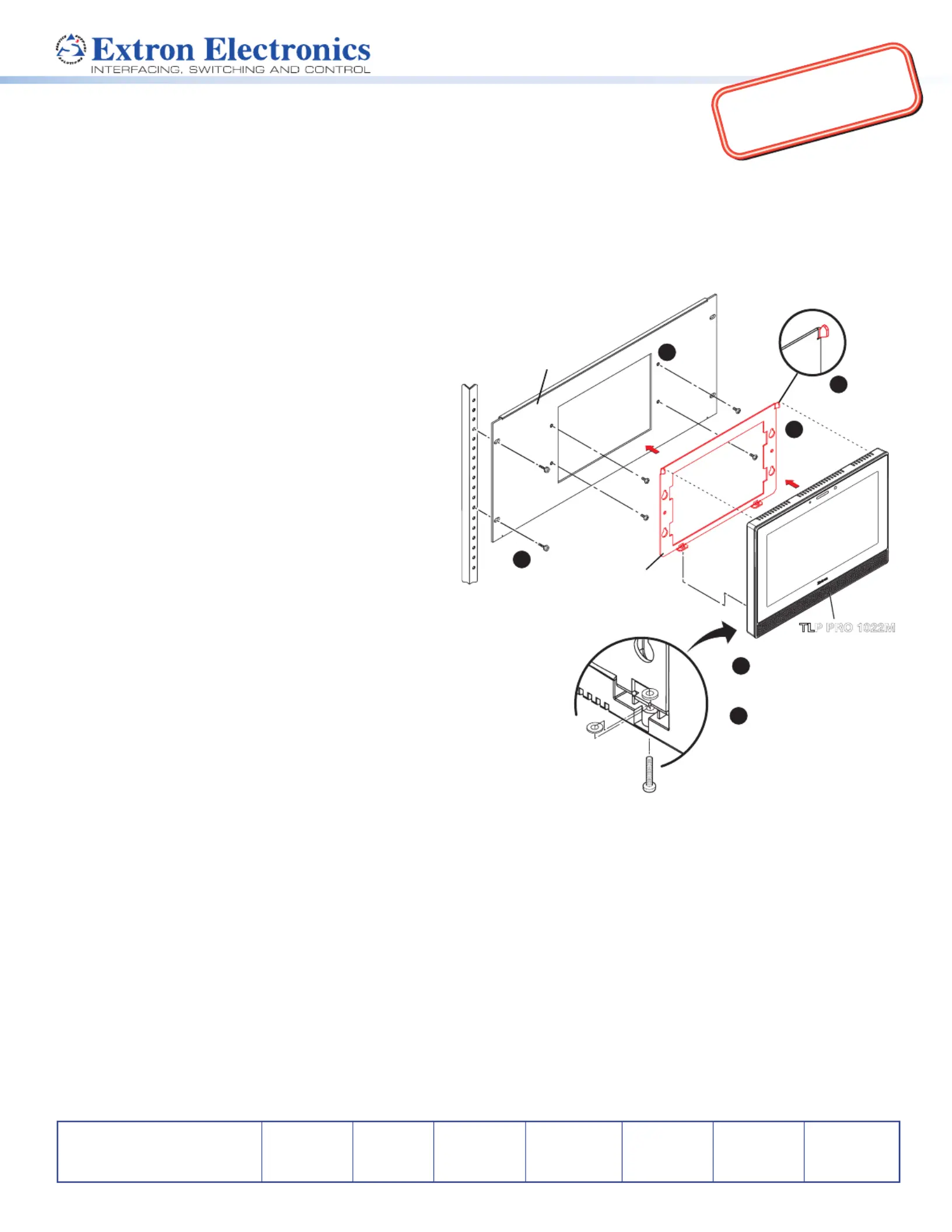

Figure 1. RM 4 Installation
