TMK 110 D Installation Guide
The TMK 110 D table mount kit allows under-table installation for single-gang decorator-style
modules. The kit secures AV and control modules close against a furniture surface. Multiple TMK
kits can be mounted side-by-side for greater capacity.
ATTENTION: Do not drill through the table or furniture. If the table is too thin or made of
a different material for the supplied screws, use an appropriate type and length.
Mount the TMK 110 D as follows:
TMK 110 D Installation Guide, Continued
68-3114-50 Rev. B
Extron USA - West -
Headquarters
+800.633.9876
Inside USA/Canada Only
+1.714.491.1500
+1.714.491.1517 FAX
Extron USA - East
+800.633.9876
Inside USA/Canada Only
+1.919.850.1000
+1.919.850.1001 FAX
Extron Europe
800.3987.6673
Inside Europe Only
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron Middle East
+971.4.2991800
+971.4.2991880 FAX
Extron China
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Australia
+61.8.8113.6800
+61.8.8351.2511 FAX
© 2017 Extron Electronics. All rights reserved. ®www.extron.com
(2)

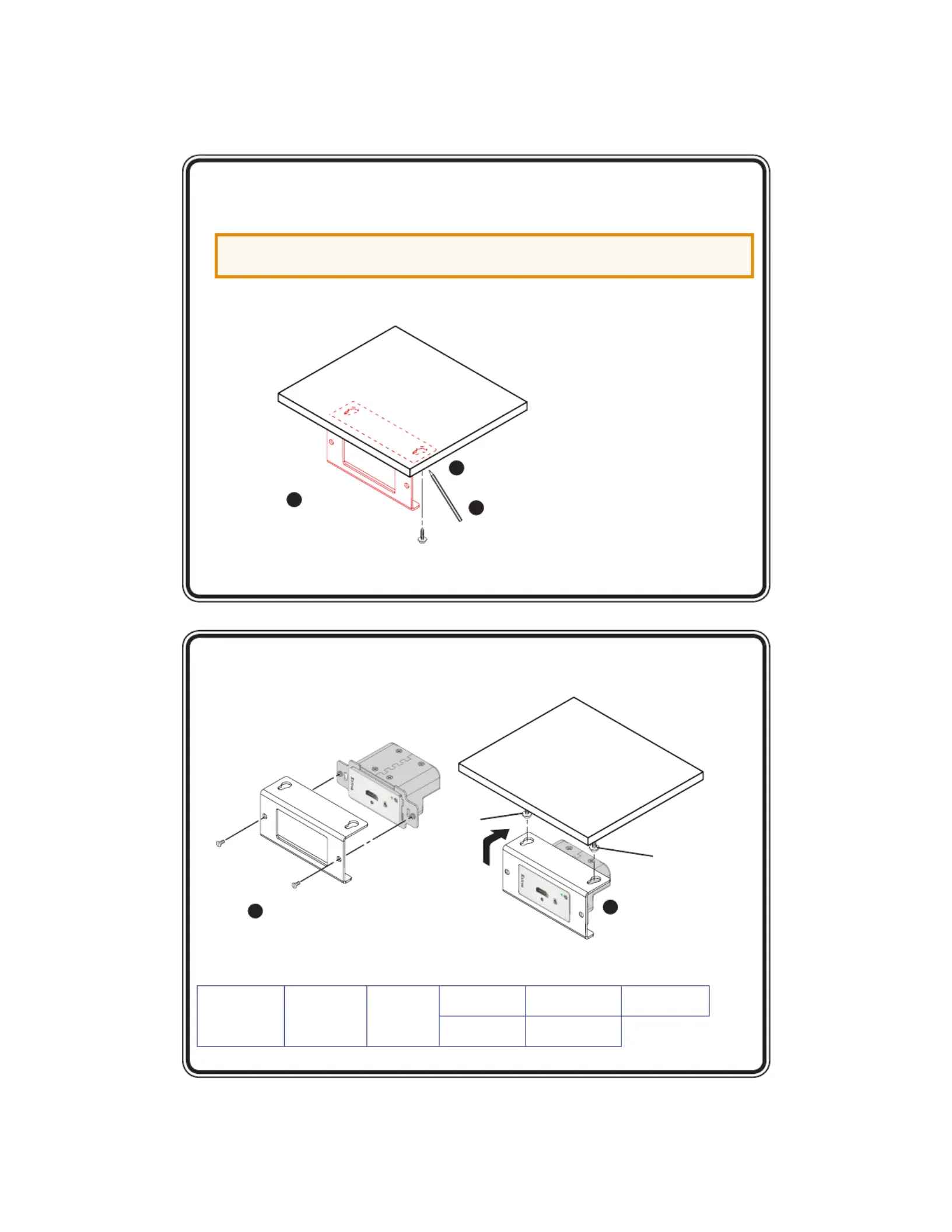

Mark the two keyhole locations at
the desired mounting location.
Drill 3/32-inch (2.4 mm) diameter pilot holes.
Install the two #6 x 1/2-inch wood
screws (provided) into the pilot holes.
Tighten until 1/4 inch protudes.
1
2
3
HDMI IN
AUDIO IN
Install module in the faceplate using the provided hardware.
Slide the faceplate onto the
screws and tighten until secure.
4
HDMI IN
AUDIO IN
Tighten
Tighten
5
