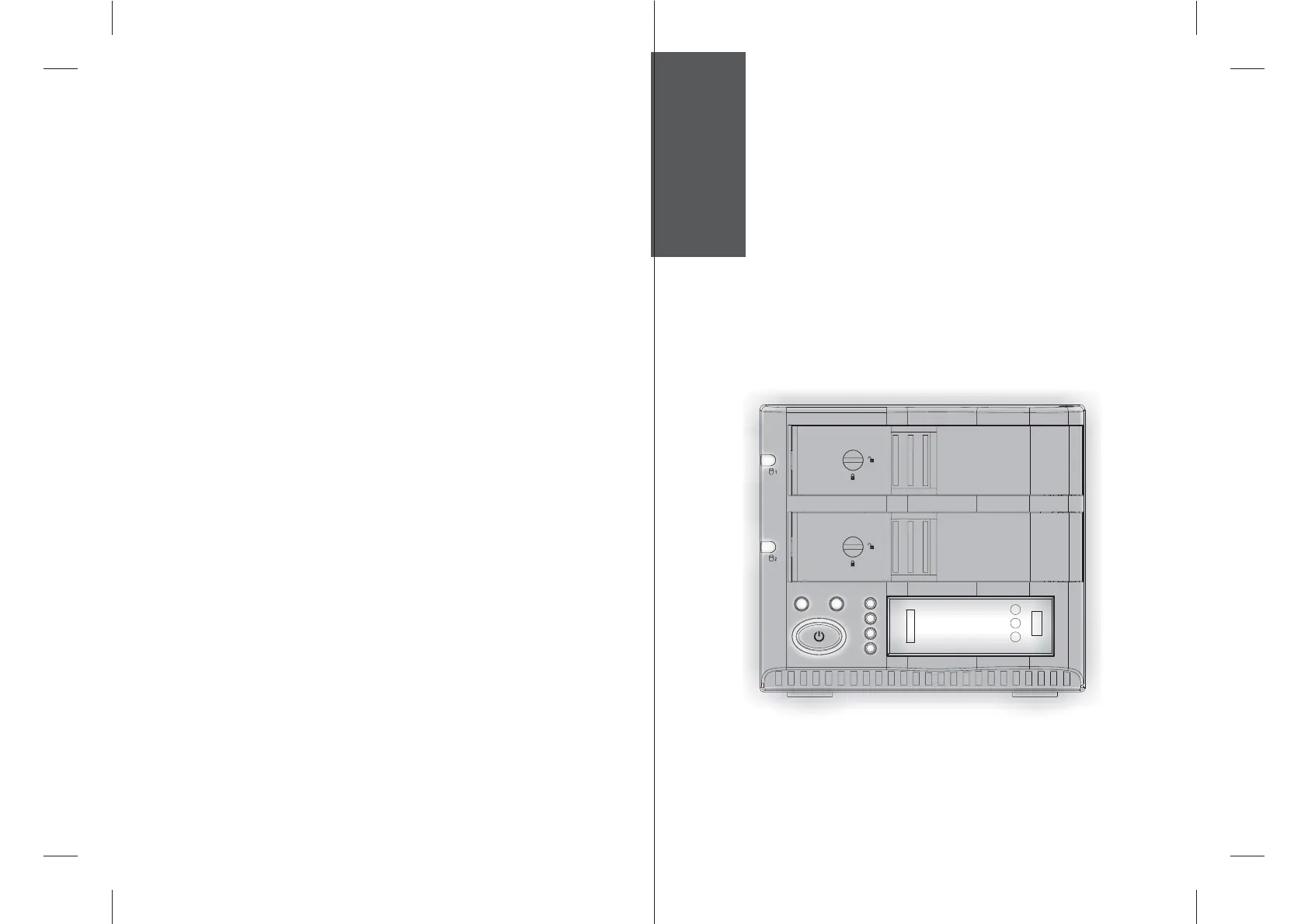

Side 1/12

FANTEC

MR-35HDC

HARD DISK

COPYSTATION

USER MANUAL

Red=RAID

Blue=Dup

POWER

Copy

Compare

Prescan

Erase

RAID0

RAID1

BIG

JBOG

Start

Mute

Reset

RAID

DUP

MENU ............................................................................................................................1

1. Product Introduction .............................................................................................................. 2

2. Operation in RAID function ........................................................................................................ 3

3. NOTE 14

4. Features ............................................................................................................................... 14

9. Package contents ................................................................................................................... 22

2.1.1 JBOD MODE ...................................................................................................................... 6

2.1.2 BIG MODE .......................................................................................................................... 7

2.1.3 RAID0/FAST MODE ........................................................................................................... 8

2.1.4 RAID1/SAFE MODE ........................................................................................................... 9

2.1.5 Partitioning Volumes ......................................................................................................... 10

....................................................................................................................................

4.1 High speed external storage solution, USB2.0 480Mbps.................................................... 14

4.2 Serial ATA HDD .................................................................................................................... 15

4.3 Four Working Mode ......................................................................................................... 15

4.4 Support system Windows 2000/XP/VISTA & Mac os 9.0 or above version .............................. 17

4.5 System Expansion for Windows............................................................................................... 17

. Quick Start Operation in RAID Mode ....................................................................................... 19

. RAID1 Rebuild (data recovery ................................................................................................. 20

. Operation in DUP function ....................................................................................................... 21

. Quick Start Operation in Copy Mode....................................................................................... 22

8. Quick Start Operation in Copy Mode

9. Package contens

FANTEC MR-35HDC

User manual

AC Cable

USB 2.0 Cable

(1) Insert the Source-HDD in slot2 and

arget-HDD into slot1.

The size of the “Target-HDD” be must equal or larger than the “Source-HDD”.

(2) Set the function switch to “DUP” (Duplicate) operation and mode switch to “Copy”.

(3) Connect the power cord.

(4) Push down the Power button.

(5) The front panel will display: Power LED On: Blue

Operation LED On: Blue

(6) The unit will detect HDD automatically and HDD status LED will red twinkle during this time. After the

detection has finished, the HDD status LED will become blue and mode LED will stay in green color.

The modes LED flashes according to your selected DUP mode.

For example, if you select “Copy”, LED next to “100%” will flash.

(7) Press the “Start” button for more than 2 seconds and a buzzer will beep for two times. Now the

system will start to run the selected mode. The progress will be displayed by the percent LEDs from 25%

to 100% and the HDD status LED will twinkle in purple color.

(8) When the work has finished, the percent LED will stay green at 100% and the buzzer will beep 2

times/sec for about 5-6 seconds. The HDD status LED will stay in blue color.

During DUP operation the USB interface of the unit is deactivated. Even if the USB cable is connected to

PCs USB interface, the unit will not be detected by PC.

Note:

Produkt Specifikationer

Mærke:	Fantec
Kategori:	Disk array
Model:	MR-35HDC
Vekselstrømsindgangsspænding:	100-240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	130 mm
Dybde:	210 mm
Højde:	117 mm
Vægt:	2500 g
Produktfarve:	Sort
Antal USB 2.0-porte:	1
Strømforbrug (typisk):	60 W
Dimensioner (BxDxH):	130 x 210 x 117 mm
Certificering:	CE/FCC\nWEEE\nRoHS
LED-indikatorer:	Ja
Effektkrav:	100-240V ~50-60Hz
Kompatible operativsystemer:	Windows 98SE/ME/2000/XP/Vista\nMac OS X\nLinux
Understøttede Windows-operativsystemer:	Ja
Understøttede Mac-operativsystemer:	Ja
Understøttede Linux-operativsystemer:	Ja
Grænseflade til lagerdisk:	SATA
Størrelse på lagerdisk:	3.5 "
Understøttet datalagringsdrev typer:	HDD
Antal understøttede lagerdiske:	2
Kabinettype:	Desktop
Maksimalt understøttet lagerkapacitet:	1 TB
RAID-niveauer:	0, BIG, JBOD, 1
