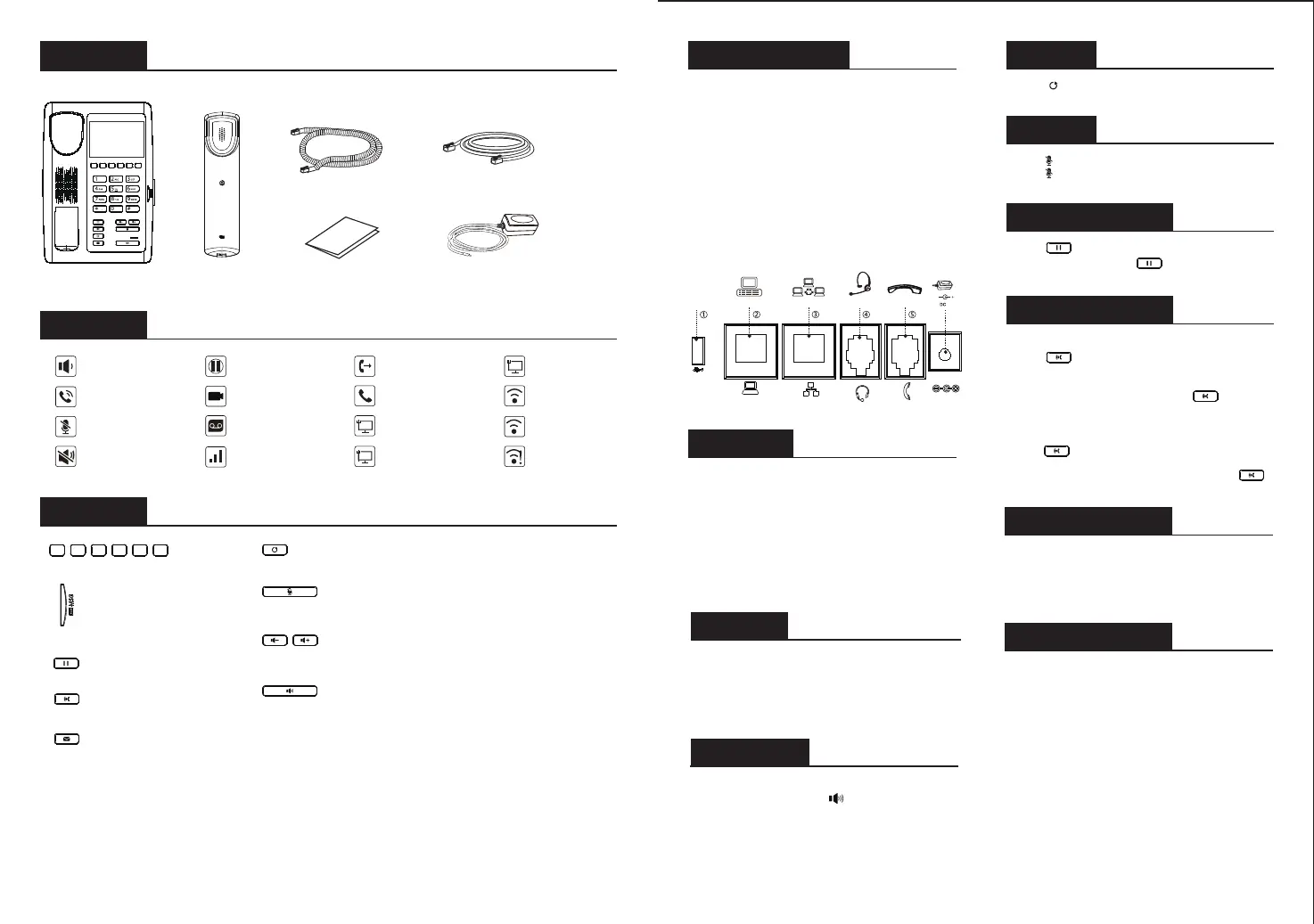

Quick Installation Guide

Fanvil Technology Co., Ltd

www.fanvil.com

H5W

V1.3

- 4 -

Fanvil Technology Co., Ltd

Website: www.fanvil.com

EMail: sales@fanvil.com support@fanvil.com

Tel: +86-755-2640-2199 Fax: +86-755-2640-2618

Add: 10/F Block A, Dualshine Global Science Innovation Center,

Honglang North 2nd Road, Bao'an District, Shenzhen, China

P/N:CJBA100177C0

Do Not Disturb

Conﬁguration via Web

1. Log in web page > Phone settings > Features > DND setting,

and select the "DND option" is Phone or Line.

2. Check “Enable DND Timer” > Apply.

Voice mail

1. To access your voice mail box, press key, number of

messages will be indicated if provided by your server or pbx.

Network connect

Using Ethernet

1．The power on the device and connect the WAN port of the

phone to the RJ45 socket of a hub/switch or a router (LAN

side of the router) using the Ethernet cable.

2．The default is DHCP mode.

Using Wi-Fi

1．Enter "#*107" in standby mode > Basic > WLAN

2．Conﬁguration via Web. Log in web page > Network

> Wi-Fi settings, check “Wi-Fi Enable”and add

Wi-Fi information

Call Mute

1. Press to Mute the microphone during the call.

2. Press again to un-mute the conversation.

Screen icon

In hands-free mode

In handset mode

Mute activated

Silent mode

Packaging list

Soft keys

Message waiting indicator

Hold key, Hold/Resume the call

Call transfer key

Redial key, Access to redial the last record

Keys features

IP Phone Handset

Handset Cord

Power Adapter

(Optional)

Ethernet Cable

Quick Installation Guide

- 2 - - 3 -

Redial

1．Press key, redial a call number.

Voice message key

Making a call

Accepting a call

1. Pre-dialing: enter the phone number and pick up the handset.

2. Direct dialing: lift the handset and enter the phone number.

3. Handsfree: enter phone number and press or vice versa.

4. Memory key: press memory key.

1. Using the handset: pick up the handset.

2. Using the hands-free: press .

Call is on hold

New VM Messages

Voice Quality Level

of call

Forward call(s)

Dail out

Internet connected

Internet is

disconnected

No IP address

Conﬁguration

Conﬁguration via Phone

1. Get the IP address: Press the "#" key for more than 3 seconds

to display the IP address on the screen.

2. Login: Input the IP address in the web browser. The PC and

phone should be in the same IP address segment (The default

username and password are both ‘admin’.)

3. Conﬁgure: Select network/Account, etc. And ﬁll the relevant

content.

4. Save the conﬁguration.

Installation the device

Connecting to the Device

Please connect power adapter, network, PC and handset

to the corresponding ports as described in below picture.

① USB port: connect USB device .(Recharge)

② PC port: connect PC.

③ Network port: connect LAN or Internet.

④ Headset port: connect headset. (Reserved port)

⑤ Handset port: connect IP Phone handset.

⑥ Power port: connect the power adapter.

Video mode

Wireless network

connected

Wireless network

disconnected

Wireless network

failure

In idle mode: Activate/deactivate silent mode

In communication mode: mute/un-mute a call

In idle mode or during ringing: increase or decrease ringer volume

In communication: increase or decrease handset or hands-free volume

Hands-free key, Activate/deactivate hands-free

Please follow the instructions in below picture to

install the device.

Internet

Headset

Reserved port

Handset

USB

⑥

Putting a call on hold

1. Press key during an active call.

2. To resume the call, press key.

Call transfer

Attended transfer:

1. Press key during the active conversation, the call

is put on hold.

2. Dial the second telephone number and press "Dial" or "#" .

3. When the call is answered, then press key to

complete the operation.

Blind transfer:

1. Press key during the active conversation, the call

will be on hold.

2. Then enter the 2nd telephone number and press key.

Call logs

Query via Web

1. Log in web page > call logs, display a list of all calls.

2. User can ﬁlter the call logs by the call log types, in, out,

missed, or all.

Programmable keys

Conﬁguration via Web

1. Log in web page > Function key, Select the function

and ﬁll in the number in the value items.

Produkt Specifikationer

Mærke:	Fanvil
Kategori:	Telefon
Model:	H5W
Produktfarve:	Hvid
Produkttype:	IP telefon
Skærm diagonal:	3.5 "
Skærmopløsning:	480 x 320 pixel
Berøringsskærm:	Ingen
Front kamera:	Ingen
Wi-Fi:	Ingen
Bluetooth:	Ingen
Ethernet LAN-porte (RJ-45):	2
Antal USB 2.0-porte:	1
Ethernet LAN:	Ja
Ethernet LAN-datahastigheder:	10, 100 Mbit/s
Skærm:	LCD
Operativsystem installeret:	VxWorks
Håndsæt, type:	Forbundet håndsæt
Telefonsvarer:	Ja
Kapacitet for telefonbog:	- entries
WAN forbindelsestype:	RJ-45
Ethernet LAN-grænsefladetype:	Hurtigt ethernet
Netværksstandarder:	IEEE 802.1x
DC-in-stik:	Ja
Servicekvalitet support (QoS):	Ja
Genopkald:	Ja
Poster i opkaldslog:	300
Samtaleanlæg:	Ja
Banke på:	Ja
Hurtigopkald:	Ja
Samtaleparkering:	Ja
Støjreduktion:	Ja
Firmware kan opgraderes:	Ja
Dual-Tone Multi-Frequency (DTMF) tilstande:	In-band, Out-of band, SIP info
Antal linjer:	1 Linier
Forstyr-ikke-funktion:	Ja
Viderestilling af opkald:	Ja
Indikator for ventende besked (MWI):	Ja
Voice codecs:	G.711a, G.711u, G.722, G.723.1, G.726, G.729ab
Ekko eliminering:	Ja
Komfort støjgeneration (CNG):	Ja
Antal RJ-9 porte:	1
Antal medfølgende håndtag:	1 stk
Syslog:	Ja
Anonymt opkald:	Ja
Afvisning af anonymt opkald:	Ja
Antal programmerbare taster:	6
Registrering af stemmeaktivitet:	Ja
Pakketab skjul (PLC):	Ja
