EAHF-E24-...-P-S

Profile mounting

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

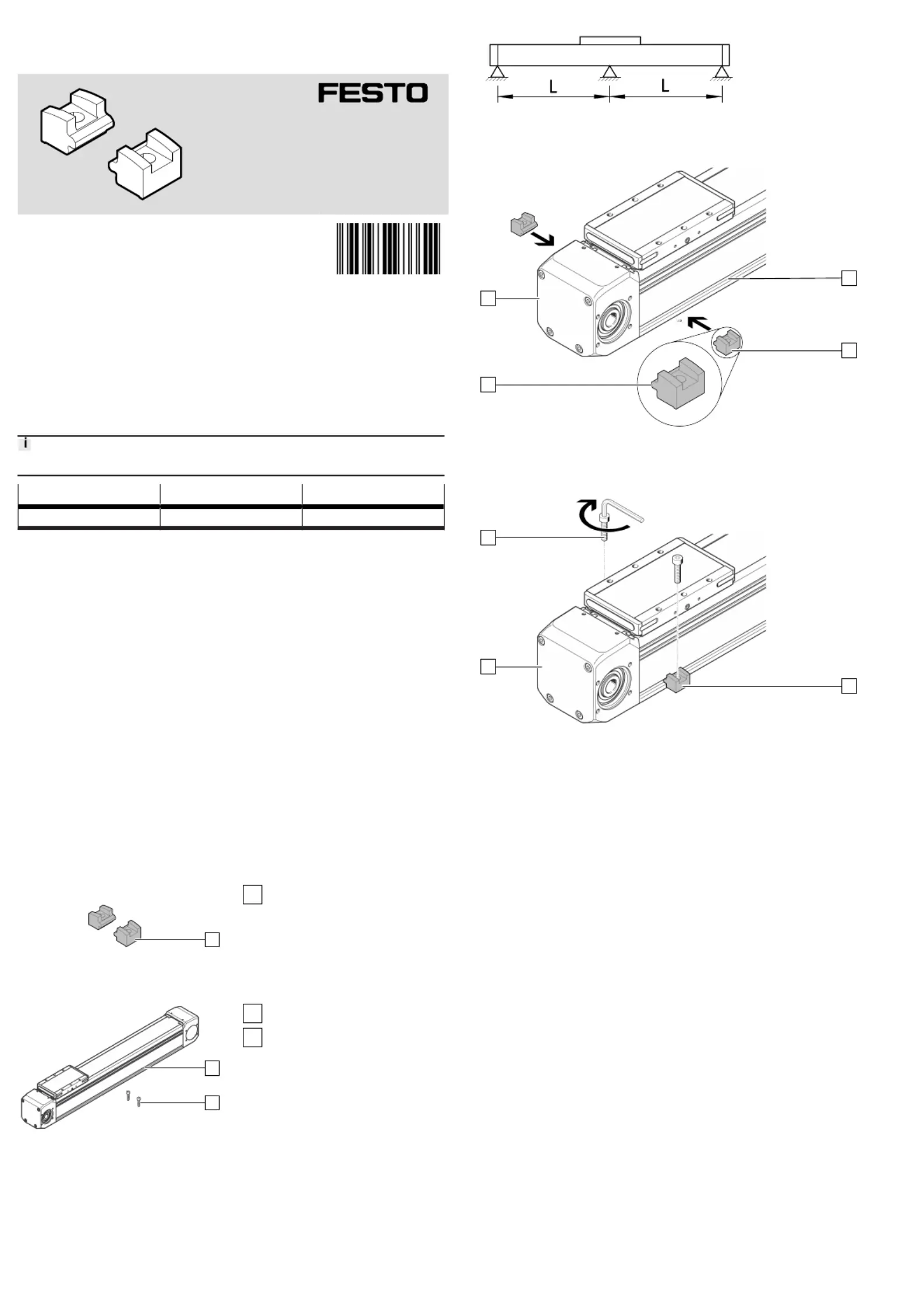

Assembly instructions

8203075

2023-12

[8203077]

8203075

Translation of the original instructions

Applicable documents

All available documents for the product

www.festo.com/sp.

Document Product Content

Operating instruction Axis ELGD –

Tab. 1:

Applicable documents

2 Safety

2.1 Safety instructions

–Only mount the product on components that are in a condition to be safely

operated.

2.2

Intended use

The profile mounting attaches an axis ELGD to a mounting surface by the basic

profile.

2.3 Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can eval-

uate the work and detect dangers. Personnel must have the relevant mechanical

training.

Additional information

–Contact the regional Festo contact if you have technical problems

www.festo.com.

–Accessories

www.festo.com/catalogue.

4 Product Range Overview

4.1 Scope of delivery

Fig. 1:

Scope of delivery

Profile mounting (2x)

4.2

Not in scope of delivery

Fig. 2:

Not included in the scope of

delivery

Axis ELGD (1x)

M6 screw (2x)

Assembly

Fig. 3: Determine support spacings and mounting points

• Determine the required support spacingsL and the mounting points of the

axis Other applicable documents.è

Fig. 4: Positioning profile mountings

•

Position the profile mountings[1] at the mounting points.

The lug[A] lies in the slot[B] of the axis[2].

Fig. 5:

Installing profile mountings

Select the suitable screws[3] for the installation situation.

Press the profile mounting[1] against the axis[2].

The profile mounting[1] is flush with the axis[2].

3. Fasten the profile mountings[1] on the mounting surface with the screws[3].

Maximum tightening torque:7.6Nm

Repeat the mounting steps for all mounting points.
