OVEL

Vacuum generator

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

Operating instruction

8194696

2023-08b

[8194698]

8194696

Translation of the original instructions

IO-Link is a registered trademark of its respective trademark holder in certain

countries.

1 Applicable documents

All available documents for the product

èwww.festo.com/sp.

Documents Product Content

Operating instructions Pressure transmitter SPTE –

Operating instructions Pressure sensor SPAE –

Tab. 1: Applicable documents

2 Safety

2.1 Safety instructions

–Only use the product in its original condition without unauthorised modifica-

tions.

–Before working on the product: switch off the power supply.

–Use the product only inside buildings.

–Take into account the ambient conditions at the location of use.

–The product is intended for use in industrial environments.

The product may generate high frequency interference, which may require

interference suppression measures in residential areas.

–Observe the specifications on the product labelling.

2.2 Intended use

The vacuum generator is used to generate a vacuum.

2.3 Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can

evaluate the work and detect dangers. The qualified personnel have skills and

experience in dealing with electropneumatic (open-loop) control technology.

2.4 UL/CSA certification

In combination with the UL inspection mark on the product, the information in this

section must also be observed in order to comply with the certification conditions

of Underwriters Laboratories Inc. (UL) for USA and Canada.

UL/CSA approval information

Product category code QUYX, QUYX7

File number E322346

Considered standards UL61010-1, CAN/CSA C22.2 No. 61010-1

UL mark

Tab. 2: UL/CSA certification information

WARNING

The unit shall be supplied by a power source which fulfils the requirements on a

limited-energy circuit in accordance to IEC/EN/UL/CSA 61010-1 or on a Limited

Power Source (LPS) in accordance to IEC/EN/UL/CSA 60950-1 or IEC/EN/UL/CSA

62368-1 or a Class 2 circuit in accordance to NEC or CEC.

3 Additional information

–Contact the regional Festo contact if you have technical problems

èwww.festo.com.

–Accessories and spare parts èwww.festo.com/catalogue.

4 Product design

11 10

Fig. 1: Product design OVEL-...-H3

Supply port for ejector pulse,

optional

Supply port

Solenoid valve for vacuum gener-

ation

Electrical connection, H3

Flow control screw to adjust the

intensity of the ejector impulse

Solenoid valve for ejector pulse,

optional

Vacuum sensor, pressure sensor

optional

Exhaust port, optional silencer

Vacuum generator cartridge

Vacuum port

Housing with mounting holes

Fig. 2: Product design OVEL-...-R8

Supply port for ejector pulse,

optional

Supply port

Solenoid valve for vacuum gener-

ation

Electrical connection, M8

Flow control screw to adjust the

intensity of the ejector impulse

Solenoid valve for ejector pulse,

optional

Vacuum sensor, pressure sensor

optional

Exhaust port, optional silencer

Vacuum generator cartridge

Vacuum port

Housing with mounting hole

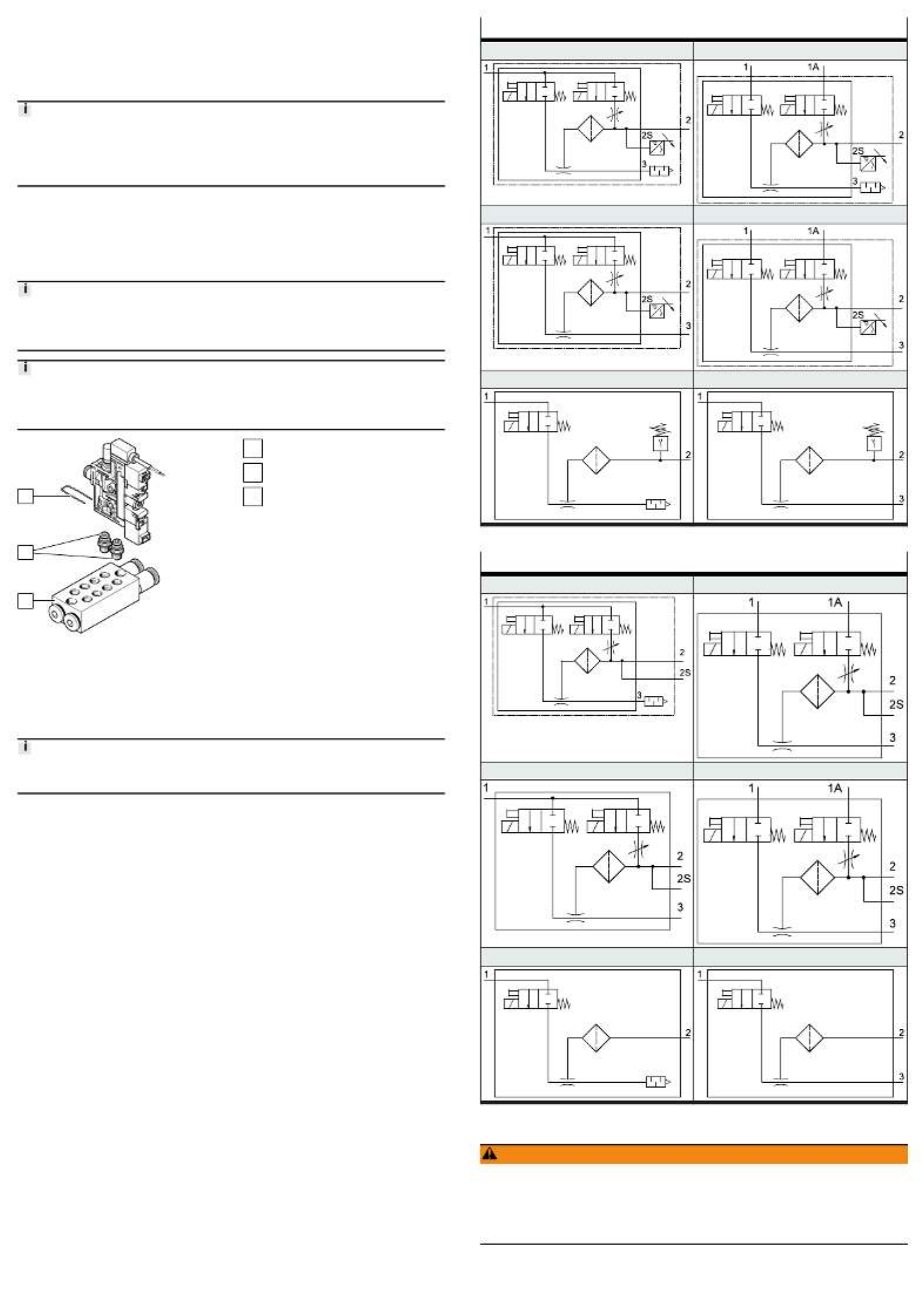

5 Function

–The solenoid valve for vacuum controls the supply of compressed air for gener-

ating vacuum. A vacuum is generated so long as the vacuum solenoid valve is in

the switching position.

–The ejector pulse solenoid valve generates an ejector pulse to release the

workpiece safely from the suction cup with connector and to purge the vacuum

quickly. A separate operating pressure can be created for the ejector pulse

through the optional supply port.

–The vacuum sensor monitors the setpoint value for the generated vacuum.
