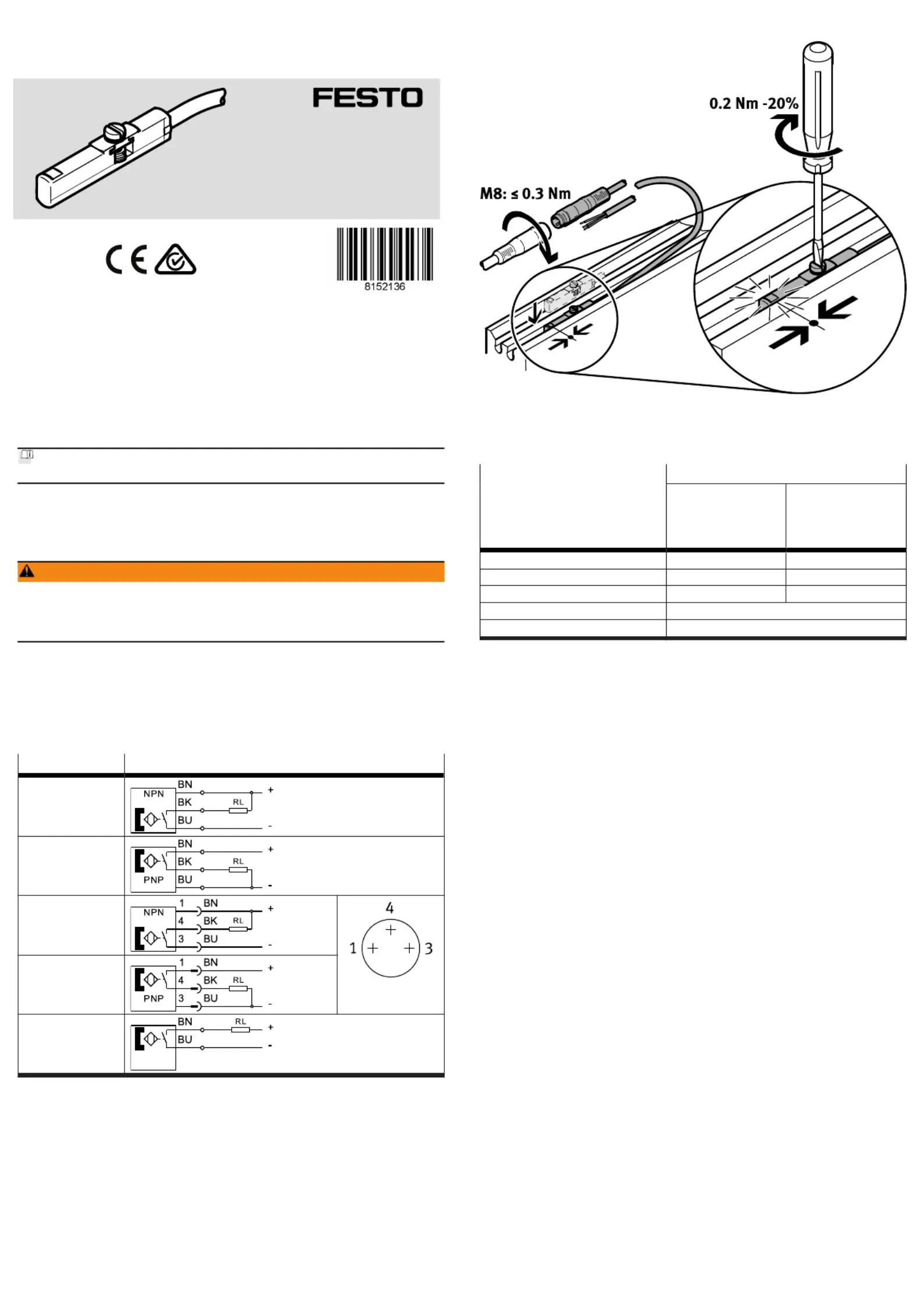

SDBC-MSB
Proximity sensor
Festo SE & Co.KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Operating instructions
8152136
2021-02
[8152138]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1 Applicable Documents
All available documents for the product
è www.festo.com/sp.
2 Safety
2.1 Safety instructions
Before working on the electrical system: switch off the power supply.
WARNING
Risk of injury due to electric shock.
For the electric power supply, use only PELV circuits that ensure a reliable
electric disconnection from the mains network.
Observe IEC 60204-1/EN 60204-1.
2.2 Intended use
The proximity sensor is intended for use in Festo products for sensing the position
of magnets, e.g. the position of the piston.
The product is intended for use in industrial environments.
3 Electrical connection
SDBC-MSB-1L-... Circuit diagram
NU-K-2-LE
PU-K-2-LE
NU-K-0.3-M8
PU-K-0.3-M8
ZU-K-2-LE
Tab. 1
4 Mechanical installation
Fig. 1: Mounting
5 Technical data
Operating conditions SDBC-MSB-1L-...
NU-K-2-LE
PU-K-2-LE
NU-K-0.3-M8
PU-K-0.3-M8
ZU-K-2-LE
Operating voltage range [V DC] 5 … 30 10 … 28
Max. output current [mA] 100 50
Max. switching capacity [W] 3 1.4
Ambient temperature [°C] –10 … +70
Degree of protection IP67
Tab. 2
