SLS
Mini slide
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8166211
2022-11d
[8166213]
8166211
Translation of the original instructions
© 2022 all rights reserved to Festo SE & Co. KG
1
Applicable Documents
All available documents for the product
è
www.festo.com/sp.
2 Safety
2.1
Safety instructions
–Only use the product in its original condition without unauthorised modifica-
tions.
–Take into account the ambient conditions at the location of use.
–Observe the identifications on the product.
–
Store the product in a cool, dry environment protected from UV and corrosion.
Keep storage times short.
–
Before working on the product, switch off the compressed air supply and lock it
to prevent it from being switched on again.
2.2
Intended use
The mini slide moves workpieces with a high level of positioning accuracy in the
tightest of spaces.
Fig.1
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have skills and
experience in dealing with pneumatic (open-loop) control technology.
3
Additional information
–Contact the regional Festo contact if you have technical problems
è
www.festo.com.
–Accessories and spare parts
è
www.festo.com/catalogue.

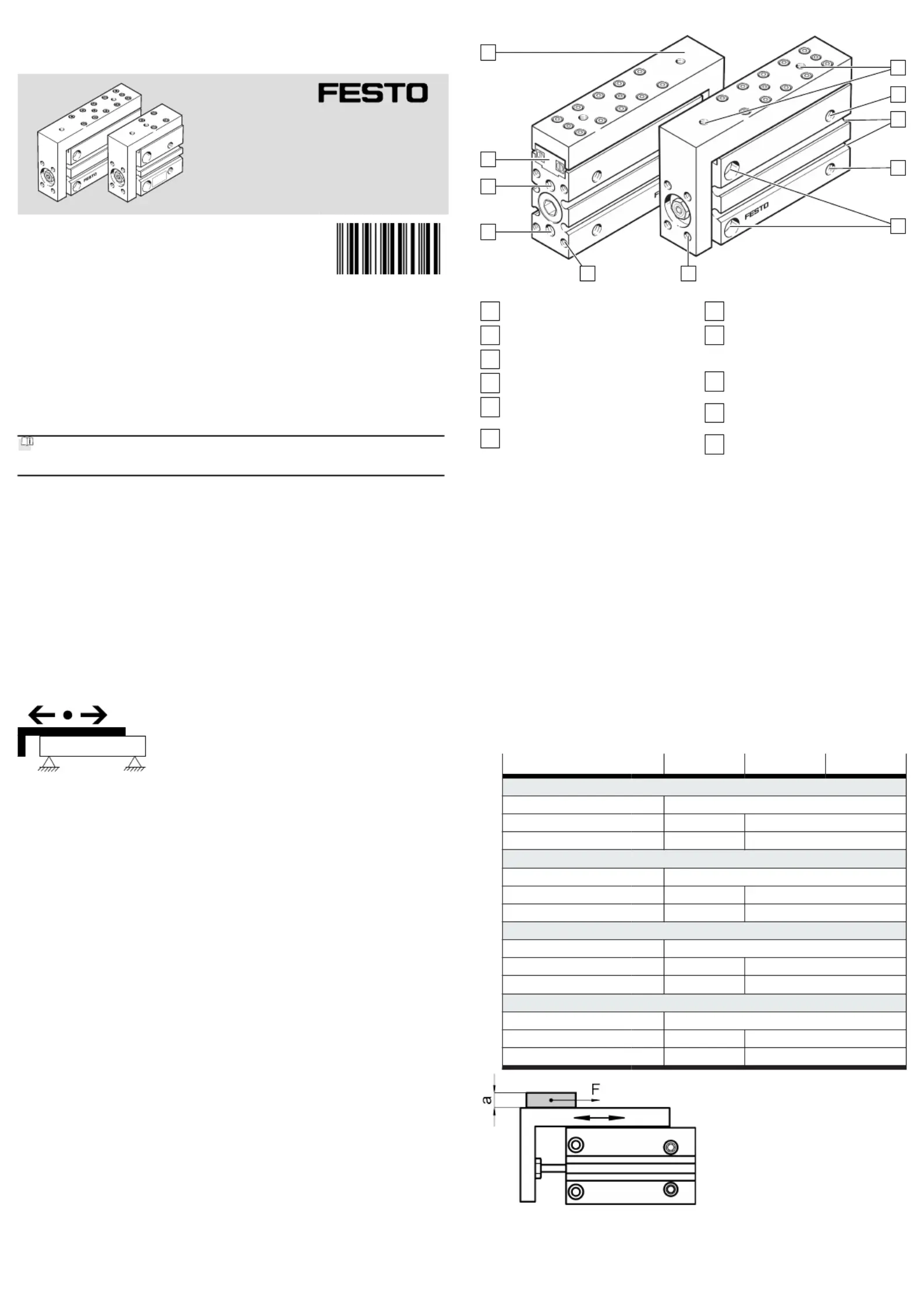

4 Product design
2
3
4
5
7
9
1011
1
6
8
Fig. 2: Product design
1
Supply port, extending
2
Supply port, retracting
3
Rail of the roller bearing guide
4
Slide
5
Thread for mounting the payload,
above (2x)
6
Option for side connection:
supply port, retracting, remove
plug screw
7
Slot for proximity switch (4x)
8
Option for side connection:
supply port, extending, remove
plug screw
9
Holes for mounting the slide unit,
on the side (2x)
10
Thread for mounting the payload,
front (4x)
11
Thread for mounting the slide
unit, rear (4x)
5
Function
The product is a non-rotating, double-acting cylinder with roller bearing guide.
The slide is moved back and forth by alternate pressurisation of the supply ports.
The slide is braked at the end position by internal, elastic cushioning without
end-position adjustment.
6
Assembly
1.
Mount the product without torsional stresses.
2.
Mount the product on a mounting surface with a flatness of0.05% of the
stroke length, but max. 0.1mm.
3.
If necessary: select the mounting components or the accessories.
To prevent collisions: mount the mounting components outside the posi-
tioning range.
6.2 Mounting the mini slide
•
Tighten the screws evenly.
SLT -6 -10 -16
Thread for mounting the payload, above[5]
Screws 2x
Thread M3 M4
Max. tightening torque [Nm] 2 5
Holes for mounting the slide unit, on the side[9]
Screws 2x
Thread M3 M4
Max. tightening torque [Nm] 2 5
Thread for mounting the payload, front[10]
Screws 4x
Thread M3 M4
Max. tightening torque [Nm] 2 5
Thread for mounting the slide unit, rear[11]
Screws 4x
Thread M3 M4
Max. tightening torque [Nm] 2 5

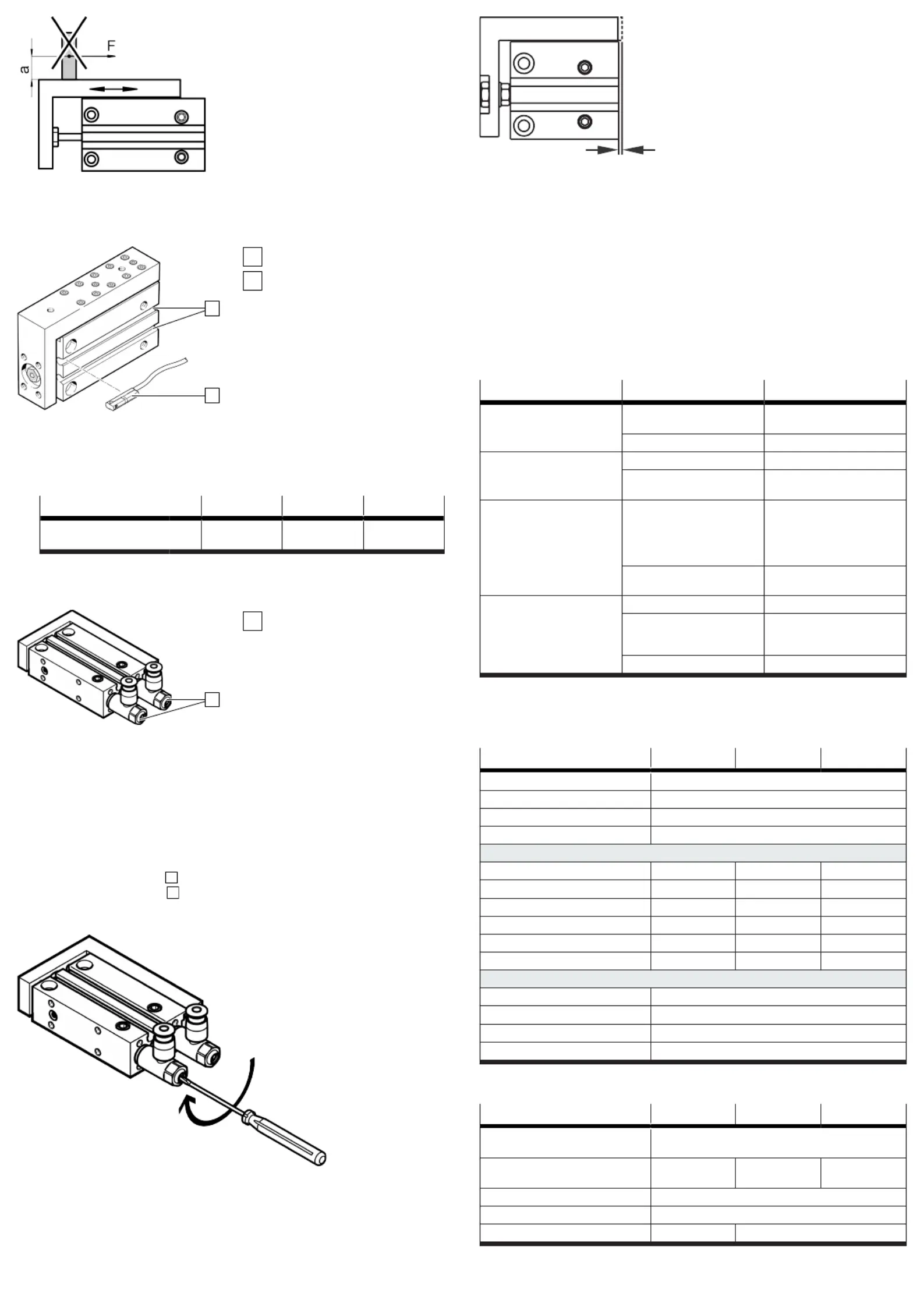

Fig. 3:
Positioning the payload
Fig. 4: Positioning the payload
• Position the payload on the slide in such a way that the break-down torque
from the lever arm a and the static force F remains low.
6.3
Mounting the proximity switches
12
7
Fig. 5: Mounting proximity switches
7
Slot for proximity switch (4x)
12
Proximity switch
1.
Slide the proximity switches [12] into the slots [7].
2.
Avoid external influence caused by magnetic or ferritic parts in the vicinity
of the proximity switches. Check the required distance for the specific applica-
tion.
SLS -6 -10 -16
Distance to other magnetic or
ferritic parts
[mm] 10 15 20
3.
To prevent contamination: use slot covers on all unused slots
è
www.festo.com/catalogue.
6.4 Mounting one-way flow control valves
13
Fig. 6:
Mounting one-way flow control
valves
13
One-way flow control valves
•
Use one-way flow control valves [13] in the supply ports. They are screwed
directly into the supply ports.
To secure the payload from dropping if the pressure fails:
•
Use check valves.
7 Installation
•
Connect tubing to supply ports:
–Extending movement
1
.
–
Retracting movement
2
.
8 Commissioning
Fig. 7:
Setting one-way flow control valves
1.
First of all, fully close the one-way flow control valves on both sides, then
open them one complete revolution.
2.
Pressurise the drive on both sides simultaneously.
Ä
The slide moves slightly to a point of balance.
3.
Then exhaust the drive on one side.
Ä
The slide moves to an end position.
Fig. 8:
Slide, retracted condition
1. When retracted, the slide can protrude by a maximum of0.75 mm.
2. Start the test run.
3.
If needed: correct speed at the one-way flow control valves. The slide should
reach the end positions without striking them harshly or recoiling.
9
Cleaning
Clean the product with a clean, soft cloth and non-abrasive cleaning agents.
For use with reduced particle emission:
–Remove abraded particles and soil from the product:
–
Prior to initial commissioning
–Regularly during operation
10
Fault clearance
Malfunction Cause Remedy
The slide moves unevenly. The one-way flow control valves
are incorrectly installed.
–
Control the exhaust air flow.
The bearing surfaces are dirty.
–
Clean the bearing surfaces.
The slide is in initial position
despite pressurisation.
The payload is too high.
–
Reduce the payload.
The tubing is faulty.
–
Check the tubing.
–Check the blanking plugs.
The slide speed is too low. The air volume is insufficient.
–
Increase the connection cross-
sections.
–Check the flow control valve
setting.
–Connect a volume upstream.
Reduced flow rate through angle
fitting.
–
Avoid angle fittings.
The slide strikes the end posi-
tion harshly.
The speed is too high.
–
Reduce the speed.
The air cushion is not present.
–
Pressurise both supply ports
simultaneously, then exhaust
one side.
The payload is too high.
–
Reduce the payload.
Tab. 1: Fault clearance
11
Technical data
11.1 Technical data, general
SLS -6 -10 -16
Mode of operation Double-acting
Pneumatic connection M5
Mounting position Any
Ambient temperature [°C] –20…+60
Product weight
SLS-...-5 [g] 97 130 225
SLS-...-10 [g] 104 139 226
SLS-...-15 [g] 113 149 256
SLS-...-20 [g] 120 164 257
SLS-...-25 [g] 131 182 291
SLS-...-30 [g] 141 191 301
Material
Slide, housing Anodised wrought aluminium alloy
Piston rod High-alloy stainless steel
Guides High-alloy steel, hardened and ground
Seals HNBR/PU
Tab. 2:
Technical data, general
11.2
Technical data, mechanical
SLS -6 -10 -16
Cushioning Internal elastic cushioning, without end-position adjust-
ment
Impact energy in the end posi-
tions
[Nm] 0.008 0.05 0.15
Max. stroke frequency [Hz] 2
Min. velocity [m/s] 0.05
Max. velocity [m/s] 0.5 0.8
