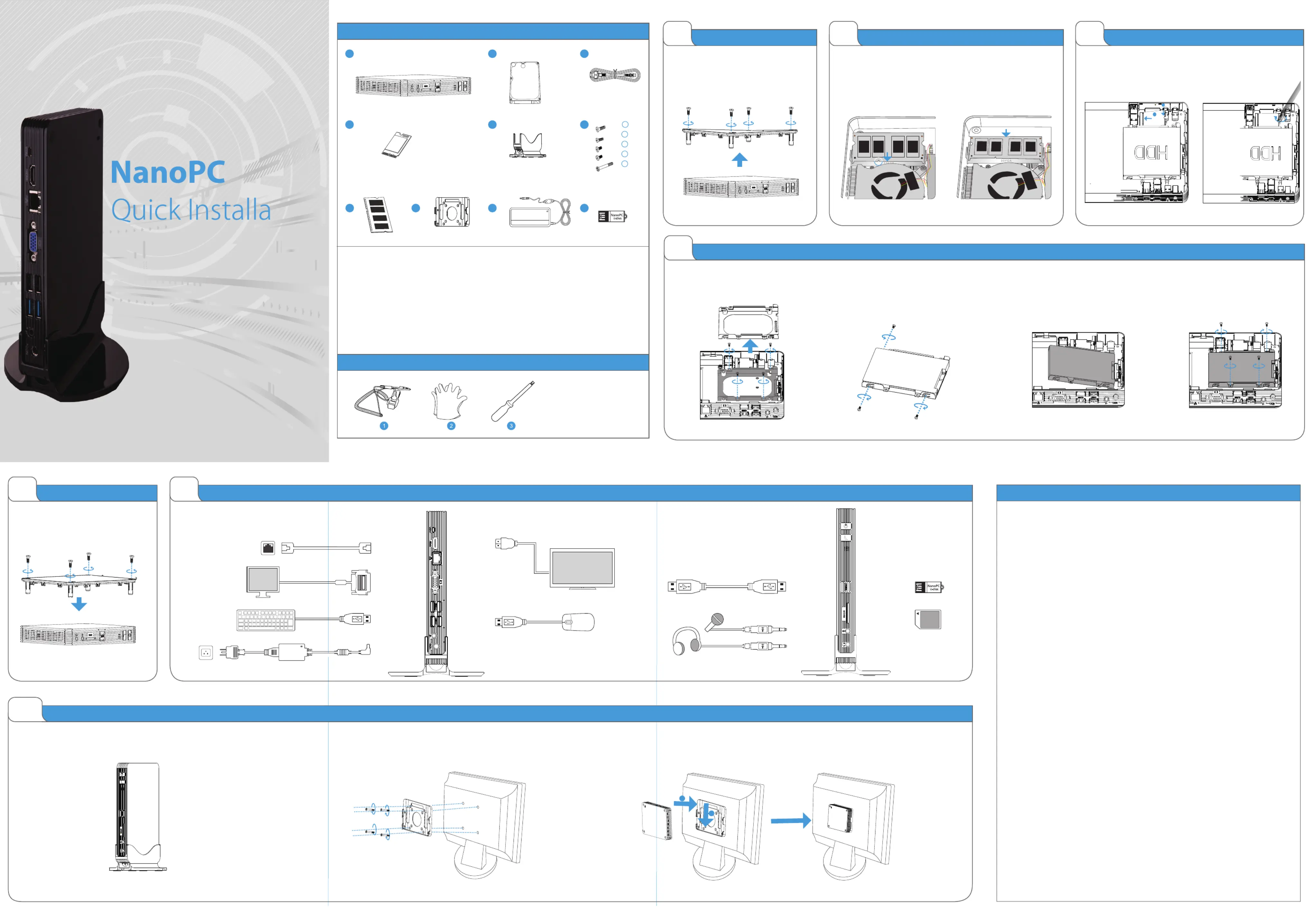

Side 1/1
简体中文
1. Braswell Nano
2. M.2 Card
3. Memory
4. VESA Mount
5. HDD
6. Seat Base
7. Power Adapter
8. Power Cord
A. M2.5X6 mm (4x): To fasten Case
B. M2.43X4.85 mm (4x): To fasten HDD Bracket
C. M2.92X2.85 mm (3x): To fasten HDD to HDD Bracket
D. M2.5X3 mm (1x): To fasten M.2 Card to motherboard
E. M3.90X9.70 mm (4x): To fasten VESA Mount to display
10. USB Flash Disk(With Driver, Utility and Easy Guide in it)
3
2
1
Components
6
5
4
10
7
9
1. ESD Wrist Strap
2. ESD Gloves
3. Screwdriver
Tools Needed
1. Unscrew four screws (A) on the bottom cover.
2. Take down the top cover.
1
Open the case
4
2. Install the HDD into the HDD bracket, and
fasten them with three screws (C).
3. Install HDD module into the socket on
the motherboard gently.
4. Fasten the HDD module by screwing
the bracket . (B)
Install Hard Disk Drive (HDD)
1. Release the screws (B) and take down the
HDD bracket.
1>
打开机壳
1.
将上盖的四颗螺丝 ( ) 拧开。A
2. 取下上盖。
2> 安装内存
1.
将内存条倾斜地插入内存插槽内。
2.
向下按压内存条，使其固定。
3>
安装附加卡
1.
将
M.2
附加卡倾斜地插入插槽内，然后向下轻轻按压，使其固定。
2.
将
M.2
附加卡用螺丝
(D)
固定在主板上。
4>
安装硬盘(HDD)
1. 拧开螺丝 (B) 并取下硬盘支架。
2. 将硬盘装入硬盘支架并用三颗螺丝 (C) 将其固定。
3.
将硬盘模组轻轻装入主板上的硬盘插槽内。
4. 将硬盘模组用螺丝 (B) 固定。
5>
安装机壳
1.
安装上盖。
2.
将其用四颗螺丝 ( ) 锁定。A
6>
NanoPC 的连接
7
>
NanoPC的放置方式
1.安装于底座上
2.安装于显示器背面
2.1将挂架用四颗螺丝 (E) 固定在显示器背面。
2.2 将 NanoPC 按照正确的方向装入挂架中。
8
A
B
C
D
E
P/N: 3A251P100-000-G All images are for reference only, please refer to the physical NanoPC for detail.
1. Plug the pin side of the memory
module into the socket slantwise.
2. Press it down firmly.
2
Install memory
3
Install Add-on Card
1. Plug the pin side of the M.2 add-on
Card into the socket slantwise, then
pressit down gently.
a
b
2. Fasten M.2 Card with onethe
screw (D).
5
1. Install the top cover.
2. Fasten it with four screws (A).
Install the case
6
Connection of NanoPC
Please refer to the diagram to connect devices to NanoPC.
7
Placement of NanoPC
2.1 Fasten it onto the display with four screws (E). 2.2 Fit the NanoPC into the VESA mount in the correct alignment.
2. On display back
1. In Seat Base
.
SIM
HD TV
USB Mouse
USB Flash Disk
SIM card
U-Disk
U-Disk
tion
USB devices
Microphone
Headphone
LAN
Display
USB Keyboard
Power adapter
1
2
