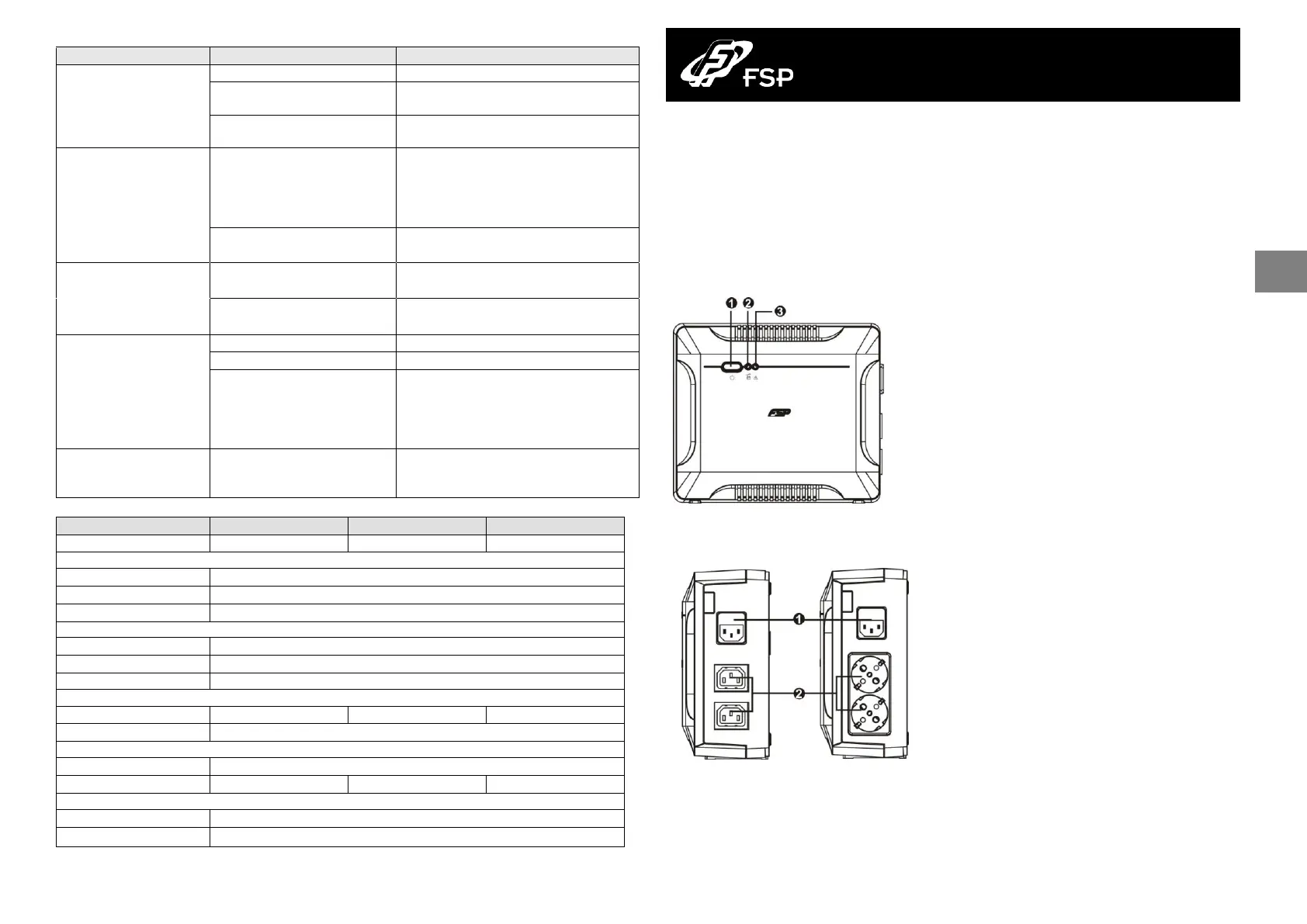

Side 1/41

5. Oplossing van problemen

Probleem

Mogelijke oorzaak

Oplossing

Het waarschuwingslampje

op de voorzijde van de UPS

brandt niet

Lege accu.

Laat de UPS ten minste 6 uur opladen.

Defecte accu.

Vervang de accu door een nieuwe van

hetzelfde type.

De UPS is niet ingeschakeld.

Druk kort op de schakelaar van de UPS,

zodat de in gebruik genomen wordt.

Het alarm klinkt

voortdurend, ook al werkt

het elektriciteitsnet

normaal.

De UPS is overbelast.

Ontkoppel een gedeelte van de belasting.

Controleer vóórdat u de apparaten opnieuw

aansluit, of de belasting beantwoordt aan de

capaciteit van de UPS die in de specificaties

is vermeld.

UPS fout

Het toestel terug naar het service

center.

Het alarm klinkt

voortdurend, ook al

werkt het

elektriciteitsnet normaal.

Defecte accu.

Vervang de batterij met de batterijen

van hetzelfde type.

opladen aan boord is

beschadigd

Het toestel terug naar het service

center.

Bij een stroomuitval werkt

de UPS slechts korte tijd.

De UPS is overbelast.

Ontkoppel een gedeelte van de belasting.

De accuspanning is te laag.

Laat de UPS ten minste 6 uur opladen.

Defecte accu. Het kan om een

gebrek gaan dat veroorzaakt

wordt door een te hoge

omgevingstemperatuur of door

slijtage van de accu.

Vervang de accu door een nieuwe van

hetzelfde type.

Het elektriciteitsnet werkt

normaal, maar de

controle-LED knippert.

De voedingskabel zit los.

Controleer zorgvuldig de aansluiting van de

voedingskabel.

6. Specificaties

Model

Nano 400

Nano 600

Nano 800

CAPACITEIT

400 VA / 240 W

600 VA / 360 W

800 VA / 480 W

INGANG

Spanning

110/120 VAC of 220/230/240 VAC

Tolerantie

90~145 VAC of 180~270 VAC

frequentie

50 Hz of 60 Hz

UITGANG

Spanningsregeling

+/-10%

Schakeltijd:

Gewoonlijk 2-6 ms

Golfvorm

Gesimuleerde sinusgolf

ACCU

Type en aantal

12 V / 4.5 AH x 1

12 V / 7 AH x 1

12 V / 9 AH x 1

Oplaadtijd

8 uur voor opladen tot 90% van de capaciteit

AFMETINGEN EN GEWICHT

Afmetingen (l x b x h)

228 x 82.5 x 207 mm (@ vertically stand)

Gewicht (kg)

2.2

2.7

3.1

OMGEVING

Vochtigheid

0-90 %

Temperatuur

0-40° C (niet-condenserend)

1. Package Contents

You should have received the following items inside of package:

- UPS Unit

- Quick Guide

- Power cable (only for the IEC-type model)

2. Product Overview

Front View:

Back View:

Standby UPS Quick Guide V. 1.1



Power Switch



UPS status indicator

 Fault/Battery status indicator



AC input

Output receptacles

CAUTION: NEVER connect a laser printer or scanner to the

UPS unit. This may cause the damage of the unit.

8 hours

3. Installation and Initial Startup

NOTE: Before installation, please inspect the unit. Be sure that nothing

inside the package is damaged.

Placement & Storage Conditions

Install the UPS in a protected area that is free of excessive dust and has adequate air flow.

Please place the UPS away from other units at least 20 cm to avoid interference. Do NOT

operate the UPS where the temperature and humidity is outside the specific limits. (Please

check the specs for the limitations.)

Connect to Utility and Charging

Plug in the AC input cord to the wall outlet. For the best

results, suggest to charge the battery at least 8 hours (8

Stunden) before initial use. The unit charges its battery

while connecting to the utility.

Connect the Loads

Plug in the loads to output receptacles on the rear panel of the UPS. Simply turn on the

power switch of UPS unit, then devices connected to the UPS will be protected by UPS unit.

Turn On/Off the Unit

Turn on the UPS unit by pressing the power switch. Turn off the UPS unit by pressing again

the power switch.

4. Important Safety Warning (SAVE THESE INSTRUCTIONS)

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity

controlled indoor area free of conductive contaminants. (See the specifications for the

acceptable temperature and humidity range.)

CAUTION! To reduce the risk of overheating the UPS, do not cover the UPS' cooling vents and

avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances

such as space heaters or furnaces.

CAUTION! Do not attach non-computer-related items, such as medical equipment,

life-support equipment, microwave ovens, or vacuum cleaners to UPS.

CAUTION! Do not plug the UPS input into its own output.

CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages

or any other liquid-containing vessels on or near the unit.

CAUTION! In the event of an emergency, press the OFF button and disconnect the power

cord from the AC power supply to properly disable the UPS.

CAUTION! Do not attach a power strip or surge suppressor to the UPS.

CAUTION! If the UPS is with metal chassis, for safety purpose, grounding is a must during

UPS installation in order to reduce leakage current below 3.5mA.

Attention hazardous through electric shock. Also with disconnection of this unit from the

mains, hazardous voltage still may be accessible through supply from battery. The battery

supply should be therefore disconnected in the plus and minus pole at the quick connectors of

the battery when maintenance or service work inside the UPS is necessary.

CAUTION! Servicing of batteries should be performed or supervised by personnel

knowledgeable of batteries and the required precautions. Keep unauthorized personnel away

from batteries.

CAUTION! When replacing the batteries, use the same number and type of batteries.

CAUTION! Internal battery voltage is 12VDC. Sealed, lead-acid, 6-cell battery.

CAUTION! Do not dispose of batteries in a fire. The battery may explode. Do not open or

mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes.

CAUTION! Unplug the UPS prior to cleaning and do not use liquid or spray detergent.

CAUTION! A battery can present a risk of electric shock and high short circuit current. The

following precaution should be observed before replacing batteries:

1) Remove watches, rings, or other metal objects.

2) Use tools with insulated handles.

3) Wear rubber gloves and boots.

4) Do not lay tools or metal parts on top of batteries.

5) Disconnect charging source prior to connecting or disconnecting batteries terminal.

Produkt Specifikationer

Mærke:	FSP/Fortron
Kategori:	Ikke kategoriseret
Model:	Nano 600
Bredde:	82.5 mm
Dybde:	228 mm
Højde:	207 mm
Vægt:	2700 g
Produktfarve:	Sort
Batterispænding:	12 V
Batterikapacitet:	7 At
Pakkedybde:	120 mm
Pakkebredde:	288 mm
Pakkehøjde:	280 mm
Formfaktor:	Kompakt
Responstid:	6 ms
Relativ luftfugtighed ved drift (H-H):	0 - 90 %
Udgangseffekt:	360 W
LED-indikatorer:	Ja
Antal understøttede batterier:	1
Opladningstid for batteri:	8 t
Indgangsfrekvens:	50/60 Hz
Lydalarmer:	Ja
Strømbeskyttelsesfunktioner:	Overcharge, Overdischarge, Overheating, Short circuit
AC udgange, antal:	2 AC stikkontakt(er)
AC stikkontakt typer:	Type F
Indgående driftsspænding (maks.):	270 V
Output strømkapacitet (VA):	0.6 kVA
Indgående driftsspænding (min.):	180 V
Udgangs driftsspænding (min.):	220 V
Udgangs driftsspænding (maks.):	220 V
UPS topologi:	Standby (offline)
Bølgeform:	Sine
Typisk backup tid ved fuld styrke:	10 min.
Automatisk genstart:	Ja
Uddgående frekvens:	50/60 Hz
