Side 1/22

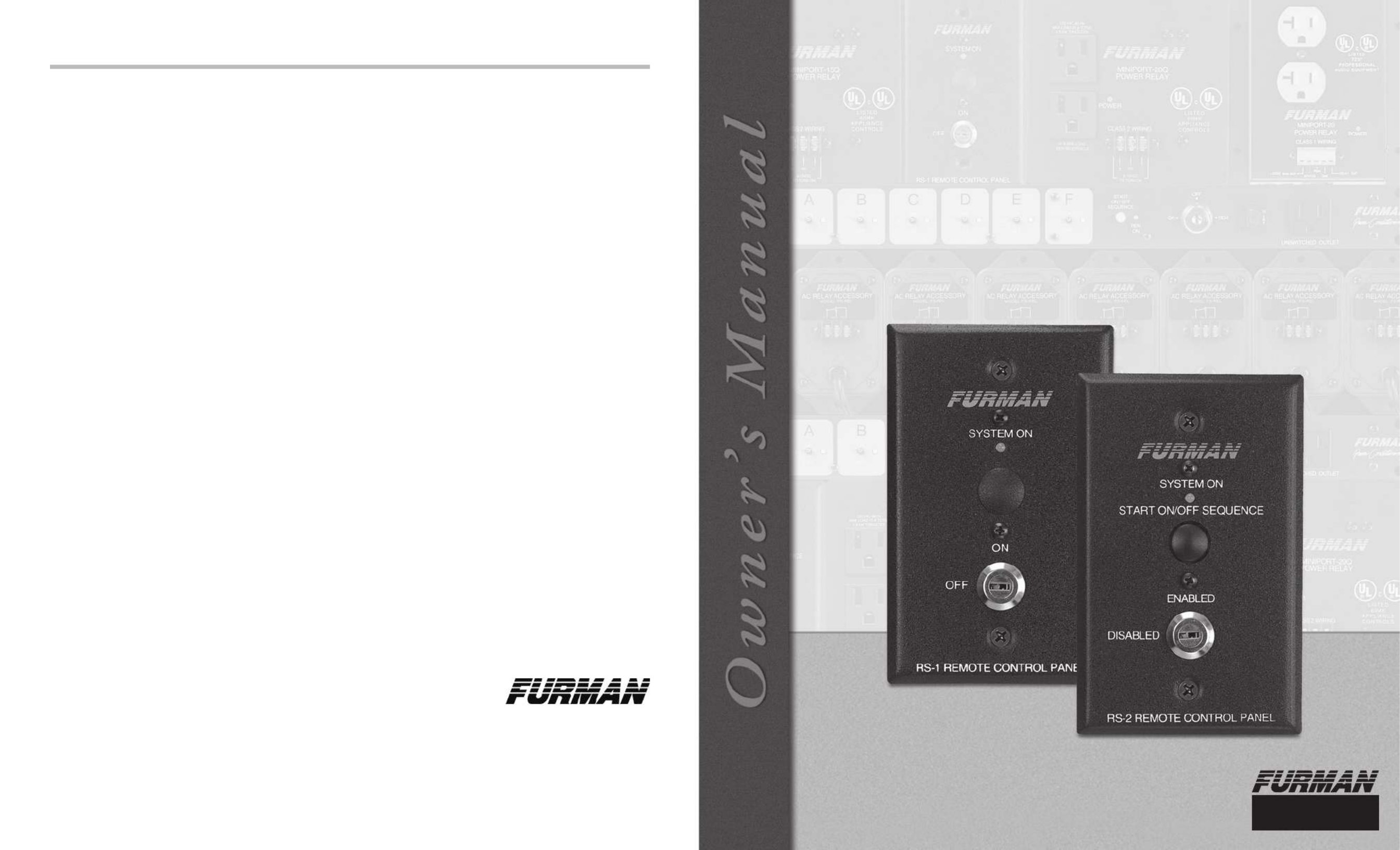

RS-1 AND RS-2 REMOTE SYSTEM CONTROL PANELS RS-1 AND RS-2 REMOTE SYSTEM CONTROL PANELS

REMOTE SYSTEM CONTROL PANELS

Owner’s Manual

Furman Sound, Inc.

1997 South McDowell Blvd.

Petaluma, CA 94954-6919 USA

Phone: 707-763-1010

Fax: 707-763-1310

Web: www.furmansound.com

E-mail: info@furmansound.com

customer. Otherwise, a one year warranty ap-

plies. Products must have a proof of purchase

from a Furman authorized dealer. During

this period, Furman will make any necessary

repairs without charge for parts or labor. Ship-

ping charges to the factory or repair station

must be prepaid by the owner; return-shipping

charges (via UPS Ground) will be paid by Fur-

man.

This warranty applies only to the original

owner and is not transferable. Also, it does not

apply to repairs done other than by the Fur-

man factory or Authorized Repair Stations.

This warranty may be cancelled by Furman at

its sole discretion if the RS-1 or RS-2 unit has

been subjected to physical abuse or has been

modiﬁed in any way without written authoriza-

tion from Furman. Furman’s liability under the

warranty is limited to repair or replacement of

the defective unit.

Furman will not be responsible for incidental or

consequential damages resulting from the use

or misuse of its products. Some states do not

allow the exclusion of incidental or consequen-

tial damages, so the above limitations may not

apply to you. This warranty gives you speciﬁc

legal rights, and you may also have other

rights which vary from state to state.

Warranty claims should be accompanied by a

copy of the original purchase invoice showing

the purchase date (if a Warranty Registration

Card was mailed in at the time of purchase,

this is not necessary). Before returning any

equipment for repair, please read the impor-

tant information on service, which follows.

NOTE: In the interest of continuous product

improvement, product speciﬁcations and in-

stallation requirements are subject to change

without notice.

SERVICE

Before returning any equipment for repair,

please be sure that it is adequately packed

and cushioned against damage in shipment,

and that it is insured. We suggest that you

save the original packaging and use it to ship

the product for servicing. Also, please enclose

a note giving your name, address, phone num-

ber and a description of the problem.

NOTE: All equipment being returned for re-

pair must have a Return Authorization

(R/A) Number. To get an R/A Number, please

call the Furman Service Department, (707)

763-1010 ext. 120 or 121, between 8 a.m. and

5 p.m., U.S. Paciﬁc Time. Please display your

R/A Number prominently on the front

of all packages.

RS-1

RS-2

0005-082003-D

AC POWER

SEQUENCING

RS-1 AND RS-2 REMOTE SYSTEM CONTROL PANELS RS-1 AND RS-2 REMOTE SYSTEM CONTROL PANELS

R S - 1

MAINTAINED CONTACT

REMOTE CONTROL PANEL

The RS-1 Remote System Control Panel is an

attractively ﬁnished key switch designed for

use in single-gang wall mount boxes. It can

control, from one location, all Furman power

products that have

remote capability, such

as the Furman AR-PRO,

ASD-120, MiniPort-15,

MiniPort-20, PowerLink,

the PowerPort, PS-

8R, and the PS-PRO.

Multiple units can be

controlled simultane-

ously.

The RS-1 features a

two-position key oper-

ated switch, an indicator

LED, and can be easily

installed in any electrical switch box with a mini-

mum depth of 1-1/4”. On the rear is a printed

circuit board with a standard size terminal strip

for wiring connections.

The RS-1 may also be compatible with other

AC power distribution and sequencing prod-

ucts. Our Technical Support team will be

happy to advise you on your speciﬁc installa-

tion needs.

RS-1 SPECIFICATIONS:

Dimensions: 4.75” (H) x 2.75” (W) x 1.25” (D).

Finish: black epoxy powder coat.

R S - 2

MOMENTARY CONTACT

REMOTE CONTROL PANEL

The RS-2 Remote System Control Panel is

identical to the RS-1 in most respects, but with

a momentary function rather that maintained.

The key switch offers an enable/disable func-

tion.

The RS-2 can control

multiple power products

by wiring their control

inputs in parallel. The

RS-2 is ideal for instal-

lations requiring multiple

remote switches. For in-

stallations requiring only

one remote maintained

contact switch, we rec-

ommend the RS-1.

The RS-2 may also be

compatible with other AC power distribution

and sequencing products. Our Technical Sup-

port team will be happy to advise you on your

speciﬁc installation needs.

RS-2 SPECIFICATIONS:

Dimensions: 4.75” (H) x 2.75” (W) x 1.25” (D).

Finish: black epoxy powder coat.

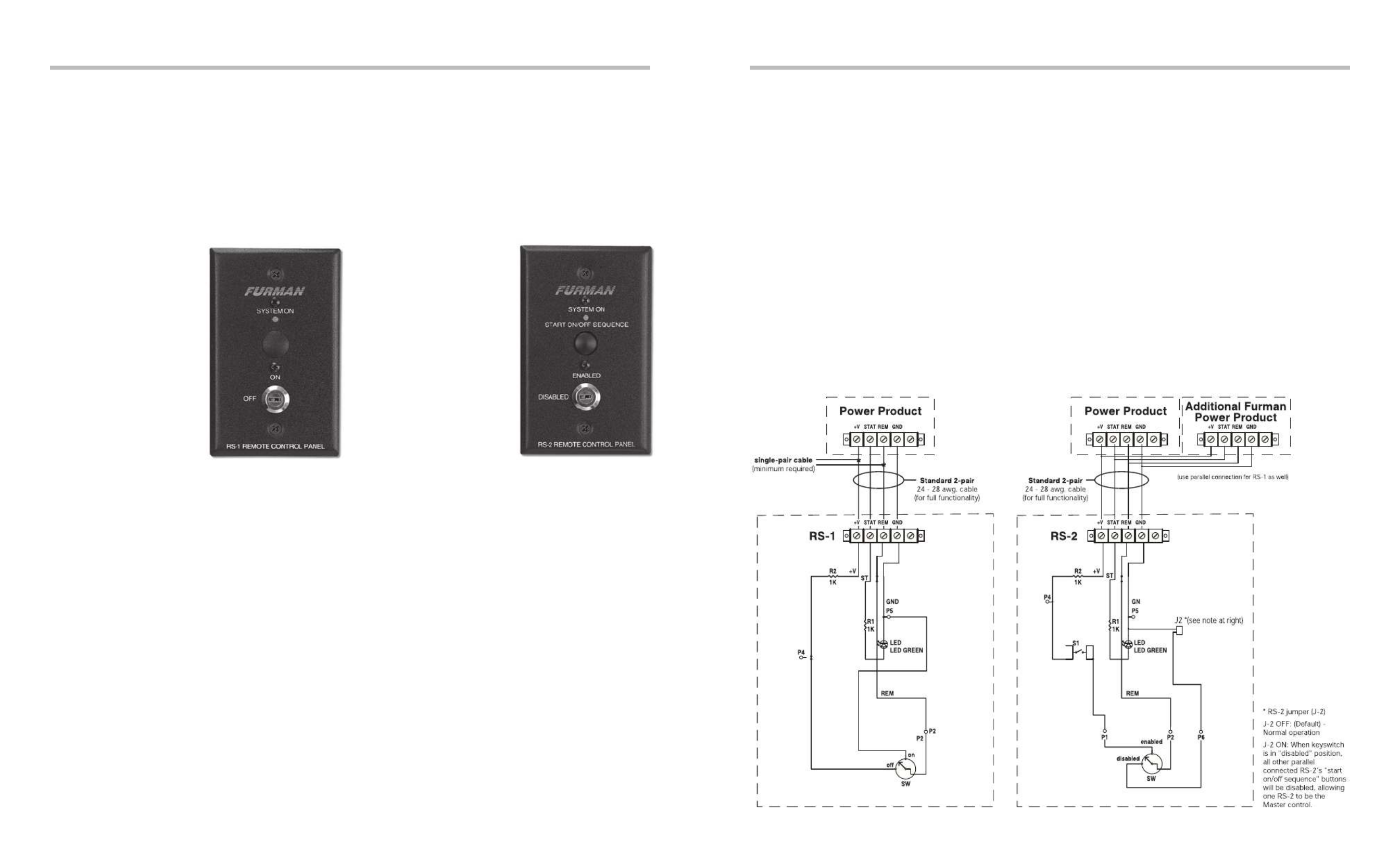

RS-1 AND RS-2 WIRING

INSTRUCTIONS

Connecting the RS-1 or RS-2 Remote Control Panel

is easy. For the simplest of installations, a single pair

cable will sufﬁce (standard 24-28 AWG telephone

wire is ﬁne). This allows ON/OFF control only. To

enable the RS-1 or RS-2’s SYSTEM ON indicator, it

will be necessary to run a 2-pair cable.

Both Remote Control Panels are clearly labeled

on the rear panel adjacent to the terminal strip. For

single-pair wiring, connect the +V terminal of your

power product to the +V terminal of the RS-1 or RS-

Next, connect the REM terminal of your power

product to the REM terminal of the RS-1 or RS-2,

and your installation is complete. Most newer Fur-

man products default to ON if the REM input is left

open or tied to GND. This allows normal front panel

operation if the unit is not being used with a remote

control panel.

It is recommended that where long wire runs (> 200

ft.) or noisy environments are encountered, 2-pair

cable be run, even if the indicator is not needed.

This allows rejection of AC noise and interference

by tying the REM input to GND when the unit is on.

For installations using 2-pair cable, +V and REM

connections are identical; just add wires from the

STAT terminal to STAT terminal, and GND terminal

to GND terminal.

Though the connection doesn’t require a shielded

cable, in particularly noisy environments a shielded

cable can be used by connecting the shield between

the GND terminals of the product and the RS-1 or

RS-2.

THREE YEAR

LIMITED WARRANTY

The Furman RS-1 and RS-2 are protected by a

limited three year warranty, covering defects in

materials and workmanship, provided that the

registration card is ﬁlled out and returned by the

FPO
