Quick Start Guide

Rino® 520-530HCx

2-way radio and GPS

Using the Weather Radio

The Weather Radio, available only on Rino 530HCx units, provides

a constant update of weather conditions, which is helpful while

outdoors or planning a trip. Seven Weather Radio channels are avail-

able. For more information about the Weather Radio, refer to the

Owner’s Manual.

To turn the Weather Radio on:

1. Open the Radio page by pressing the

Main Page Menu button .

2. Highlight Weather button on the page

and press or use the Enter Option

Menu Use Weather Radio to select

and press .Enter

3. Select the Seek button to nd an active

weather channel in your area.

4. With the Weather Thumb Stick button highlighted, press the

in to exit weather.

Marking a Waypoint

Marking a waypoint records your current location and stores it in the

unit’s memory. You must be tracking satellites to mark your location,

otherwise your last known location is marked.

To mark a waypoint:

1. Press and hold it until the Shortcuts Menu is shown.Enter

2. Highlight Mark Waypoint Enter and press to display the Mark

Waypoint page.

3. Highlight the Name Enter eld and press . Enter a new name.

When nished, highlight OK Enter then press .

4. Highlight the Symbol Enter eld and press . Choose a symbol

then press Enter to accept.

5. Highlight the OK button at the bottom of the page and press

Enter to save the waypoint.

Navigating with Your Rino

You can navigate to a waypoint, city, exit, or a contact’s location.

Using optional detailed maps, you can also navigate to points of

interest, addresses, and intersections.

To begin navigation using Find:

1. Press and hold the key to open the Shortcuts Menu.Enter

2. Highlight Find Enterand press .

3. Highlight Waypoints Enter and press to view the list of near-

est waypoints.

4. Highlight a waypoint and press Enter.

5. With the Waypoint page shown, highlight the Go To button at

the bottom of the page and press Enter to begin navigation.

The Map page automatically opens

to guide you to your destination.

Compass Page

The two main components of the Compass

page are the compass ring and the pointer. As

you move, the compass ring rotates showing

your current heading at the top of the display.

The pointer points toward your destination.

When the pointer is aligned with the vertical

line at the top of the compass ring, you are on

a direct course toward your destination. The

Rino 520HCx has to be moving to navigate. If you are standing still

or moving very slowly, the navigation data may not be accurate.

When you are stationary, an electronic compass

(Rino 530HCx only)

becomes functional to maintain directional orientation. Follow instruc-

tions in the Owner’s Manual for calibrating the electronic compass the

rst time you use it.

Using Peer-To-Peer Positioning

The Rino’s most unique feature is Peer-to-Peer positioning, send-

ing the location of one Rino unit to other Rino units. Peer-to-Peer

positioning allows you to track the movement of other Rino users

and also navigate to their location.

To send your location:

Press and release either the or Call Talk key. Your Rino auto-

matically sends out its location. Other Rino users monitoring

the same channel and code receive this information.

Using Contacts

he rst time you are contacted by another Rino user, the New Contact

page is displayed. From the New Contact page you can show the user’s

location on your , Map Go To that position.

Select to add them to your contact list. To OK

disregard the contact, exit by pressing the Page

button or the key. Every time Page/Quit

you receive signals from contacts, your map is

updated showing their new position. A Track

Log of their movement is created and shown on

your map.

Sending a Location

You can send any location that you have available in your Find

menu. These may be waypoints, contacts, cities, exits, or any

other data that is loaded in the unit. Below are the steps to send a

waypoint.

To send a location (waypoint) using Find:

1. Press the key and hold it until the Shortcuts Menu Enter

appears, or press the key until the Main Menu is Page/Quit

shown.

2. Highlight Find Enter Waypoints and press . Highlight and

press -Enter to view the list of waypoints nearest to your cur

rent location.

3. Highlight the waypoint that you want to send and press Enter

to view the Waypoint Review page.

4. Highlight the Option Menu Enter button and press .

5. Select Send Location Enter and press .

The location is sent to all Rinos using the same channel and code.

They can then choose to Go To that location, view the location on

the map ( ), or save the location ( ).Map Save

Polling a Location

If you have not heard from a contact in a while and would like to

know that contact’s current location, you may “poll” the contact’s

location. This will update that contact’s location in your Rino.

To poll a location:

1. Press and hold it until the Shortcuts Menu is shown, or Enter

press the button until the Main Menu is shown. Page

2. Highlight Find Thumb Stick Con- and press the in. Highlight

tacts Enter and press .

3. Highlight the contact that you want

to poll and press the Call key or,

press Enter to view the Contact

Review page.

4. Highlight the Option Menu button

and press .Enter

Select and press Poll Location

Enter.

Sending a Note

You can send a note to communicate silently with other Rino users

on the same channel and code that you are using. This can be a

saved note or a new note.

To send a note:

1. Press and hold it until the Shortcuts menu is displayed. Enter

2. Select the Send Note option.

3. To create a new note or edit an existing note, press Enter

when the Edit Note eld is highlighted. Enter your note using

the data entry keyboard. Select when complete. OK

To use a Saved Note, select the desired note from the Saved

Note Enter list and press .

4. Select Send to send the note to all Rino users on the same

channel and code that you are using. Select Save to save the

note for future use. Select to erase the note. Clear

If you have further questions or just want to learn more about

the operation of the Rino 520HCx or Rino 530HCx, refer to the

Owner’s Manual, which provides detailed information about all of

your unit’s features.

Power key

• Press and hold to turn the

unit On/Off

• Press and release to

adjust backlighting

Call key

• Press to send out

Call Tone

• Sends position when

released (if enabled)

Page/Quit key

• Press to cycle through the

main pages

• Used to quit or escape

menu items

Volume (V) key

• Press to open the volume

and squelch control

window

• Press and hold to mute or

unmute the speaker.

Microphone:

• Hold unit 3–4 inches from

your mouth when talking

Zoom/Map (Z)

key

• From the Map

Page, press to

open the Zoom

control window

• From any other

page, press to

access Map Page

• Press and hold to

turn the electronic

compass On/Off

(

Rino 530HCx only)

Speaker

Rocker/Enter key

• Move up, down,

right or left to

move through lists,

highlight elds,

on-screen buttons,

icons, enter data,

or move the map

panning arrow

• Press in to enter

highlighted options

and to conrm

messages

• Press in and hold

to display the

Shortcuts menu

Talk key

• Press and hold to talk

• Sends position when

released (if enabled)

Rino 520HCx (shown)

Radio Page with

Weather Radio On

Mark Waypoint Page

Name

Field

Symbol Field

Compass Page

New Contact Page

Send Location

Polling a contact’s location

Charging the Battery

The Rino operates on a rechargeable lithium-ion battery pack

attached to the back of the unit. See the Rino Owner’s Manual for

more information about batteries. Stored data is not lost when the

battery is removed. The rst time you charge the battery, charge

it completely while attached to the unit in order to set the battery

capacity gauge calibration.

To charge the battery:

1. Remove the battery pack from the product package and

install it on the back of the Rino.

Insert the tab at the base of the battery pack in the slot at the

bottom of the Rino and rotate the battery pack up into the cavity

on the back of the Rino with the D-Ring vertical. Secure in place

by turning the D-Ring on the battery pack 1/4 turn clockwise.

3. Insert the charger power cord into the jack in the side of the

charger. Connect the other end of the power cord into a wall

outlet. Then, clip the charger onto the battery pack, making

certain the tabs on the charger engage the detents on the bat-

tery pack. A red LED indicates that charging is in progress.

4. As charging is in progress, a Battery Gauge displaying the

percentage of charge appears on the screen. A fully depleted

Lithium-ion battery pack may take up to 6 hours to charge.

The Rino can be operated while charging is in progress, but

unless you are outdoors, you cannot receive satellite signals.

Extensive use of backlighting, WAAS, and/or FRS or GMRS

transmitting can signicantly reduce battery life.

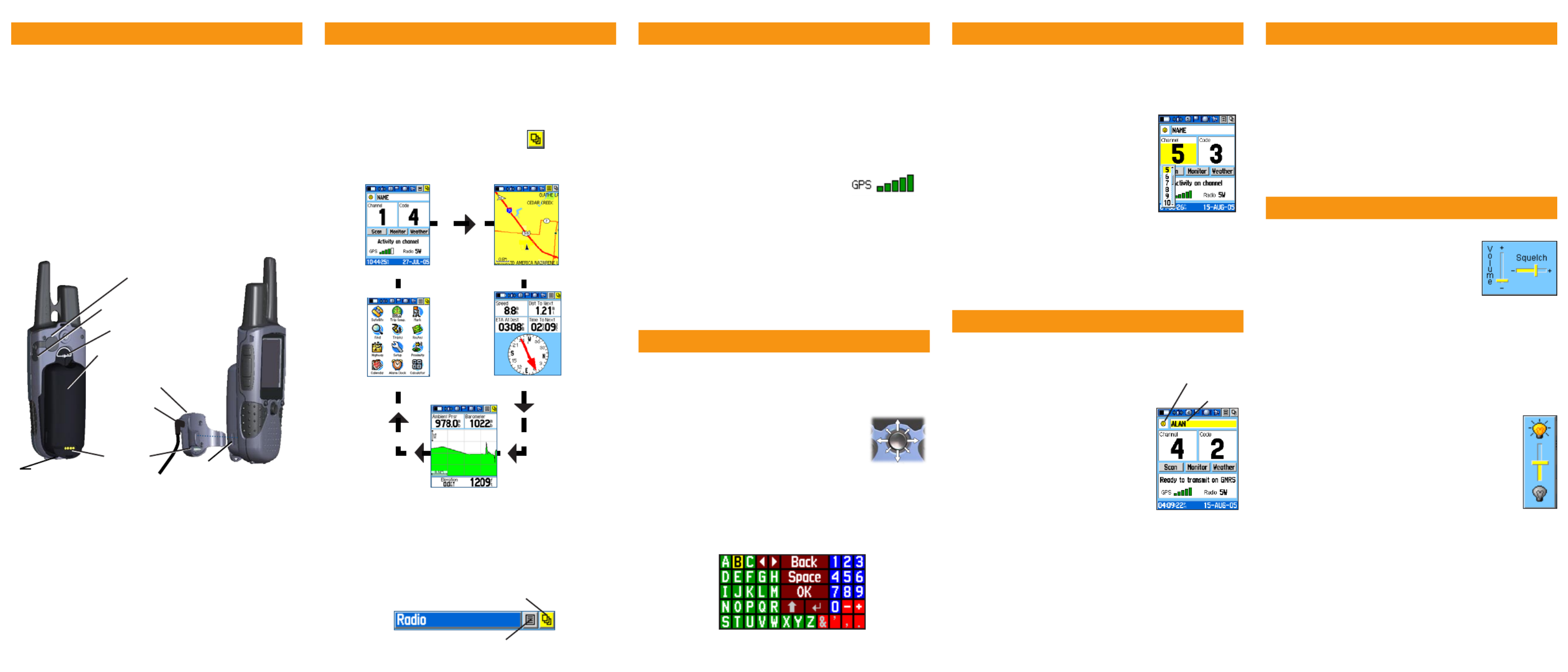

Viewing the Main Pages

All of the information you need to operate the Rino can be found on

ve default main pages (only four for the Rino 520HCx). Simply

press and release the key to cycle through the Radio Page/Quit

page, Map page, Compass page, Altimeter page (Rino 530HCx

only), and Main Menu page. You can also access the Main pages by

pressing the on-screen Main Page Menu button .

If you are navigating a route, an additional Active Route page

becomes available.

While these Main pages provide you with different types of infor-

mation, they all share common features like Option Menus and a

Main Page Menu. Access the Option Menu and Main Page Menu

by using the to highlight the on-screen button. Then press Rocker

Enter.

Initializing the GPS

Before the Rino can be used for navigation, the GPS receiver must be

initialized. Initialization allows the Rino to receive and store satellite

information and begin using the satellites for navigation. The initializa-

tion is automatic and should only take a few minutes.

To initialize the unit (acquire satellites):

1. Take the Rino outside where it has an unobstructed view of

the sky and turn it on.

2. The unit begins to search for satellite sig -

nals. A satellite signal graph is displayed

on the radio page or you can get more

detailed information by accessing the

Satellite page from the Main Menu.

The rst time you use your Rino, initialization could take up to

ve minutes.

3. When the GPS is initialized and ready for navigation, three or

more green GPS signal bars are displayed.

If for some reason the unit is not able to gather the necessary satel-

lite information, refer to the Owner’s Manual.

Entering Data

Use the like a joystick that you control with your thumb. Rocker

Move the up, down, right, or left. Press the in Rocker Thumb Stick

to select an item on the screen, much like pressing the Enter key on

a computer keyboard.

Sometimes you will need to spell out things using

the and an on-screen keyboard. To enter Rocker

characters with the on-screen keyboard, press the

Rocker up, down, left, or right to highlight the

desired character (letter, number, or a space). Press Enter to select

that highlighted character. Choose to delete the character to Back

the left of the cursor. When you are nished entering characters,

highlight and press . OK Enter

Setting Up the Radio

Select a channel and code to transmit on. Channels 1-7 and 15-22

are GMRS*, channels 8-14 are for FRS. Be sure to tell the other

members of your group what channel and code you are using so they

can communicate with you.

To select a channel:

1. Highlight the Channel eld and press

Enter.

2. Select an available channel and press

Enter to accept the selection.

To select a code:

1. Select the Code eld and press the

Thumb Stick in.

2. Select one of the thirty-eight (38) available codes. Press

Enter to accept the selection.

*Using GMRS channels requires an FCC license. See the

Owner’s Manual for details.

Changing the Name and Symbol

The Name and symbol (icon) identies you to other Rino users.

To change the user name:

1. Highlight the Name eld and press Enter

to activate the eld and display the

keyboard.

2. Highlight Clear Enter, then press to

clear the default name.

3. Enter a name, up to ten (10) characters

long.

4. When you have entered your new name,

highlight OK Thumb and then press the

Stick in.

To change the user symbol:

1. Highlight the face symbol to the left of the Name eld. Press

Enter to show a list of available face symbols.

2. Highlight a symbol from the list of selections.

3. Press Enter to select that symbol.

Transmitting on the Rino

The Rino can transmit to and receive voice communications from

other FRS/GMRS radio users on the same channel and code. Com-

municate with other Rino units in order to utilize all of the features

of the Rino, such as position sending.

To transmit on your Rino:

1. Press and hold the Talk key and speak in a normal voice into

the microphone area from a distance of about 3–4 inches.

2. When you are nished talking, release the Talk key. Your

location is updated on all receiving Rino units.

Volume, Squelch, and Backlighting

If you need to adjust the Volume Squelch and ,

press the (V Volume) key on the front of the unit to

display adjustment sliders. To change the volume,

press the up or down to raise or lower the Rocker

slider. To set the squelch level (which allows you

to hear only the individuals you want to communicate with and not the

weak background noise signals), press the Thumb Stick right or left

to move the slider. Move the slider to the left (-) until the background

noise is audible. Then move it to the right until the background noise

stops and you have squelched the unwanted signals. Stop at this point

by pressing the key or . V Enter

If lighting conditions make it hard for you to see the display screen,

you can turn on the .Backlight

To turn on the backlight:

1. With the unit on, briey press and release the Power

key to display the Backlight adjustment slider.

2. Press the Power key repeatedly to cycle the slider,

or press the up or down to adjust the Rocker

Backlight brightness level. When you use the Power

key to set the level of brightness, the last setting is selected

on the second press of the key. The backlight remains on

until the set timeout period is completed or the key is Power

pressed again. The unit is factory set to timeout 15 seconds

after the last key press.

3. Press Enter to close the Backlight window.

You may want to customize the Display Mode and Color Scheme

to your own preferences by accessing the Main Menu, Setup and

Display options.

Main Page Menu button

Part Number 190-00742-01 Rev. A Printed in Taiwan

Radio Page GPS

signal graph

Battery pack

Charger

Power cord

Mini USB

port

D-Ring

Detent

Headset

connector

Charger

contacts

Battery tab

Radio Page Map Page

Altimeter Page

Compass PageMain Menu

(Rino 530 Only)

Selecting the channel

Name eld

Symbol icon

Produkt Specifikationer

Mærke:	Garmin
Kategori:	Navigator
Model:	Rino 520HCx
Bredde:	58 mm
Dybde:	46 mm
Højde:	130 mm
Vægt:	292 g
Skærmopløsning:	176 x 220 pixel
Bluetooth:	Ingen
Batteriteknologi:	Lithium-Ion (Li-Ion)
Formfaktor:	Håndholdt
Skærm:	LCD
Højdemåler barometer:	Ingen
Elektronisk kompas:	Ingen
Batterilevetid (maks.):	14 t
Skærmstørrelse (HxL) (britisk standard):	1.3 x 1.7 "
Grænseflade:	USB
Marine (kortplottere, ekkolod):	Ingen
Sport (fitness, løb):	Ja
Udendørs (vandring, trekking):	Ja
Geocaching (GPS stash hunt):	Ingen
Automatisk:	Ingen
Luftfart:	Ingen
Traffic Message Channel (TMC):	Ingen
Antal kanaler:	22 kanaler
Antal ruter:	50
Antal spor:	20
Antal styringspunkter:	500
