Installation

Instructions

Gas Dryer

If you have any questions, call 1-800-GECARES (US) or 1-800-361-3400 (Canada)

or Visit our Web site at:

www. GEAppliances.com

BEFORE YOU BEGIN

TOOLS YOU WILL NEED MATERIALS YOU WILL NEED

FOR YOUR SAFETY:

WARNING

• Use only rigid metal or flexible metal 4-in. diameter

ductwork for exhausting to the outdoors. Never use

plastic or other combustible easy-to-puncture ductwork.

• This appliance must be properly grounded and installed

as described in these instructions.

• Do not install or store appliance in an area where it

will be exposed to water and/or weather.

• The National Fuel Gas Code restricts installations of

gas appliances in garages. They must be 18 in. off the

ground and protected by a barrier from vehicles.

• Install the dryer where the temperature is above 50ºF

for satisfactory operation of the dryer control system.

Read these instructions completely and carefully.

• IMPORTANT - Save these

instructions for local inspector's use.

• IMPORTANT - Observe all

governing codes and ordinances.

• Note to Installer - Be sure to leave these instructions with

the customer.

• Note to Customer - Keep these instructions with your Use

and Care Book for future reference.

• This dryer must be exhausted to the outdoors.

• Before the old dryer is removed from service or discarded,

remove the dryer door.

• Service Information and the wiring diagram are located in

the control console.

• Do not allow children on or in the appliance. Close

supervision of children is necessary when the appliance is

used near children.

FLAT BLADE SCREWDRIVER

SLIP JOINT PLIERS

LEVEL

10" ADJUSTABLE WRENCHES (2)

8" PIPE WRENCHE

SOAP SOLUTION

FOR LEAK DETECTION

DUCT TAPE

GLOVES SAFETY GLASSES

DUCT

CLAMPS (2)

4" DIA. METAL ELBOW 4" DIA. METAL DUCT

(RECOMMENDED)

4" DIA. FLEXIBLE METAL DUCT

(IF NEEDED) EXHAUST HOOD

PIPE COMPOUND

FLEXIBLE GAS LINE CONNECTOR

Step 1 Verify Your Gas Installation (see section 2).

Step 2 Prepare the Area and Exhaust for Installation of

New Dryer (see section 1).

Step 3 Check and Insure the Existing External Exhaust is

Clean (see section 1) and Meets Attached Installation

Specifications.(see section 6)

Step 4 Remove the Foam Shipping Pads (see section 1).

Step 5 Move the Dryer to the Desired Location.

Step 6 Level Your Dryer (see section 8).

Step 7 Connect the Gas Supply (see section 3) and check

for leaks (see section 4).

Step 8 Connect the External Exhaust (see section 7).

Step 9 Connect the Power Supply (see section 5).

Step 10 Check the Operation of the Power Supply, Gas

Connections, and Venting.

Step 11 Place the Owners Manual and the Installation

Instructions in a Location Where They Will Be

Noticed By the Owner.

For Alcove or Closet Installation see section 9.

For Bathroom or Bedroom Installation see section 10.

For Mobile or Manufactured Home see section 11.

NOTE: Installation and service of this dryer must

be performed by a qualied installer, service

agency, or the gas supplier.

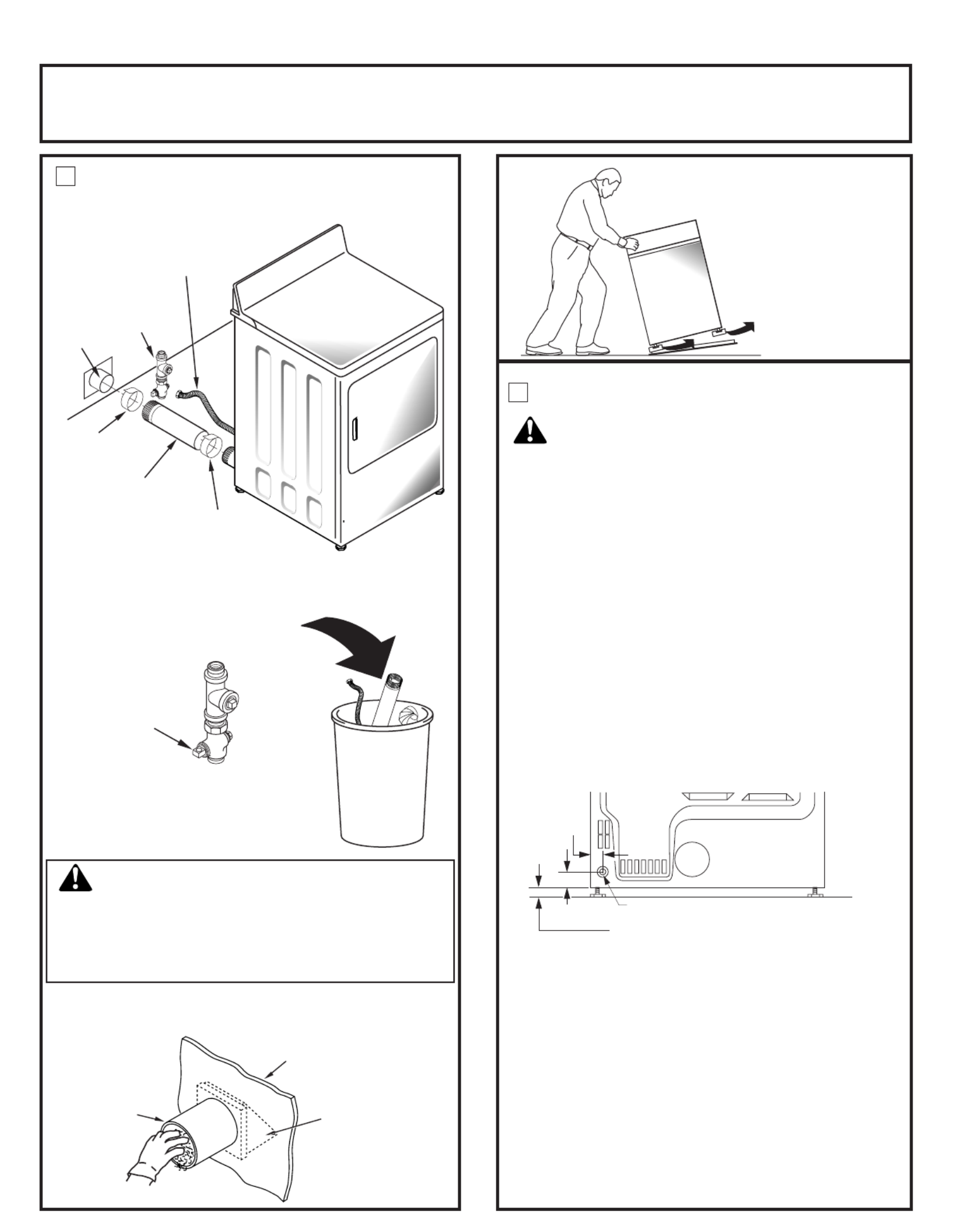

Installation Instructions

1 PREPARING FOR INSTALLATION

OF NEW DRYER

Minimum Clearance Other Than Alcove or Closet Installation

Minimum clearance to combustible surfaces and for air opening are: 0 in. clearance both sides and 1 in. rear. Consideration

must be given to provide adequate clearance for proper operation and service.

2 GAS REQUIREMENTS

EXTERNAL

DUCT

OPENING

GAS

INLET

PIPE

CSA (AGA) APPROVED

NEW FLEXIBLE GAS

LINE CONNECTOR

DUCT

TAPE

DUCT

TAPE

4" METAL DUCT

TIP: Install your dryer before installing your washer.

This will allow better access when installing dryer exhaust.

DISCONNECTING GAS

TURN GAS

SHUT-OFF

VALVE TO THE

OFF POSITION.

DISCONNECT AND DISCARD OLD

FLEXIBLE GAS CONNECTOR

AND OLD DUCTING MATERIAL.

The use of old flexible connectors can cause leaks and

personal injury. Always use new flexible connectors when

installing gas appliances.

WARNING

INTERNAL DUCT

OPENING

WARNING - NEVER REUSE OLD

FLEXIBLE CONNECTORS.

REMOVING LINT FROM WALL

EXHAUST OPENING

CHECK THAT EXHAUST

HOOD DAMPER OPENS

AND CLOSES FREELY.

WALL

TILT THE DRYER SIDEWAYS

AND REMOVE THE FOAM

SHIPPING PADS BY

PULLING AT THE SIDES

AND BREAKING THEM

AWAY FROM THE DRYER

LEGS. BE SURE TO

REMOVE ALL OF THE

FOAM PIECES AROUND

THE LEGS.

•

Installation must conform to local codes and ordinances,

or in their absence, the NATIONAL FUEL GAS CODE,

ANSI Z223.

• This gas dryer is equipped with a Valve & Burner Assem-

bly for use only with natural gas. Using conversion kit

WE25X0217, your local service organization can convert

this dryer for use with propane (LP) gas. ALL CONVER-

SIONS MUST BE MADE BY PROPERLY TRAINED

AND QUALIFIED PERSONNEL AND IN AC-

CORDANCE WITH LOCAL CODES AND ORDI-

NANCE REQUIREMENTS.

• The dryer must be disconnected from the gas supply

piping system during any pressure testing of that system

at a test pressure in excess of 0.5 PSI (3.4 KPa).

• The dryer must be isolated from the gas supply piping

system by closing the equipment shut-off valve during

any pressure testing of the gas supply piping of test

pressure equal to or less than 0.5 PSI (3.4KPa).

WARNING

GAS SUPPLY

• A 1/8-in. National Pipe Taper thread plugged tapping, ac-

cessible for test gauge connection, must be installed imme-

diately upstream of the gas supply connection to the dryer.

Contact your local gas utility should you have questions on

the installation of the plugged tapping.

• Supply line is to be 1/2-in. rigid pipe and equipped with an

accessible shut-off within 6 ft. of, and in the same room

with, the dryer.

• Use pipe thread sealer compound appropriate for natural

or LP gas or use Teflon tape.

• Connect flexible metal connector to dryer and gas supply.

• Open shut-off valve.

DRYER GAS SUPPLY CONNECTION

2-5/8" 3/8" NPT MALE THREAD GAS SUPPLY

NOTE: Add to vertical dimension

the distance between cabinet

bottom to floor.
