Side 1/4
Installation instructions
for your new

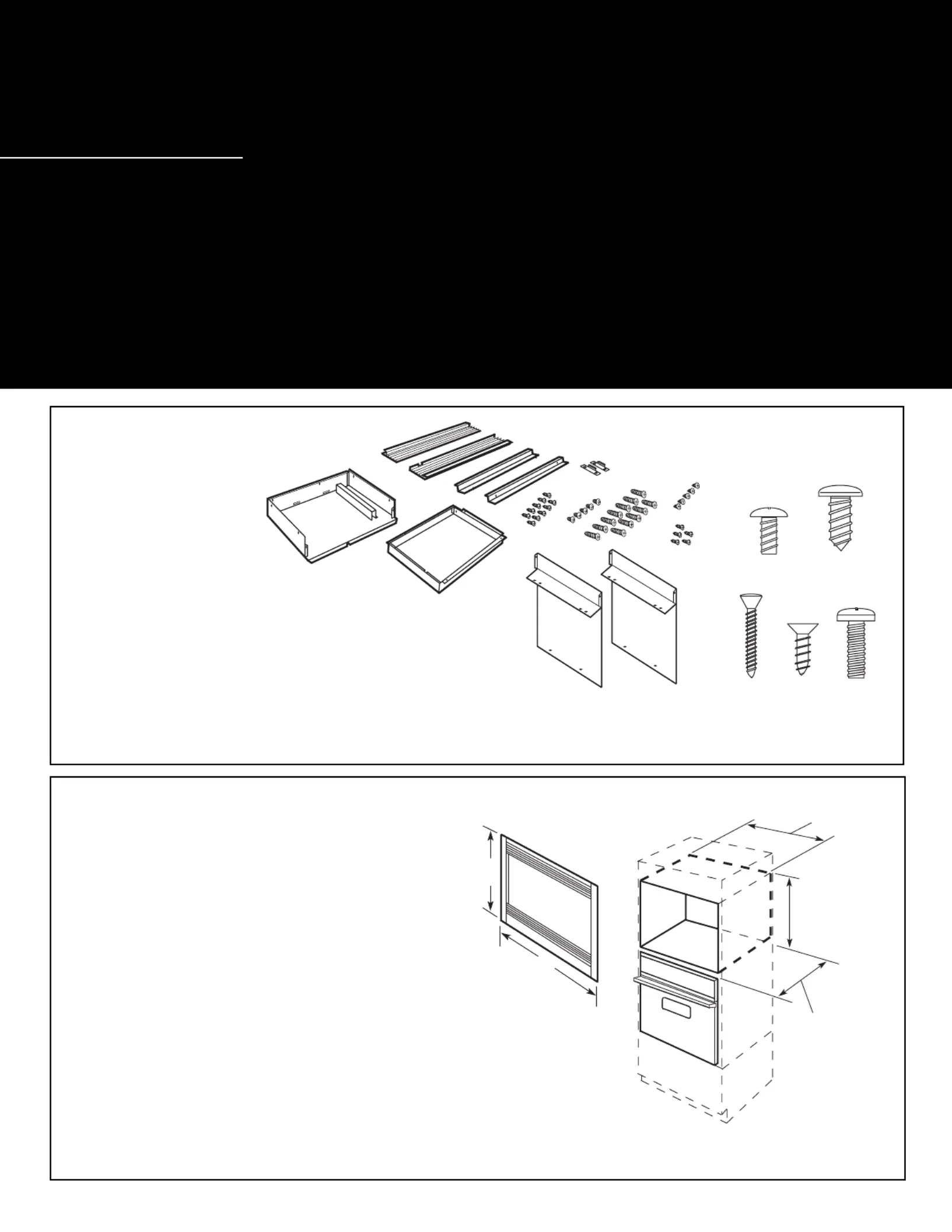

Parts List
1. Base Pan
2. Rear Duct
3. Side Covers (2)
4. Top Trim
5. Bottom Trim
6. Side Trims
7. Rear Holddown Brackets
Screws A (9 required 1 extra)
C (10 required 2 extra)
D (4 required 1 extra)
E (4 required 1 extra)
Note: This kit has extra screws to prevent technician from spending extra time locating a replacement in case
they lose one during installation.
Cabinet Cutout Dimensions and Specifications
Allow 1-1⁄4" for overlap of the Microwave Oven Kit
Trim over all the edges of the cutout for the
Microwave Oven Kit.
WIDTH HEIGHT
24-7⁄8"±1⁄16" 15"±1⁄16"
DEPTH
16" Min. receptacle outside cutout
18" Min. receptacle inside cutout
120 volt—60 Hertz grounded power receptacle.
For Installation Above a Built-In Oven
Microwave oven should be installed on a
3⁄8" plywood base and supported by 2x4 or
1x2 equivalent runners on all sides. Base
must be capable of supporting a minimum
of 100 lbs.
Screw EScrew D
1
Parts Inventory
B
2
4
5
6
C
A
E
D
7
33
Screw C
Screw A Screw B
CAUTION:
• Before you begin—Read these instructions, Owner’s Manual and Important Safety Instructions
completely and carefully.
• This Kit is for use on models: JEM21K/L, JEM23K/L, JEM25L/GN/GV/GY/WN/WV/WY/BF/WF, JES833WY,
JEM825K, JEM27KWH/LWH, JEM31L/M/GN/GV/GY/WV/WY/GA/WA/CA/BF/CF/WF/SF, JEM33L/M, JEM34M
and ZEM200WN/WV/WY/GV/GY/SY/GW/WA/SA/GA/SF/BF/WF.
• This kit can be installed alone or over any General Electric/Hotpoint/RCA single electric wall oven.
• Do not alter or modify any part of this kit or the oven.
• Observe all governing codes and ordinances.
• Oven must be plugged into a properly grounded 3-hole, 120 volt receptacle as required by the
National Electrical Code.
• Unplug the microwave oven before attempting installation of this kit.
• Save these instructions (for Local Inspectors and Future Reference).
18" Min.
receptacle
in cabinet
16" Min.
receptacle
outside
cabinet
24-7⁄±⁄8" 1 16"
15" 1±⁄16"
TRIM
STRIPS
16-1/4"
26-1/8"
Microwave Oven
Built-In Trim Kit
JX827BN, JX827WN,
JX827SS, JX827CD
Tools Needed
2 Phillips head screwdrivers (#1 & #2)
Drill and 3/32" drill bit
Centerpunch or nail
Pencil and ruler
Knife

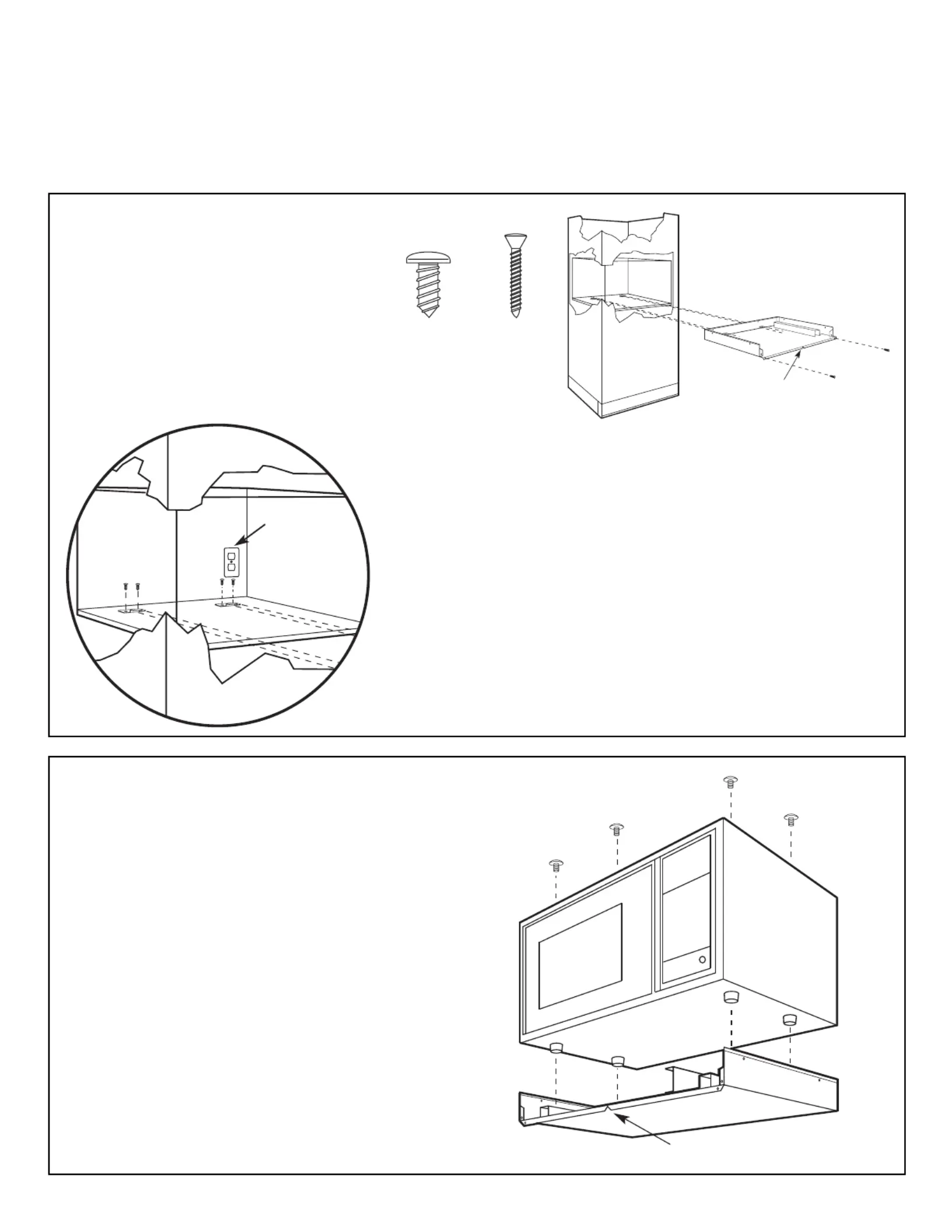

Installation Procedure
Step 2
Installation of Base Pan
Disconnect microwave oven from recep-
tacle. Remove everything out of the
microwave oven (packing, glass shelf,
temperature probe, Use & Care books).
Remove the four top plug buttons from
the top of the Microwave Oven cabinet.
Use knife to pry up plug buttons using
care not to scratch the microwave oven.
A clear protective film has been applied to
some microwave oven cabinets. If applied,
remove the film. Place the microwave
oven on the base pan
(1) centered left to right.
V Notch
Remove 4 Plug Buttons
120V/60 Hertz
Grounded Power
Outlet
V Notch
Screw C
Drive two Screws
(C) into the Base
Pan front flange to
hold in place
temporarily.
using the two holes in the Base Pan front flange as your guide
(center the drill in the base holes keeping the front flange
centered and tight against the cabinet front wall).
Slide the two Rear Holddown Brackets (7) from the rear into
the slots in the Base Pan. The tongues of the Rear Holddown
Brackets should be sticking into the base, be centered in the slot,
and be into the slot as far as it will go. Mark and drill four 3/32"
diameter holes. Mount the Rear Holddown Brackets using four
Screws (B). Both Rear Holddown Bracket tongues should now be
centered in the slotted holes in the base and be into the base as
far as they can go.
Remove the two screws in the Base Pan front flange and slide the
Base Pan straight out.
Screw B
Step 1
Locating and Installing Rear
Holddown Supports
Set Base Pan (1) into the front cabinet
microwave oven cutout and center it right
and left. Push back until front flange is
against cabinet front wall. Use the V-notch
in the Base Pan front flange to center the
Base Pan. Bore two 3/32" diameter holes
into the wooden cabinet base front edge
