Installation

Instructions

Electric Dryer

BEFORE YOU BEGIN

TOOLS YOU

WILL NEED

MATERIALS YOU WILL NEED

FOR YOUR SAFETY:

WARNING

Read these instructions completely and carefully.

PHILLIPS SCREWDRIVER

SLIP JOINT PLIERS

LEVEL

GLOVES

SAFETY GLASSES DRYER POWER

CORD KIT

(NOT PROVIDED

WITH DRYER)

UL RATED 120/240V, 30A

WITH 3 OR 4 PRONGS.

IDENTIFY THE PLUG TYPE

AS PER THE HOUSE

RECEPTACLE BEFORE

PURCHASING LINE CORD.

4" DUCT

CLAMPS (2)

4" SPRING

CLAMPS (2)

EXHAUST HOOD

3/4" STRAIN RELIEF

UL RECOGNIZED

• Use only rigid metal or ﬂexible metal 4-in. diameter

ductwork for exhausting to the outdoors. Never

use plastic or other combustible, easy-to-puncture ductwork.

• This appliance must be properly grounded and installed

as described in these instructions.

• Do not install or store appliance in an area where it

will be exposed to water and/or weather

• Install the dryer where the temperature is above 50ºF

for satisfactory operation of the dryer control system.

4" DIA. METAL

ELBOW

• IMPORTANT - Save these

instructions for local inspector’s use.

• IMPORTANT - Observe all

governing codes and ordinances.

• Note to Installer - Be sure to leave these instructions with

the customer.

• Note to Customer - Keep these instructions with your Use

and Care Book for future reference.

• Exhausting the dryer to the outdoors is strongly recom-

mended to prevent large amounts of moisture from being

blown into the room.

• Before the old dryer is removed from service or discarded,

remove the dryer door.

• Service information and the wiring diagram are located in

the control console.

• Do not allow children on or in the appliance. Close

supervision of children is necessary when the appliance is

used near children.

NOTE: Installation and service of this dryer

requires basic mechanical and electrical skills.

It is your responsibility to contact a qualified

installer to make the electrical connections.

Step 1 Prepare the Area and Exhaust for Installation of

New Dryer (see section 1).

Step 2 Check and Ensure the Existing External Exhaust is

Clean (see section 1) and Meets Attached Installation

Speciﬁcations (see section 3).

Step 3 Remove the Foam Shipping Pads (see section 1).

Step 4 Move the Dryer to the Desired Location.

Step 5 Connect the Power Supply (see section 2).

Step 6 Connect the External Exhaust (see section 4).

Step 7 Level Your Dryer (see section 5).

Step 8 Check the Operation of the Power Supply

and Venting.

Step 9 Place the Owners Manual and the Installation

Instructions in a Location Where They Will Be

Noticed By the Owner.

For Alcove or Closet Installation, see section 6.

For Bathroom or Bedroom Installation, see section 7.

For Mobile or Manufactured Home see, section 8.

For side or bottom exhaust, see section 9.

Questions on Installation? Call: 1-800-GECARES (US)

or Visit our Web site at:

www.GEAppliances.com (US)

4" DIA. METAL DUCT

(RECOMMENDED)

4" DIA. FLEXIBLE METAL DUCT

(IF NEEDED)

FLAT BLADE SCREWDRIVER

DUCT TAPE

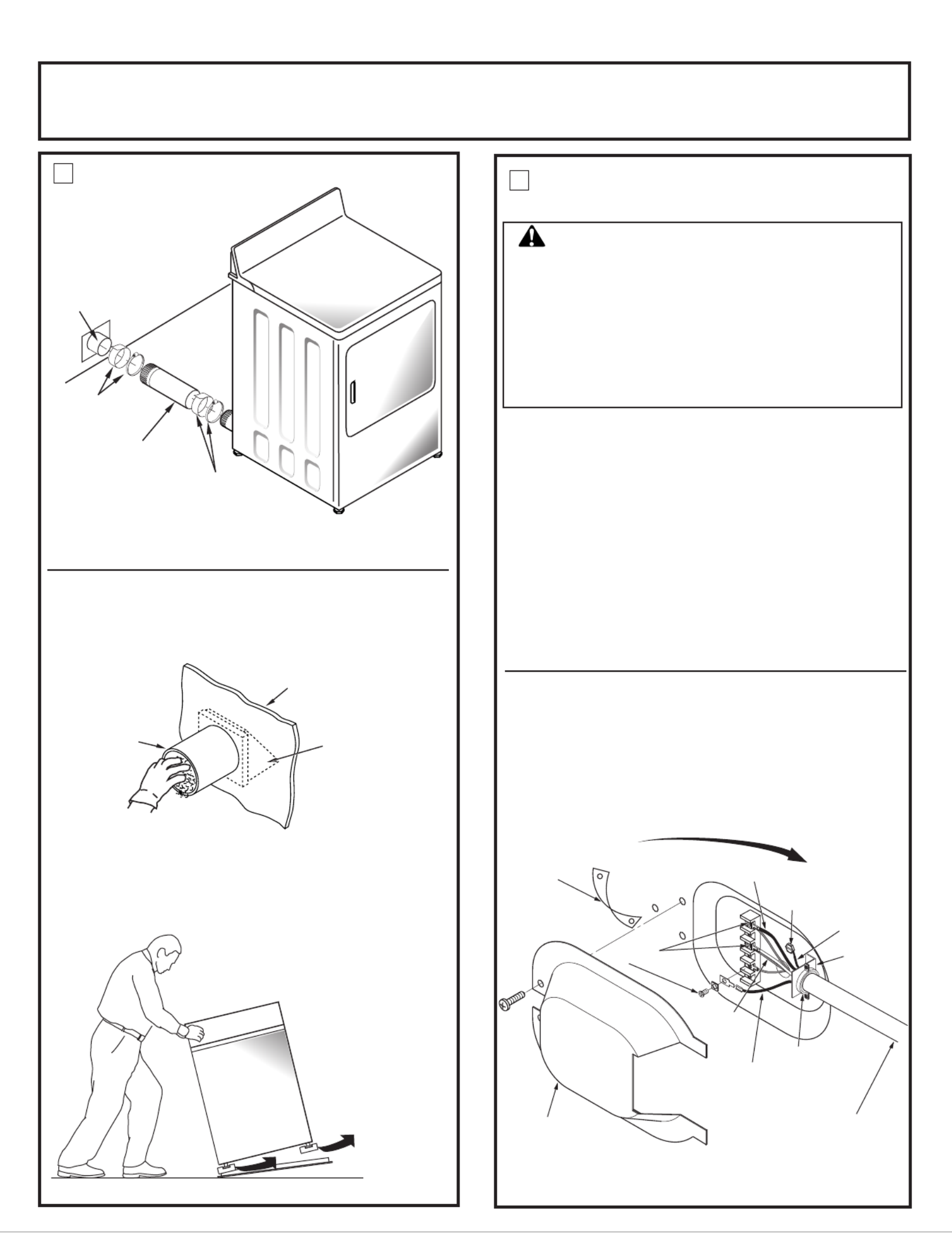

Installation Instructions

1 PREPARING FOR INSTALLATION

OF NEW DRYER

Minimum Clearance Other Than Alcove or Closet Installation

Minimum clearance to combustible surfaces and for air opening are: 0 in. clearance both sides and 1 in. rear. Consideration

must be given to provide adequate clearance for installation and service.

2 ELECTRICAL CONNECTION

INFORMATION

EXTERNAL

DUCT

OPENING

TIP: Install your dryer before installing your washer.

This will allow better access when installing dryer exhaust.

REMOVING LINT FROM WALL

EXHAUST OPENING

TILT THE DRYER SIDEWAYS

AND REMOVE THE FOAM

SHIPPING PADS BY

PULLING AT THE SIDES

AND BREAKING THEM

AWAY FROM THE DRYER

LEGS. BE SURE TO

REMOVE ALL OF THE

FOAM PIECES AROUND

THE LEGS.

• DO NOT USE AN EXTENSION CORD OR AN

ADAPTER PLUG WITH THIS APPLIANCE.

Dryer must be electrically grounded in accordance with

local codes and ordinances, or in the absence of local

codes, in accordance with the NATIONAL ELECTRI-

CAL CODE, ANSI/NFPA NO. 70.

WARNING - TO REDUCE THE RISK OF

FIRE, ELECTRICAL SHOCK AND PERSONAL

INJURY:

ELECTRICAL REQUIREMENTS

CONNECTING DRYER USING 4-WIRE

CONNECTION (MUST BE USED FOR

MOBILE HOME INSTALLATION)

This dryer must be connected to an individual branch circuit,

protected by the required time-delay fuses or circuit breakers. A

four or three-wire, single phase, 120/240V or 120/208V, 60Hz,

30 amp circuit is required.

If the electric supply does not meet the above speciﬁcations, then

call a licensed electrician.

GROUNDING INSTRUCTIONS

This dryer must be connected to a grounded metal, permanent

wiring system, or an equipment-grounding conductor must be run

with the circuit conductors and connected to the equipment-

grounding terminal on the appliance.

NOTE: Since January 1, 1996, the National Electric Code

requires that new constructions utilize a 4 wire connection

to an electric dryer.

RELOCATE GREEN

GROUND SCREW

HERE

STRAIN

RELIEF

BRACKET

GREEN OR

YELLOW WIRE

3/4", UL

RECOGNIZED

STRAIN RELIEF

HOT

WIRE

SCREWS

(3)

HOT

WIRE

COVER

NEUTRAL

(White)

REMOVE GROUND STRAP

AND DISCARD. KEEP GREEN

GROUND SCREW

4 #10 AWG MINIMUM COPPER

CONDUCTORS OR 120/240V 30A POWER

SUPPLY CORD KIT MARKED FOR USE

WITH DRYERS & PROVIDED WITH

CLOSED LOOP OR SPADE TERMINALS

WITH UPTURNED ENDS (NOT SUPPLIED).

DUCT TAPE OR

DUCT CLAMP

DUCT TAPE OR

DUCT CLAMP

4" METAL DUCT

INTERNAL DUCT

OPENING CHECK THAT EXHAUST

HOOD DAMPER OPENS

AND CLOSES FREELY.

WALL
