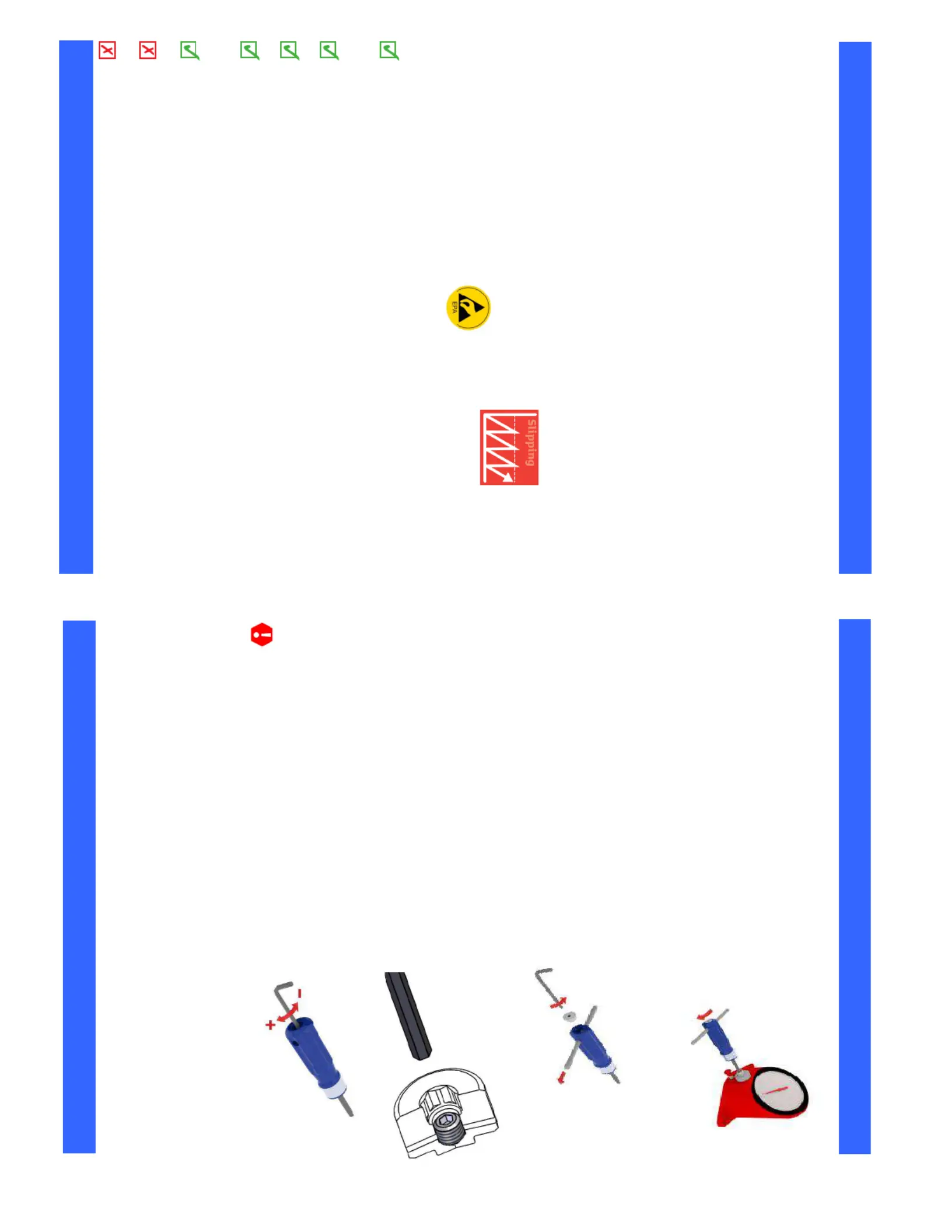

Instructions Part Number

P17050 Issue 4

How to use and care for your TLS Preset

Torque Screwdriver

Tool Specication

Models: TLS 0022, Minor, Standard, TLS 1360

(Torque Range from 0.04 – 13.6 N.m)

Repeatability: +/- 6% of Torque Setting

ISO 6789 Class: Type 2, Class F

Calibration Period: Every 12 Months or 5000 cycles minimum

Mechanism: Slipping - Incorrect tightening is impossible

EPA Compliant: ESD versions only

Safety & Maintenance

This Torque Tool is a precision instrument and should be used for its

intended purpose only

Only hold the tool using the handgrip

Always ensure that the tool is in correct alignment with the fastener

Torque tools should be regularly calibrated and inspected to ensure correct

operation

Ensure the tool is clean and free from oil, grease and water before use

Do not use extension bars to increase the leverage of the handle

Never dip into cleaning uid or petroleum

Torque Limiting Screwdriver

How to adjust your Torque Screwdriver

check setting:

Use a Torque Analyser.

To adjust the torque setting:

Use the supplied hexagon key to remove the end cap

in an anti-clockwise Direction. Also remove the

T-bar where tted.

Note the 2.0mm Hexagon key and adjuster locking screw

are not required on the TLS 0022 and Minor range.

To increase the torque:

Use a 2.0mm hexagon key to loosen the adjuster

locking screw by ½ a turn. Insert the

3/16” hexagon key into the adjuster and turn

Clockwise. Tighten the locking screw to 1.5N.m

Using the 2.0mm hexagonal key once required

torque value is reached.

To reduce the torque:

Use a 2.0mm hexagon key to loosen the adjuster

locking screw by ½ a turn.

Insert the 3/16” hexagon key into the adjuster

and turn anti-clockwise below the required setting,

then turn clockwise to approach the new value.

Tighten the locking screw to 1.5N.m using the 2.0mm

hexagonal key once required torque value is reached.

Take 10 consistent readings on the Analyser to

conrm the torque setting.

To use Torque Screwdriver:

The Screwdrivers are designed

for use with sockets, screwdriver bits and blades

Servicing Information

Regular servicing of your Torque Tool by competent personnel is important to

ensure it continues to perform correctly.

Torque

Limiting Screwdriver

Produkt Specifikationer

Mærke:	Gedore
Kategori:	Skruemaskine
Model:	Minor FH O/W
Bredde:	125 mm
Vægt:	300 g
Produkttype:	Enkelt
Farve på etui:	Sort/blå
Antal skruetrækkere:	1
Skruetrækker, type:	Momentskruetrækker
Håndgrebsisolering:	Ja
Antal drev kontakter:	1
Unbrako skruetrækker bits (imperial):	1/4 "
