Instruction Part Number

P35850 Issue 2

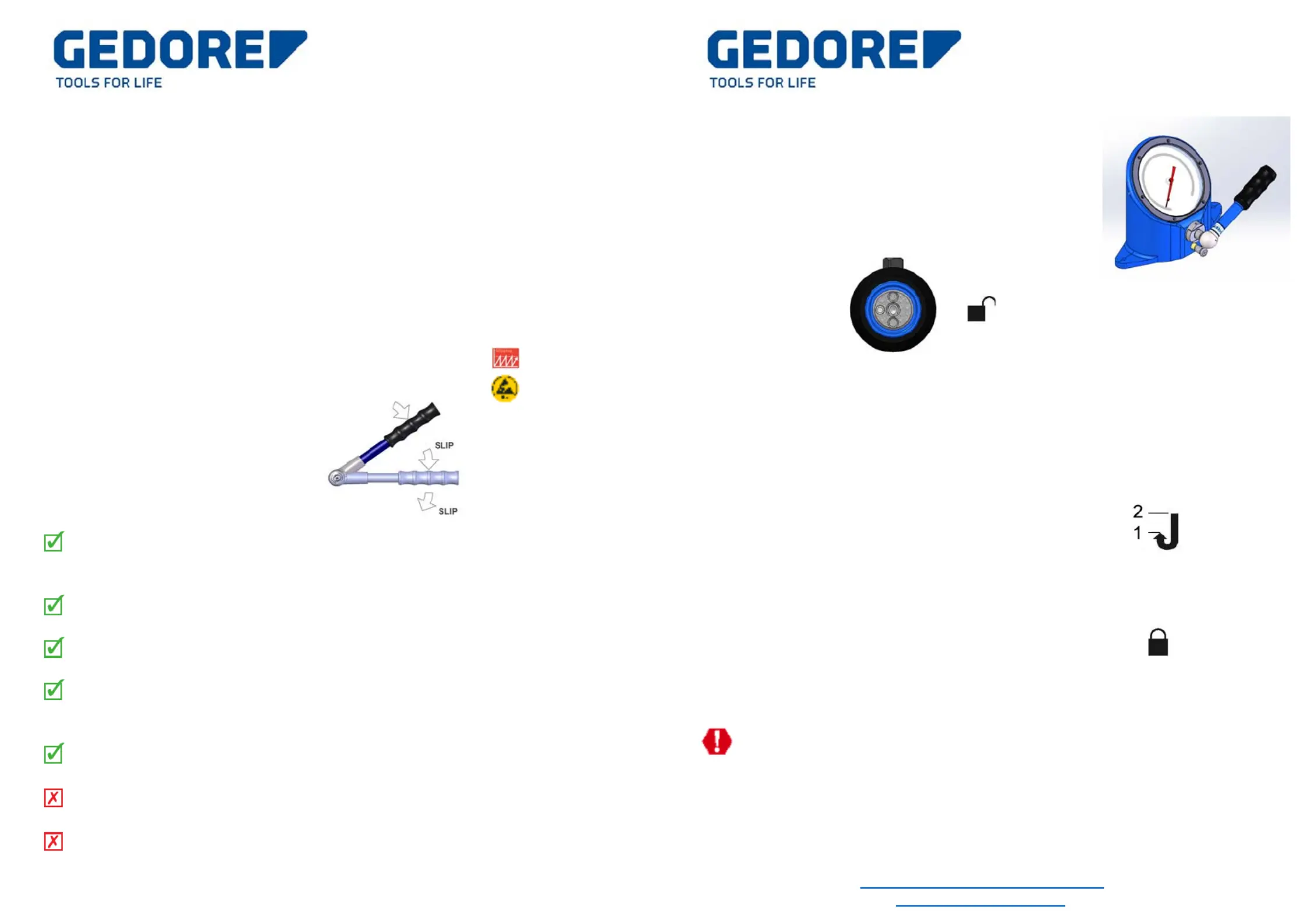

How to use and care for your TSN5/10 & TSN45/90 Preset

Slipping Torque Wrenches

Tool Specification

Models: TSN 5 & 10 (TSN 5: 1.0 – 5.0 Nm, TSN 10: 2.0 – 10.0 Nm)

Repeatability: +/- 6% of Torque Setting

ISO 6789 Class: Type 2, Class C

Calibration Period: Every 12 Months or 5000 cycles (minimum)

Mechanism: Slipping - Incorrect tightening is impossible

EPA Compliant

At the set torque, the handle slips free

then resets ready for the next use.

Safety & Maintenance

This Torque Tool is a precision instrument and should be used for its

intended purpose only

Only hold the tool using the handgrip

Always ensure that the tool is in correct alignment with the fastener

Torque tools should be regularly calibrated and inspected to ensure correct

operation

Ensure the tool is clean and free from oil, grease and water before use

Do not use extension bars to increase the leverage of the handle

Never dip into cleaning fluid or petroleum

Angle of slip = 35°

GEDORE Torque Ltd, Bramley, Guildford, Surrey,

UK. GU5 0AJ

Sales Hotline: +44 (0)1483 894476, Fax: +44 (0)1483 898536

Email: salesandrepair@gedore-torque.com

www.gedore-torque.com

How to adjust your Torque Wrench

To check setting:

Use a Torque Analyser. For more details on the

different Analysers visit www.gedore-torque.com

To adjust the torque setting:

Use a 4 mm hex key to remove the end cap.

Use a 2 mm hex key to release the locking grub screw by turning anti-clockwise.

To increase torque:

Using the 4mm hex key, rotate clockwise

until the correct torque is shown consistently

on the Analyser. (10 readings)

To reduce torque:

When adjusting, always approach the required

torque from a lower setting.

To reduce the torque, rotate the key anti-clockwise

past your setting, then increase

torque to the required value.

To set torque:

Turn the locking grub screw clockwise with a 2mm hex key.

To use Torque Wrench:

The TSN Wrench is designed for use with sockets.

Servicing Information

Regular servicing of your Torque Tool by competent personnel is important to

ensure it continues to perform correctly.

Produkt Specifikationer

Mærke:	Gedore
Kategori:	Skruemaskine
Model:	TSN 25 D
Type:	Mekanisk
Vægt:	340 g
Produkttype:	Slippe momentnøgle
Længde:	216 mm
Nøjagtighed:	6 %
Håndtag farve:	Black, Blue
Square drevstørrelse:	1/4 "
Drejningsmomentområde:	5 - 25 Nm
Aksel farve:	Stål
