Side 1/20

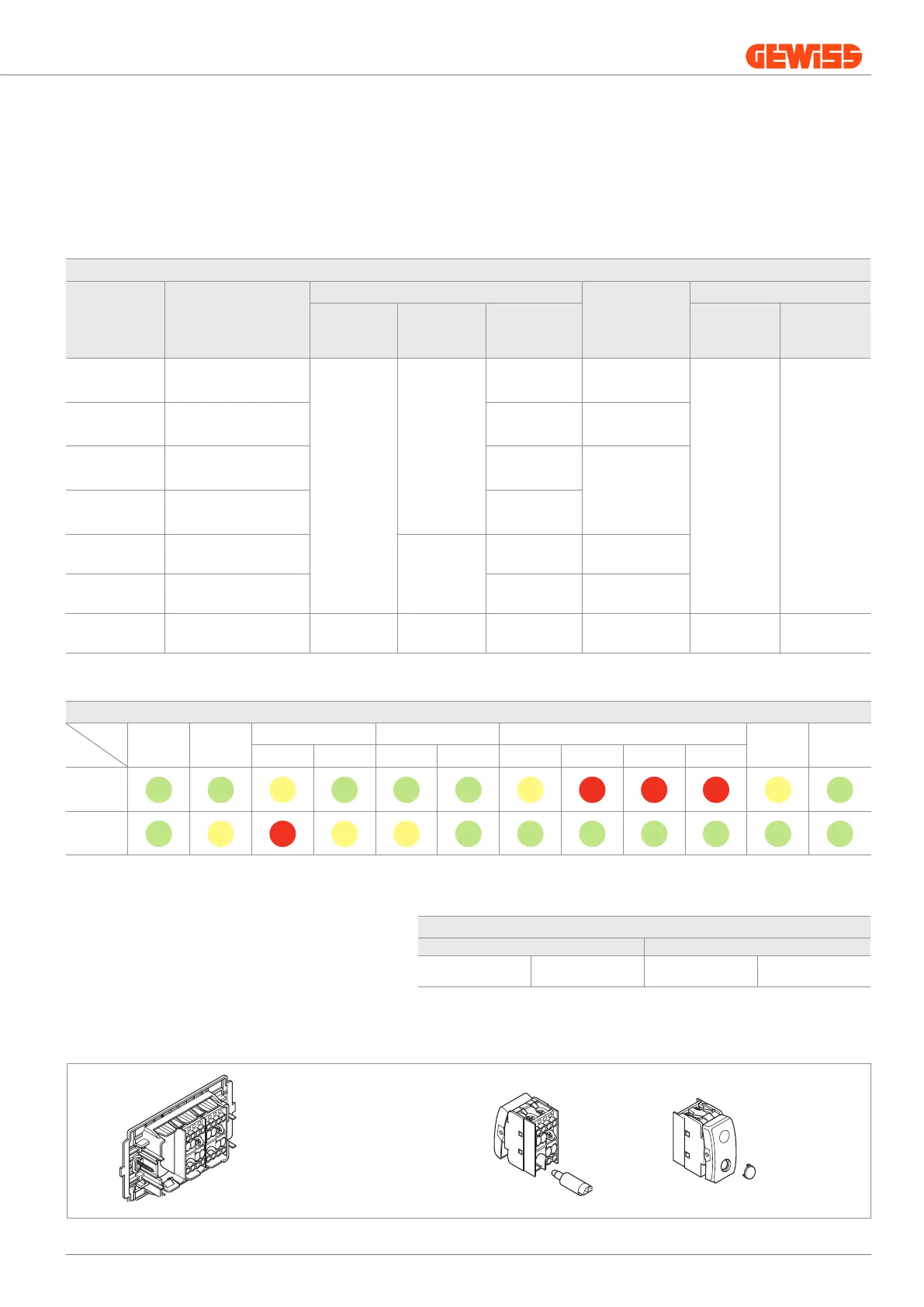

BEHAVIOUR WITH CHEMICAL AND ATMOSPHERIC AGENTS
Water
Saline
solution
Acids Bases Solvents
Mineral
oil
UV
rays
Concentrated Diluted Concentrated Diluted Hexane Benzol Acetone Ethyl alcohol
Plates Resistant Resistant
Limited
resistance
Resistant Resistant Resistant
Limited
resistance
Not
resistant
Not
resistant
Not
resistant
Limited
resistance
Resistant
SYSTEM
devices
Resistant
Limited
resistance
Not
resistant
Limited
resistance
Limited
resistance
Resistant Resistant Resistant Resistant Resistant Resistant Resistant
A modular range of devices for domestic and similar use which can be installed in surface- or flush-mounting boxes and in ordinary and watertight boxes.
The System range for domestic use has a modular structure on flush-mounting frames up to 12 modules. Surface-mounting and free-standing boxes and plates
are included, along with watertight plates (IP55) and outdoor containers (IP40 and IP55).
The range includes controls, socket-outlets, protections, indicators, connectors and special components with high quality characteristics.
General characteristics
* For rated voltages and currents, see the specifications in the single codes. ** The value of 2 MΩ refers to a special condition established by the standards given alongside.
* The resistance values given are valid for an ambient temperature no higher than 40°C.
Agent
Component
Miniature lamps
Symbol discs for functional
signalling
Common construction features
Simplicity of connections:
double terminals,
cable clamp with unlosable screws
and protection collars.
Quick installation:
fixing the devices
on the supports
from both front or rear.
SYMBOL DISCS
TERMINAL TIGHTENING CAPACITY
Stranded wires Solid wires
Minimum
0.75mm
2
Maximum
2 x 4mm
2
Minimum
0.5mm
2
Maximum
2 x 2.5mm
2
Terminal resistance to cable traction: > 50N
Device hold on support: > 0.6J
TECHNICAL DATA AND REFERENCE STANDARDS
Component Reference standards
Essential electrical data*
Prolonged
operation
(no. position
changes)
Resistance to abnormal heat and fire
Resistance
at test voltage
(V)
Insulation
resistance
(MΩ)
Breaking capacity or
category of
use
Thermo-pressure
with ball
(°C)
Glow Wire Test
(°C)
Commands EN 60669-1
2000
at 50 Hz
for 1 minute
> 5
1.25 In
(200 position changes)
40,000
at In 250V AC cos φ = 0.6
125 850
Socket-outlets IEC 60884-1
1.25 In
(100 position changes)
10,000
at In 250V AC cos φ = 0.8
Latching relays EN 60669-1 / EN 60669-2-2
50,000
at In 250V AC cos φ = 0.6
Momentary relays EN 60669-1 / EN 60669-2-2
1.25 In
(200 position changes)
Miniature circuit
breakers
EN 60898-1
2** ÷ 5
3KA 8,000
Residual current
circuit breakers
EN 61009-1 / EN 61008-1
3KA 4,000
Supports and plates EN 60669-1 - - - - 70 650
1
Technical Information Version 2.2
For technical information contact the Technical Assistance Service or visit gewiss.com
System
Degree of protection of the set of SYSTEM domestic range assembly installed
COMPONENT INSTALLATION REFERENCE STANDARD IP RATING
Devices with closed front (commands, bells, indicators, etc.)
installed in flush-mounting boxes, surface-mounting boxes,
free-standing panels (completed with support and plate) and
in self-supporting boxes
Flush-mounting for domestic or similar
finish, in vertical position, installed to a
high standard
EN60529
41
Devices with open front (socket-outlets, etc.) installed
in flush-mounting boxes, surface-mounting boxes,
free-standing panels (completed with support and plate) and
in self-supporting boxes
Flush-mounting for domestic or similar
finish, in vertical position, installed to a
high standard. Suitable for use for zone 3
of rooms containing baths or showers.
X1
(it is 21 in case of socket-outlets)
Devices with open front (socket-outlets, etc.) installed
in flush-mounting boxes, surface-mounting boxes,
free-standing panels (completed with support and plate) and
in self-supporting boxes
Flush-mounting for domestic or similar
finish, in vertical position, installed to a
high standard with plug inserted
4X
Spare parts and accessories
Lamps for System articles
CONTROL DEVICES MINIATURE LAMP UNITS
Luminous / colour
RESULT
OBTAINABLE
COLOURS
Functional Functional
localisation
Iconographic
signalling
Type Code Voltage Colour
LED
GW 10 893 12-24V AC/DC
White
The signalling colour corresponds
to the colour of
the chosen miniature lamp
White
GW 30 947 230/110V AC
GW 30 946 230/110V AC Light blue Light blue
Fluorescent
GW 30 943 230V AC Red Red
GW 30 944 230V AC Green Green
Examples of functional and localisation lighting
To indicate the operating status of services not visible from the command position To locate the command button key in the dark
The indicator lamp is
located parallel to the
service, and is switched
on when the one-way
switch is ON. The indicator
lamp follows the ON/OFF
status of the service.
The two indicator lamps and the
service are placed in parallel,
therefore they switch on and off
together with the service
The indicator lamp is
switched on when the one-
way switch is OFF. With
the one-way switch in the
ON position, the service is
powered and the indicator
lamp is switched off.
The two indicator lamps come on
when the service is not powered
and go off when it is ON.
NOTE: layouts not suitable for commanding compact energy saving lamps, LED lamps and/or relays
PUSH-BUTTON WITH NAME PLATE CARTRIDGE LAMPS
Luminous / colour
RESULT
OBTAINABLE
COLOURS
Type Code Voltage Colour
Incandescent
S6 x 36
GW 20 902 12V AC/DC
White
White backlighting
White
GW 20 903 24V AC/DC
SINGLE INDICATOR LAMPS CARTRIDGE LAMPS
Luminous / colour
RESULT
OBTAINABLE
COLOURS
Type Code Voltage Colour
Incandescent
S6 x 31
GW 20 904 12V AC/DC
White
The signalling colour corresponds to
the colour of the chosen indicator
lamp diffuser
Red - Green
Amber - White
Light blue
GW 20 905 24V AC/DC
Fluorescent
S6.3 x 28
GW 20 906
230V AC
Red
With red diffuser:
Red
With amber diffuser:
Amber
GW 20 908 Green
With green diffuser:
Green
STAIR RISER LAMPS CARTRIDGE LAMPS
Luminous / colour
RESULT
OBTAINABLE
COLOURS
Type Code Voltage Colour
Incandescent
S6 x 36
GW 20 902 12V AC/DC
White
The signalling colour corresponds to
the colour of the chosen stair riser
lamp diffuser
Red - Green
Amber - White
Light blue
GW 20 903 24V AC/DC
ACCESSORIES
Technical Information Version 2.2
2
For technical information contact the Technical Assistance Service or visit gewiss.com
System
