Side 1/3

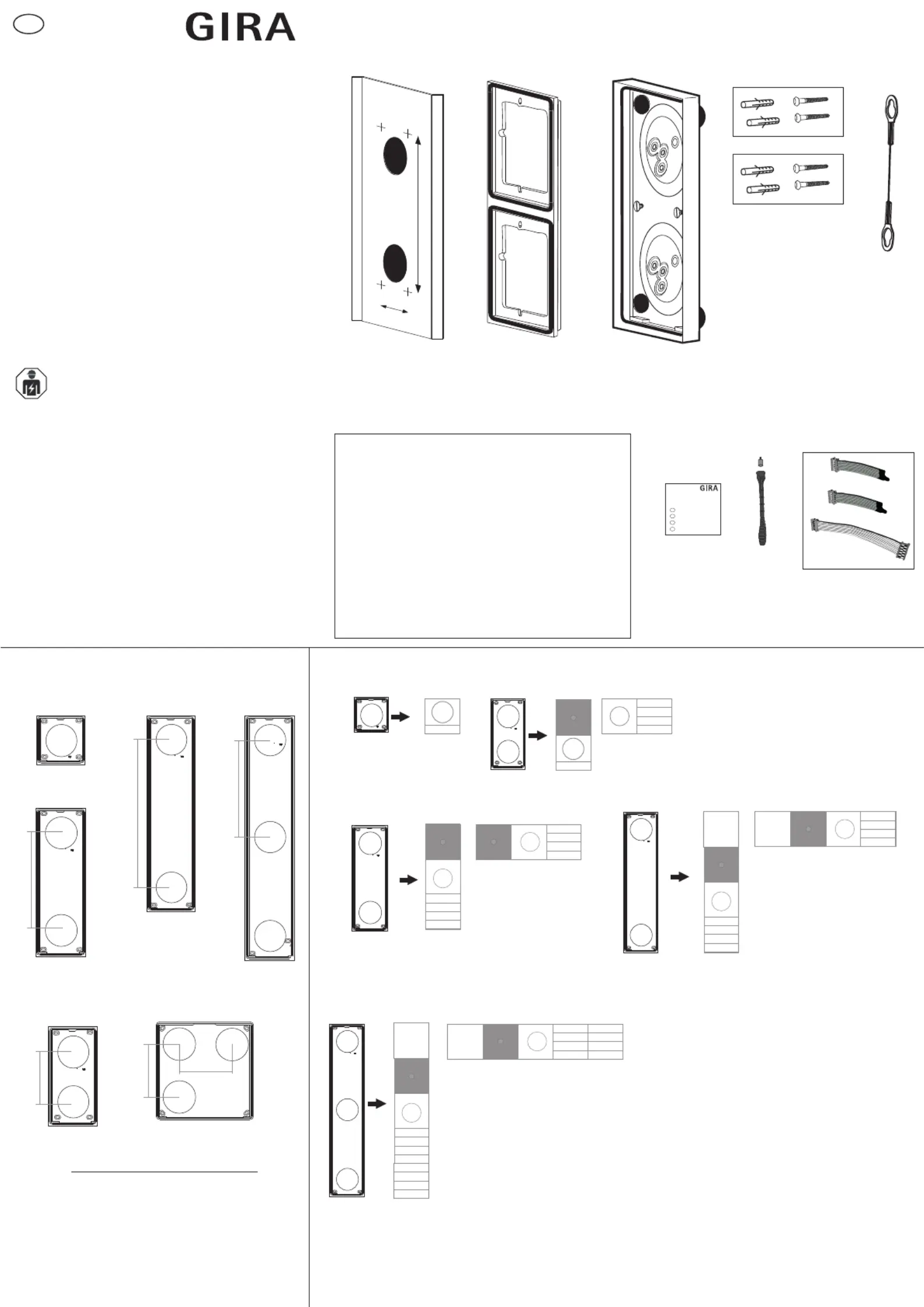

Installation

instructions

1 x 1

Dimensions

1 x 3

1 x 4

1 x 5

220 mm

330 mm

1 x 1 = 106,5 x 106,5 mm

1 x 2 = 106,5 x 213,0 mm

2 x 2 = 213,0 x 213,0 mm

1 x 3 = 106,5 x 319,5 mm

1 x 4 = 106,5 x 426,0 mm

1 x 5 = 106,5 x 532,5 mm

1 x 2

2 x 2

110 mm

a b

Scope of supply

1 x

2 x

1 x

Drilling template

Function carrier

Housing

Screw and dowel set

(ø 6 mm)

Safety bond

Bit holder and bit

Installation instructions

4020

Gehäuse Aufputz 1 bis 5fach

Mounting examples

10 86 43 62 23/17

System 106

Surface-mounted housing

to 5-gang

5501 9..

5502 9..

5503 9..

5504 9..

5505 9..

5508 9..

For your safety

These instructions are part of the product and

must remain with the end customer.

Read the instructions before use and

observe the information.

Mounting example: surface-mounted housing,

2-gang.

Electrical devices may only be installed and

connected by a qualiﬁed electrician.

System cables and

terminating resistors

(from 2-gang housing)

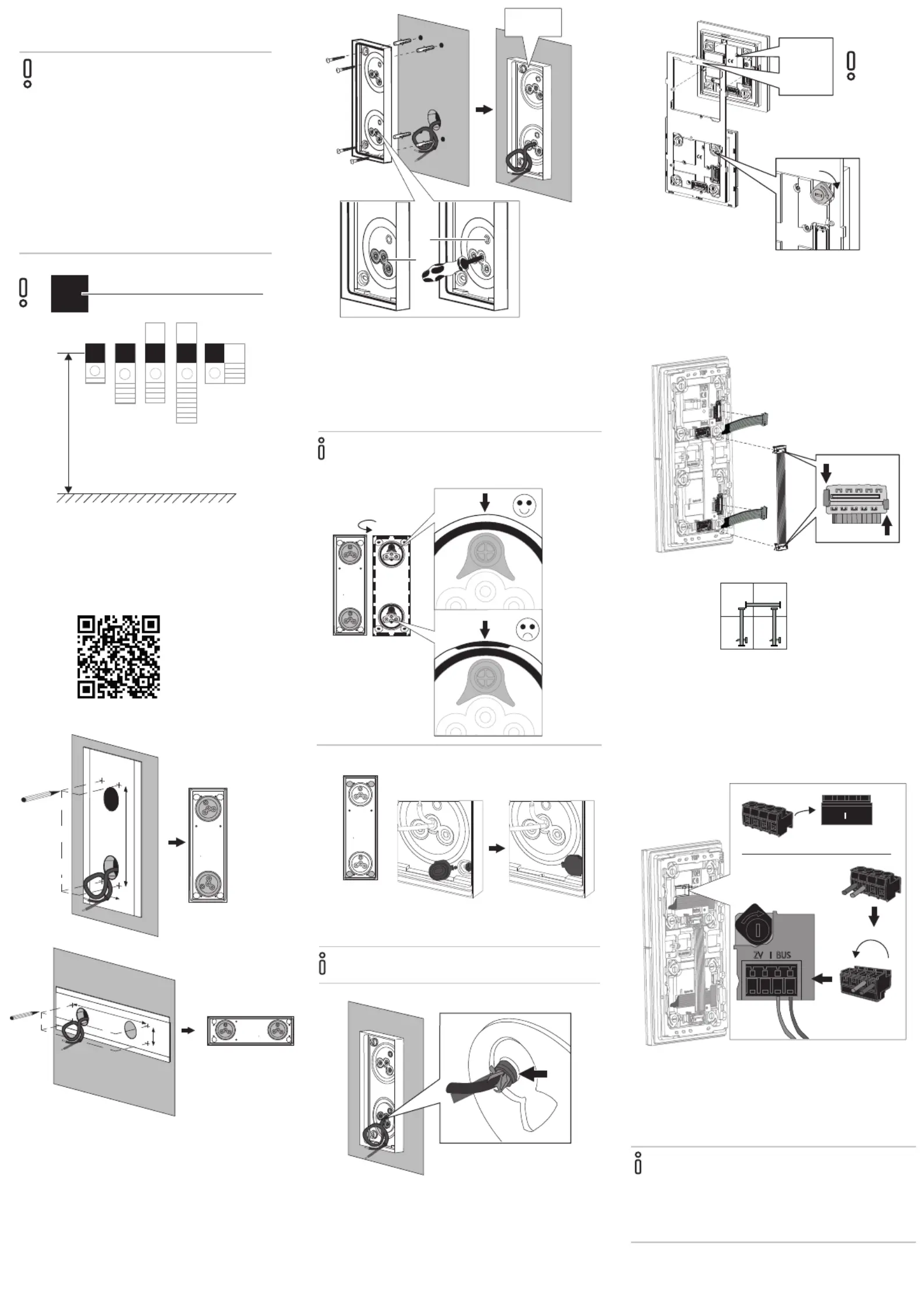

Mounting preparation

1,5 m

item no. 5561 00 / 5567 00

Mounting

Observe installation height and

cable length

180°

System

TOP

Syste

„TOP“

Syst

TOP

System

Check the plug coding!

2x2

180°

ZV BUS

The video on installation can be found

here:

Observe rcommended mounting height for

camera (item no. 5561 00) or display module

(item no. 5567 00). Do not plan the

cable bushing for the connection cable at

the height of these modules!

Recommendation: Use lower bushing with

vertical mounting.

The connection cable should not be longer

than max. 1.5 x the length of the used

surface-mounted housing.

1. Align the drilling template with the markings

for cable entry according to the mounting

type (horizontal/vertical) and mark the drill

holes (ø 6mm). The included mounting

material is not suitable for thermal insulation

compound systems!

2. remove the cable entry seals!Don‘t

Select an opening (A) for cable entry and puncture

with a round object (do not cut crosswise).

Never use the membrane (B) for cable entry!

Completely feed the connection line through the

selected opening and install the surface-mounted

housing.

If the seal cap becomes detached during

installation: reinsert the seal cap and check

for proper seating to ensure tightness.

Firmly push wall ﬁtting plug into the groove and

check for proper seating.

When using other screw types:

the screw heads may not protrude.

Strip insulation of the connection cable as close as

possible to the seal cap (see arrow).

The stripped part of the connection cable may not

be behind the seal cap as this does not guarantee

a functional seal.

Trim connection cable to length and connect to

plug terminal (A). Rotate plug terminal by

180° (B) and attach to the connector of the voice

module or door station module.

Attach the terminating resistors ﬁrst, followed by

the system cable. Always connect a terminating

resistors to the ﬁrst and last module on the

system cable.

Insert the modules into the function carrier

(observe TOP marking) and lock (slot screwdriver

4 x 0.8 mm). For detailed information on the

module please refer to the operating instructions

of the individual modules.

„TOP“

No bridges may be laid between BUS and ZV on

the module. The module automatically detects

whether an additional p er supply is ow

connected.

No jumpers between BUS and ZV

Produkt Specifikationer

Mærke:	Gira
Kategori:	Samtaleanlæg
Model:	5504910
Bredde:	426 mm
Dybde:	25.35 mm
Højde:	106.5 mm
Produktfarve:	Anthracit
Produkttype:	Overflademonteringsboks
Materiale:	Metal
Monteringstype:	Overflade
Mærke kompatibilitet:	GIRA
