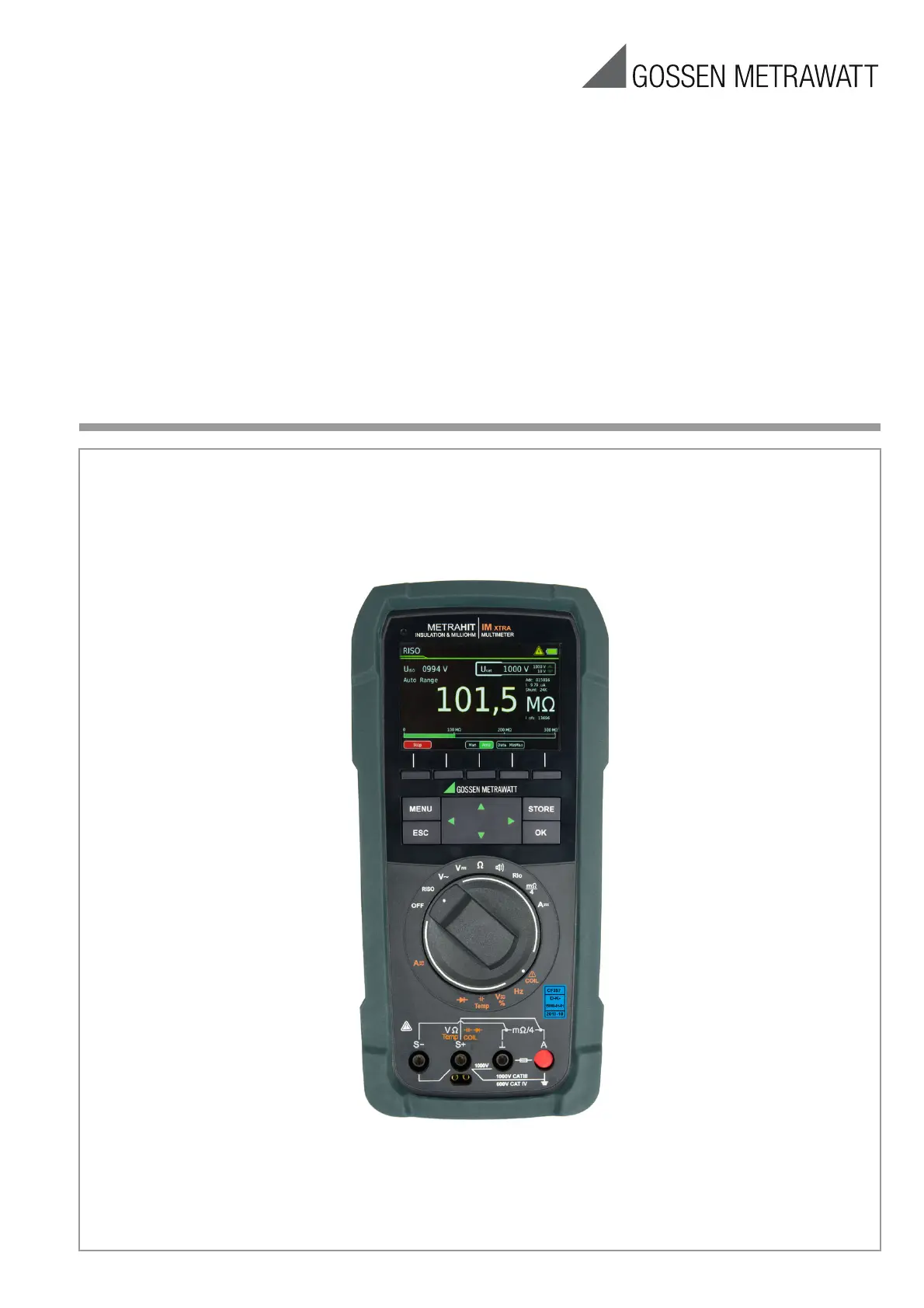

Operating Instructions

METRAHITIM XTRA

(M273A/D/W)

& METRAHITIM E-DRIVE

(M274A/B)

Insulation Tester, Milliohmmeter,

TRMS Multimeter, Inter-Turn Short Circuit Tester 3-447-035-03

7/5.20

2 GMC-I Messtechnik GmbH

Scope of Delivery (depending on instrument variant)

1METRAHIT IM XTRA or METRAHIT IM E-DRIVE multimeter

with rubber holster

1 Probe with start/stop and store/send function

1 KS17-2 cable set: 1 pair of safety measurement cables,

red/black, with 4 mm test tips

1 Type KC4 Kelvin clip (1 pair with METRAHIT IM XTRA)

1 Type KC27 Kelvin probe (with METRAHIT IM E-DRIVE only)

1 Quick change, rechargeable lithium polymer battery with

micro USB charging socket

1 USB mains power pack (5 V DC, 2 A) with cable and micro

USB charging plug

1 DAkkS calibration certificate

1 Hard case for the multimeter and accessories

1 Condensed operating instructions, German/English

– Comprehensive operating instructions in German and English

available on the Internet for download at www.gossenme-

trawatt.com

1 Card with registration key

for the software

Overview Supply

Legend

X = Standard

O = Option

— = not possible, not provided for

Overview of Included Features

1With optional temperature sensors

2For 300,000 measured values, sampling rate adjustable from 0.1 sec-

onds to 9 hours

Accessories (sensors, plug inserts, adapters, consumable materials)

The accessories available for your instrument are checked for

compliance with currently valid safety regulations at regular inter-

vals, and are amended as required for new applications. Currently

up-to-date accessories which are suitable for your measuring

instrument are listed on our website along with photo, order num-

ber, description and, depending upon the scope of the respective

accessory, data sheet and operating instructions:

www.gossenmetrawatt.de

Software Version

These operating instructions describe a multimeter based on soft-

ware version 1.003.000. Refer to section 4.4.1 in order to query

the respectively installed version number.

Current operating instructions for the latest firmware update are

available for download from our website at

www.gossenmetrawatt.com.

Please register at myGMC in order to continuously receive the lat-

est information regarding current software and firmware, as well

as instrument updates and options.

Accessories Type Article No. M273S M274S

METRAHIT IM XTRA

M273D X

METRAHIT IM E-DRIVE BT M274B X

LiIon module & USB charger

Z270A+

Z270A,

Z270G X X

Mains module with electrical

isolation and USB charger Z270E O O

Remote probe Z270S Z270S X X

Cable set

KS17-2

GTY362003

P0002 X X

1 pair Kelvin clips KC4 Z227A X O

1 pair Kelvin probes KC27 Z227B O O

1 Kelvin clip &

1 Kelvin probe KC&S Z227C — X

Hard case HC40 Z270K X X

COIL Adapter 10 μH ,,, 50 mH COIL Adapter 50mH Z270F O O

COIL Adapter 10 μH ,,, 500 mH

COIL Adapter XTRA Z270M O O

Adapter cable, 4 mm plug

to 6 mm socket AK-4M/6F Z110L O O

IZYTRONIQ Business Starter

Licence S101S & Z956A

S101S &

Z956A X X

Function METRAHIT IM XTRA (BT)

METRAHIT IM E-DRIVE (BT)

VDC (Ri  9 M)✔

VAC / Hz TRMS (Ri  9 M)

filter

VAC+DC TRMS (Ri  9 M)

filter

VAC+DC TRMS (Ri  1 M)

RISO range (interference voltage) ✔

Hz (VAC)... 300 kHz

VAC, AC+DC bandwidth 100 kHz

A DC, AC, AC+DC / Hz TRMS 10 nA ... 1 A

Fuse 1 A / 1000 V - 30 kA

Current sensor transformation ratio

1 mV : 1 • • • 10 100 1000 mA

Hz (A AC) ... 30 kHz

Insulation resistance RISO: test voltages 50 • • 100 • • 250 500 1000 V

Inter-turn short circuit test (1 kV) with COIL adapter

Option

Duty cycle measurement as % ✔

RPM measurement ✔

Resistance Rlo with 200 mA per

EN 61557 / VDE 0413 ✔

Milliohm with 4-wire method, m with 200 mA ✔

Milliohm with 4-wire method, m with 1 A pulse ✔

Fuse FF 1A/1000 V – 30 kA

Resistance ✔

Continuity ✔

Diode ... 5.1 V ✔

Temperature: °C/°F TC type K and Pt100/1000

1✔

Capacitance ✔

Min-Max / data hold ✔

Test sequence 20 steps

64 MBit memory 2✔

Bluetooth® interface METRAHIT IM XTRA BT

METRAHIT IM E-DRIVE BT

WiFi interface Option

3.5" TFT color graphic display ✔

Probe with start/stop and send/store keys ✔

Quick-change battery with USB charging ✔

Mains module with electrical isolation and USB Option

WPC quick change battery for inductive charging Option

Protection IP 52

Measuring category 1000 V CAT III, 600 V CAT IV

1kHz
